Product Introduction

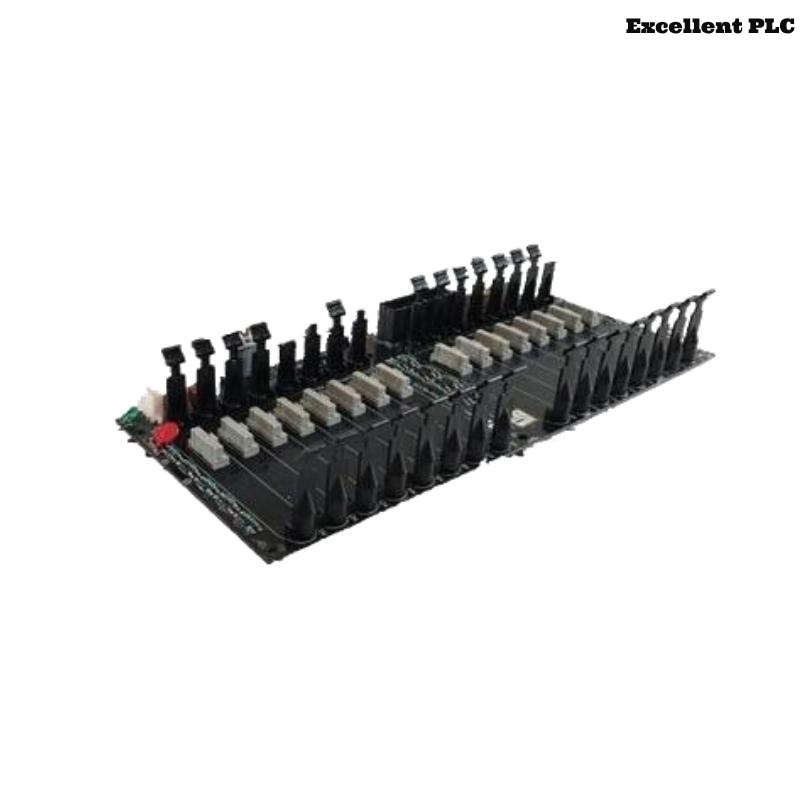

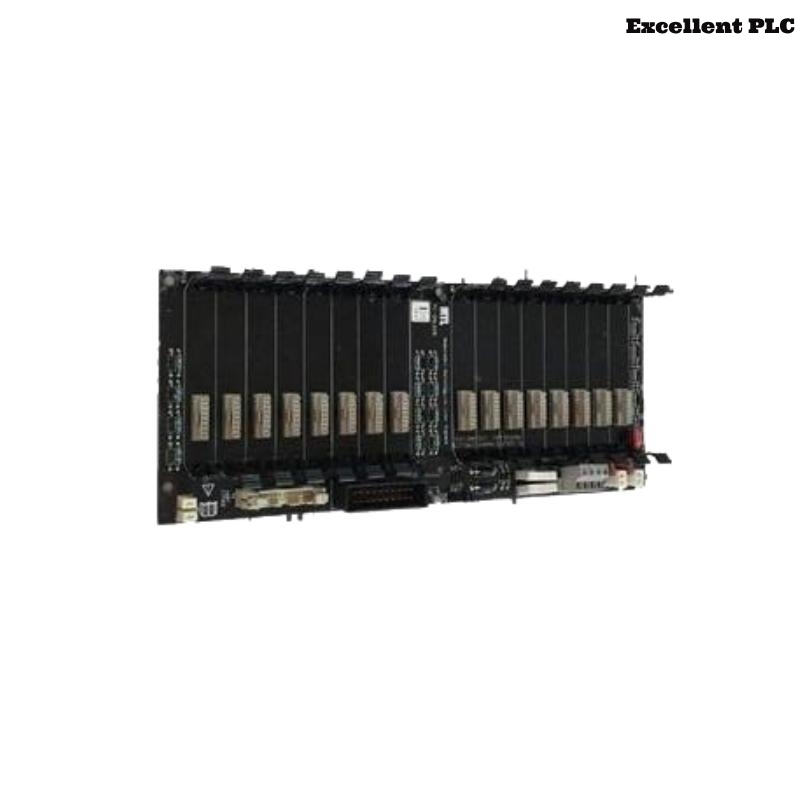

The Honeywell FC-GMLA16 is a 16-channel analog input module designed to convert 4–20 mA current signals into digital values for integration with Honeywell’s control systems.
This module is part of Honeywell’s MTL series and is engineered for high reliability and precision in industrial environments.
It features fault detection, signal linearization, and filtering capabilities, ensuring accurate and stable signal processing.
The module operates on a 24 VDC power supply and is housed in a compact enclosure suitable for various installation scenarios.
Technical Specifications
| Parameter | Specification |
| Model Number | FC-GMLA16 |
| Input Channels | 16 |
| Input Signal Range | 4–20 mA |
| Resolution | 16-bit |
| Accuracy | ±0.1% Full Scale |
| Sampling Rate | 100 ms per channel |
| Power Supply | 24 VDC |
| Current Consumption | 20 mA |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Enclosure Rating | IP67 |
| Dimensions (W x H x D) | 96 x 96 x 60 mm |
| Weight | 0.2 kg |
| Certifications | CE, RoHS |
Applications
The FC-GMLA16 module is suitable for various industrial applications, including:
-
Process control systems
-
Distributed Control Systems (DCS)
-
Remote terminal units
-
Industrial automation systems
-
Data acquisition systems
-
Monitoring and control of analog signals in manufacturing processes
Advantages
-
High Channel Density: Provides 16 analog input channels in a compact form factor.
-
Precision Measurement: Offers 16-bit resolution and ±0.1% full-scale accuracy.
-
Robust Design: IP67-rated enclosure ensures protection against dust and water ingress.
-
Wide Operating Temperature Range: Suitable for harsh industrial environments.
-
Ease of Integration: Compatible with Honeywell’s control systems and supports standard 4–20 mA signals.
Frequently Asked Questions (FAQs)
1. What is the primary function of the FC-GMLA16 module?
It converts 4–20 mA analog signals from field devices into digital values for processing by control systems.
2. Can the module detect signal faults?
Yes, it features fault detection capabilities for open and short circuits on each channel.
3. Is the module suitable for outdoor installations?
With its IP67 rating, it is protected against dust and water, making it suitable for outdoor use when properly installed.
4. What is the power supply requirement?
The module operates on a 24 VDC power supply.
5. How does the module ensure signal accuracy?
It offers 16-bit resolution and ±0.1% full-scale accuracy, along with signal linearization and filtering features.
6. What is the sampling rate per channel?
Each channel has a sampling rate of 100 ms.
7. Can the module be used in high-temperature environments?
Yes, it operates within a temperature range of -20°C to +60°C.
8. Is the module compliant with international standards?
It is certified with CE and RoHS standards.
9. What are the dimensions and weight of the module?
It measures 96 x 96 x 60 mm and weighs 0.2 kg.
10. How is the module integrated into existing systems?
It is designed for easy integration with Honeywell’s control systems and supports standard 4–20 mA analog signals.
Related Models
| Model Number | Description |
| FC-GMLA08 | 8-channel analog input module |
| FC-GMLA16-HART | 16-channel AI module with HART communication |
| FC-GMLA16-EX | 16-channel AI module for hazardous environments |
| FC-GMLA16-HT | High-temperature 16-channel AI module |
| FC-GMLA16-IP65 | IP65-rated 16-channel AI module |
| FC-GMLA16-DIN | DIN rail mountable 16-channel AI module |
| FC-GMLA16-Red | Redundant 16-channel AI module |
| FC-GMLA16-ISO | Isolated 16-channel AI module |
