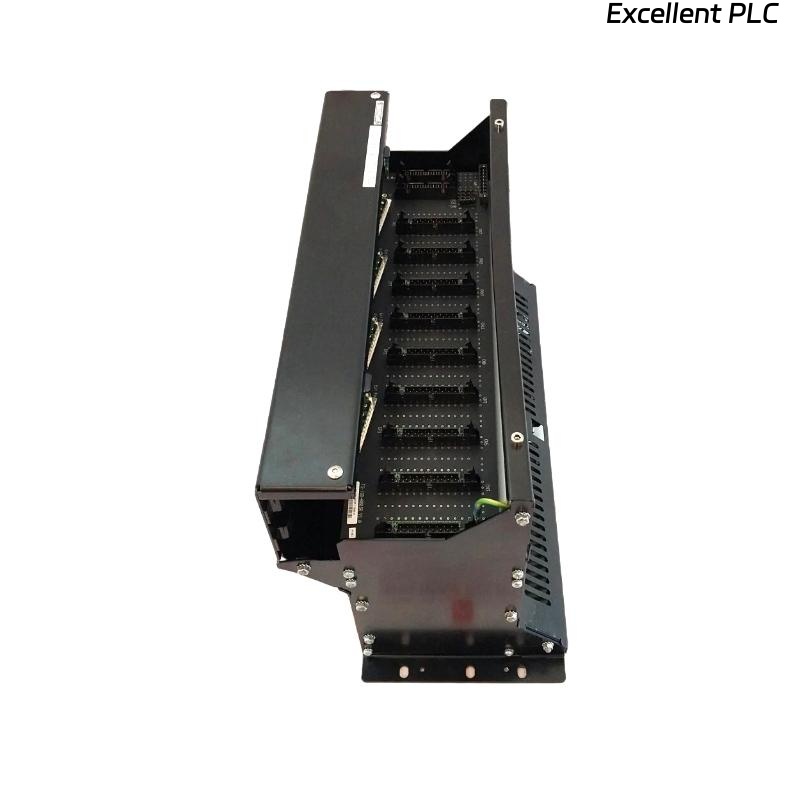

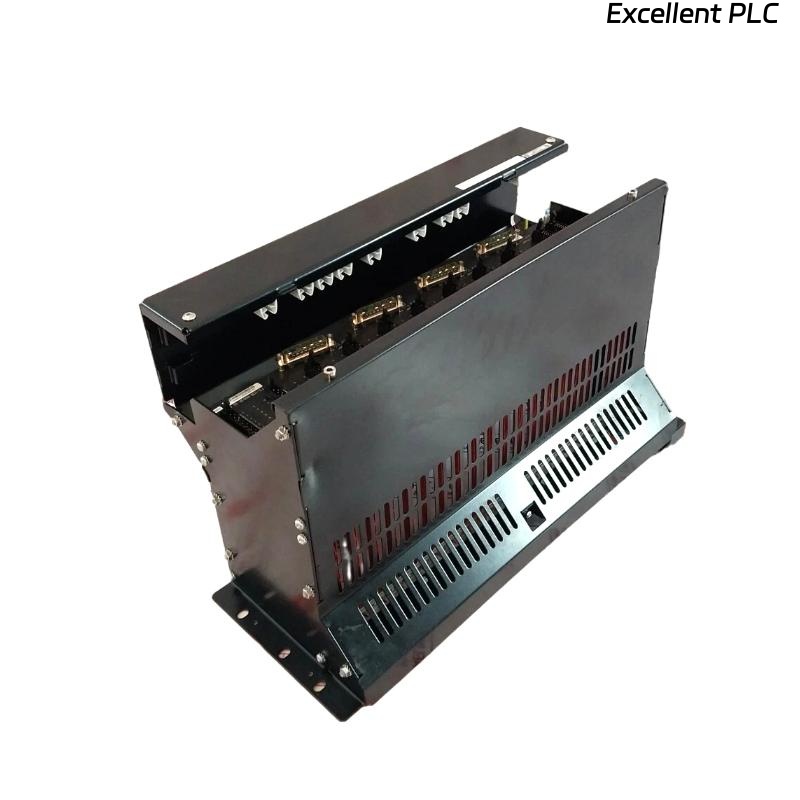

The Honeywell FC-IOCHAS-0003R Chassis for Redundant I/O Module is a high-performance industrial chassis specifically engineered for hosting redundant I/O modules within Honeywell’s Experion Process Knowledge System (PKS). Designed for critical process control environments, it provides robust support for dual-channel redundant I/O configurations, ensuring maximum reliability and system availability.
This chassis features a dual redundant backplane for high-speed communication and fault-tolerant power distribution, making it ideal for applications where system uptime is non-negotiable. Its industrial-grade construction, seamless integration with Honeywell C300 controllers, and compatibility with both analog and digital I/O modules make it a preferred choice for large-scale distributed control systems.
Product Specifications
| Parameter | Details |
|---|---|
| Model | Honeywell FC-IOCHAS-0003R |
| Type | Chassis for Redundant I/O Module |
| System Compatibility | Honeywell Experion PKS |
| Backplane Architecture | Dual redundant high-speed communication bus |
| Power Distribution | Dual redundant power rails |
| I/O Module Support | Analog and digital redundant I/O modules |
| Slot Capacity | Multiple high-density I/O slots |
| Mounting Type | Rack/panel mounting |
| Material | Industrial-grade coated steel/aluminum |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Compliance Standards | CE, UL, RoHS, IEC |
| Dimensions (L x W x H) | 222.4 x 482.6 x 280 mm |
| Weight | 8.7 kg |
Product Applications
-
Distributed Control Systems (DCS): Serves as a central component for redundant I/O in Experion PKS-based process automation systems.
-
High-Availability Process Plants: Designed for industries like oil & gas, refining, and power generation where continuous operation is critical.
-
Dual-Channel I/O Architecture: Enables hot-standby redundancy for fault-tolerant control strategies.
-
Plant Modernization Projects: Supports integration into both greenfield installations and brownfield upgrades.
-
Centralized and Field Installation: Can be mounted in control rooms or remote field enclosures for flexible system architecture.
-
Large-Scale Signal Management: Optimized for high-density analog and digital I/O configurations.
Product Advantages
-
Full Redundancy: Dual communication and power backplane ensures maximum system uptime and failover protection.
-
Hot-Swappable Modules: Allows replacement and maintenance without shutting down the system.
-
Seamless PKS Integration: Fully compatible with Honeywell’s Experion PKS environment for easy deployment.
-
Industrial Durability: Built with rugged materials to withstand demanding operating conditions.
-
Flexible I/O Support: Accommodates both analog and digital redundant I/O modules in one chassis.
-
Low-Latency Communication: Optimized for high-speed data transfer to meet real-time control requirements.
FAQ
-
Does the FC-IOCHAS-0003R support mixed analog and digital I/O modules?
Yes, it is designed to handle both analog and digital redundant I/O modules simultaneously. -
What type of backplane communication does the chassis use?
It uses a dual redundant high-speed communication bus optimized for Honeywell Experion PKS systems. -
Is hot-swapping supported for I/O modules installed in this chassis?
Yes, the chassis supports hot-swapping of I/O modules without system shutdown. -
Can this chassis be used in mission-critical process automation applications?
Absolutely. It is designed for high-availability control systems that demand fault tolerance. -
Does the chassis provide redundant power distribution?
Yes, it incorporates dual power rails to ensure uninterrupted operation in case of power supply failure. -
Is it compatible with existing Experion PKS installations?
Yes, it can be seamlessly integrated into new and existing Experion PKS-based DCS architectures. -
What is the benefit of a redundant backplane in this chassis?
The redundant backplane ensures continuous communication between controllers and I/O modules, even during a fault. -
Can the FC-IOCHAS-0003R be mounted in both centralized and distributed installations?
Yes, it is suitable for both control room rack installations and field enclosures. -
Does it support high-density I/O configurations for large process plants?
Yes, the chassis is optimized for high-density analog and digital I/O setups. -
Is the chassis compliant with industrial safety and EMC standards?
Yes, it meets CE, UL, RoHS, and IEC standards for industrial automation equipment.
