Product Overview

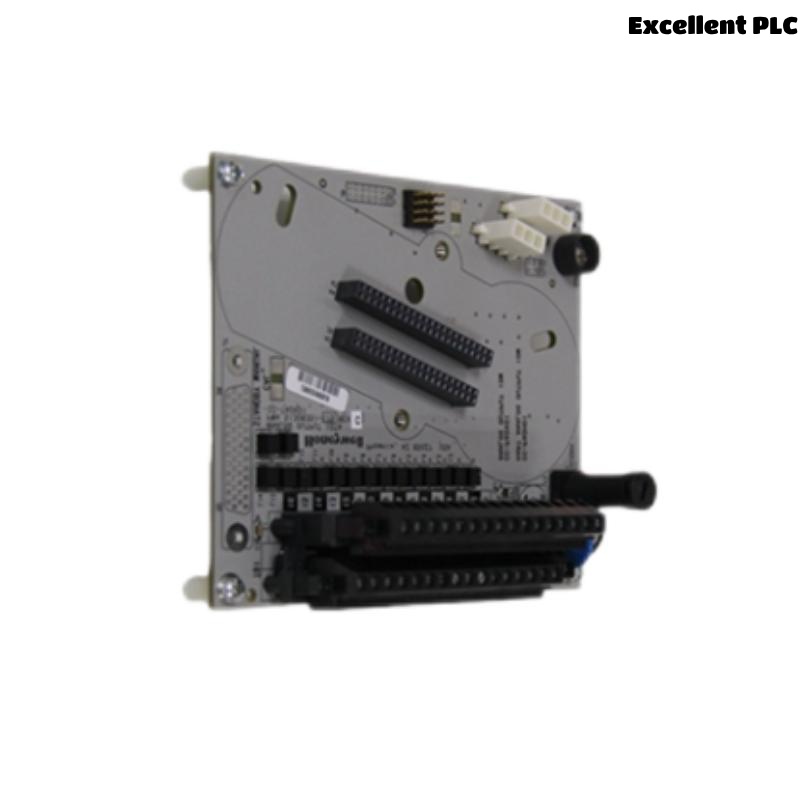

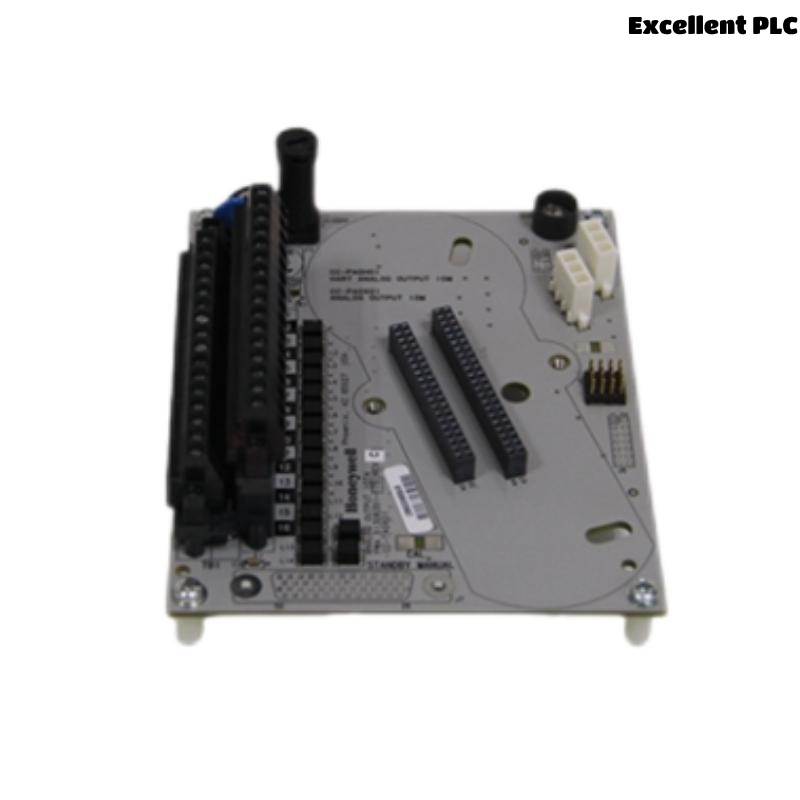

The Honeywell FC-SAI-0410 is a 4-channel safe analog input module designed for use in safety-critical applications within industrial automation systems. Engineered to meet stringent safety standards, this module ensures reliable and accurate analog signal acquisition, making it suitable for processes where safety and precision are paramount.
Manufactured in the United States, the FC-SAI-0410 is part of Honeywell’s Safety Manager series, offering seamless integration with Honeywell’s safety systems. Its robust design and compliance with international safety certifications make it an ideal choice for industries such as oil and gas, chemical processing, and power generation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | FC-SAI-0410 |
| Type | Safe Analog Input Module |
| Number of Channels | 4 |
| Input Signal Range | 0–20 mA / 4–20 mA |
| Accuracy | ±0.1% of full scale |
| Input Impedance | 250 Ohms |
| Isolation | Channel-to-channel and channel-to-system |
| Operating Voltage | 24 VDC nominal |
| Power Consumption | 3 W |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions (W x H x D) | 190 x 185 x 65 mm |
| Weight | 0.43 kg |
| Mounting | DIN rail or panel mounting |
| Certifications | SIL 3, CE, UL, CSA |
| Country of Origin | United States |
Applications
The FC-SAI-0410 is designed for applications requiring high safety integrity and precise analog signal monitoring:
-
Oil and Gas Industry: Monitoring pressure, temperature, and flow in hazardous environments.
-
Chemical Processing: Ensuring safe operation by accurately reading critical process variables.
-
Power Generation: Monitoring turbine parameters and other vital analog signals.
-
Pharmaceutical Manufacturing: Maintaining strict environmental controls through precise analog measurements.
-
Water and Wastewater Treatment: Monitoring pH levels, flow rates, and other essential parameters.
Advantages
-
High Safety Integrity: Certified to SIL 3, ensuring compliance with international safety standards.
-
Accurate Signal Acquisition: Provides precise analog measurements with high accuracy.
-
Robust Isolation: Channel-to-channel and channel-to-system isolation enhances reliability.
-
Flexible Mounting Options: Supports both DIN rail and panel mounting for versatile installation.
-
Wide Operating Range: Operates effectively across a broad temperature and humidity range.
-
Seamless Integration: Designed to integrate effortlessly with Honeywell’s Safety Manager systems.
Frequently Asked Questions (FAQs)
Q1: What types of signals can the FC-SAI-0410 accept?
A1: It accepts standard analog current signals, specifically 0–20 mA and 4–20 mA.
Q2: Is the module suitable for use in SIL 3 applications?
A2: Yes, it is certified for SIL 3 applications, meeting high safety integrity requirements.
Q3: How many channels does the module have?
A3: The FC-SAI-0410 features 4 independent analog input channels.
Q4: Can the module be mounted on a DIN rail?
A4: Yes, it supports both DIN rail and panel mounting options.
Q5: What is the operating temperature range of the module?
A5: It operates within a temperature range of -20°C to +60°C.
Q6: Does the module provide channel-to-channel isolation?
A6: Yes, it offers isolation between channels and between channels and the system.
Q7: What is the input impedance of the module?
A7: The input impedance is 250 Ohms.
Q8: Is the module compatible with Honeywell’s Safety Manager system?
A8: Yes, it is designed for seamless integration with Honeywell’s Safety Manager.
Q9: What certifications does the module have?
A9: It holds certifications including SIL 3, CE, UL, and CSA.
Q10: What is the weight of the module?
A10: The module weighs 0.43 kg.
