Product Introduction

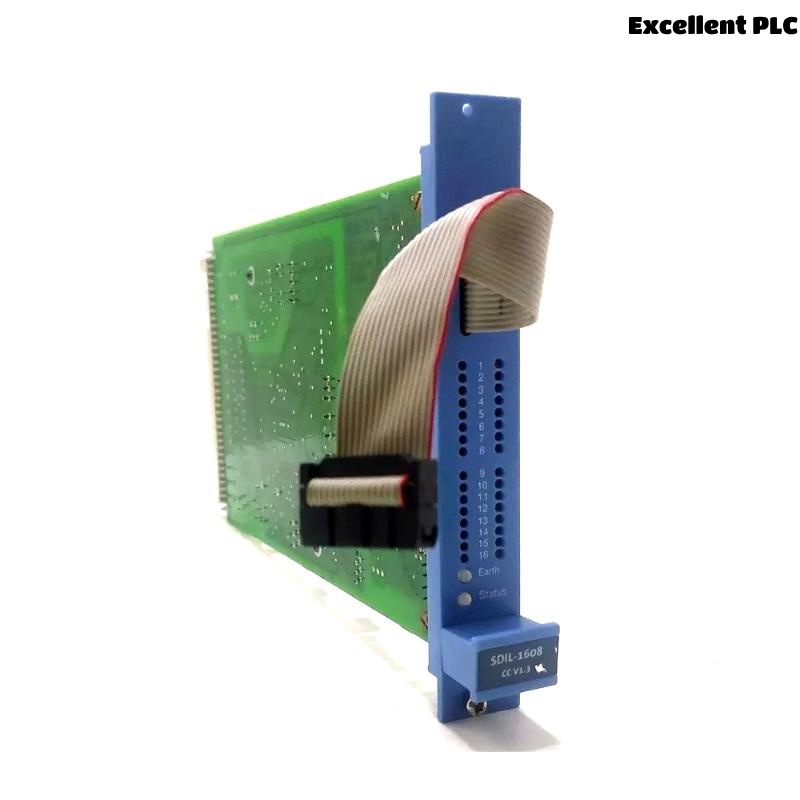

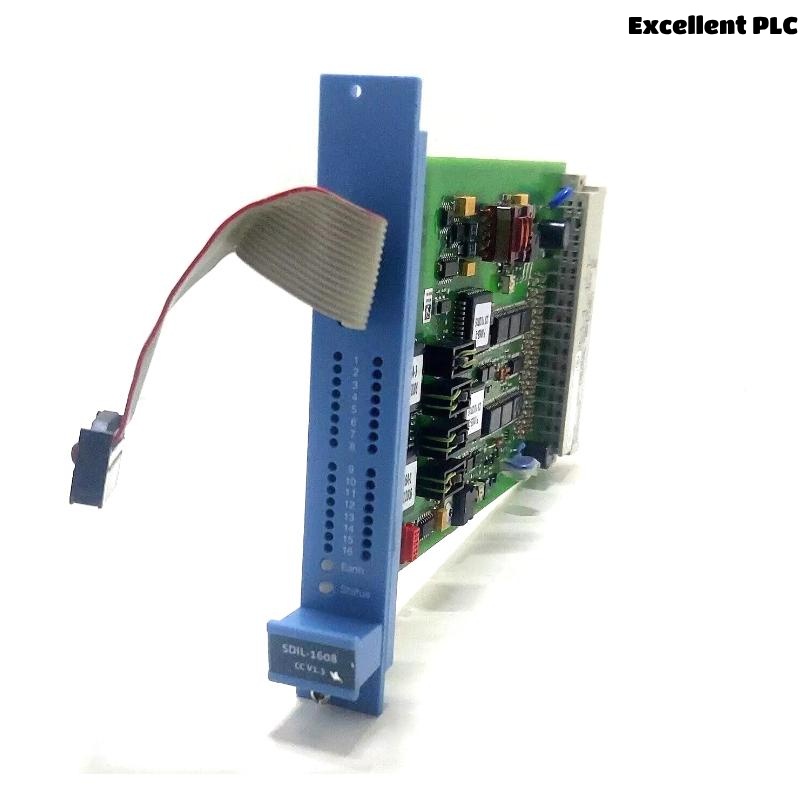

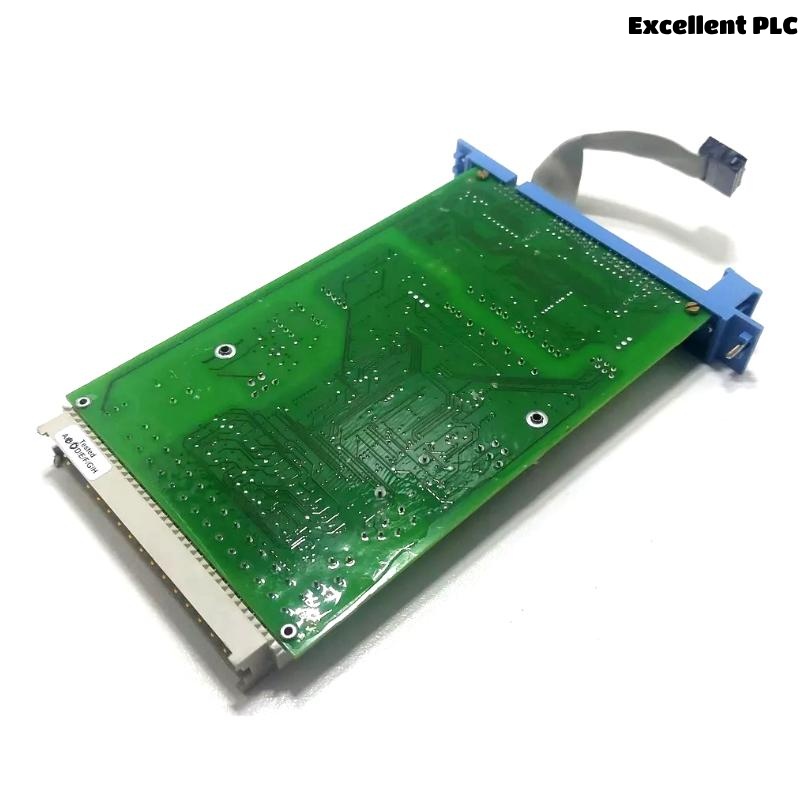

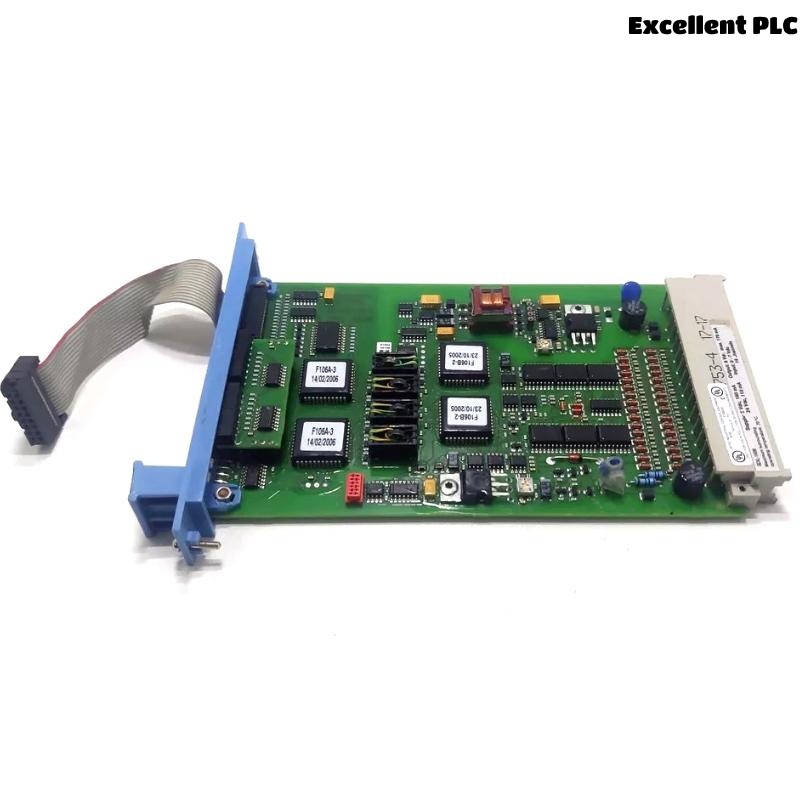

The Honeywell FC-SDIL-1608 is a highly advanced safety manager system module designed for use in industrial environments to enhance safety management and control systems. This module is part of Honeywell’s Safety Manager series, which is engineered to provide a seamless and integrated solution for critical safety applications in industries such as oil & gas, power generation, chemicals, and manufacturing.
The FC-SDIL-1608 module is equipped with advanced processing power and communication interfaces, making it an essential component for managing safety functions, diagnostics, and alarms in high-risk environments. It supports multiple safety and monitoring features, ensuring optimal performance and compliance with industry regulations, while also reducing operational risks.
This system module is designed with high reliability and flexibility, allowing it to be easily integrated with various control and monitoring systems. The compact design and ease of installation make it an ideal choice for applications requiring high safety standards while maintaining operational efficiency.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | FC-SDIL-1608 |
| Dimensions | 100 × 160 × 20.32 mm |
| Weight | 0.5 kg |
| Input/Output Channels | 8 Digital Inputs / 8 Digital Outputs |
| Power Supply | 24 VDC |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
| Communication Protocol | Modbus, Profibus, HART |
| Mounting Type | DIN Rail Mounting |
| Hazardous Area Approval | ATEX, IECEx |
| System Compatibility | Honeywell Safety Manager System |
| LED Indicators | Diagnostic LEDs for each channel |
| Certification | SIL 3 Certified |
Product Applications
The Honeywell FC-SDIL-1608 safety manager system module is used in a variety of safety-critical applications where the protection of personnel and assets is a top priority. The module integrates seamlessly into Honeywell’s Safety Manager system, providing a range of safety functions, including:
-
Industrial Safety Applications: Used in process industries to monitor and control safety functions such as emergency shutdown systems, fire and gas detection systems, and gas leak detection.
-
Oil & Gas Industry: Essential for the safety of oil rigs, refineries, and petrochemical plants, the module helps manage risks associated with hazardous processes and provides real-time monitoring of safety systems.
-
Power Generation: Used in nuclear, coal, and gas power plants to monitor critical equipment, ensuring safe operation and regulatory compliance.
-
Chemical and Pharmaceutical: Protects personnel and assets by ensuring that hazardous chemicals are safely handled and that safety protocols are followed during chemical processes.
-
Mining and Heavy Industry: Plays a vital role in ensuring safety in mining operations, steel manufacturing, and other heavy industries by monitoring safety systems in high-risk areas.
-
Manufacturing and Production Lines: Integrated into production lines where operational safety is essential, the module ensures that safety protocols are adhered to and helps reduce downtime caused by safety-related incidents.
Product Advantages
The Honeywell FC-SDIL-1608 safety manager system module offers several distinct advantages that make it an essential part of safety management in industrial environments:
-
High Reliability and Performance: Designed to meet the highest safety standards, the FC-SDIL-1608 operates with outstanding reliability, ensuring safe and continuous operation in critical applications.
-
SIL 3 Certification: The module is certified for Safety Integrity Level (SIL) 3, ensuring that it meets the strictest safety and reliability standards for safety-critical systems.
-
Compact and Robust Design: With its compact size of 100 × 160 × 20.32 mm and durable construction, it fits easily into space-constrained environments while maintaining high performance.
-
Wide Operating Temperature Range: The module can operate in extreme environments, with a temperature range of -40°C to +70°C, making it suitable for use in harsh industrial conditions.
-
Flexible Communication Protocols: Supports popular communication protocols like Modbus, Profibus, and HART, making it compatible with a wide range of control systems and monitoring equipment.
-
Diagnostic and LED Indicators: The module includes diagnostic LEDs for each input/output channel, providing clear visibility of the system’s health and making troubleshooting easier.
-
ATEX and IECEx Approvals: The module meets ATEX and IECEx hazardous area approvals, ensuring that it can be used safely in explosive atmospheres, offering additional safety for critical applications in hazardous locations.
-
Easy Integration and Installation: The DIN rail mounting design ensures quick and simple installation, making it easy to integrate into existing systems without significant downtime.
-
Low Power Consumption: Operating on a 24 VDC power supply, it consumes minimal power, contributing to energy efficiency and reduced operational costs.
-
Regulatory Compliance: Helps ensure compliance with various industrial safety regulations and standards, minimizing the risk of accidents and downtime.
Frequently Asked Questions (FAQs)
-
What is the power supply requirement for the Honeywell FC-SDIL-1608 module?
The module requires a 24 VDC power supply for operation. -
What is the operating temperature range of the FC-SDIL-1608?
The module operates in temperatures ranging from -40°C to +70°C (-40°F to +158°F). -
Can the FC-SDIL-1608 module be used in hazardous environments?
Yes, the module has ATEX and IECEx hazardous area approvals, making it suitable for use in explosive atmospheres. -
How many input/output channels does the FC-SDIL-1608 have?
It features 8 digital inputs and 8 digital outputs. -
What certifications does the FC-SDIL-1608 have?
The module is certified to SIL 3 and meets stringent safety and reliability standards. -
What is the size of the Honeywell FC-SDIL-1608 module?
The module has compact dimensions of 100 × 160 × 20.32 mm. -
Which communication protocols does the FC-SDIL-1608 support?
It supports Modbus, Profibus, and HART communication protocols. -
Can the FC-SDIL-1608 module be easily integrated into existing systems?
Yes, it is designed for easy integration and installation, and features DIN rail mounting for quick setup. -
What are the advantages of using the Honeywell FC-SDIL-1608 in industrial applications?
It provides high reliability, SIL 3 certification, low power consumption, and easy installation, ensuring safe operation in critical applications. -
Is the FC-SDIL-1608 module compatible with Honeywell Safety Manager Systems?
Yes, it is fully compatible with Honeywell’s Safety Manager systems, providing a comprehensive safety management solution.
