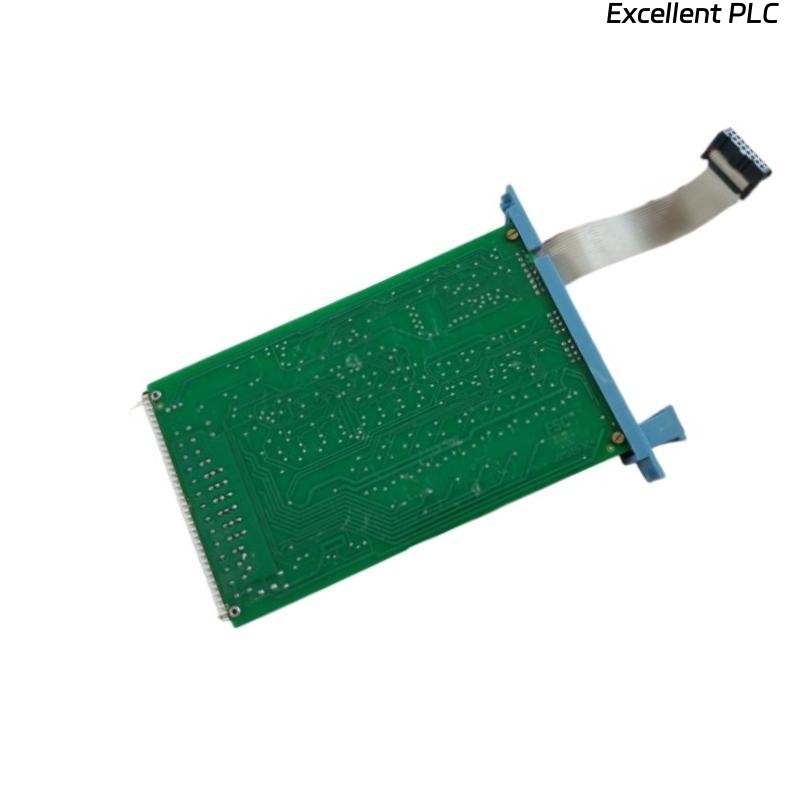

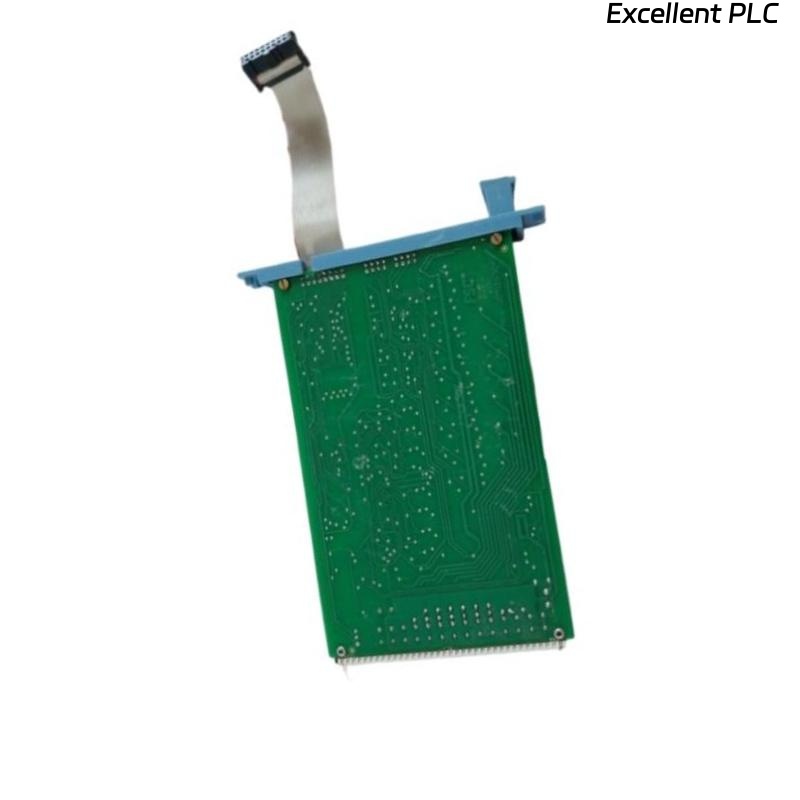

Honeywell FC-SDO-0824M Safety Digital Output Modules

Product Overview

The Honeywell FC-SDO-0824M is an advanced safety-rated digital output module engineered for use in critical safety applications within the Honeywell Safety Manager platform. This module is designed to provide reliable output control for actuators, valves, relays, and other digital field devices. With eight independent 24 VDC output channels, robust diagnostic features, and fail-safe operation capabilities, the FC-SDO-0824M ensures precise and secure execution of safety functions in compliance with industry standards such as IEC 61508.

---

Key Features

• 8-channel 24 VDC digital outputs

• Designed for SIL3 safety applications (IEC 61508 compliant)

• Supports fail-safe and de-energize-to-trip configurations

• Output status and diagnostics per channel

• Automatic fault detection and indication

• Integrated with Honeywell Safety Manager systems

• Hot-swappable module for high availability

• LED indicators for channel status and faults

---

Technical Specifications

---

Industry Applications

• Emergency Shutdown Systems (ESD)

• Fire & Gas Systems (F&G)

• Burner Management Systems (BMS)

• Safety Instrumented Systems (SIS)

• Distributed Control Systems (DCS)

• Oil & Gas Processing Facilities

• Power Generation and Utilities

• Chemical and Pharmaceutical Plants

---

Product Advantages

• Certified Safety: Meets SIL3 requirements for the highest level of safety integrity

• Multi-Channel Output: Controls up to 8 devices independently with high accuracy

• Redundant Capable: Compatible with redundant configurations for fault tolerance

• Field Diagnostics: Built-in channel diagnostics for fast fault identification

• Hot-Swappable Design: Ensures continuous system operation during maintenance

• Industrial Durability: Withstands harsh operating conditions and environments

---

Frequently Asked Questions (FAQ)

1. How many output channels does the FC-SDO-0824M module support?
It supports 8 independent digital output channels.

2. What voltage level does the module operate at?
The module operates at a nominal 24 VDC output.

3. Is the FC-SDO-0824M suitable for SIL3 applications?
Yes, it is fully compliant with IEC 61508 for SIL3-rated systems.

4. Can the module detect faults on individual channels?
Yes, each channel features diagnostic monitoring and status indication.

5. Is the module hot-swappable?
Yes, it can be replaced without shutting down the system.

6. What kind of output configuration is used?
It provides sourcing (high-side) digital output signals.

7. Does it support fail-safe behavior?
Yes, fail-safe behavior is configurable per channel.

8. What is the maximum current output per channel?
Each channel supports up to 0.5 A of output current.

9. What are the environmental conditions for operation?
It operates between 0°C and +60°C and can be stored from -40°C to +85°C.

10. Is the module compatible with Honeywell Safety Manager?
Yes, it is specifically designed for seamless integration into Safety Manager systems.

---
