Product Introduction

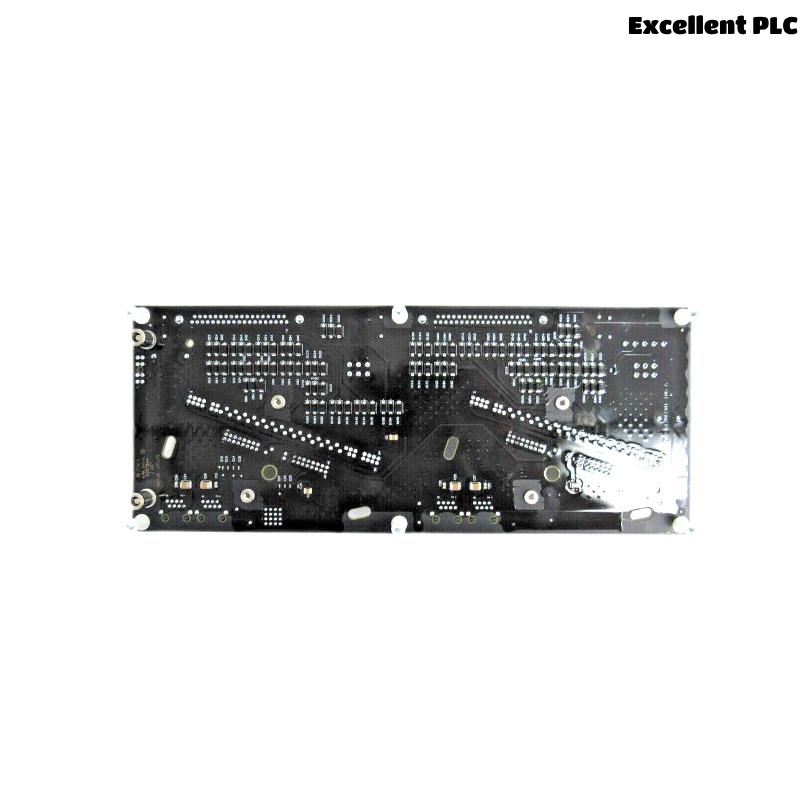

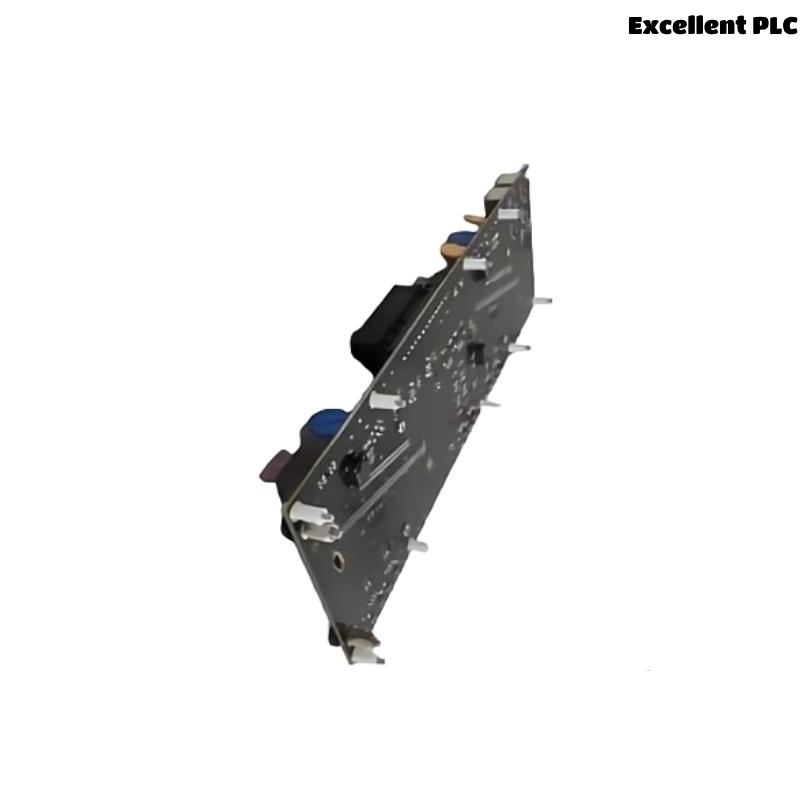

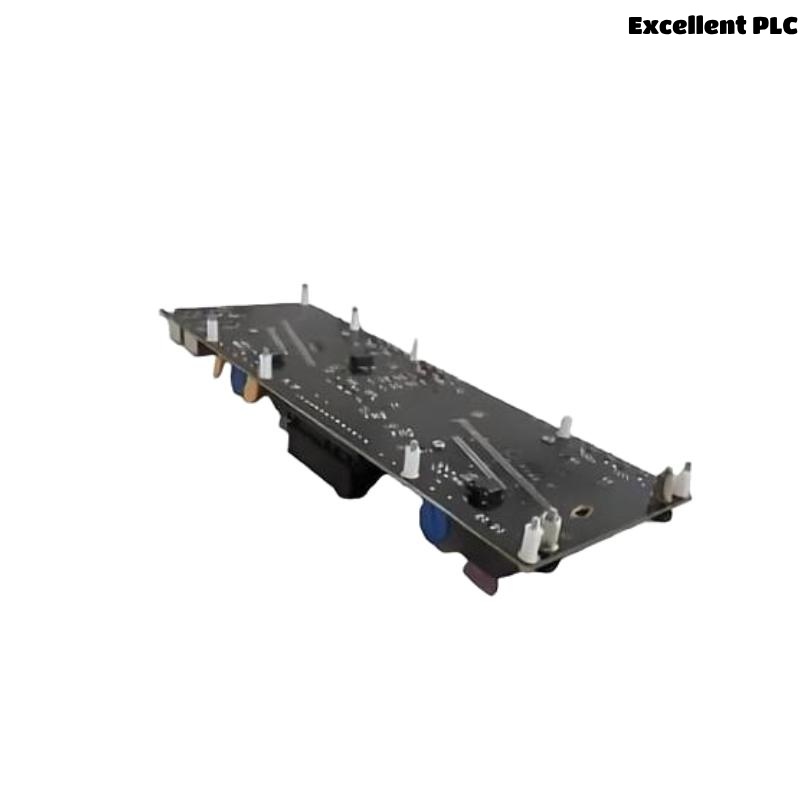

The Honeywell FC-TDIO01 is a Security Manager SC Hardware module designed as part of the Honeywell Safety Manager (SM) system within the Experion Process Knowledge System (PKS) architecture. This module is primarily responsible for Total Distributed Input/Output (TDIO) functions, integrating both digital and analog I/O into a centralized, fault-tolerant safety system. It is specifically engineered to support Safety Instrumented Systems (SIS) and critical process control in highly regulated industrial environments such as oil & gas, refining, power generation, and chemical plants.
The FC-TDIO01 serves as a bridge between field devices and the control processor, handling signals for input sensors and output actuators while ensuring fail-safe operation, real-time diagnostics, and deterministic behavior. As part of Honeywell’s Safety Manager SC family, it supports high availability configurations and adheres to IEC 61508 and ISA S84 standards for SIL 3 applications.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | FC-TDIO01 |
| Product Type | Total Distributed Input/Output (TDIO) Module |
| System Compatibility | Honeywell Safety Manager SC / Experion PKS |
| I/O Channels | Supports multiple DI/DO and AI/AO channels (exact count depends on configuration) |
| Power Supply Voltage | 24 VDC nominal (redundant supported) |
| Processor Interface | Redundant Safety Manager CPU communication via FTE/SM I/O Bus |
| Fail-Safe Behavior | Configurable fail-safe output states |
| Status Indication | Integrated LED diagnostics for channel health and status |
| Communication Protocols | SM I/O bus protocol, internal system bus |
| Certifications | SIL 3 (IEC 61508), TÜV, CE, CSA, ATEX |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Dimensions (W x H x D) | 145.52 × 222.55 × 32 mm |
| Weight | 0.85 kg |
| Mounting | DIN Rail or Rack-mounted |
| Housing Material | Industrial-grade plastic, fire-retardant |
Product Applications
-
Emergency Shutdown Systems (ESD): Ensures rapid and reliable deactivation of processes in the event of hazardous conditions.
-
Fire and Gas Systems (F&G): Interfaces with detectors and alarms for real-time hazard detection and suppression.
-
Burner Management Systems (BMS): Manages combustion and startup/shutdown sequences in furnaces and boilers.
-
High-Integrity Pressure Protection Systems (HIPPS): Prevents over-pressurization in pipeline systems.
-
Pipeline and Refining Control: Maintains control over critical valves, sensors, and actuators with high safety demands.
-
Nuclear and Conventional Power Plants: Offers deterministic safety responses in mission-critical applications.
Product Advantages
-
Integrated I/O Functionality: Combines digital and analog I/O into a single module, simplifying architecture.
-
High Availability: Supports redundant configurations to ensure continuous system uptime.
-
Certified Safety Compliance: Fully compliant with IEC 61508 SIL 3, ensuring functional safety in the harshest environments.
-
Modular Scalability: Easily scales with expanding process requirements without redesigning system architecture.
-
Advanced Diagnostics: Real-time channel-level diagnostics help detect wiring faults and hardware errors proactively.
-
System Interoperability: Seamless integration with Honeywell Experion PKS for unified control and safety architecture.
-
Deterministic Performance: Guarantees fixed scan times and predictable response behavior—critical for SIS.
-
Fail-Safe Design: Ensures output channels move to a preconfigured safe state upon fault detection.
-
Space-Saving Form Factor: Compact yet robust design suitable for dense installations in industrial panels.
-
Field-Proven Reliability: Thousands of successful deployments globally with proven uptime metrics.
Frequently Asked Questions (FAQ)
-
What is the primary function of the FC-TDIO01 module?
It handles both digital and analog I/O functions in a Safety Instrumented System (SIS) environment. -
Is the FC-TDIO01 compatible with Honeywell’s Experion PKS?
Yes, it is designed to work seamlessly within the Experion PKS control and safety architecture. -
What type of safety certification does the module have?
It is certified for SIL 3 applications according to IEC 61508. -
Does it support redundant power and communication configurations?
Yes, redundancy is a core feature for both power and communication paths. -
How is the module mounted?
It can be mounted either on a DIN rail or within a rack system. -
Can this module be hot-swapped?
In systems configured for redundancy, replacement of one module can be done without system shutdown. -
What happens when a fault is detected?
The module forces outputs to a predefined fail-safe state and logs the fault for diagnostics. -
Can it be used in fire and gas applications?
Absolutely. It is ideal for use in fire and gas detection and suppression systems. -
What kind of diagnostic capabilities does it offer?
It provides per-channel diagnostics including open circuit, short circuit, and status indication. -
Is firmware upgradeable in the field?
Yes, firmware can be upgraded through secure configuration tools while preserving system integrity.
