Product Introduction

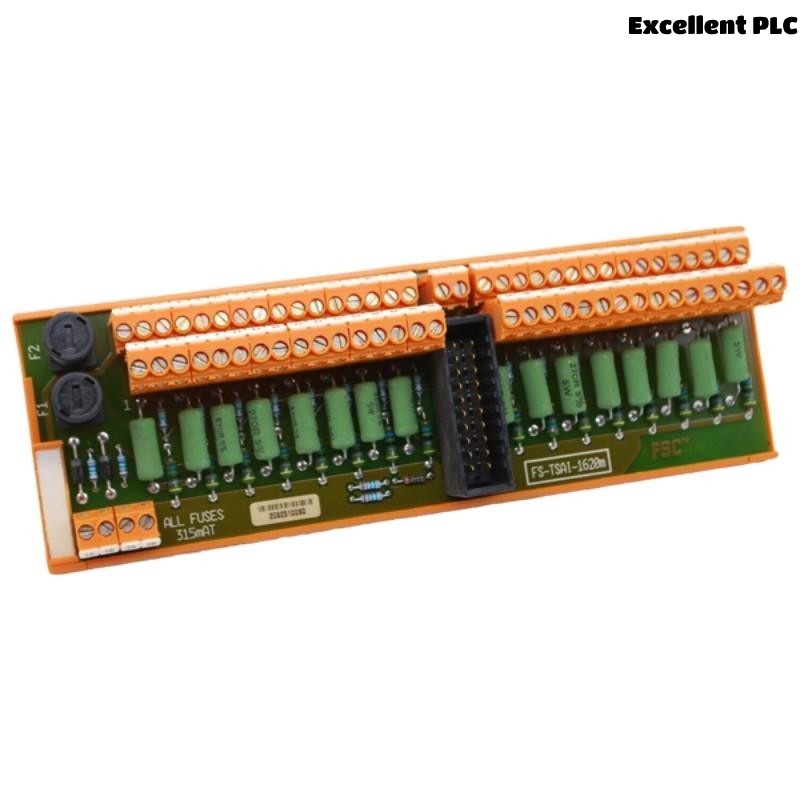

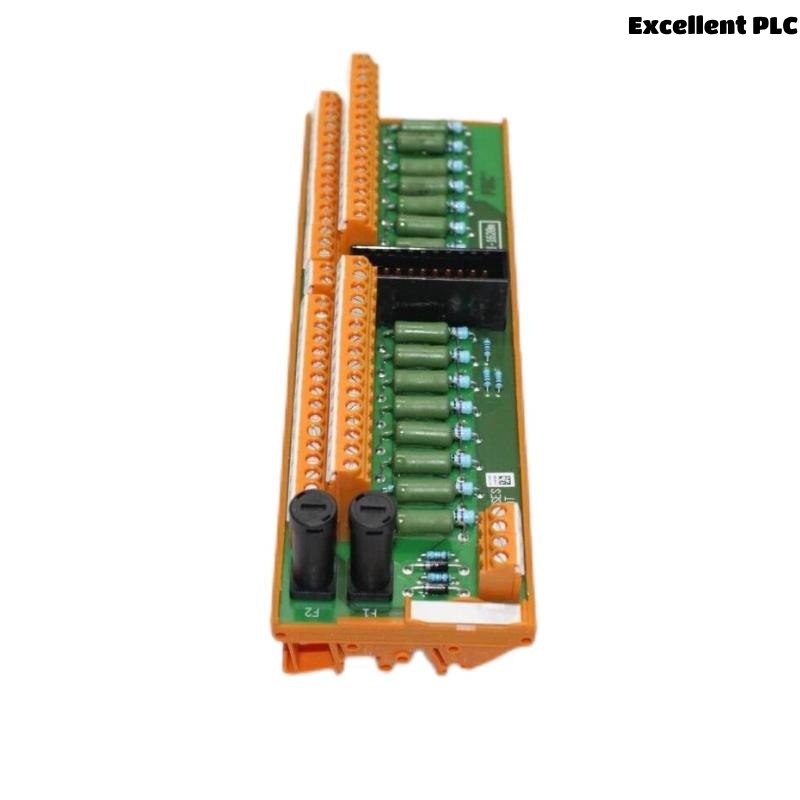

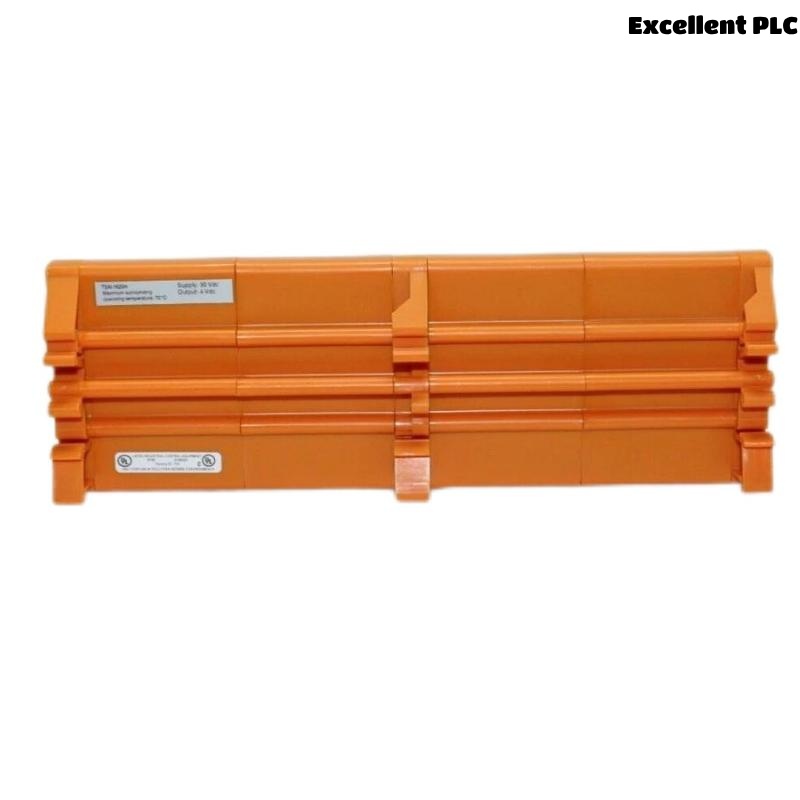

The Honeywell FC-TSAI-1620 is a high-performance Safety Analog Input Module designed to integrate seamlessly into Honeywell’s Safety Manager systems. This module is designed to handle analog signals from a variety of safety-critical systems, providing precise data input for monitoring and controlling critical processes. It is ideal for use in industries such as oil & gas, power generation, chemical, and manufacturing, where safety and reliability are paramount.
The FC-TSAI-1620 features advanced technology that ensures high accuracy and reliability in processing analog inputs from sensors, transducers, and other measurement devices. This module supports up to 16 input channels and offers SIL 3 (Safety Integrity Level 3) certification, making it suitable for the most demanding safety applications.
With its robust design and easy integration capabilities, the FC-TSAI-1620 enhances the overall safety system by providing real-time data that can trigger necessary actions in response to hazardous conditions. Its compact size, wide operating temperature range, and support for various communication protocols make it a versatile solution for a wide range of industrial safety applications.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | FC-TSAI-1620 |
| Dimensions | 210 × 70 × 60 mm |
| Weight | 0.5 kg |
| Input Channels | 16 Analog Input Channels |
| Power Supply | 24 VDC |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
| Input Type | Current (4-20 mA), Voltage (0-10 V) |
| Mounting Type | DIN Rail Mounting |
| Hazardous Area Approval | ATEX, IECEx |
| Communication Protocol | Modbus, Profibus, HART |
| Certification | SIL 3 Certified |
| LED Indicators | Diagnostic LEDs for each input channel |
| Signal Filtering | Programmable signal filtering |
Product Applications
The Honeywell FC-TSAI-1620 analog input module is used in a variety of safety-critical applications where accurate, real-time monitoring of analog signals is essential. Some key applications include:
-
Process Control in Industrial Systems: The module is used to monitor signals from devices like pressure sensors, temperature sensors, and flow meters. It ensures safe operation by providing accurate data for control systems.
-
Emergency Shutdown Systems (ESD): It processes analog inputs from various safety sensors and triggers emergency shutdown procedures in response to unsafe conditions, ensuring a prompt and safe response.
-
Fire and Gas Detection Systems: The module receives analog signals from gas detectors, temperature sensors, and other monitoring devices to detect dangerous levels of gases, fires, or other hazardous conditions.
-
Power Generation: In power plants, the FC-TSAI-1620 monitors signals from various sensors, such as vibration sensors, pressure sensors, and temperature sensors, to ensure safe and efficient plant operation.
-
Chemical and Petrochemical Industry: The module helps monitor hazardous chemicals and systems, ensuring that the safety protocols are followed and risks are minimized in industrial processes.
-
Oil & Gas: It is used in oil refineries and offshore platforms to monitor critical systems and ensure the safety of equipment and personnel in dangerous and high-risk environments.
Product Advantages
The Honeywell FC-TSAI-1620 analog input module offers several advantages that make it an ideal choice for safety applications:
-
SIL 3 Certification: The module is certified to SIL 3, ensuring that it meets the highest safety integrity standards and can be used in safety-critical systems.
-
High Accuracy and Reliability: The module provides precise, reliable processing of analog signals from various sensors, ensuring accurate monitoring and control.
-
Wide Compatibility: It supports a variety of input types, including 4-20 mA current and 0-10 V voltage inputs, making it versatile for a wide range of applications.
-
Compact and Durable Design: With dimensions of 210 × 70 × 60 mm, the module has a compact design that makes it easy to install in space-constrained environments. Its rugged construction ensures reliable performance even in harsh industrial conditions.
-
Wide Operating Temperature Range: The module can operate in temperatures ranging from -40°C to +70°C (-40°F to +158°F), making it suitable for both hot and cold environments.
-
Signal Filtering: The FC-TSAI-1620 features programmable signal filtering, which allows it to handle noisy or fluctuating input signals, ensuring that only relevant and accurate data is processed.
-
Hazardous Area Certification: With ATEX and IECEx approvals, the module can be used safely in explosive atmospheres, providing an extra layer of safety in hazardous environments.
-
Diagnostic LED Indicators: The module includes LED indicators for each input channel, providing real-time feedback on the health of the system and helping troubleshoot any issues quickly.
-
Easy Integration: The module features DIN rail mounting for easy integration into existing systems, minimizing installation time and system downtime.
-
Low Power Consumption: The 24 VDC power supply ensures that the module has low power consumption, contributing to energy efficiency and cost savings.
Frequently Asked Questions (FAQs)
-
What is the power supply requirement for the Honeywell FC-TSAI-1620 module?
The module operates on a 24 VDC power supply. -
How many input channels does the FC-TSAI-1620 have?
The module supports 16 analog input channels for a wide range of input devices. -
What types of inputs does the FC-TSAI-1620 support?
It supports both 4-20 mA current inputs and 0-10 V voltage inputs, making it suitable for various types of sensors. -
What is the operating temperature range of the FC-TSAI-1620?
The module operates within a temperature range of -40°C to +70°C (-40°F to +158°F). -
Is the FC-TSAI-1620 certified for use in hazardous areas?
Yes, the module has ATEX and IECEx certifications, making it safe for use in hazardous environments. -
What is the certification level of the FC-TSAI-1620?
The module is certified to SIL 3, ensuring high safety integrity for critical applications. -
What communication protocols are supported by the FC-TSAI-1620?
It supports Modbus, Profibus, and HART communication protocols, allowing easy integration with various industrial systems. -
How is the module installed?
The FC-TSAI-1620 is designed for DIN rail mounting, simplifying installation and integration into existing systems. -
Does the FC-TSAI-1620 have any diagnostic features?
Yes, the module has LED indicators for each input channel, providing real-time feedback on system health. -
Can the FC-TSAI-1620 be used in extreme temperatures?
Yes, the module can operate in both extreme hot and cold environments, with an operating temperature range of -40°C to +70°C (-40°F to +158°F).
Related Models in the Same Series
| Model Number | Description |
|---|---|
| FC-TSAI-1610 | Safety Analog Input Module, 10 Input Channels |
| FC-TSAI-1625 | Safety Analog Input Module, 25 Input Channels |
| FC-TSAI-1615 | Safety Analog Input Module, 15 Input Channels |
| FC-TSAI-1630 | Safety Analog Input Module, 30 Input Channels |
| FC-TSAI-1640 | Safety Analog Input Module, 40 Input Channels |
| FC-TSAI-1650 | Safety Analog Input Module, 50 Input Channels |
