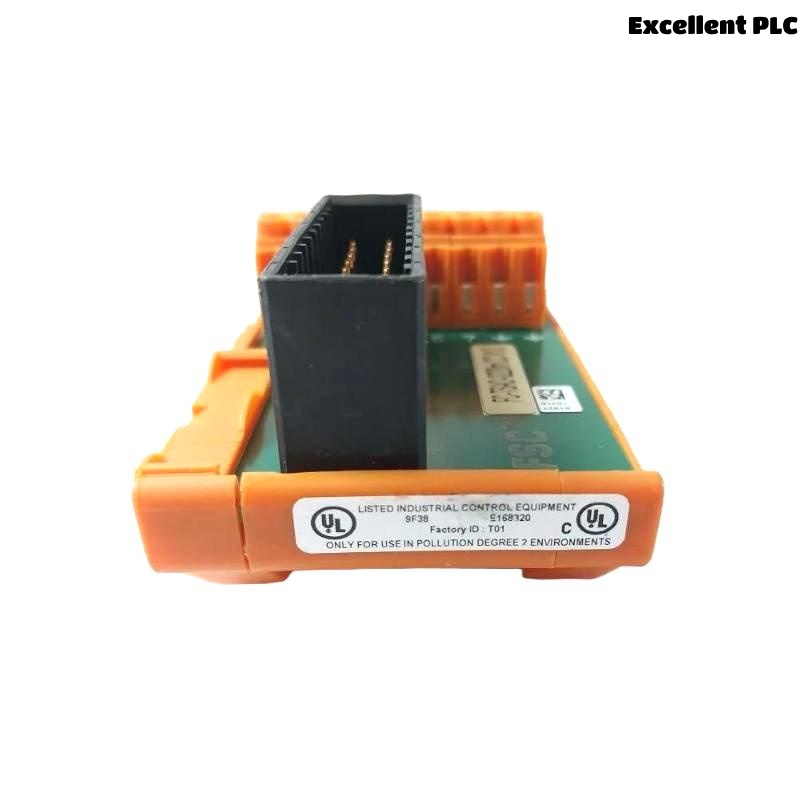

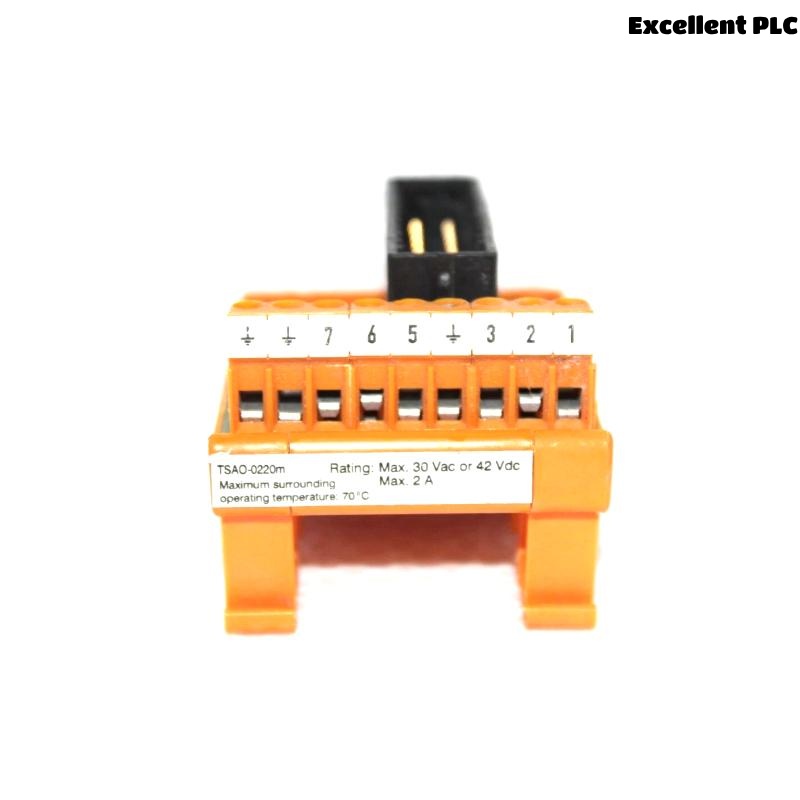

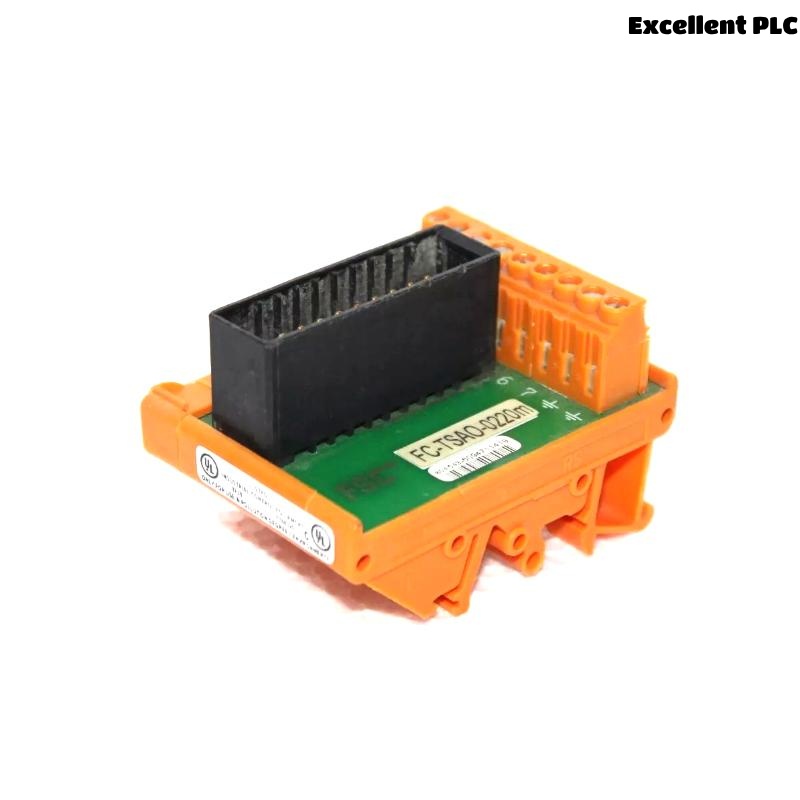

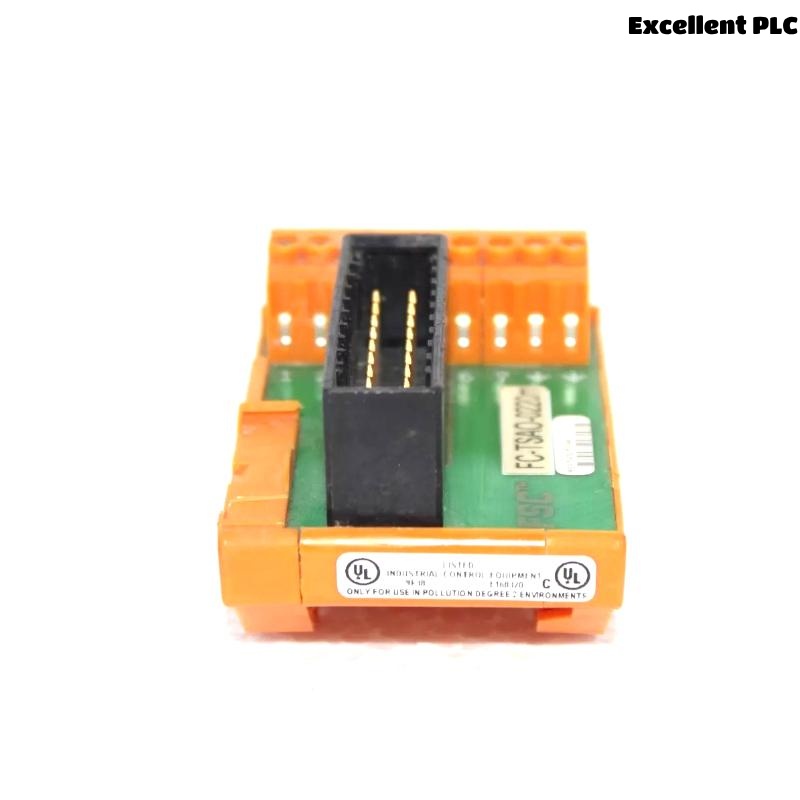

Honeywell FC-TSAO-0220M Safety Analog Output Module

Product Overview

The Honeywell FC-TSAO-0220M is a highly reliable safety analog output module designed for use in safety instrumented systems (SIS) and process control environments. It provides accurate and secure analog output signals that correspond to process variables, ensuring safe and precise control of critical machinery and industrial processes.

This module is engineered to meet rigorous safety standards, making it ideal for applications requiring high integrity and fail-safe operation. The FC-TSAO-0220M supports a wide range of output signals and is designed to interface seamlessly with Honeywell’s range of safety controllers and control systems. Its compact size and robust construction enable flexible installation in demanding industrial environments, where safety and accuracy are paramount.

Technical Specifications

Applications

The Honeywell FC-TSAO-0220M is widely applied in industries where reliable and safe analog signal outputs are critical for process control and safety system integrity. Typical applications include:

• Oil & Gas – Controlling valves, actuators, and safety shutdown devices.

• Chemical & Petrochemical – Precise control of reactors, distillation columns, and pressure systems.

• Power Generation – Managing turbine and generator safety interlocks.

• Pharmaceutical – Ensuring safe operation of process control loops.

• Food & Beverage – Maintaining safety and accuracy in processing lines.

• Water & Wastewater Treatment – Control of pumps, valves, and treatment systems.

Key Advantages

• High Safety Integrity: Certified for SIL 2 and SIL 3 applications, ensuring reliable safety operation.

• Accurate Analog Outputs: Provides precise current and voltage signals for accurate process control.

• Fast Response Time: Responds quickly to changes, enhancing system performance and safety.

• Robust Protection Features: Safeguards against short circuits, open circuits, and overload conditions.

• Compact Design: Small footprint (50 × 70 × 48 mm) allows flexible installation in confined spaces.

• Wide Operating Range: Suitable for harsh industrial environments with broad temperature and humidity tolerance.

• Easy Integration: Compatible with Honeywell safety controllers and standard mounting options.

• Reliable Construction: Designed for long-term operation with minimal maintenance needs.

Frequently Asked Questions (FAQ)

1. What types of output signals does the FC-TSAO-0220M support?
   It supports 4-20 mA, 0-20 mA, and 0-10 V analog output signals.

2. Is this module suitable for safety applications?
   Yes, it is certified for SIL 2 and SIL 3 safety integrity levels.

3. What is the accuracy of the analog outputs?
   The module provides ±0.1% accuracy of full scale.

4. How fast does the module respond to input changes?
   It has a response time of less than 20 milliseconds.

5. What protection features does the module include?
   It protects against short circuits, open circuits, and overload conditions.

6. What are the physical dimensions and weight of this module?
   The module measures 50 × 70 × 48 mm and weighs 0.5 kg.

7. Can the module be mounted on a DIN rail?
   Yes, it supports DIN rail and panel mounting.

8. What operating temperature range does the module support?
   It operates between -40°C and +70°C.

9. Is the module compatible with Honeywell safety controllers?
   Yes, it is designed for seamless integration with Honeywell safety systems.

10. What industries commonly use this module?
    It is used across oil & gas, chemical, power generation, pharmaceutical, food & beverage, and water treatment industries.
