Product Introduction

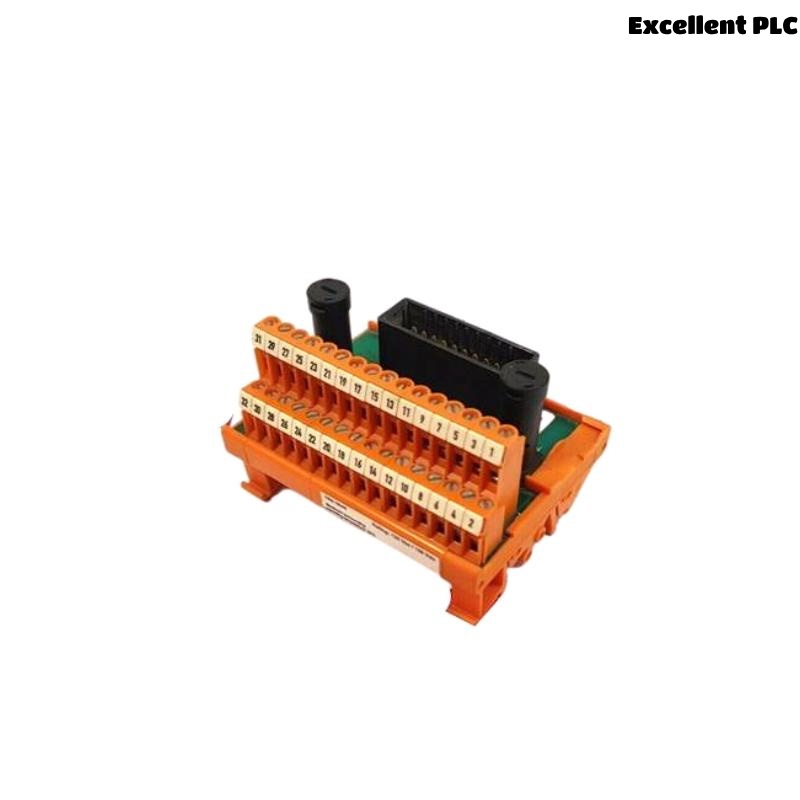

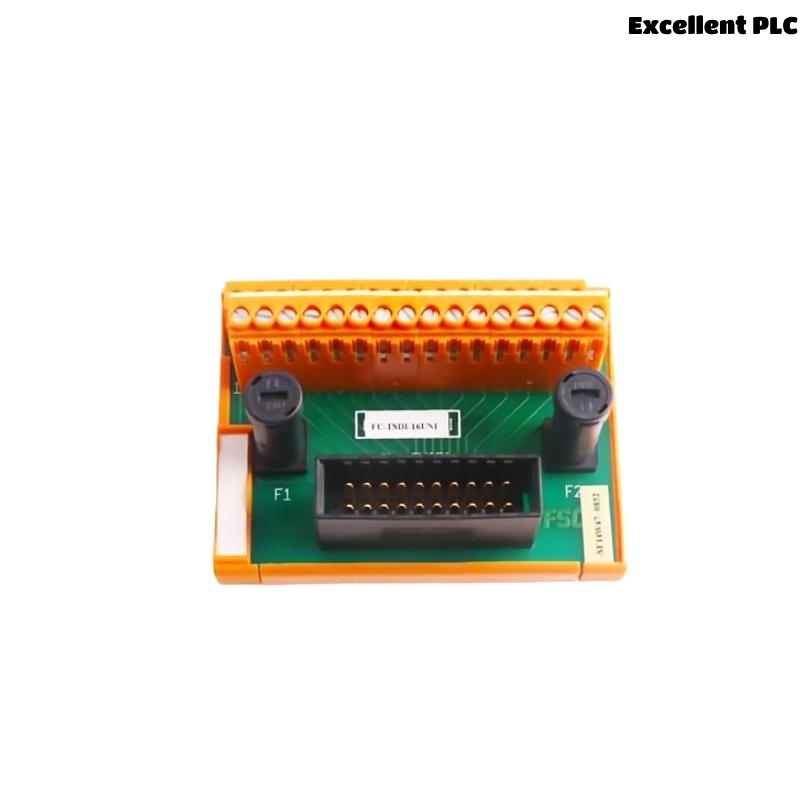

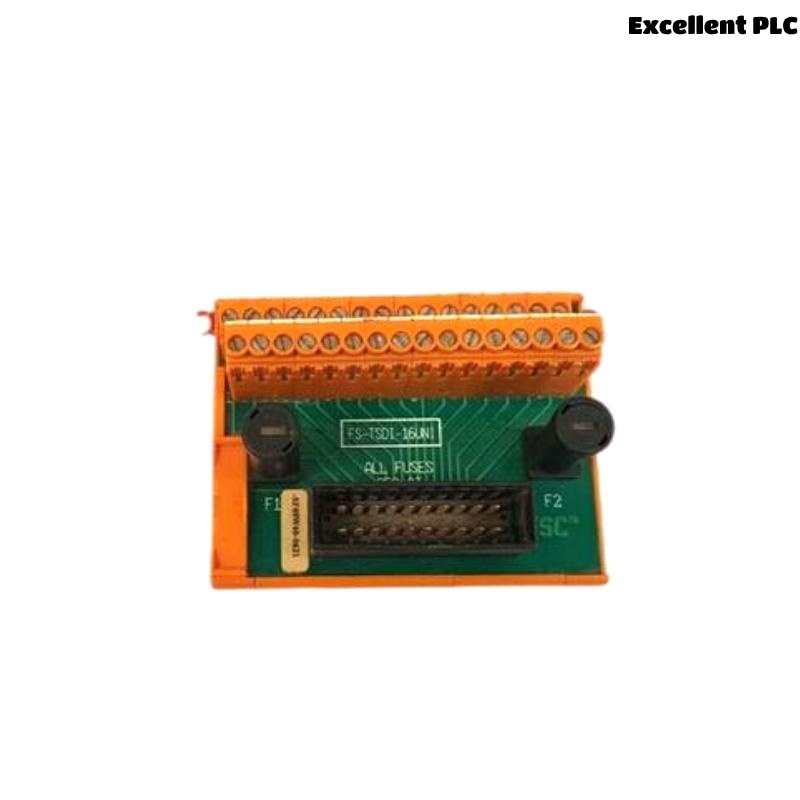

The Honeywell FC-TSDI-16115 is a Safe Digital Input Field Terminal Assembly (FTA) module designed for Honeywell’s Safety Manager (SM) and Fail-Safe Controller (FSC) platforms. This module supports both active and passive digital input types, allowing integration of a wide range of field signals such as contact closures, proximity switches, or electronic signal transmitters.
Built to meet SIL3 safety standards under IEC 61508, the FC-TSDI-16115 ensures safe acquisition of input signals in critical industrial control systems such as emergency shutdown (ESD), fire & gas, and burner management systems. Its modular design enables flexibility, reliability, and ease of integration in safety instrumented systems (SIS).
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | FC-TSDI-16115 |
| Product Type | Safe Active/Passive Digital Input FTA Module |
| Manufacturer | Honeywell |
| Compatible Systems | Safety Manager, FSC (Fail Safe Controller) Series |
| Input Channels | 16 independent digital input channels |
| Input Type | Active (voltage type) / Passive (dry contact or mechanical switch) |
| Input Voltage (Active) | 18–30 VDC |
| Input Current | ~2.5 mA typical |
| Input State Thresholds | ON > 15 V, OFF < 5 V |
| Isolation | Optical isolation between field and system logic |
| Fail-Safe Operation | Supported (high-integrity diagnostic loop) |
| Diagnostic Features | Line monitoring, short/open detection |
| Mounting | DIN rail mount |
| Power Supply | Supplied by host system, no external power needed |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% non-condensing |
| Safety Certification | SIL3 per IEC 61508 |
| EMC Compliance | EN 61326, CE certified |
| Housing Material | Flame-retardant industrial polymer |
| Dimensions (W x H x D) | 300 × 109 × 68 mm |
| Weight | 0.24 kg |
Product Applications
The FC-TSDI-16115 module plays a critical role in capturing digital signals from field devices in applications that demand high safety integrity. Its primary use cases include:
-
Emergency Shutdown (ESD) Systems
Acquiring discrete inputs such as push-buttons, switches, and alarm relays that trigger emergency functions. -
Fire and Gas Systems (FGS)
Detecting contact signals from flame detectors, gas sensors, and smoke detectors in hazardous environments. -
Burner Management Systems (BMS)
Monitoring safety interlocks, flame signals, and combustion safeguard relays. -
Pipeline and Process Automation
Ensuring safe signal acquisition from proximity sensors, limit switches, and safety barriers. -
High-Integrity Pressure Protection Systems (HIPPS)
Part of critical logic loops to detect and mitigate overpressure conditions.
Product Advantages
-
Dual Mode Input (Active/Passive):
Supports both electronic and mechanical signal types, enabling broader field device compatibility. -
SIL3-Certified Safety:
Meets the highest standards for safety-critical systems, ideal for SIS applications. -
Integrated Diagnostics:
Advanced line monitoring enables detection of wire breaks, shorts, or missing field signals. -
Modular and Scalable:
16-channel design allows dense signal acquisition while maintaining flexible cabinet layouts. -
Low Power Consumption:
Efficient architecture minimizes heat and power draw, extending component life. -
EMC and Harsh Environment Ready:
Certified for electromagnetic compatibility and harsh industrial conditions. -
No External Power Required:
Simplifies wiring and reduces points of failure by drawing power directly from the host system. -
Quick Installation and Maintenance:
Standard DIN rail mount and clear labeling simplify field installation and troubleshooting.
Frequently Asked Questions (FAQ)
-
Q: What is the difference between active and passive digital inputs in this module?
A: Active inputs detect voltage signals (typically 24 VDC), while passive inputs detect mechanical switch closures or dry contacts. -
Q: How many channels are available in the FC-TSDI-16115?
A: It supports 16 isolated digital input channels. -
Q: Is the module compliant with SIL3 safety requirements?
A: Yes, it is certified to SIL3 under IEC 61508 standards. -
Q: Can this module detect wire faults like short circuits or open loops?
A: Yes, it supports diagnostic line monitoring for enhanced fault detection. -
Q: What systems is the FC-TSDI-16115 compatible with?
A: It is compatible with Honeywell’s Safety Manager and FSC platforms. -
Q: Does this module require external power?
A: No, it is powered directly from the host control system. -
Q: Can it be used in hazardous area applications?
A: Yes, it is designed for use in industrial safety systems including hazardous area installations. -
Q: What mounting type is supported?
A: It is DIN rail mountable for standard control cabinet integration. -
Q: What is the module’s input voltage range for active signals?
A: 18–30 VDC is the standard input voltage range for active signal detection. -
Q: Is the module CE marked and EMC certified?
A: Yes, it complies with CE and EN 61326 EMC standards.
