Product Description

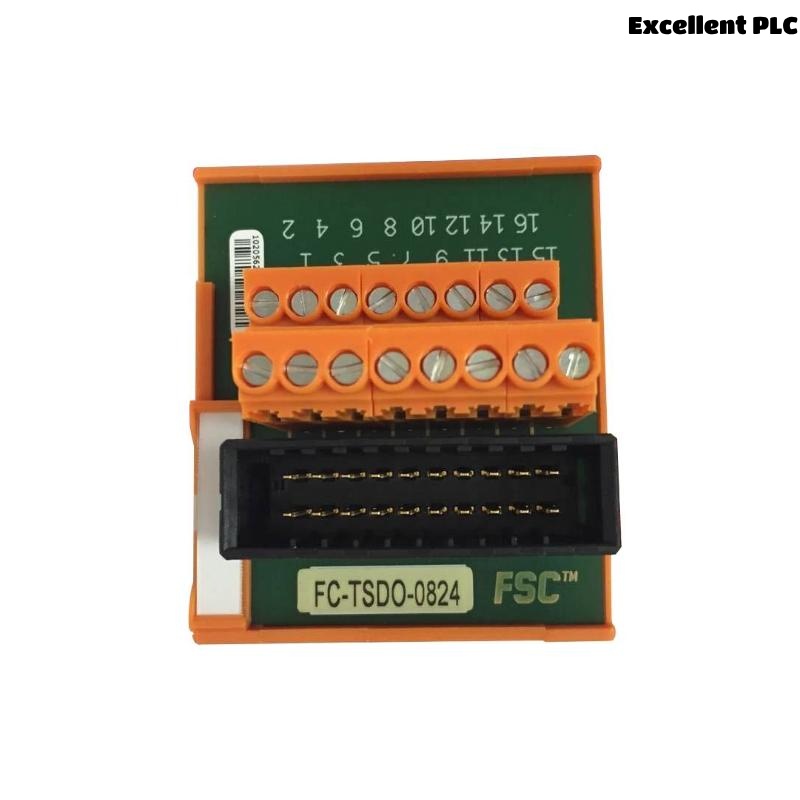

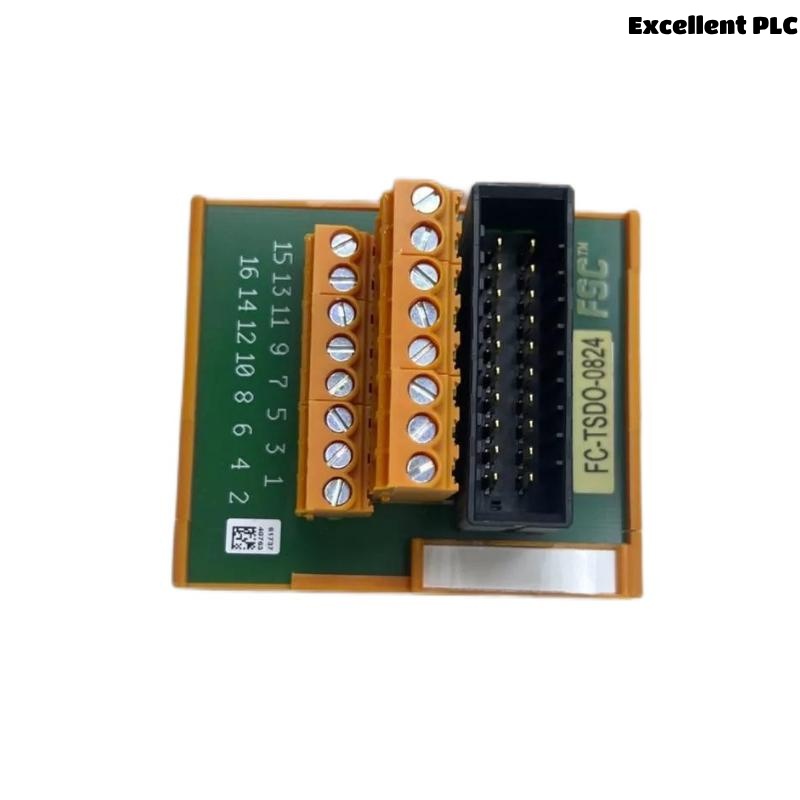

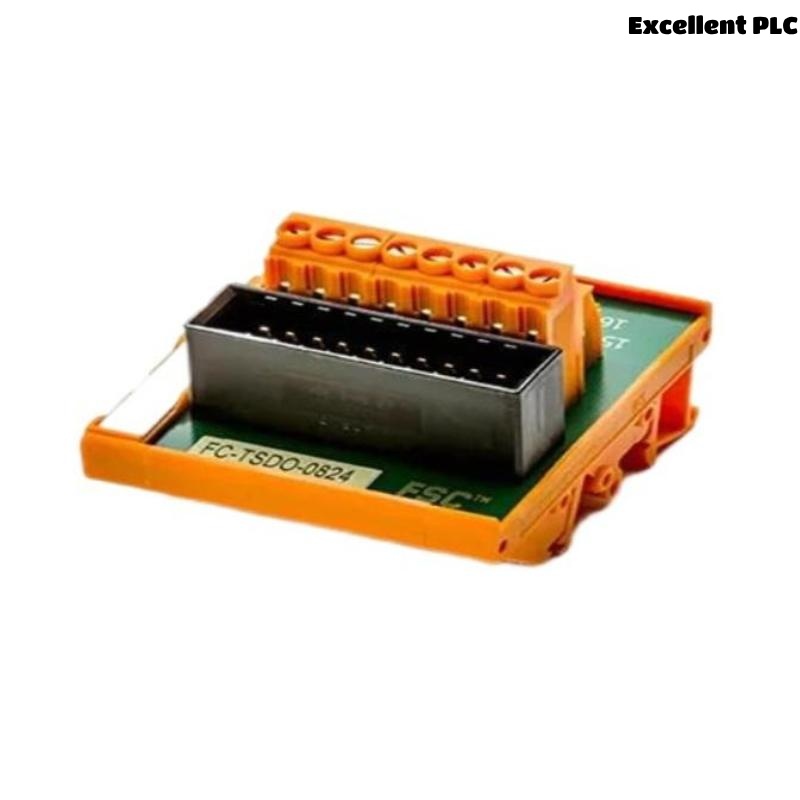

The Honeywell FC-TSDO-0824C is a Field Terminal Assembly (FTA) designed for use with Honeywell’s safety systems. As a Safe Digital Output FTA, it provides eight isolated output channels that interface with field actuators in safety-critical applications. This module ensures reliable digital output signal transmission, critical for industrial safety, emergency shutdown systems (ESD), fire and gas (F&G), and other functional safety applications.
The FC-TSDO-0824C is engineered with high-integrity design principles, supporting functional safety compliance (IEC 61508, SIL-rated systems), enabling precise control and robust fail-safe response in hazardous environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | FC-TSDO-0824C |
| Product Type | Safe Digital Output FTA |
| Channels | 8 Digital Output Channels |
| Output Type | 24 VDC Open-Drain/Source Digital Output |
| Isolation | Galvanically Isolated Channels |
| Rated Voltage | 24 VDC nominal |
| Operating Voltage Range | 18 VDC to 32 VDC |
| Maximum Output Current per Channel | 500 mA (typical) |
| Channel Diagnostic | Yes (per-channel diagnostics) |
| Safety Standard Compliance | IEC 61508, suitable for SIL2/SIL3 applications |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Mounting Type | DIN Rail Mount |
| Housing Material | High-grade Industrial Plastic |
| Dimensions (W x H x D) | 60 x 70 x 58 mm |
| Weight | 0.5 kg |
Product Applications
The FC-TSDO-0824C is primarily used in safety-oriented applications across the following sectors:
-
Oil & Gas: Emergency shutdown (ESD) systems, gas detection units
-
Chemical Processing Plants: Fire and gas safety systems, safety interlocks
-
Power Generation: Turbine trip systems, load shedding
-
Pharmaceutical Industry: Safety monitoring and automated emergency actions
-
Water Treatment Plants: Emergency valve control and shutdown logic
-
Petrochemical Refineries: Flare system monitoring, compressor protection
Product Advantages
-
Safety-Certified Design: Meets stringent IEC 61508 standards for SIL2/SIL3 systems, ensuring reliable protection for safety applications.
-
Independent Channel Diagnostics: Built-in diagnostics on every output channel enhance fault detection and system resilience.
-
Compact DIN Rail Form Factor: Space-saving design suited for high-density cabinet installations.
-
Wide Operating Range: Robust against voltage fluctuations and environmental extremes.
-
Plug-and-Play Compatibility: Seamless integration with Honeywell safety controllers and I/O backplanes.
-
Field-Wire Friendly: Designed to simplify field wiring, reducing commissioning time.
Frequently Asked Questions (FAQ)
Q1: What type of output does the FC-TSDO-0824C support?
A1: It supports 24 VDC digital output with open-drain/source configuration.
Q2: How many output channels does the module have?
A2: It has 8 independent digital output channels.
Q3: Is the module compliant with safety standards like IEC 61508?
A3: Yes, the module is suitable for SIL2/SIL3 safety applications according to IEC 61508.
Q4: What diagnostic features are included?
A4: Each output channel is equipped with diagnostic capability to detect failures or abnormal conditions.
Q5: Can it operate in extreme industrial environments?
A5: Yes, it operates within a wide temperature range of -20°C to +60°C and supports high humidity.
Q6: What is the mounting method?
A6: The FC-TSDO-0824C is DIN rail mountable for convenient cabinet integration.
Q7: What is the maximum output current per channel?
A7: Each output can supply up to 500 mA.
Q8: Is it compatible with Honeywell Safety Manager or other Honeywell controllers?
A8: Yes, it is fully compatible with Honeywell’s safety systems including Safety Manager.
Q9: Is the module hot-swappable?
A9: No, it should be replaced with power turned off to maintain safety integrity.
Q10: What is the size and weight of the module?
A10: The dimensions are 60 x 70 x 58 mm and it weighs 0.5 kg.
Related Models (Same Series or Compatible)
| Model Number | Description | Channels | Type | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| FC-TSDI-1624 | Safe Digital Input FTA | 16 | Digital Input | 60 x 70 x 58 | 0.5 kg |
| FC-TSDI-0824 | Safe Digital Input FTA (8-ch) | 8 | Digital Input | 60 x 70 x 58 | 0.5 kg |
| FC-TSDO-1624 | Safe Digital Output FTA (16-ch) | 16 | Digital Output | 60 x 70 x 58 | 0.5 kg |
| FC-TAIO-0820 | Analog Input/Output Mixed FTA | 8 In / 2 Out | Analog I/O | 60 x 70 x 58 | 0.5 kg |
| FC-TSRO-0824 | Relay Output FTA | 8 | Relay Output | 60 x 70 x 58 | 0.6 kg |
| FC-TSAI-1620 | Safe Analog Input FTA | 16 | Analog Input | 60 x 70 x 58 | 0.5 kg |
