Product Introduction

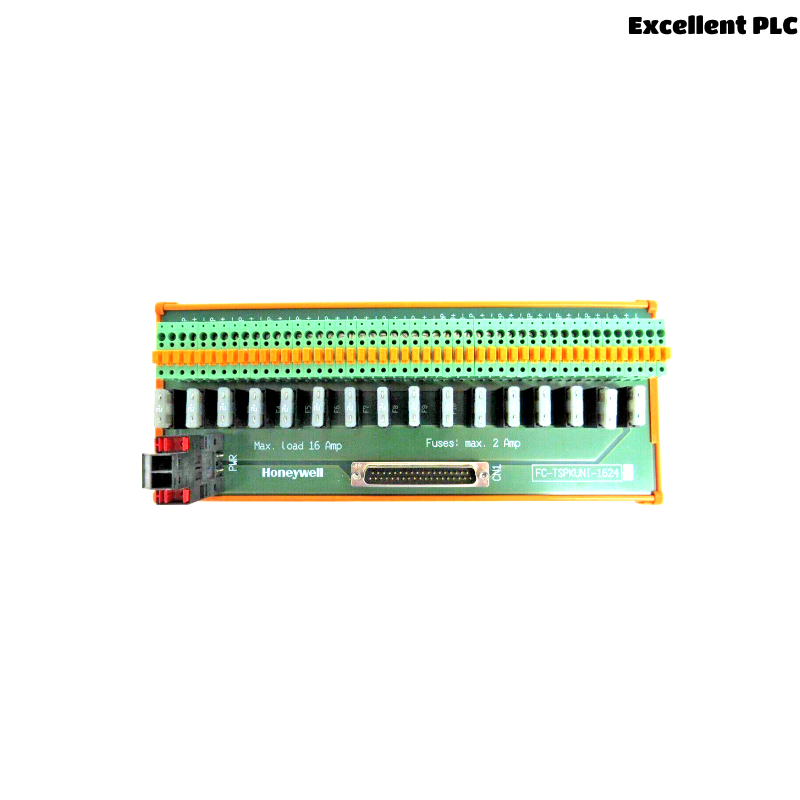

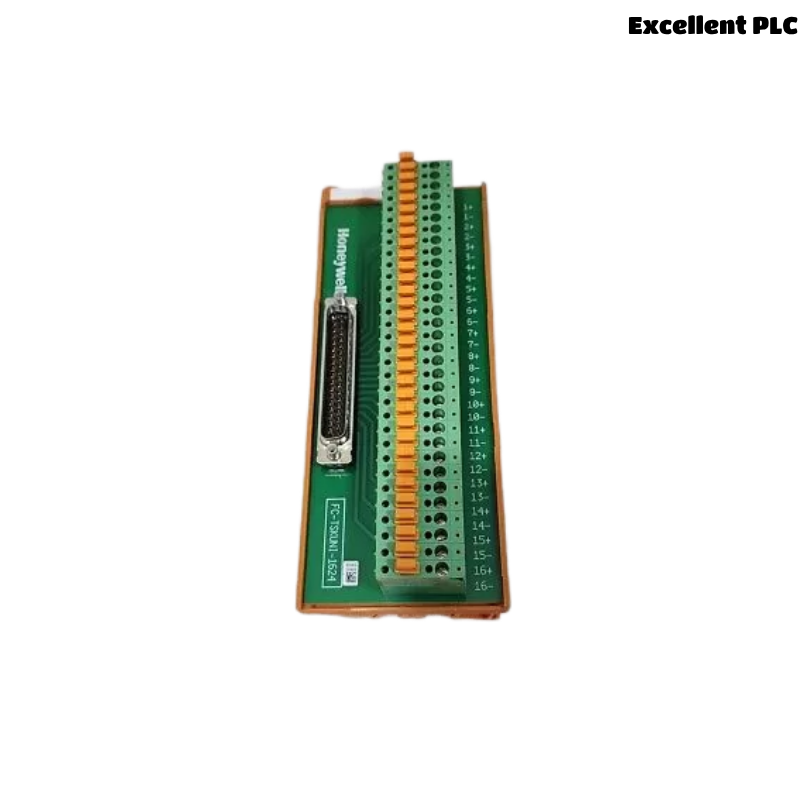

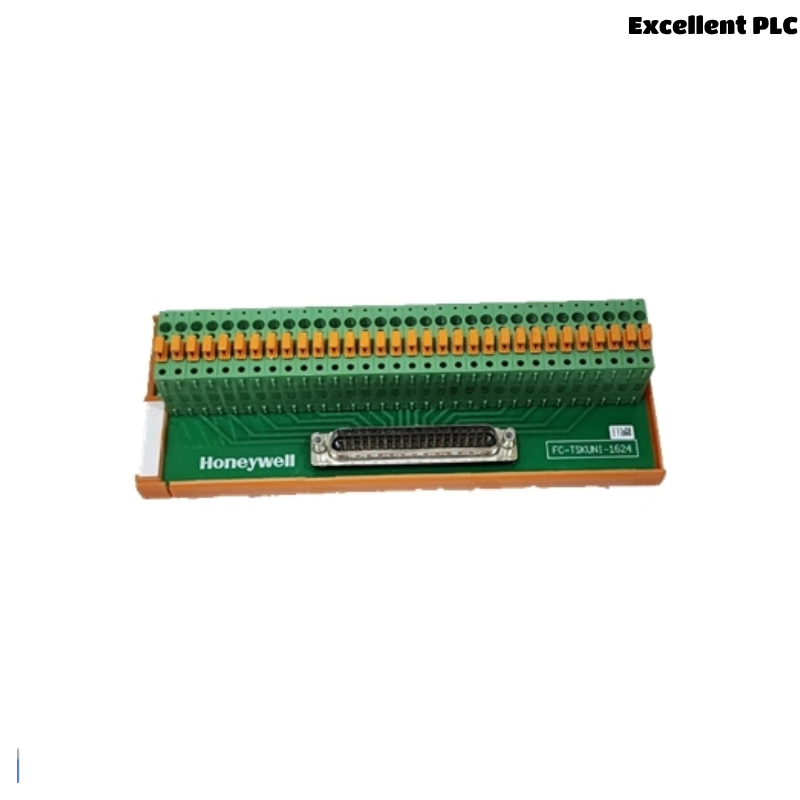

The Honeywell FC-TSKUNI-1624 is a universal terminal base module designed for use within the Experion Process Knowledge System (PKS) and C300 control platforms. Engineered to support universal input/output (I/O) functions, this base integrates seamlessly with a range of I/O modules and facilitates fast, error-free installation with simplified wiring interfaces. As part of Honeywell’s robust I/O subsystem, the FC-TSKUNI-1624 ensures dependable signal communication between field devices and the control system, promoting operational efficiency and system reliability.
Constructed with industrial-grade materials and built for long-term durability, this unit provides consistent performance in harsh environmental conditions. Its form factor is optimized for high-density I/O installations, making it ideal for complex process control architectures in energy, petrochemical, manufacturing, and other industrial applications.
Product Advantages
-
Universal Compatibility: Supports a wide range of I/O modules, reducing inventory complexity.
-
Time-Saving Installation: Preconfigured and labeled terminal points simplify field wiring.
-
High Reliability: Rugged construction minimizes failures in harsh industrial settings.
-
Compact Form Factor: Enables space-saving in control cabinets and panels.
-
Enhanced Safety: Clear labeling and standardized connections help reduce wiring errors.
-
Long-Term Support: Fully integrated into Honeywell’s Experion PKS lifecycle support system.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | FC-TSKUNI-1624 |
| Product Type | Universal I/O Terminal Base |
| System Compatibility | Honeywell C300, Experion PKS |
| Mounting Type | DIN Rail Mountable |
| Material | Industrial-grade plastic with metal inserts |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Voltage Rating | 24 VDC (nominal) |
| Channel Capacity | Supports up to 24 I/O channels |
| Dimensions | 240 x 150 x 60 mm |
| Weight | 0.3 kg |
| Terminal Type | Screw-clamp terminal |
| Certifications | CE, UL, CSA, RoHS compliant |
Product Applications
-
Oil & Gas Processing Facilities
-
Power Generation Plants
-
Chemical and Petrochemical Industries
-
Water Treatment and Utilities
-
Pharmaceutical and Biotech Manufacturing
-
Pulp and Paper Mills
-
Automated Assembly Lines
-
Distributed Control Systems (DCS) and SCADA Environments
Installation Instructions
-
Ensure the DIN rail is properly mounted and grounded in accordance with Honeywell standards.
-
Snap the FC-TSKUNI-1624 base onto the DIN rail securely.
-
Connect the field wiring to the labeled terminal blocks, observing polarity and signal type.
-
Insert the corresponding I/O module directly onto the base and lock it in place.
-
Verify connections for accuracy before applying power to the system.
-
Power up and configure via Experion PKS tools for diagnostics and commissioning.
10 Frequently Asked Questions (FAQs)
Q1: Is the FC-TSKUNI-1624 compatible with both analog and digital modules?
A1: Yes, the base supports both analog and digital I/O modules, making it versatile for multiple signal types.
Q2: Can this base be hot-swapped during operation?
A2: No, the module base itself cannot be hot-swapped. Ensure the power is off before replacement.
Q3: What kind of terminals are used for wiring?
A3: Screw-clamp terminals are used for secure and vibration-resistant connections.
Q4: Is additional wiring labeling required for this module?
A4: The terminal base comes pre-labeled, simplifying the field wiring process.
Q5: Does this model support HART communication?
A5: HART capability depends on the I/O module used with the base, not the base itself.
Q6: What is the expected operational life of this unit?
A6: With proper environmental conditions, the expected life exceeds 5 years.
Q7: Can the FC-TSKUNI-1624 be mounted in hazardous areas?
A7: It is not rated for direct use in hazardous areas unless housed in certified enclosures.
Q8: Are firmware updates required for this base?
A8: No, this is a passive component with no firmware or software updates needed.
Q9: How many bases can be installed in a single node?
A9: This depends on the I/O capacity of the node controller and available power supply.
Q10: Is the FC-TSKUNI-1624 backward compatible with older Honeywell systems?
A10: It is primarily intended for use with C300 and newer Experion PKS systems. Compatibility with older platforms should be confirmed with Honeywell support.
6 Related or Same-Series Models
-
FC-TSKDIS-1624 – Digital Input Terminal Base
-
FC-TSKAIS-1624 – Analog Input Terminal Base
-
FC-TSKORS-1624 – Output Relay Terminal Base
-
FC-TSKADI-1624 – Analog/Digital Input Hybrid Base
-
FC-TSKRTD-1624 – RTD Input Terminal Base
-
FC-TSKOPO-1624 – Open Collector Output Base
6 Popular Honeywell Models (Same Brand)
| Model | Description | Dimensions (mm) | Weight | Voltage |
|---|---|---|---|---|
| FC-TSDI-1624 | Digital Input Module | 138 x 136 x 40 | 0.5 kg | 24 VDC |
| FC-TSAI-1620 | Analog Input Module | 138 x 136 x 40 | 0.55 kg | 24 VDC |
| FC-TSRO-1620 | Relay Output Module | 138 x 136 x 40 | 0.5 kg | 24 VDC |
| FC-TSDO-1624 | Digital Output Module | 138 x 136 x 40 | 0.52 kg | 24 VDC |
| FC-TSMTR-1624 | Motor Control I/O Module | 138 x 136 x 45 | 0.65 kg | 24 VDC |
| FC-TSCHM2-1624 | Communication Module (Redundant) | 138 x 136 x 40 | 0.6 kg | 24 VDC |
