Product Overview

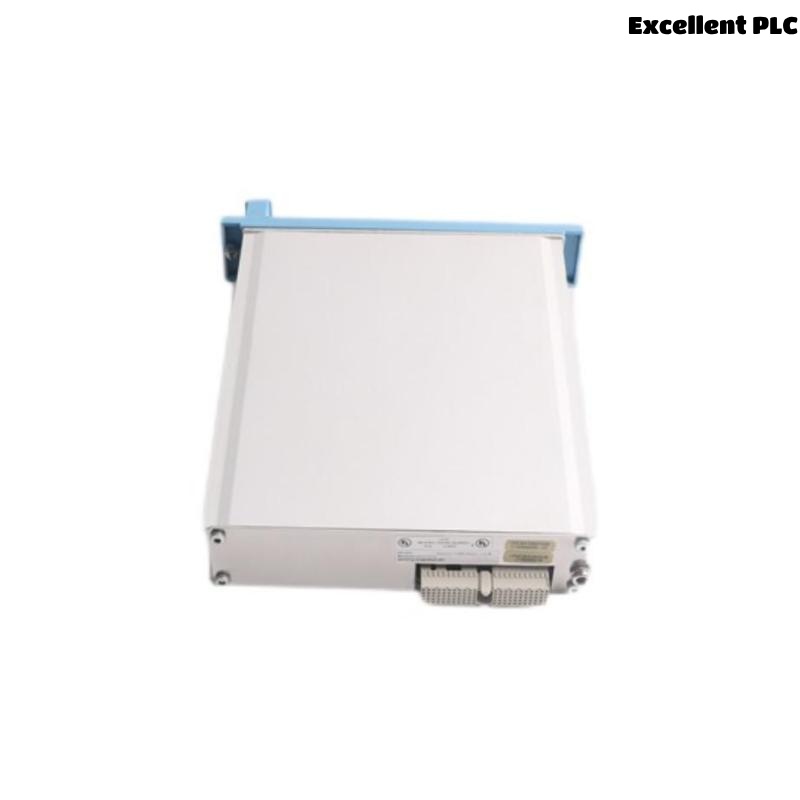

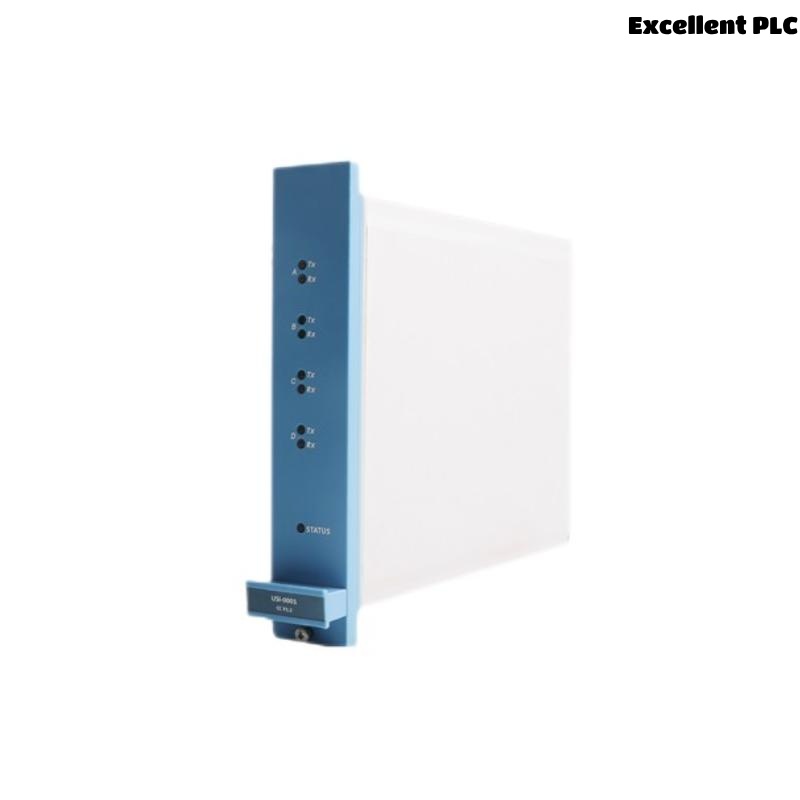

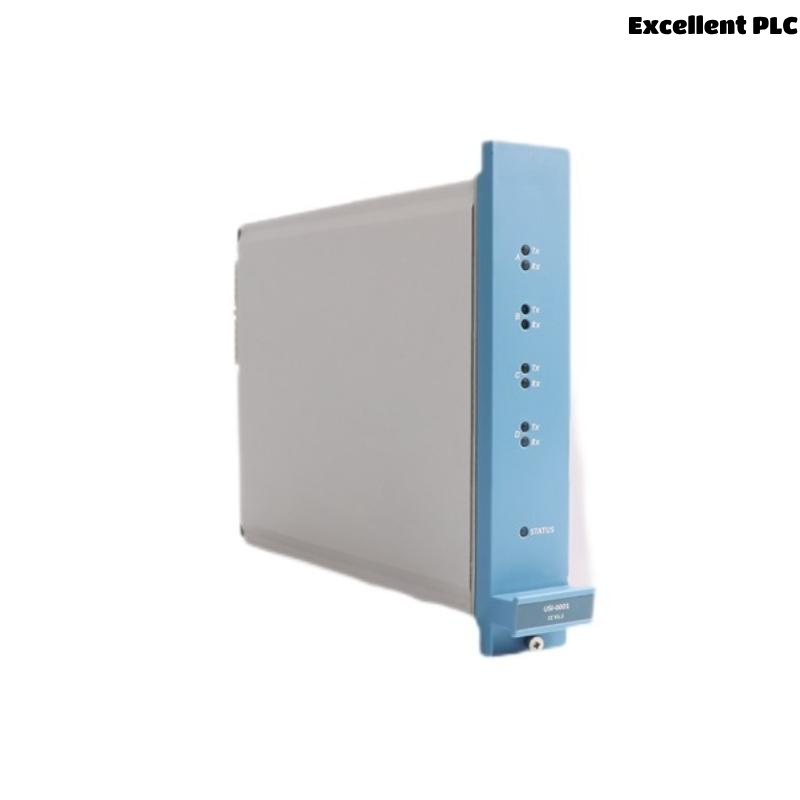

The Honeywell FC-USI-0001 Common Security Interface CC is a high-performance interface module designed to integrate Honeywell’s safety and security systems seamlessly into larger industrial control networks. It provides a secure, robust, and flexible communication link between field devices, security systems, and process control systems. This interface module is essential for applications that require real-time monitoring and control of security-related data, such as in hazardous locations, critical infrastructure, and large-scale industrial environments.
By supporting common security protocols and offering easy integration into Honeywell’s integrated safety solutions, the FC-USI-0001 is the perfect solution for both small and large security installations, making it a reliable component for mission-critical systems.
Key Features
-
High-security interface for integration of field devices and control systems
-
Supports real-time data communication and monitoring of security systems
-
Designed for use in safety-critical and hazardous environments
-
Seamlessly integrates with Honeywell’s safety management and control systems
-
Modular and flexible design for scalability and future-proofing
-
Provides tamper-proof security communication with encrypted data transfer
-
Wide compatibility with various industrial control networks and protocols
-
Compact and space-saving form factor for easy installation
-
Robust design ensures reliability in harsh industrial conditions
-
Easy-to-use configuration and diagnostics software for quick setup and maintenance
Technical Specifications
| Specification | Description |
|---|---|
| Product Model | FC-USI-0001 |
| Product Type | Common Security Interface Module |
| Application | Security and Safety System Integration |
| Communication Protocols | Modbus, TCP/IP, Ethernet, OPC |
| Operating Voltage Range | 24 V DC (Nominal) |
| Power Consumption | Less than 3 Watts |
| Connection Type | Screw Terminal / Pluggable Connectors |
| Operating Temperature Range | -20°C to +70°C (-4°F to +158°F) |
| Storage Temperature Range | -40°C to +85°C (-40°F to +185°F) |
| Humidity Tolerance | 5% to 95% Non-condensing |
| Insulation Resistance | >100 MΩ at 500 V DC |
| Vibration Resistance | 1g, 5-500 Hz, per IEC 60068-2-6 |
| Shock Resistance | 15g, 11ms, per IEC 60068-2-27 |
| Protection Rating | IP20 (when installed in enclosure) |
| Dimensions | 150 × 100 × 50 mm |
| Weight | 0.3 kg |
| Certifications | CE, UL, CSA, IEC61508 (SIL-rated systems) |
Typical Applications
The Honeywell FC-USI-0001 Common Security Interface CC is used in a variety of industrial and commercial settings, including:
-
Security Control Centers
-
Critical Infrastructure Sites (Energy, Oil & Gas, Utilities)
-
Hazardous Areas with High Safety Standards
-
Large-scale Industrial Facilities
-
Airports and Transportation Hubs
-
Manufacturing and Process Industries
-
Nuclear Power Plants
-
Chemical and Pharmaceutical Plants
-
Fire and Gas Detection Systems
-
Emergency Shutdown Systems (ESD)
Product Advantages
-
High Security: Incorporates advanced encryption and security protocols to ensure data integrity and prevent unauthorized access.
-
Versatility: Supports multiple industrial communication standards, making it compatible with various control systems.
-
Integration Flexibility: Easily integrates with Honeywell’s existing process control and safety systems for comprehensive security management.
-
Scalability: The modular design allows for easy system expansion, adapting to both small and large installations.
-
Reliability: Designed for industrial environments, it ensures continuous operation under harsh conditions.
-
Ease of Use: Simplifies configuration and troubleshooting with dedicated diagnostics software.
-
Compliance: Meets international standards and is suitable for use in SIL-rated safety systems.
-
Compact Form Factor: Optimizes space within control cabinets while providing high functionality.
Frequently Asked Questions (FAQ)
-
What is the primary function of the FC-USI-0001?
The FC-USI-0001 acts as a communication bridge between field security devices and control systems, providing a secure and reliable interface for data exchange. -
What security protocols does the module support?
It supports common industrial protocols such as Modbus, TCP/IP, Ethernet, and OPC for seamless integration. -
Can this module be used in hazardous locations?
Yes, it is designed to meet the safety and performance standards for use in hazardous and industrial environments. -
What is the maximum number of devices that can be connected to the FC-USI-0001?
The module can handle a wide range of field devices depending on the configuration, with scalability for large systems. -
Does it support remote monitoring and diagnostics?
Yes, it offers integrated diagnostic software for easy remote monitoring, configuration, and troubleshooting. -
What is the operating temperature range for the module?
The module operates within a temperature range of -20°C to +70°C (-4°F to +158°F), suitable for most industrial environments. -
Is the module suitable for use in SIL-rated systems?
Yes, it complies with IEC61508 and is designed for use in SIL-rated safety applications. -
How does the module ensure secure data transmission?
It uses encrypted communication protocols to prevent tampering and ensure the integrity of the transmitted data. -
What type of field devices can be connected?
The module supports a wide variety of security and safety field devices, including sensors, alarms, and control systems. -
What is the typical weight of the module?
The FC-USI-0001 weighs approximately 350 grams, making it lightweight and easy to handle during installation.
