Product Introduction

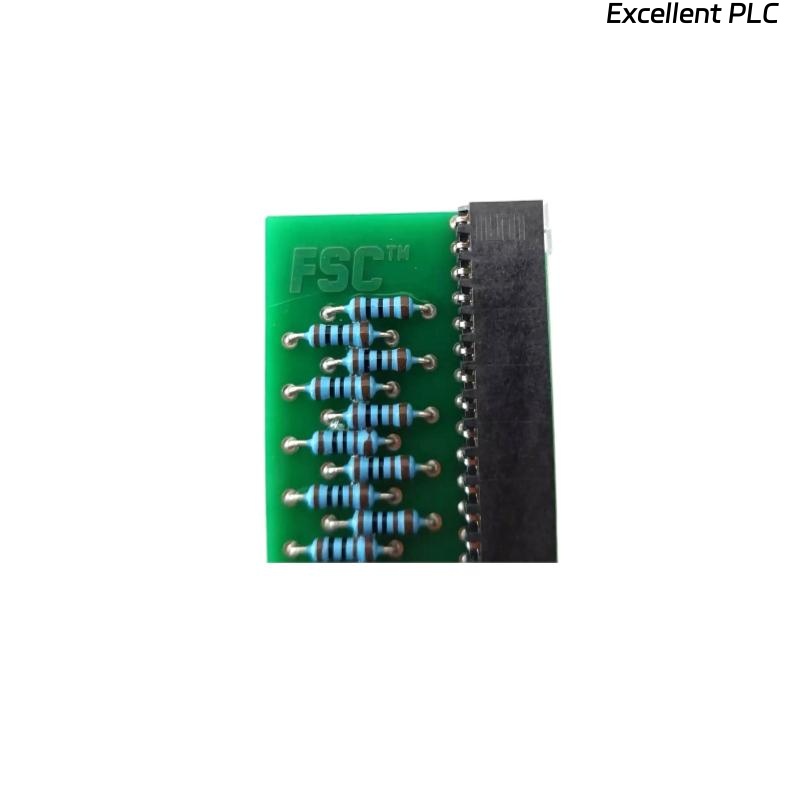

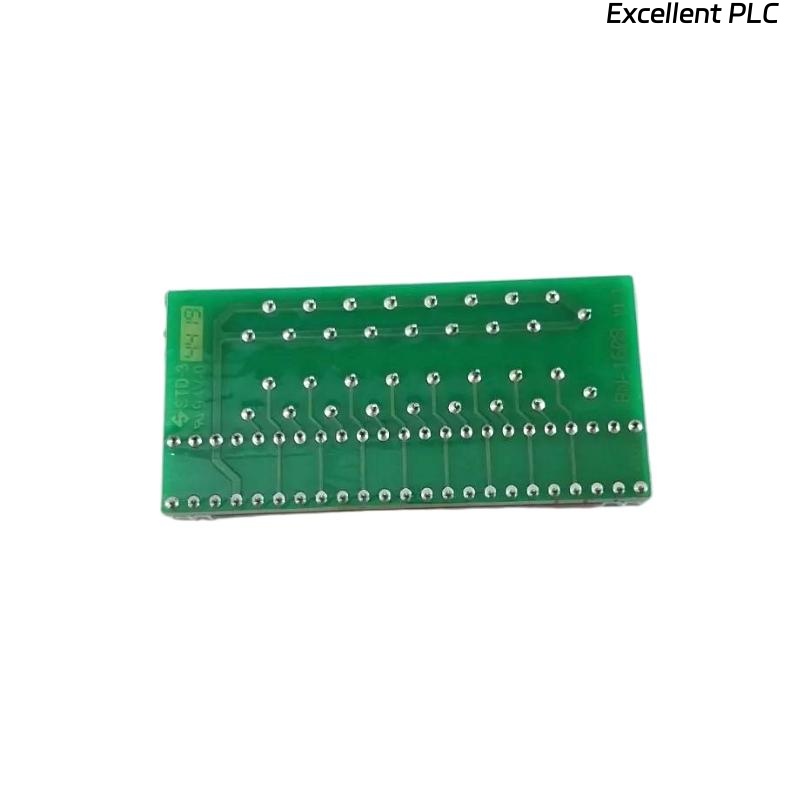

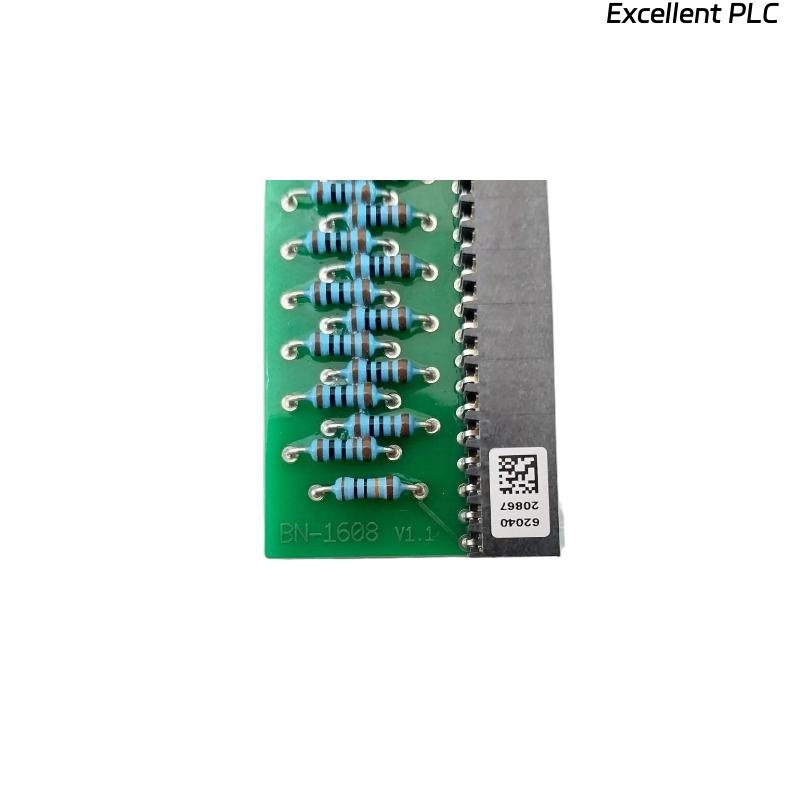

The Honeywell FS-BN-1608 is a sensor interface module designed to seamlessly integrate sensors into industrial automation systems. It acts as an intermediary between sensors and control systems, converting sensor outputs into signals that can be processed by the central system. This module is essential for applications requiring the collection of analog or digital data from various sensors for precise measurements and monitoring.
Engineered with advanced signal conditioning capabilities, the FS-BN-1608 ensures reliable data transmission, even in harsh environments where electrical noise or interference is a concern. It is compact and lightweight, with dimensions of 90 x 65 x 35 mm and weighing only 0.3 kg, which makes it easy to install in limited space applications.
Whether it’s used for monitoring temperature, pressure, flow, or other variables, the FS-BN-1608 delivers robust performance and long-term reliability, making it an ideal choice for industries such as manufacturing, energy, chemical, and automation control systems.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | FS-BN-1608 |
| Dimensions | 90 x 65 x 35 mm |
| Weight | 0.3 kg |
| Input Type | Analog/Digital Signal Input |
| Output Type | Analog/Digital Signal Output |
| Power Supply | 24 V DC |
| Operating Temperature | -10°C to +70°C |
| Signal Conditioning | Yes |
| Material | Polycarbonate Enclosure |
| Mounting Type | DIN Rail or Panel Mount |
| Signal Conversion | Voltage, Current, or Digital |
| Protection Class | IP20 |
Applications
The Honeywell FS-BN-1608 sensor interface module is designed for a wide range of applications that require precise data collection and signal conversion in industrial environments. It is suitable for systems that integrate multiple sensors and require accurate signal processing for better decision-making.
-
Industrial Automation Systems
In industrial automation, the FS-BN-1608 module provides a seamless connection between sensors (temperature, pressure, or flow) and control systems. It converts analog or digital signals to a form that can be easily interpreted by controllers or PLCs, enabling precise monitoring and control of industrial processes. -
Energy and Utilities
In the energy sector, the FS-BN-1608 is used to interface with sensors that monitor critical parameters such as pressure, flow, and temperature in pumps, valves, and generators. This helps in optimizing energy usage and preventing potential system failures due to abnormal conditions. -
Process Control Systems
In process control applications, the module is used to convert signals from temperature sensors, pressure transmitters, and other types of process sensors into readable data for system controllers, helping operators maintain optimum process conditions and efficiency. -
Machine Monitoring
The FS-BN-1608 plays an important role in machine monitoring systems, where it interfaces with various types of sensors like vibration sensors and speed sensors. This data helps to predict equipment failures and reduces downtime by enabling predictive maintenance strategies.
Advantages
-
Flexible Signal Processing
The FS-BN-1608 supports a variety of signal types, including voltage, current, and digital signals. This versatility makes it suitable for use with a wide range of industrial sensors, ensuring compatibility with many types of equipment in different environments. -
Compact and Lightweight
With its 90 x 65 x 35 mm dimensions and 0.3 kg weight, the FS-BN-1608 is incredibly compact, making it easy to install in areas with limited space, while still providing high performance and reliability. -
Wide Operating Temperature Range
The FS-BN-1608 operates in a broad temperature range of -10°C to +70°C, making it ideal for use in a variety of industrial environments, including those with high temperatures or varying temperature conditions. -
Signal Conditioning Capabilities
The module is equipped with signal conditioning features, which ensure that raw sensor data is processed and converted into usable signals without distortion, minimizing the impact of electrical noise and ensuring high data integrity.
FAQ
Q1: What is the main function of the FS-BN-1608 module?
A1: The FS-BN-1608 is a sensor interface module that converts sensor outputs into signals that can be processed by industrial automation systems, enabling accurate monitoring and control.
Q2: What types of sensors can be connected to the FS-BN-1608?
A2: The module is compatible with analog and digital sensors, including those that measure temperature, pressure, flow, and more.
Q3: What is the voltage rating of the FS-BN-1608?
A3: The module operates with a 24 V DC power supply, which is standard for industrial automation systems.
Q4: Can the FS-BN-1608 be used in high-temperature environments?
A4: Yes, the FS-BN-1608 has an operating temperature range of -10°C to +70°C, making it suitable for use in various industrial environments, including those with high or fluctuating temperatures.
Q5: What is the signal conditioning capability of the FS-BN-1608?
A5: The FS-BN-1608 is equipped with signal conditioning capabilities, which allow it to process raw sensor data and convert it into a usable form without distortion, ensuring signal integrity even in noisy environments.
Q6: How is the FS-BN-1608 mounted?
A6: The module can be mounted either on a DIN rail or directly to a panel, making installation flexible and easy to adapt to different system configurations.
Q7: What is the weight of the FS-BN-1608 module?
A7: The module weighs 0.3 kg, making it lightweight and easy to handle during installation.
Q8: What protection class is the FS-BN-1608 rated for?
A8: The FS-BN-1608 has an IP20 protection class, ensuring it is protected from dust but not from water ingress. It is designed for indoor use in environments where it is protected from direct exposure to water.
Q9: Is the FS-BN-1608 compatible with Honeywell’s automation systems?
A9: Yes, the FS-BN-1608 is fully compatible with Honeywell’s industrial automation systems, but it can also be used with other systems that require signal conversion from sensors.
Q10: How can I install the FS-BN-1608 module?
A10: The FS-BN-1608 module can be installed using DIN rail mounting or panel mounting, making it suitable for different types of industrial installations.
