Product Overview

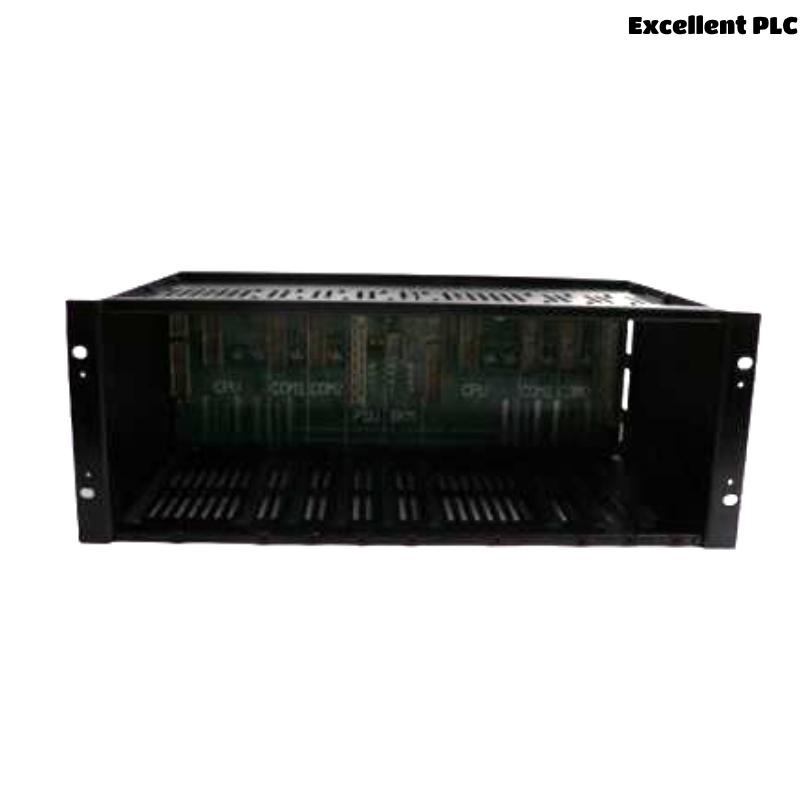

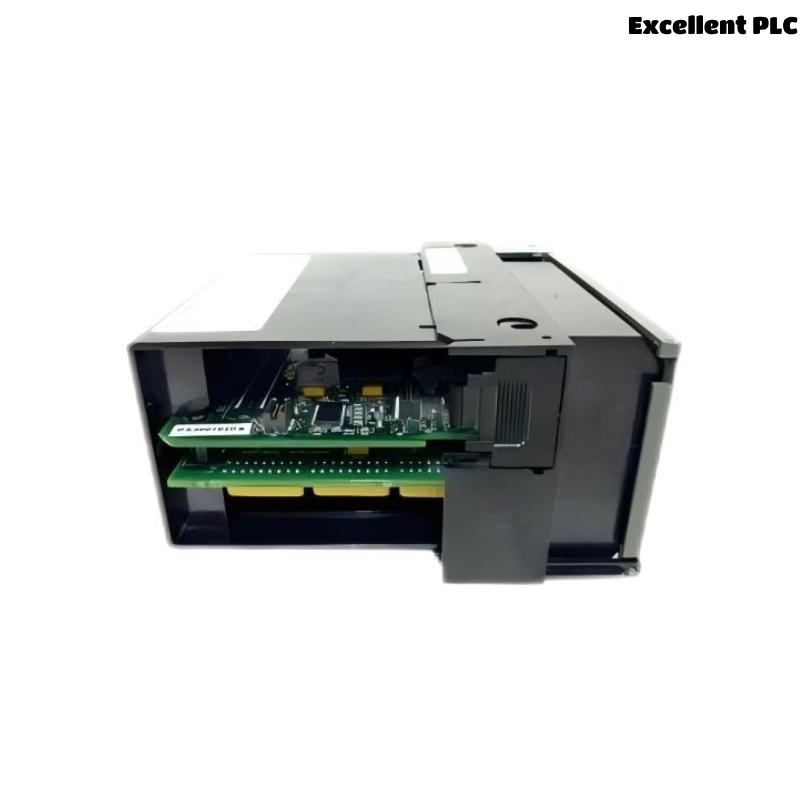

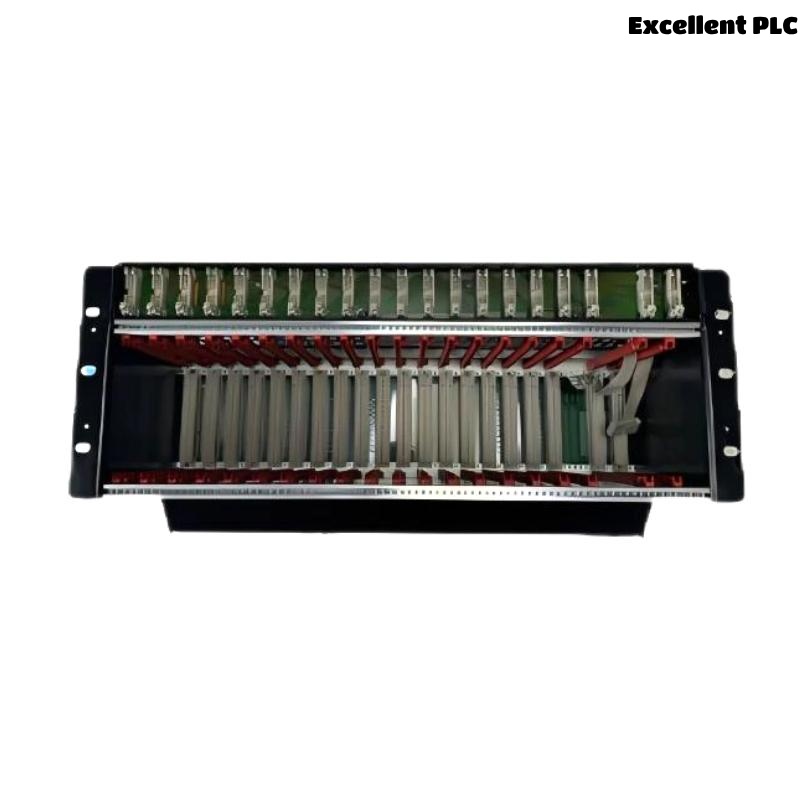

The Honeywell FS-CPCHAS-0002 is a high-capacity control processor chassis specifically designed for Honeywell’s Safety Manager and Experion PKS platforms. This advanced chassis serves as the structural and electrical foundation for mounting critical control processor modules, ensuring organized signal routing, system scalability, and compliance with high-integrity safety system requirements.
Designed with a larger module capacity than its predecessor (FS-CPCHAS-0001), the FS-CPCHAS-0002 supports expanded or redundant system configurations. It is built from rugged, industrial-grade materials to ensure long-term reliability, even in harsh environments such as oil and gas, power generation, and petrochemical industries.
Technical Specifications
Parameter | Description |
---|---|
Model Number | FS-CPCHAS-0002 |
Manufacturer | Honeywell |
System Compatibility | Honeywell Safety Manager, Experion PKS |
Chassis Type | Control Processor Mounting Chassis |
Material | Powder-coated steel with EMI shielding |
Number of Slots | 8 slots (processor and communication modules) |
Cooling Method | Passive (natural convection) |
Mounting Type | Panel or 19” rack mountable |
Power Distribution | Integrated backplane with power routing |
Grounding | Built-in ground rail system |
Ingress Protection | IP20 (cabinet installation required) |
Operating Temperature | 0°C to +60°C |
Storage Temperature | -40°C to +85°C |
Humidity Range | 5% to 95%, non-condensing |
Certifications | CE, UL, CSA, TÜV (Safety Systems) |
Dimensions (W × H × D) | 280 x 482.6 x 177 mm |
Weight | 5.8 kg |
Applications
The FS-CPCHAS-0002 is widely used in industrial applications that demand high availability, modularity, and safety compliance:
-
Oil & Gas (Upstream and Downstream)
Supports control processors managing emergency shutdown (ESD), fire & gas (F&G), and safety interlocks. -
Power Generation
Houses safety PLCs managing turbine protection, boiler safety, and power plant critical controls. -
Chemical Processing
Used for mounting processors in safety instrumented systems (SIS) for exothermic reaction controls. -
Pharmaceutical Manufacturing
Provides a clean and organized mounting point for validated batch process safety systems. -
Mining and Metals
Integrated into DCS cabinets controlling high-voltage equipment interlocks and failsafe shutdowns. -
Marine and Offshore Platforms
Supports redundant safety control systems in offshore drilling and processing units.
Key Product Advantages
-
Expanded Module Capacity
Accommodates up to 8 modules, ideal for redundant or extended system architectures. -
Robust Industrial Design
Built from powder-coated steel with EMI shielding for use in demanding environments. -
Integrated Grounding System
Ensures effective noise suppression and protection for sensitive safety control circuits. -
Flexible Mounting Options
Suitable for both rack and panel mounting in standard industrial enclosures. -
Simple Maintenance and Scalability
Modules can be inserted or replaced with minimal disruption to adjacent hardware. -
Thermal Efficiency
Passive cooling system allows for silent operation without fans, minimizing mechanical failure points.
Frequently Asked Questions (FAQ)
-
What is the main purpose of the FS-CPCHAS-0002?
It serves as a chassis to mount and electrically connect Honeywell control processor modules in safety systems. -
How does FS-CPCHAS-0002 differ from FS-CPCHAS-0001?
FS-CPCHAS-0002 provides more module slots (8 vs. 5), offering support for larger or redundant configurations. -
What kind of modules can be mounted in this chassis?
Control processors, communication modules, and I/O interface modules compatible with Safety Manager. -
Can this chassis be installed in outdoor environments?
It is not weatherproof and must be installed inside a suitable cabinet with environmental protection. -
Does it require active cooling (fans)?
No, it relies on passive natural convection, reducing maintenance requirements. -
Is it possible to replace a module without removing the entire chassis?
Yes, modules are individually slotted and can be accessed without disassembling the full unit. -
What type of grounding is required?
It includes a built-in ground rail system that must be connected to the cabinet’s ground bus. -
Are special tools needed for installation?
Only standard industrial tools are required for mounting and wiring—no specialized tools are needed. -
Is the chassis certified for use in safety-critical applications?
Yes, it carries TÜV certification and meets safety system standards such as IEC 61508. -
Can it support both Safety Manager and Experion PKS platforms?
Yes, the chassis is designed for compatibility with both Honeywell control system environments.
Related Models (Same Series or Functionality)
Model | Description | Slots | Dimensions (mm) | Weight |
---|---|---|---|---|
FS-CPCHAS-0001 | Standard 5-slot chassis for control processors | 5 | 445 × 175 × 230 | 4.8 kg |
FS-IOCHAS-0001 | I/O chassis for field signal interface modules | 16 | 445 × 250 × 200 | 6.0 kg |
FS-PWRCHAS-0001 | Power chassis for redundant power modules | 4 | 320 × 175 × 180 | 3.5 kg |
FS-COMCHAS-0001 | Communication chassis for network modules | 6 | 445 × 175 × 230 | 4.8 kg |
FS-TERCHAS-0001 | Terminal wiring chassis for signal distribution | 24 | 420 × 175 × 100 | 3.2 kg |
FS-RLYCHAS-0001 | Relay output module chassis for discrete outputs | 8 | 445 × 200 × 230 | 4.5 kg |
Popular Honeywell Models (Same Brand)
Model | Description | Primary Use | Weight |
---|---|---|---|
FC-TSDI-1624 | 16-channel digital input termination assembly | Discrete signal termination | 1.5 kg |
FC-TSDO-3216 | 32-channel digital output termination assembly | Output to field devices | 1.8 kg |
FC-TSRO-0824 | 8-channel digital output (relay) termination assembly | Relay-based signal control | 1.0 kg |
FC-TSPO-1000 | Power supply module | Power distribution for I/O modules | 2.0 kg |
FC-TSPD-3216 | Analog signal termination assembly | Analog signal interface | 2.0 kg |
FC-TSRM-2200 | Remote I/O module | Remote data collection and processing | 2.5 kg |
