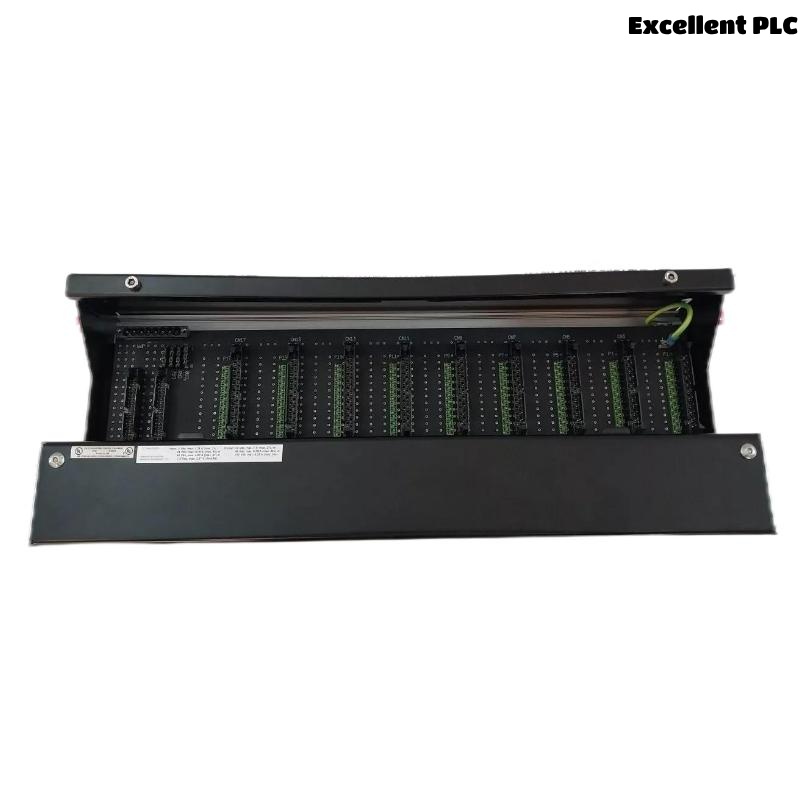

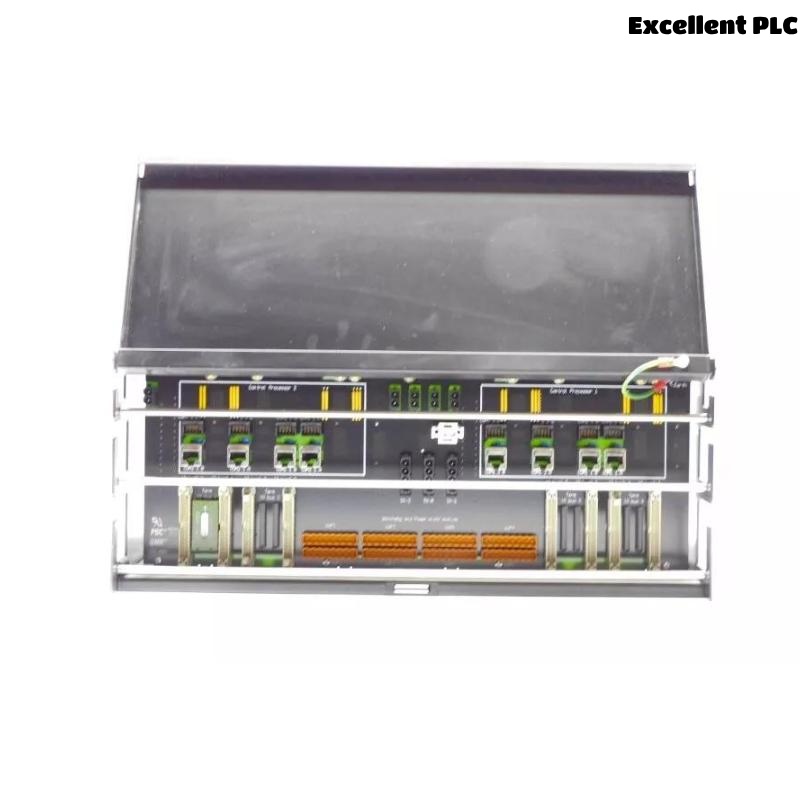

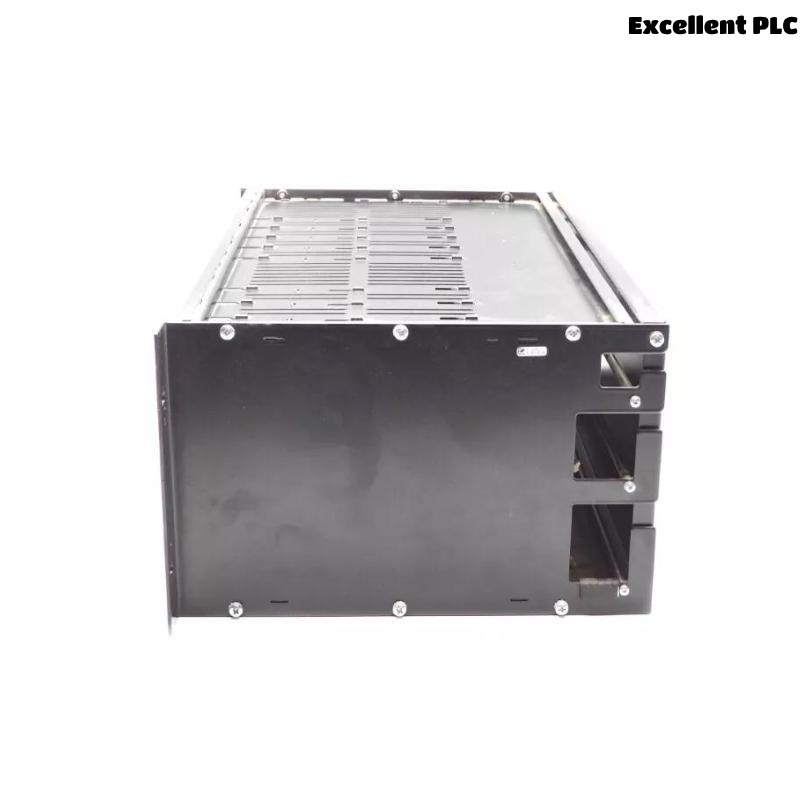

Honeywell FS-CPCHAS-0003 Chassis for Control Processor

Manufacturer:Honeywell

Product Number:FS-CPCHAS-0003

Product Type:Chassis for Control Processor

Origin:USA

Dimensions:280 x 482.6 x 177 mm

Weight:5.8 kg

Views:111

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24


  • Product Details
  • FAQs
  • Related
  • Contact Us
  • Packing & Delivery
  • Product Ratings
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Honeywell FS-CPCHAS-0003 Chassis for Control Processor

Product Overview

The Honeywell FS-CPCHAS-0003 is an industrial-grade control processor chassis tailored for Honeywell’s advanced process safety platforms, particularly within the Safety Manager and Experion PKS (Process Knowledge System) families. This third-generation chassis model offers enhanced mechanical design, module capacity, and improved thermal performance for mission-critical applications.

Serving as the core framework for hosting control processor cards, the FS-CPCHAS-0003 enables high-reliability operations in complex process automation environments. Whether configured for redundancy, failover, or standard control, this chassis is integral to supporting safety integrity level (SIL) requirements in industries such as oil & gas, power, and chemical manufacturing.


Technical Specifications

Parameter Description
Model Number FS-CPCHAS-0003
Manufacturer Honeywell
System Compatibility Safety Manager, Experion PKS
Chassis Type Control Processor Mounting Chassis
Material Electro-galvanized steel with EMI shielding
Available Slots 10 (8 module slots + 2 for power/network interfaces)
Cooling Method Passive (enhanced convection layout)
Mounting Type DIN rail or 19” rack mountable
Power Bus Integrated internal backplane
Grounding Centralized grounding rail
Ingress Protection IP20 (for cabinet installation)
Operating Temperature 0°C to +60°C
Storage Temperature -40°C to +85°C
Relative Humidity 5% to 95%, non-condensing
Certifications CE, UL, CSA, TÜV (SIL-rated systems)
Dimensions (W × H × D) 280 x 482.6 x 177 mm
Weight 5.8 kg

Applications

The FS-CPCHAS-0003 is utilized in safety-critical applications across a broad range of industries:

  • Oil & Gas (Upstream and Refining)
    Mounting control processors for ESD, F&G systems, and wellhead shutdown logic.

  • Power Plants (Thermal, Nuclear, Hydro)
    Hosts turbine trip logic, boiler protection, and system-wide interlock management.

  • Chemical and Petrochemical Production
    Supports process safety PLCs for reactor control, overpressure protection, and critical loop monitoring.

  • Pharmaceutical Manufacturing
    Facilitates installation of validated control logic in GMP-regulated production systems.

  • Mining and Mineral Processing
    Mounts control modules for emergency stops, conveyor interlocks, and equipment shutdown systems.

  • Water/Wastewater Facilities
    Used for hosting safety logic in pumping, chlorination, and treatment plant controls.


Key Advantages

  • Expanded Capacity
    Provides up to 10 slots, ideal for complex or redundant architectures without increasing cabinet footprint.

  • Strong Mechanical Construction
    Built with high-tensile steel and robust module retention, suited for vibration-prone environments.

  • Thermally Optimized Layout
    Designed to enhance passive airflow and maintain optimal module operating temperatures.

  • Versatile Mounting
    Compatible with DIN rail and 19” rack systems, supporting varied installation scenarios.

  • Improved Serviceability
    Features modular alignment, backplane power, and clear labeling for fast diagnostics and replacement.

  • Safety Certified
    Meets international standards for functional safety applications up to SIL 3.


Frequently Asked Questions (FAQ)

  1. What type of system is the FS-CPCHAS-0003 designed for?
    It’s built for Honeywell’s Safety Manager and Experion PKS control systems in safety-critical environments.

  2. How many modules can it accommodate?
    It offers up to 10 usable slots, including processor, power, and communication modules.

  3. Is the chassis suitable for redundant processor setups?
    Yes, it is specifically designed to support redundant and hot-standby control configurations.

  4. Can this chassis be installed outside of a cabinet?
    No, it must be housed within a protective enclosure or control cabinet (IP54 or higher recommended).

  5. Does it come with a built-in power supply?
    No, power supplies must be installed as separate modules into designated slots.

  6. Is the chassis hot-swappable?
    Modules can be replaced while powered down, but full hot-swap depends on the module type and system design.

  7. How is electromagnetic interference managed?
    The chassis includes EMI shielding and grounding paths for signal protection and noise reduction.

  8. Can I mount the FS-CPCHAS-0003 on a DIN rail?
    Yes, it supports both DIN rail and standard 19-inch rack mounting formats.

  9. What tools are needed for installation?
    Basic industrial tools (screwdrivers, wrenches) are sufficient. No specialized equipment required.

  10. What’s the weight of a fully populated chassis?
    5.8 kg.


Related Models (Same Series or Functionality)

Model Description Slots Dimensions (mm) Weight
FS-CPCHAS-0001 5-slot standard chassis for basic control systems 5 445 × 175 × 230 4.8 kg
FS-CPCHAS-0002 8-slot mid-range control processor chassis 8 480 × 180 × 240 5.5 kg
FS-IOCHAS-0001 I/O chassis for field signal interface cards 16 445 × 250 × 200 6.0 kg
FS-PWRCHAS-0001 Power chassis for dual or redundant PSU modules 4 320 × 175 × 180 3.5 kg
FS-TERCHAS-0001 Terminal wiring chassis for clean signal termination 24 420 × 175 × 100 3.2 kg
FS-COMCHAS-0001 Communication chassis for network modules 6 445 × 175 × 230 4.8 kg

Popular Honeywell Models (Same Brand)

Model Description Primary Use Weight
FC-TSDI-1624 16-channel digital input termination assembly Discrete input signal routing 1.5 kg
FC-TSDO-3216 32-channel digital output termination module Discrete output control to field 1.8 kg
FC-TSRO-0824 8-channel relay output module termination Relay-actuated device control 1.0 kg
FC-TSPO-1000 Power supply module for I/O and logic power System power regulation 2.0 kg
FC-TSPD-3216 Analog input signal termination module Field analog signal acquisition 2.0 kg
FC-TSRM-2200 Remote I/O module for extended systems Distributed data acquisition 2.5 kg
