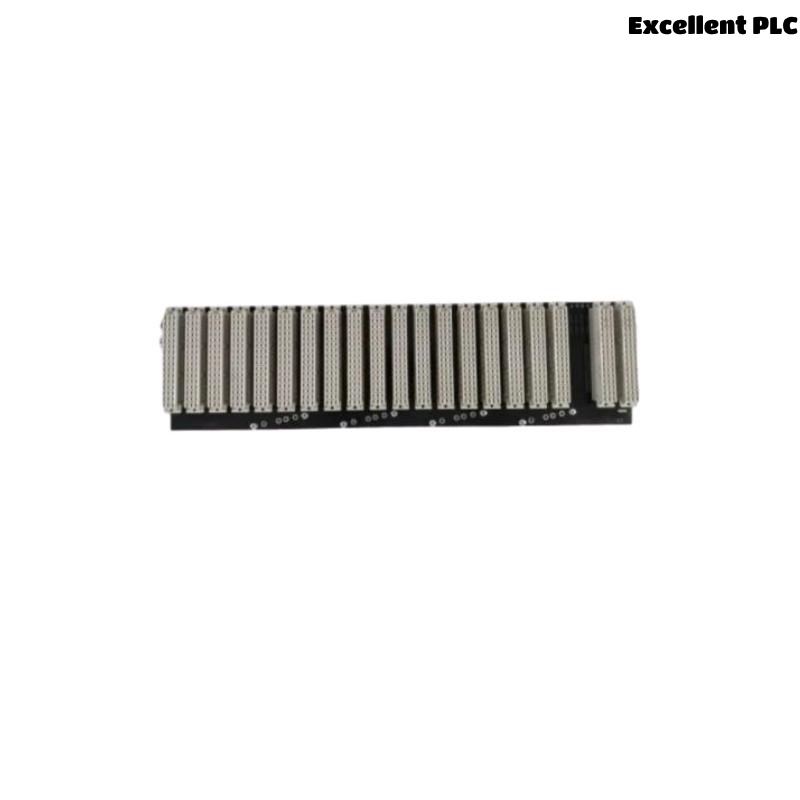

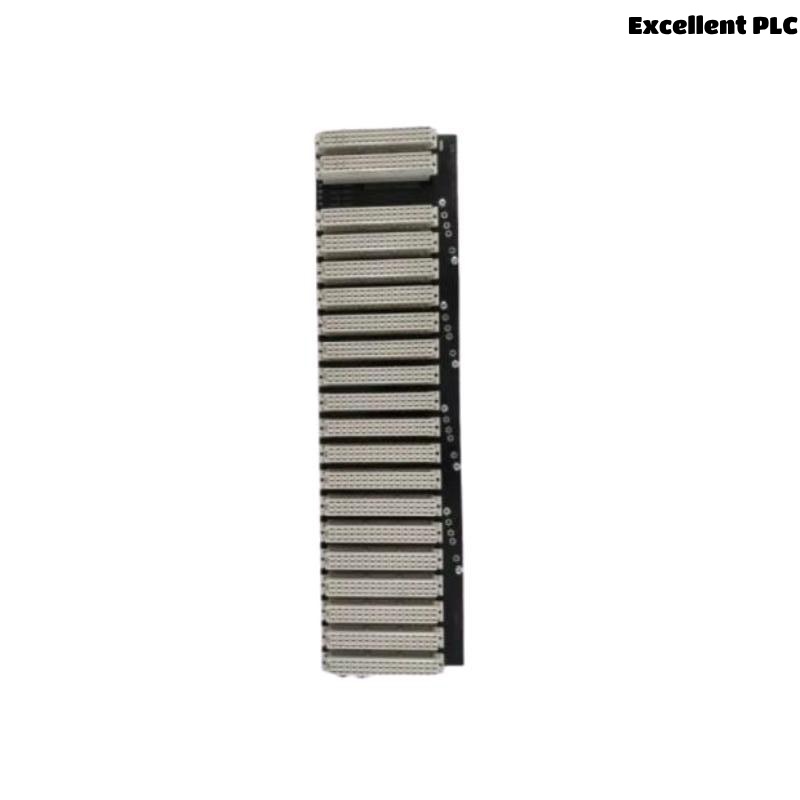

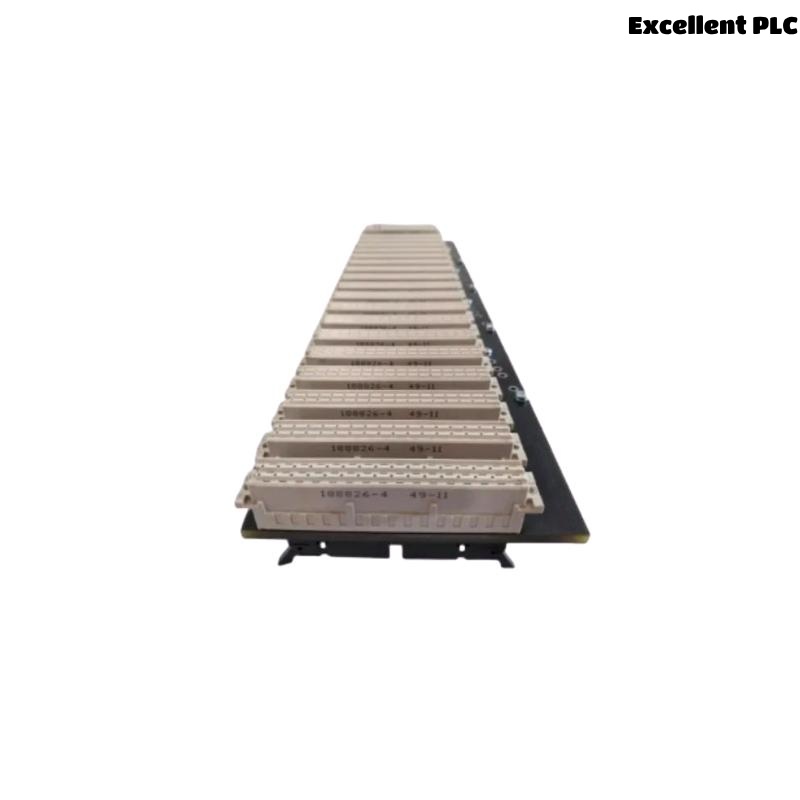

The Honeywell FS-IOBUS-CPIO3 is a critical component of Honeywell’s Safety Manager platform, specifically designed for industrial safety system architectures requiring centralized I/O processing. This module functions as a Compact Process I/O (CPIO) interface within the I/O bus network, enabling deterministic and secure communication between safety controllers and field devices. It is typically employed in Safety Instrumented Systems (SIS) for applications in oil & gas, petrochemical, power generation, and other high-integrity industrial environments.

The FS-IOBUS-CPIO3 offers robust integration within Honeywell’s Fail Safe Controller (FSC) framework and supports dual redundancy and hot-swap capabilities to ensure system uptime and operational integrity. It delivers real-time input/output data exchange and diagnostics while meeting stringent safety integrity level (SIL) standards.

---

Product Advantages

• High Availability: Supports redundancy and hot-swapping, minimizing downtime during maintenance or module replacement.

• Safety Certified: Designed to meet IEC 61508 up to SIL 3, making it ideal for critical safety operations.

• Compact Design: Its space-saving form factor fits easily into tight control cabinets without sacrificing performance.

• Deterministic Communication: Ensures real-time responsiveness in safety-critical environments with minimal latency.

• Integration Friendly: Seamlessly integrates with Honeywell Safety Manager systems and field instrumentation.

• Robust Diagnostics: Offers advanced fault detection and status monitoring for proactive maintenance.

---

Technical Specifications

---

Product Applications

The FS-IOBUS-CPIO3 is widely deployed in industrial sectors requiring functional safety and high system availability. Key applications include:

• Emergency Shutdown (ESD) Systems

• Fire & Gas Detection and Suppression Systems

• Burner Management Systems (BMS)

• Turbine Control and Protection

• Boiler Protection Systems

• Pipeline Monitoring and Leak Detection

• High-Integrity Pressure Protection Systems (HIPPS)

• Power plant safety interlocks and logic execution

---

Installation Instructions

1. Ensure the power to the system is OFF before installation to prevent electrical hazard.

2. Mount the FS-IOBUS-CPIO3 securely on a DIN rail in a well-ventilated control cabinet.

3. Connect the I/O Bus cables to the module’s designated ports.

4. Verify grounding and shielding are properly done to minimize electrical noise.

5. Insert the module into the Safety Manager rack; if in redundant mode, ensure pairing is correctly configured.

6. Power ON the system and observe status LEDs to confirm successful startup.

7. Use Honeywell’s configuration software to integrate the module into the control logic.

8. Run diagnostics to validate field device communication and data integrity.

---

Compatible / Associated Models

1. Honeywell FS-SAI-1620m

2. Honeywell FS-DO-0824

3. Honeywell FS-PM-CPU

4. Honeywell FS-AI-1616

5. Honeywell FS-RTD-4

6. Honeywell FS-RLY-8

---

Popular Models from the Same Brand

---

FAQs (Frequently Asked Questions)

Q1: Is the FS-IOBUS-CPIO3 compatible with all versions of Honeywell Safety Manager?
A1: Yes, the module is designed for full compatibility with Honeywell Safety Manager systems, particularly FSC configurations.

Q2: Can I hot-swap the module during live operations?
A2: Yes, FS-IOBUS-CPIO3 supports hot-swapping without disrupting system operations, provided it is configured in a redundant system.

Q3: What happens if communication on one bus line fails?
A3: The module supports redundant I/O buses. If one fails, the system automatically switches to the secondary bus with no data loss.

Q4: What are the indicators on the module for?
A4: The LEDs indicate power status, communication health, module fault, and operational diagnostics.

Q5: How should I wire the grounding for noise immunity?
A5: Grounding should follow Honeywell’s recommended installation standards to ensure signal integrity and noise suppression.

Q6: Can it be used in high-vibration or outdoor environments?
A6: The FS-IOBUS-CPIO3 is designed for control cabinet environments. For harsh or outdoor use, appropriate enclosures must be used.

Q7: How often does the firmware need to be updated?
A7: Firmware updates are issued as needed for performance or security enhancements. Updates can be managed via Honeywell’s configuration tools.

Q8: What diagnostic tools are supported?
A8: The module supports system diagnostics through the Safety Manager’s integrated software and online maintenance interface.

Q9: Is there a specific power supply requirement?
A9: A stable 24 VDC power source is required. Tolerance and regulation must conform to industrial standards.

Q10: Can this module be used with third-party control systems?
A10: While optimized for Honeywell systems, integration with third-party platforms is possible but requires protocol converters or middleware.
