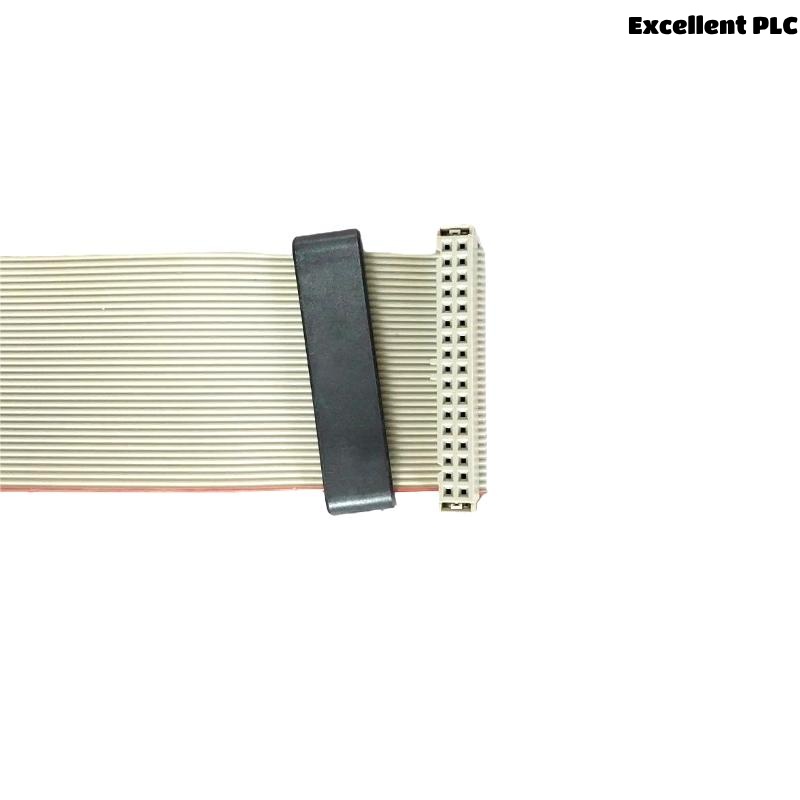

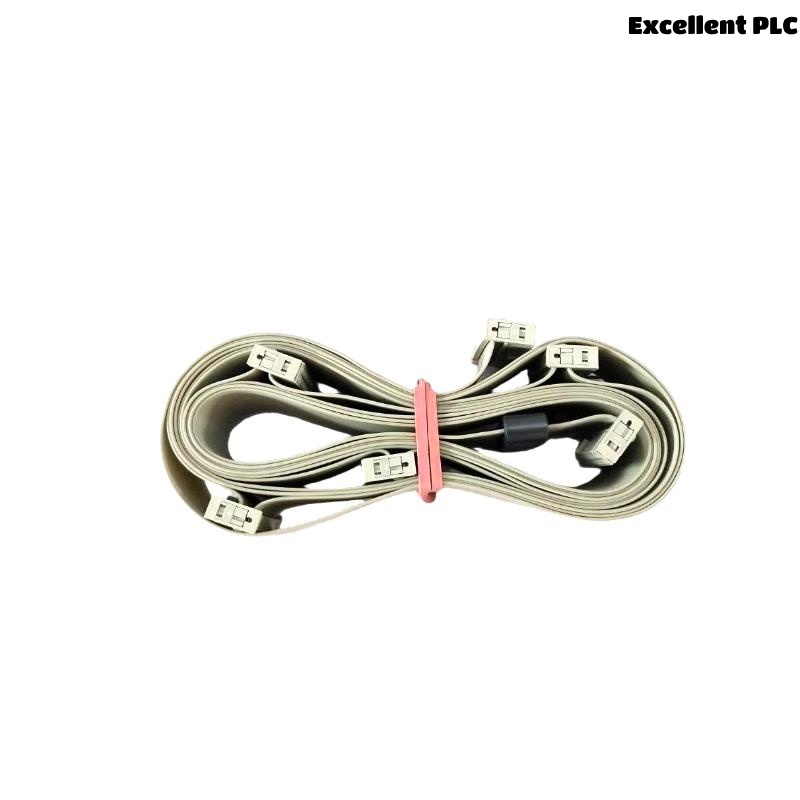

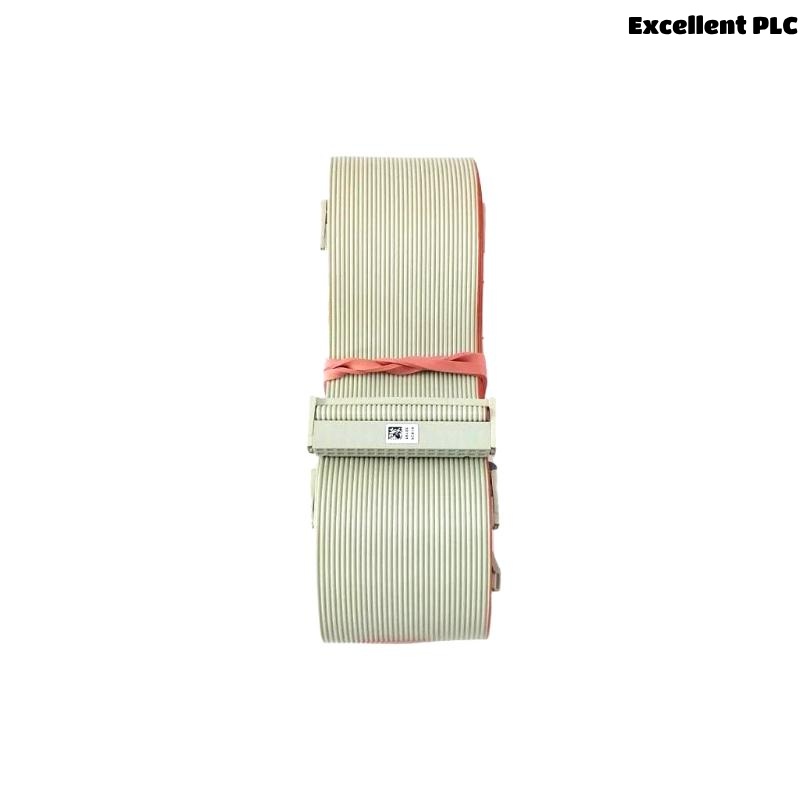

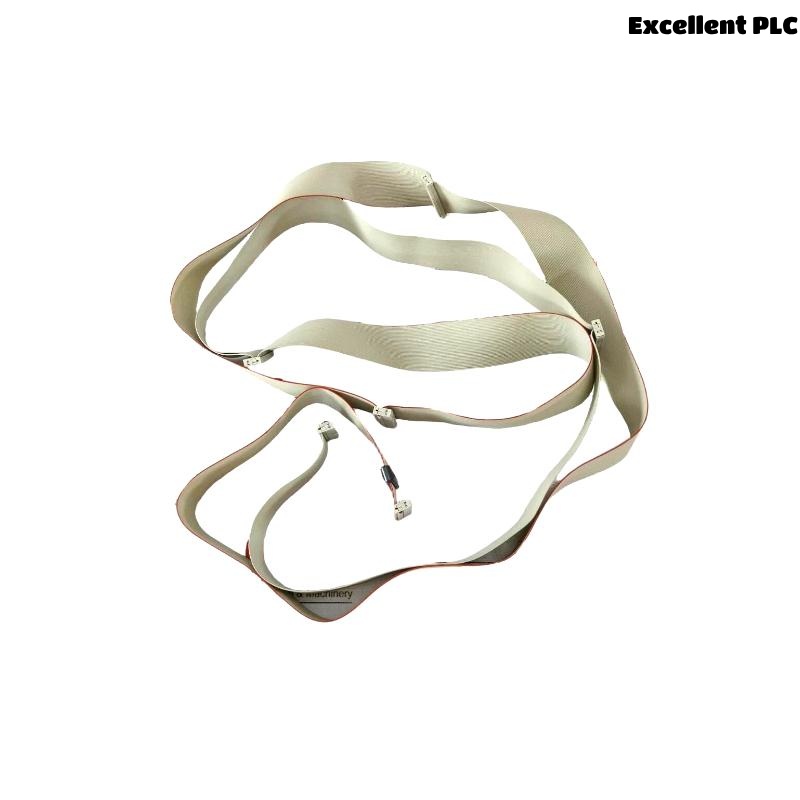

Honeywell FS-IOBUS-CPIO4 I/O Bus from Controller Chassis to I/O Chassis
The Honeywell FS-IOBUS-CPIO4 is a high-reliability I/O bus cable assembly designed to interconnect the controller chassis and I/O chassis in Honeywell’s safety and process control systems. It ensures fast and accurate data transmission, supporting seamless communication between control and field I/O modules in demanding industrial environments.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Name | Honeywell FS-IOBUS-CPIO4 |
| Function | I/O bus from controller to I/O chassis |
| Connectors | 34-pole latch (female) |
| Cable Length | Standard lengths available |
| Weight | 0.31 kg |
| Dimensions | Customized to fit Honeywell I/O chassis setups |
Applications
The FS-IOBUS-CPIO4 is widely used in Honeywell’s safety systems and distributed control systems (DCS). It is suitable for:
-
Process plants (oil & gas, chemicals, power generation)
-
High-integrity safety system interconnections
-
Critical control and monitoring systems requiring robust signal transmission
Advantages
-
Robust construction for industrial environments
-
Secure 34-pole latch connector ensures reliable connection
-
Optimized for Honeywell control and I/O chassis compatibility
-
Lightweight and easy to install
-
Minimizes signal loss for accurate communication
FAQs
Q1: What is the purpose of the FS-IOBUS-CPIO4?
A1: It connects the controller chassis to the I/O chassis in Honeywell systems for data transfer.
Q2: Is it compatible with all Honeywell controllers?
A2: It is designed specifically for Honeywell safety and process control systems that use 34-pole connectors.
Q3: What type of connector does it use?
A3: It features a 34-pole latch (female) connector.
Q4: Can it be used in harsh environments?
A4: Yes, it is robustly designed for industrial conditions.
Q5: What is its weight?
A5: The cable assembly weighs approximately 0.31 kg.
Q6: Are different lengths available?
A6: Yes, standard and custom lengths can be ordered to suit installation needs.
Q7: How is it secured during installation?
A7: The 34-pole latch provides a secure and stable connection.
Q8: Is it plug-and-play?
A8: Yes, it is easy to install and does not require special tools.
Q9: Does it support redundancy?
A9: It can be part of redundant configurations in Honeywell systems.
Q10: How often should it be replaced?
A10: Replacement is rarely needed unless damaged, as it is built for long-term use.
Recommended Related Models
| Model | Description |
|---|---|
| FS-IOBUS-CPIO2 | I/O bus cable, 2m length, 34-pole |
| FS-IOBUS-CPIO6 | I/O bus cable, 6m length, 34-pole |
| FS-IOBUS-CPIO10 | I/O bus cable, 10m length, 34-pole |
| FS-IOBUS-CPIO15 | I/O bus cable, 15m length, 34-pole |
| FS-IOBUS-CPIO20 | I/O bus cable, 20m length, 34-pole |
| FS-IOBUS-CPIO25 | I/O bus cable, 25m length, 34-pole |
