Product Introduction

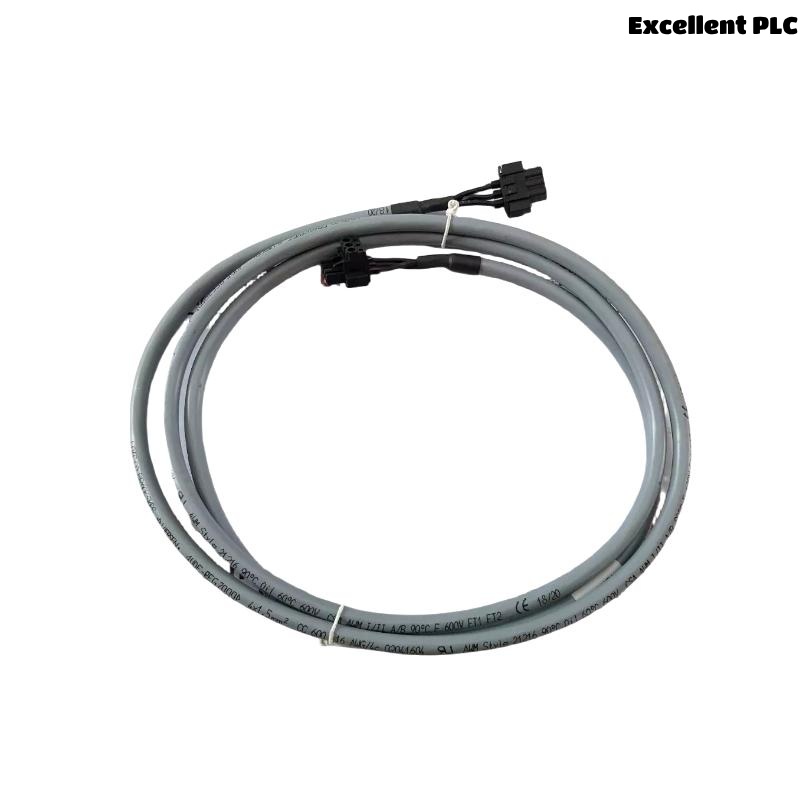

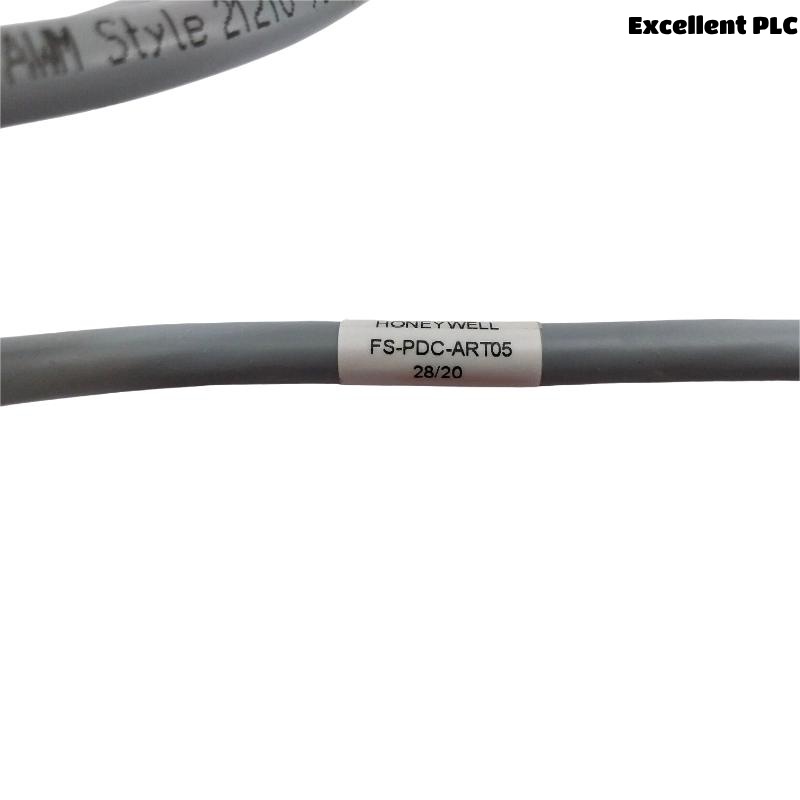

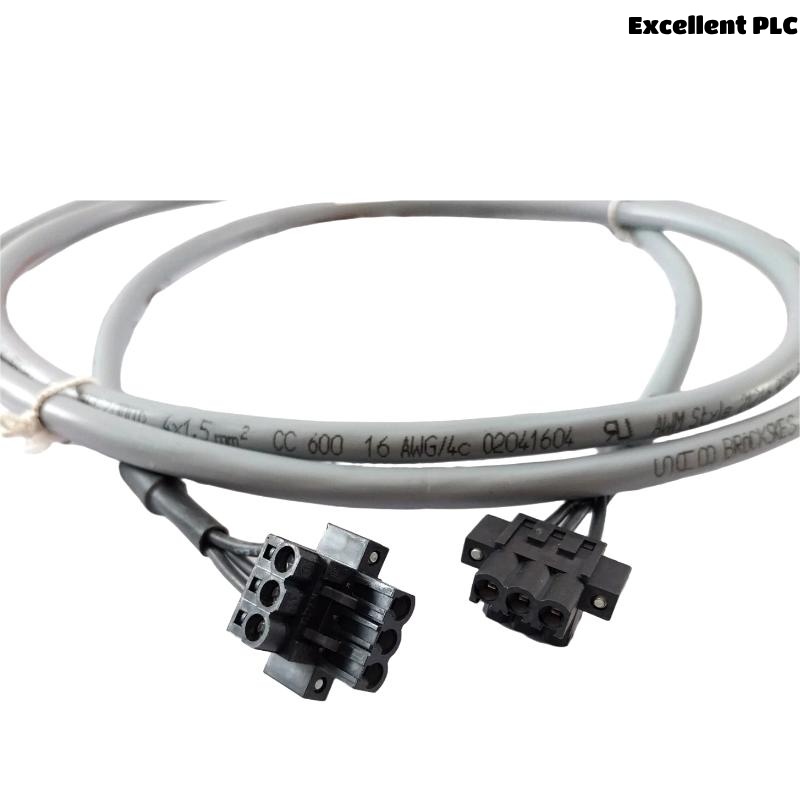

The Honeywell FS-PDC-ART05 Power Distribution Cable is an essential component used to provide reliable and efficient power distribution in industrial automation systems. This cable is designed to meet the power requirements of a wide range of industrial applications, including those in control systems, process automation, and machinery monitoring. The FS-PDC-ART05 power distribution cable plays a crucial role in ensuring the smooth operation of control panels, sensors, actuators, and other equipment that rely on stable power sources for optimal performance.
The cable is engineered to handle high-voltage power distribution while ensuring maximum safety, durability, and longevity. With its robust construction and reliable electrical conductivity, the FS-PDC-ART05 cable ensures consistent power supply to connected devices, preventing downtime and reducing the risk of equipment failures. It is particularly suitable for use in hazardous environments where safety and reliability are critical.
Honeywell’s FS-PDC-ART05 power distribution cable is designed to work seamlessly with Honeywell’s industrial automation systems, such as the Experion PKS and other control systems, providing a reliable infrastructure for complex, mission-critical systems. It ensures high-performance power management, making it an essential part of any large-scale industrial facility or automation setup.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | FS-PDC-ART05 |
| Type | Power Distribution Cable |
| Cable Type | Multi-core, high-voltage distribution cable |
| Voltage Rating | 600 V (nominal) |
| Current Rating | 15 Amps per core |
| Conductor Material | Copper (tinned) |
| Insulation Material | PVC (Polyvinyl Chloride) |
| Outer Diameter | 12 mm |
| Number of Conductors | 5 cores (each with independent insulation) |
| Temperature Range | -40°C to +90°C |
| Cable Length | 2 meters |
| Weight | 0.3 kg |
| Environmental Protection | IP65 (Water-resistant, dustproof) |
| Certification | UL, CE, RoHS |
| Mounting | Flexible, suitable for indoor and outdoor use |
| Application Compatibility | Honeywell Experion PKS, Honeywell DCS systems |
| Flammability Rating | UL 1581 (VW-1) |
Product Applications
The Honeywell FS-PDC-ART05 Power Distribution Cable is designed for use in industrial automation systems where stable and reliable power distribution is required. Its applications are broad, ranging from simple control systems to more complex processes. Here are some key applications:
-
Control Systems: In industrial control panels, this cable ensures the reliable delivery of power to various control components, including PLCs, HMIs, and sensors.
-
Process Automation: The cable is used in process automation setups to provide power to devices like valves, actuators, and measurement equipment, enabling efficient control of processes.
-
Machine Monitoring: In machinery monitoring systems, the FS-PDC-ART05 ensures that critical components, such as vibration sensors and temperature controllers, receive continuous power for real-time data collection.
-
Power Generation: Used in power generation facilities to distribute power to essential monitoring and control systems, such as turbine controls and energy management systems.
-
Oil & Gas: In the oil and gas industry, the cable powers remote monitoring systems, control panels, and safety systems in harsh environments, ensuring operational efficiency and safety.
-
Building Automation: Used in building management systems for HVAC, lighting, and security systems, providing a stable power source for the continuous operation of these systems.
-
Water Treatment: Applied in water treatment plants, where it powers instrumentation and control systems that monitor water quality, pump systems, and chemical dosing units.
-
Manufacturing: In manufacturing plants, the cable ensures reliable power distribution to automated systems, including conveyors, robotic arms, and assembly lines.
Product Advantages
-
High Power Handling: The FS-PDC-ART05 is designed to handle up to 600 V, providing sufficient power distribution for industrial control systems, ensuring reliable operation across a range of devices.
-
Durable Construction: Made with tinned copper conductors and PVC insulation, this cable is built for long-lasting durability, providing optimal conductivity and resistance to environmental stresses.
-
Temperature Resilience: With an operating temperature range of -40°C to +90°C, the FS-PDC-ART05 can function in a variety of harsh environmental conditions, from freezing cold to high heat.
-
Compact Design: The cable’s 12 mm outer diameter and 5 cores make it compact and easy to install, allowing for efficient space usage in control panels and electrical enclosures.
-
Water and Dust Resistance: With an IP65 rating, the cable is resistant to dust and water, making it suitable for both indoor and outdoor applications, including wet and humid environments.
-
Flame Retardant: The UL 1581 (VW-1) flammability rating ensures that the cable will not catch fire easily, increasing the safety of the installation.
-
Long Service Life: The high-quality materials used in the construction of the FS-PDC-ART05 ensure that it provides long-term reliability and performance, reducing the need for frequent replacements.
-
Easy Installation: The cable is flexible, making it easy to route through tight spaces and around equipment in control panels and machinery setups.
-
Compliance: Fully compliant with UL, CE, and RoHS standards, the cable adheres to international quality and environmental regulations, making it suitable for a wide range of industries.
-
Customizable Length: The cable can be customized up to 100 meters, providing flexibility in installation and ensuring that it meets the specific power distribution requirements of the application.
Frequently Asked Questions (FAQ)
-
Q: What is the voltage rating of the Honeywell FS-PDC-ART05 power distribution cable?
A: The voltage rating is 600 V (nominal). -
Q: How many conductors does the FS-PDC-ART05 cable have?
A: The cable has 5 cores (each with independent insulation). -
Q: What is the operating temperature range for the FS-PDC-ART05 cable?
A: The cable operates within a temperature range of -40°C to +90°C. -
Q: What is the flammability rating of the cable?
A: The cable has a UL 1581 (VW-1) flammability rating. -
Q: How long length of the FS-PDC-ART05 cable?
A: The cable 2 meters. -
Q: What is the weight of the FS-PDC-ART05 per meter?
A: The cable weighs 0.3 kg. -
Q: Is the FS-PDC-ART05 cable water-resistant?
A: Yes, the cable is rated IP65, meaning it is water-resistant and dustproof. -
Q: What are the main applications of the FS-PDC-ART05 power distribution cable?
A: It is used in industrial control systems, process automation, machine monitoring, oil & gas, power generation, water treatment, and more. -
Q: Is the FS-PDC-ART05 cable suitable for outdoor use?
A: Yes, with its IP65 rating, the cable is suitable for both indoor and outdoor applications. -
Q: What insulation material is used for the FS-PDC-ART05 cable?
A: The cable uses PVC (Polyvinyl Chloride) insulation.
Related Models and Variants
| Model Number | Description | Key Feature |
|---|---|---|
| FS-PDC-ART06 | High-power distribution cable | Handles up to 1000 V for larger systems |
| FS-PDC-ART07 | Low-voltage power distribution cable | Suitable for low-voltage control systems |
| FS-PDC-ART04 | Power distribution cable with enhanced shielding | Provides extra protection against interference |
| FS-PDC-ART03 | Compact power distribution cable | Smaller diameter for space-saving applications |
| FS-PDC-ART02 | Industrial power distribution cable | Rated for higher temperature environments |
| FS-PDC-ART08 | High-density cable with multiple cores | Suitable for dense installations with more I/O devices |
