Product Introduction

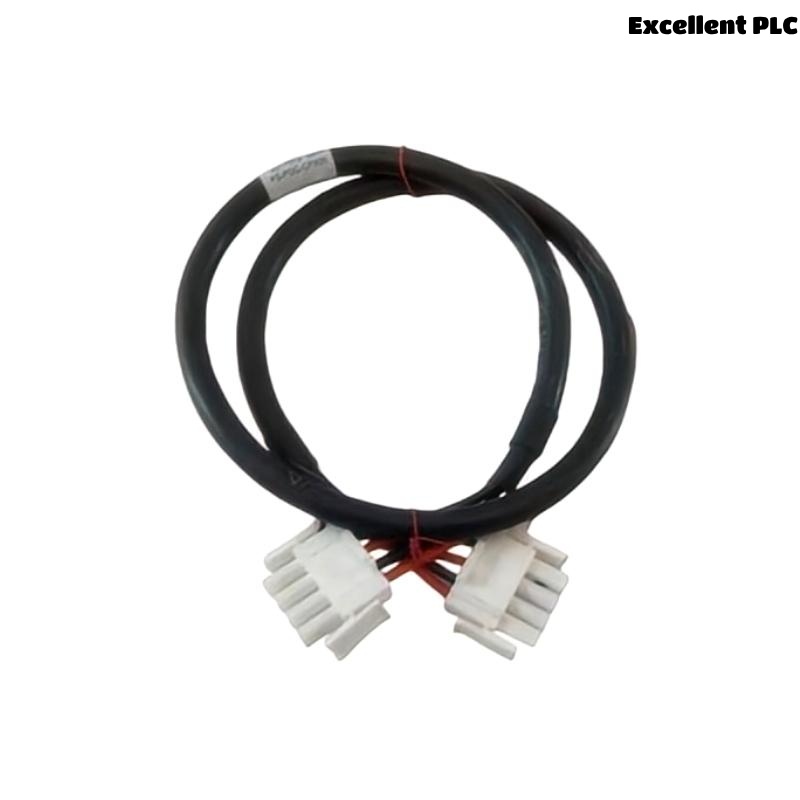

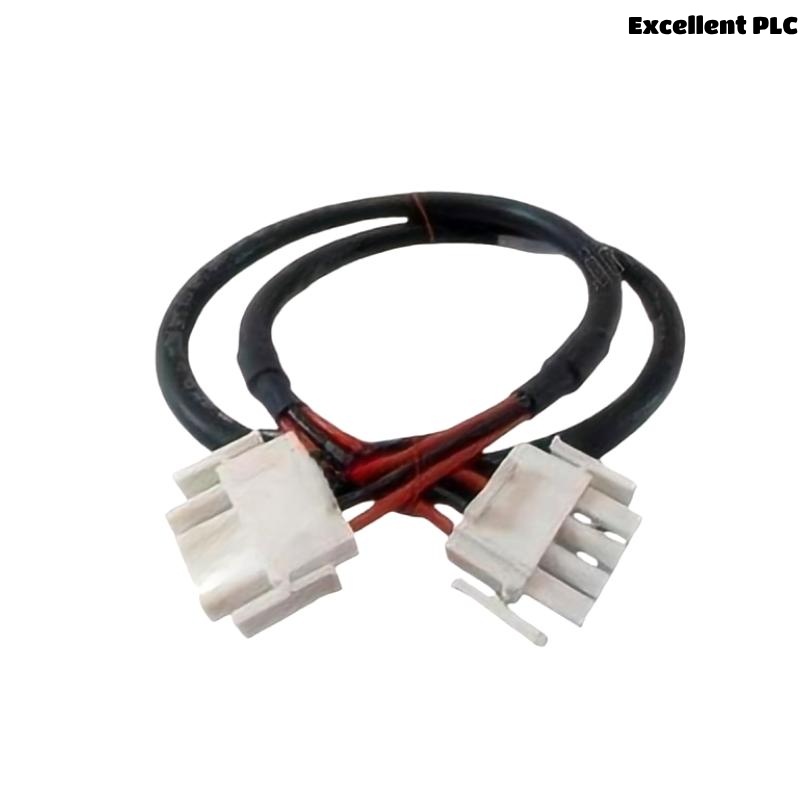

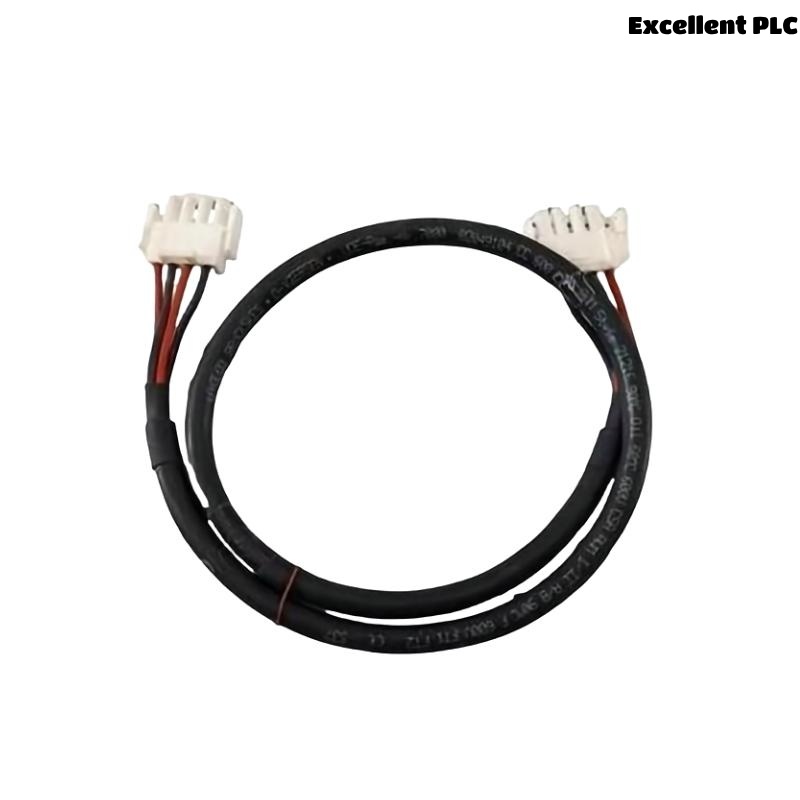

The Honeywell FS-PDC-CPSET Power Distribution Cable is a high-performance cable designed for efficient power distribution in industrial automation systems. It ensures reliable power delivery to Honeywell’s control systems, including the Experion PKS and other distributed control systems (DCS). This cable is engineered to support power distribution in harsh and demanding environments, providing stable power to devices such as controllers, sensors, actuators, and other equipment essential to automated operations.
With its durable construction and superior electrical conductivity, the FS-PDC-CPSET cable is ideally suited for process control systems, power generation plants, manufacturing automation, and many other industrial applications. It helps optimize the performance of industrial systems by ensuring that the necessary components receive consistent, uninterrupted power.
The FS-PDC-CPSET is specifically designed to minimize downtime and prevent electrical failures. Its flexible and robust design enables easy installation, making it suitable for both indoor and outdoor use in a variety of industrial settings.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | FS-PDC-CPSET |
| Type | Power Distribution Cable |
| Voltage Rating | 600 V (nominal) |
| Current Rating | 15 Amps per core |
| Conductor Material | Copper (Tinned) |
| Insulation Material | PVC (Polyvinyl Chloride) |
| Outer Diameter | 12 mm |
| Number of Conductors | 6 cores (individually insulated) |
| Temperature Range | -40°C to +90°C |
| Cable Length | CC600 2 x 2.5 mm |
| Weight | 0.45 kg |
| Environmental Protection | IP65 (Waterproof and dustproof) |
| Certification | UL, CE, RoHS |
| Mounting | Suitable for indoor and outdoor installation |
| Flammability Rating | UL 1581 (VW-1) |
| Compatibility | Compatible with Honeywell Experion PKS, Honeywell DCS systems |
| Signal Range | 4-20 mA, 0-10 V, 0-24 V |
| Response Time | 10 ms (digital inputs/outputs), 100 ms (analog inputs/outputs) |
Product Applications
The Honeywell FS-PDC-CPSET Power Distribution Cable is designed for use in a range of industries where stable and reliable power distribution is crucial. Key applications include:
-
Process Control: Ensures uninterrupted power to sensors, actuators, and controllers in manufacturing plants, enabling accurate process management and control.
-
Energy Management: Used in energy management systems to distribute power to energy meters, power analyzers, and controllers for monitoring and managing energy consumption.
-
Building Automation: Powers HVAC, lighting, and security systems in large buildings and facilities, ensuring operational efficiency and reducing energy costs.
-
Oil & Gas: Used in remote oil fields and processing plants, delivering reliable power to critical equipment, such as pumps and compressors, in hazardous and challenging environments.
-
Water and Wastewater Treatment: Provides power to systems monitoring water quality, chemical dosing, and filtration equipment, ensuring safe and efficient water treatment processes.
-
Power Generation: Powers turbines, generators, and control systems in power plants, helping ensure consistent energy production and supply.
-
Manufacturing Automation: In automated production lines, the cable powers robotic arms, conveyors, and assembly machines, enabling smooth and efficient operations.
-
Pharmaceuticals: Ensures consistent power delivery to equipment used in pharmaceutical manufacturing, maintaining regulatory standards and production quality.
Product Advantages
-
High Voltage and Current Handling: The FS-PDC-CPSET cable is designed to handle up to 600 V and 15 Amps per core, making it suitable for industrial power distribution needs.
-
Durable and Flexible: Made with tinned copper conductors and PVC insulation, it is highly resistant to mechanical damage and environmental factors such as moisture, dust, and high temperatures.
-
Wide Temperature Range: The cable operates within a temperature range of -40°C to +90°C, making it suitable for a variety of industrial environments, from freezing to high-heat applications.
-
Waterproof and Dustproof: With an IP65 rating, the cable is resistant to both dust and water, making it ideal for use in challenging industrial environments.
-
Flame Retardant: The UL 1581 (VW-1) flammability rating ensures that the cable is fire-resistant, adding an extra layer of safety for industrial installations.
-
Easy Installation: The flexible design and DIN rail or panel-mountable features ensure that the cable is easy to install, reducing setup time.
-
Long-Term Durability: The high-quality construction ensures a long service life, reducing the need for frequent replacements and lowering maintenance costs.
-
Energy-Efficient: The cable operates efficiently with low power consumption, contributing to cost-effective and sustainable energy management.
-
Compliance with Standards: The UL, CE, and RoHS certifications ensure that the cable meets the highest quality and environmental standards.
Frequently Asked Questions (FAQ)
-
Q: What is the voltage rating of the Honeywell FS-PDC-CPSET power distribution cable?
A: The voltage rating is 600 V (nominal). -
Q: How many conductors are there in the FS-PDC-CPSET cable?
A: The cable has 6 cores, each individually insulated. -
Q: What is the cable length?
A: The cable CC600 2 x 2.5 mm. -
Q: What is the weight of the FS-PDC-CPSET?
A: The cable weighs 0.45 kg. -
Q: What is the flammability rating of the FS-PDC-CPSET cable?
A: The cable has a UL 1581 (VW-1) flammability rating, ensuring it is flame-retardant. -
Q: Is the FS-PDC-CPSET cable suitable for outdoor use?
A: Yes, with its IP65 rating, the cable is waterproof and dustproof, making it suitable for outdoor use. -
Q: What is the temperature range the FS-PDC-CPSET cable can handle?
A: The cable operates within a temperature range of -40°C to +90°C. -
Q: What is the response time of the FS-PDC-CPSET cable for analog and digital signals?
A: The response time is 10 ms for digital signals and 100 ms for analog signals. -
Q: What are the main applications for the FS-PDC-CPSET cable?
A: It is used in process control, energy management, manufacturing automation, oil & gas, and more. -
Q: Does the FS-PDC-CPSET comply with international standards?
A: Yes, it is UL, CE, and RoHS certified, meeting the highest quality and environmental standards.
Related Models and Variants
| Model Number | Description | Key Feature |
|---|---|---|
| FS-PDC-ART05 | High-power distribution cable | Handles up to 1000 V for larger systems |
| FS-PDC-ART04 | Flexible power distribution cable | Compact design for space-sensitive applications |
| FS-PDC-CPSET02 | High-power distribution cable | Suitable for large-scale industrial setups |
| FS-PDC-ART03 | Advanced power distribution cable | Additional shielding for sensitive environments |
| FS-PDC-ART06 | High-density power distribution cable | Increased number of conductors for complex installations |
| FS-PDC-ART01 | Industrial-grade power distribution cable | High resilience in extreme environments |
