Product Description

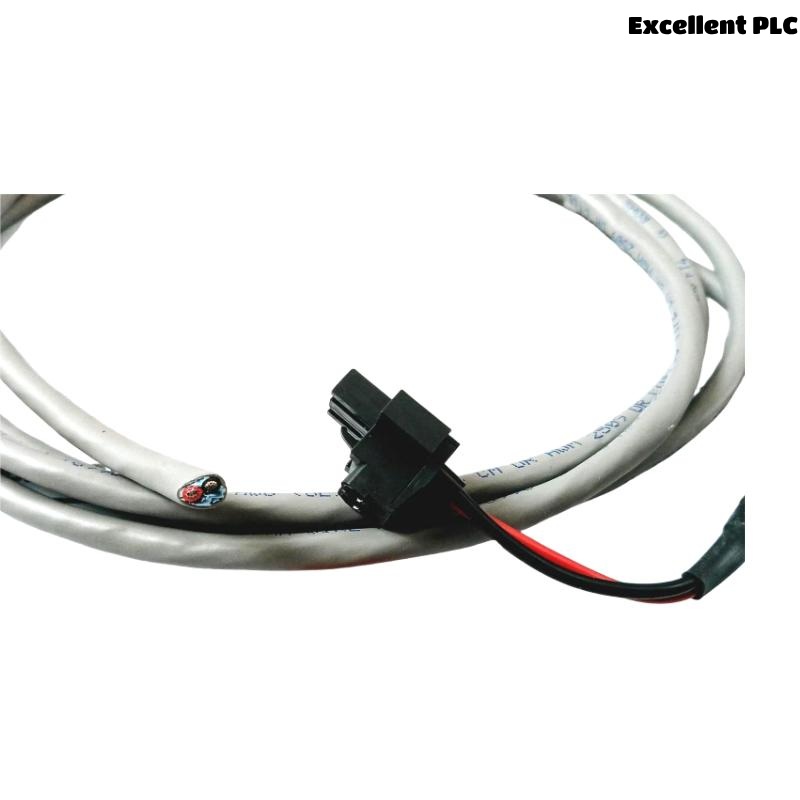

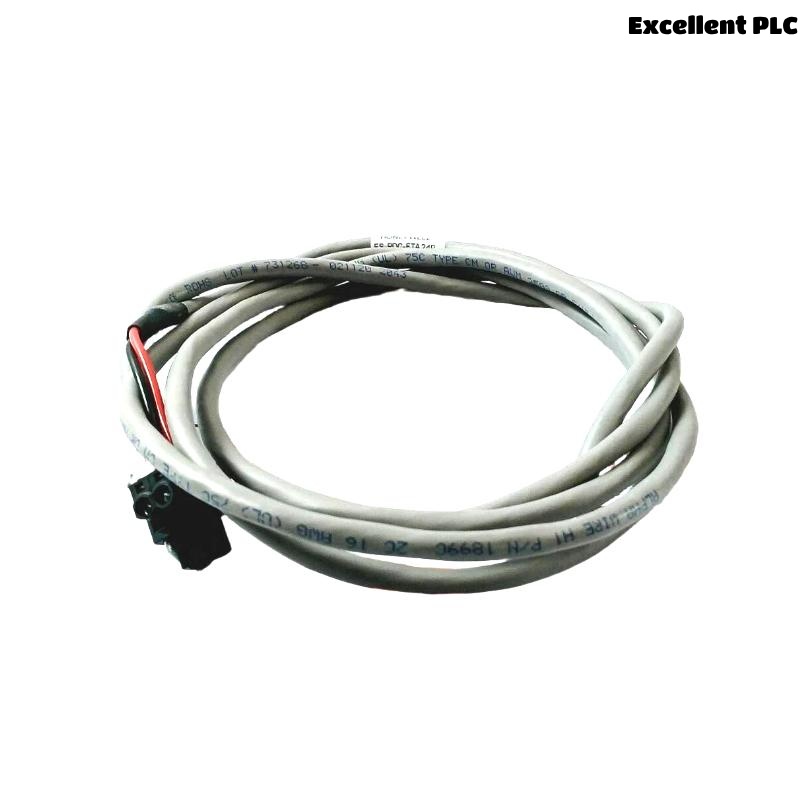

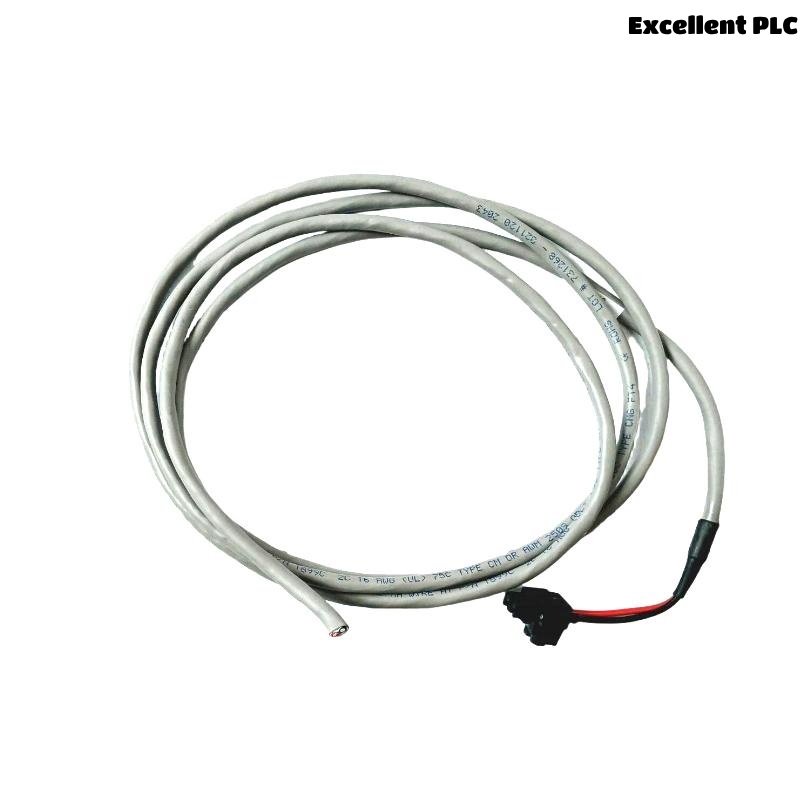

The Honeywell FS-PDC-FTA24 Power Distribution Cable is designed for distributing 24Vdc power from the FC-PDB-0824 power distribution board to individual devices such as fan units and FTAs inside cabinet enclosures. One end of the cable is equipped with a connector for the FC-PDB-0824, while the other end is left open for custom termination.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Power Distribution Cable (24Vdc) |
| Model Number | FS-PDC-FTA24 |
| Cable Type | 2 x 1.31 mm² (AWG 16), tri-rated |
| Length | 2 m (78.74 in) |
| Connector (Board Side) | Weidmuller BLC 5.08/2BR OR socket block |
| Crimp Pin Type | Weidmuller DFFC 1.5-2.5 SN E |
| Approvals | UL, CSA, FM pending |
| Packaging Weight | 3 kg |
| Dimensions (Packaging) | Approx. 250 x 250 x 50 mm |
Applications
-
Powering 24Vdc field devices in cabinet installations
-
Used in conjunction with FC-PDB-0824 power distribution boards
-
Suitable for FTAs and fan units requiring 24Vdc power
Advantages
-
UL and CSA compliance ensures safety and reliability
-
Simple integration with Honeywell power distribution systems
-
Open end allows custom termination for diverse field devices
-
Compact and durable construction
FAQ
Q1: What is the length of the FS-PDC-FTA24 cable?
A1: The cable is 2 meters long.
Q2: Does the FS-PDC-FTA24 have connectors on both ends?
A2: No, it has a connector on the board side only. The device side is open for custom termination.
Q3: What type of devices does this cable connect?
A3: It connects 24Vdc devices like FTAs and fan units to the power board.
Q4: What is the cable type used?
A4: It uses a tri-rated 2 x 1.31 mm² (AWG 16) cable.
Q5: Is this cable approved for industrial use?
A5: Yes, it has UL, CSA, and FM pending approvals.
Q6: Can I cut the cable to a shorter length?
A6: Yes, the open end can be cut and terminated as needed.
Q7: What is the weight of the packaged cable?
A7: Approximately 3 kg.
Q8: Which Honeywell board is it designed for?
A8: It is designed to connect with the FC-PDB-0824 power distribution board.
Q9: What connector type is used on the board side?
A9: It uses a Weidmuller BLC 5.08/2BR OR socket block.
Q10: Is it suitable for outdoor environments?
A10: It is designed for cabinet use; outdoor use is not recommended without additional protection.
