Product Description

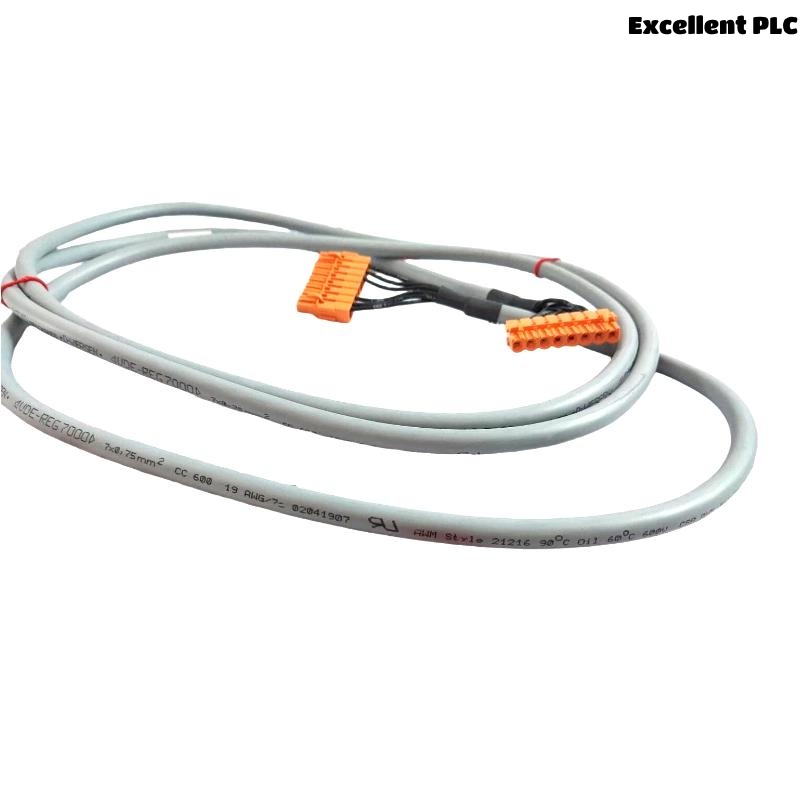

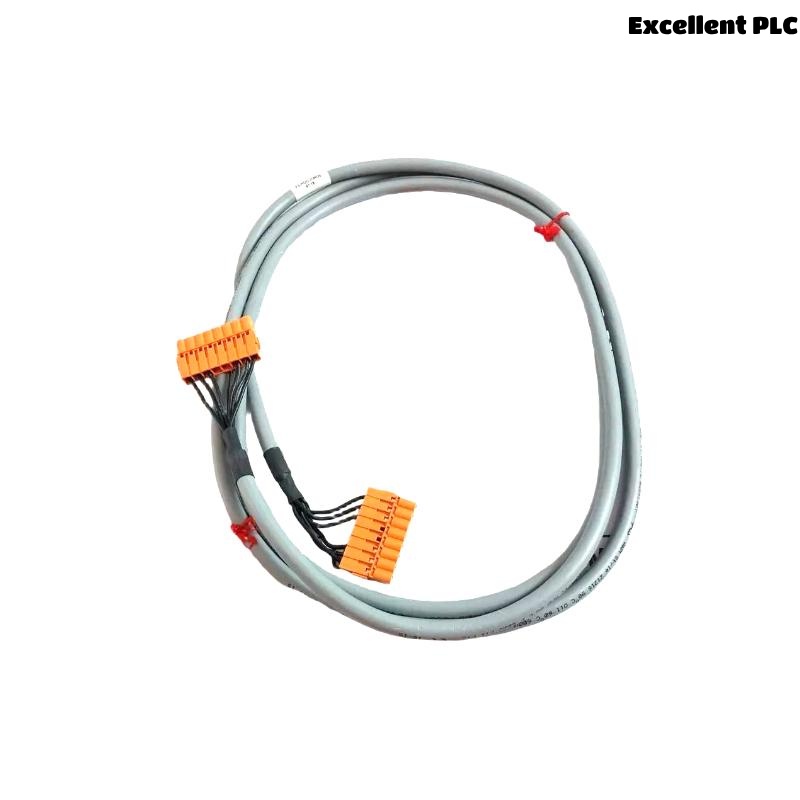

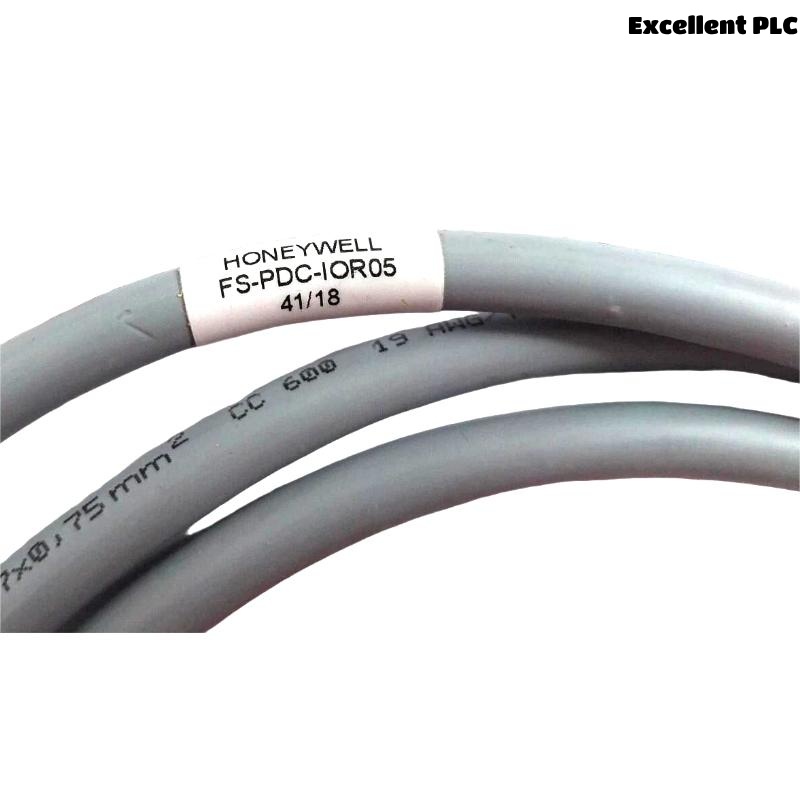

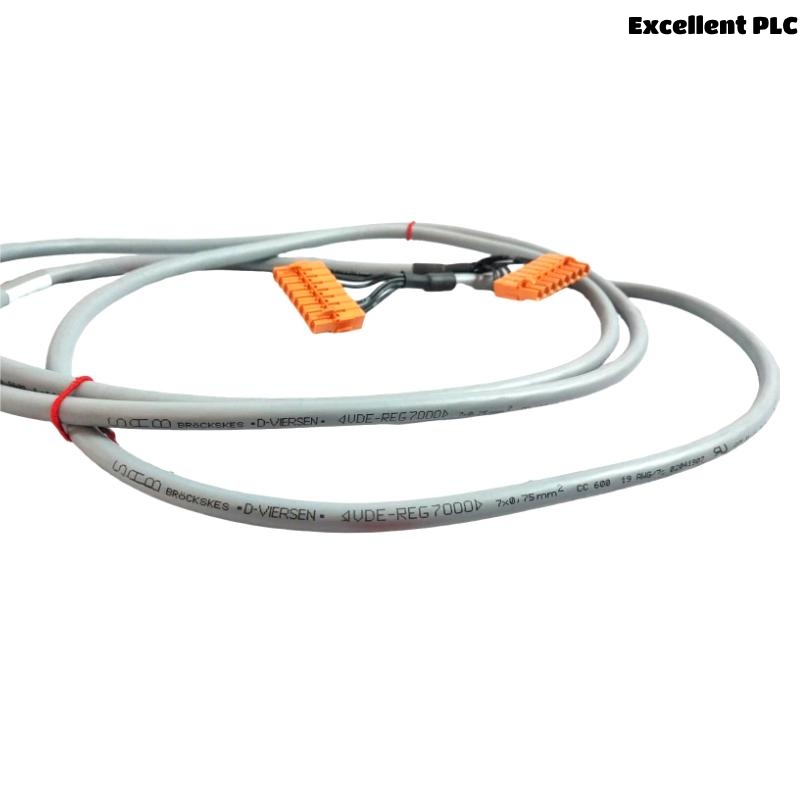

The Honeywell FS-PDC-IOR05 is a power distribution cable designed for redundant I/O chassis in Honeywell Safety Manager systems. It provides reliable 5 VDC power and watchdog signal distribution to ensure operational safety and system integrity.
Applications
-
Powering redundant I/O chassis in Safety Manager systems
-
Industrial process safety environments
-
Applications requiring high availability and fault tolerance
-
Distributed control and monitoring installations
Advantages
-
Supports redundant configurations for increased reliability
-
Pre-terminated, ensuring easy and error-free installation
-
Optimized for Honeywell Safety Manager hardware
-
Compact design for space-constrained cabinets
Technical Specifications
| Parameter | Value |
|---|---|
| Cable type | Power Distribution Cable |
| Application | Redundant I/O chassis (5 VDC, WD) |
| Voltage rating | 5 VDC |
| Watchdog signal support | Yes |
| Cable length | 2.45 m |
| Packaging weight | 3 kg |
FAQ
Q1: What is the FS-PDC-IOR05 used for?
A1: It distributes 5 VDC power and watchdog signals to a redundant I/O chassis in Safety Manager systems.
Q2: Can it be used in non-redundant configurations?
A2: No, this model is specifically for redundant configurations.
Q3: What is the cable length?
A3: The FS-PDC-IOR05 has a length of 2.45 meters.
Q4: Does it support watchdog functionality?
A4: Yes, it provides both power and watchdog signals.
Q5: Is installation complicated?
A5: No, it is a pre-terminated cable designed for quick and easy installation.
Q6: What is the packaging weight?
A6: The packaged cable weighs approximately 3 kg.
Q7: Is it compatible with all Honeywell Safety Manager versions?
A7: It is compatible with systems supporting redundant I/O chassis as per Safety Manager specifications.
Q8: What is the operating voltage?
A8: It operates at 5 VDC.
Q9: Does it come with connectors installed?
A9: Yes, it is fully terminated and ready to connect.
Q10: Is it suitable for harsh industrial environments?
A10: Yes, it is designed to meet the robust demands of industrial safety systems.
Related Models
| Model | Description | Length | Weight |
|---|---|---|---|
| FS-PDC-IOS05 | Power Distribution Cable (Non-Redundant) | 2.45 m | 2.8 kg |
| FS-PDC-IOR05A | Power Distribution Cable (Redundant, Rev A) | 2.45 m | 3.0 kg |
| FS-PDC-IOS05A | Power Distribution Cable (Non-Redundant A) | 2.45 m | 2.8 kg |
| FS-PDC-CPSET | Power Distribution Cable Set, Controller | 2.0 m | 2.5 kg |
| FS-PDC-IOSET | Power Distribution Cable Set, I/O Chassis | 2.0 m | 2.7 kg |
| FS-PDC-ART05 | Power Distribution Cable (Safety Manager ART) | 2.5 m | 3.0 kg |
