Product Introduction

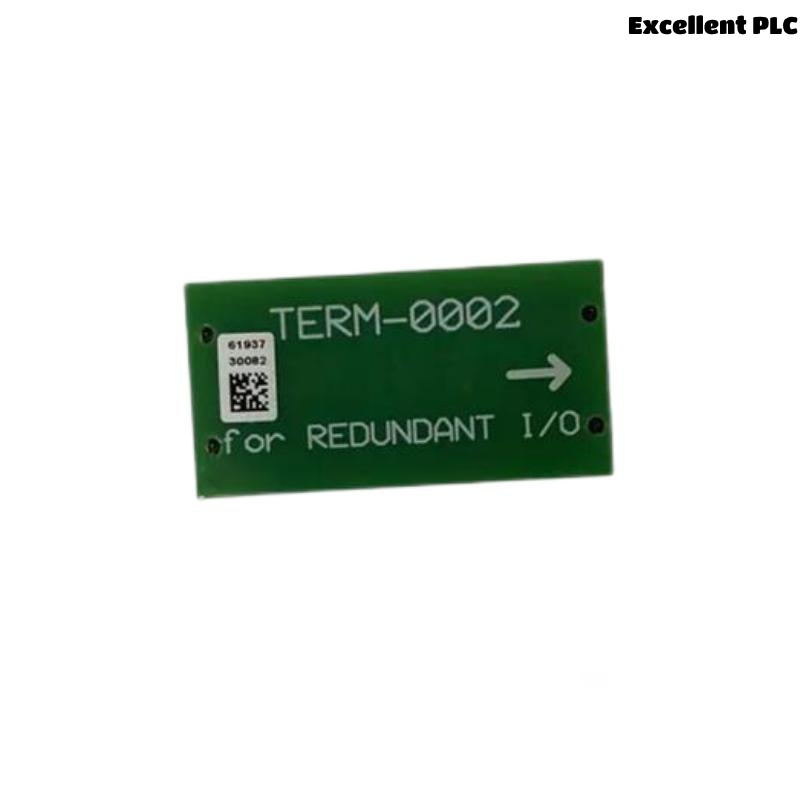

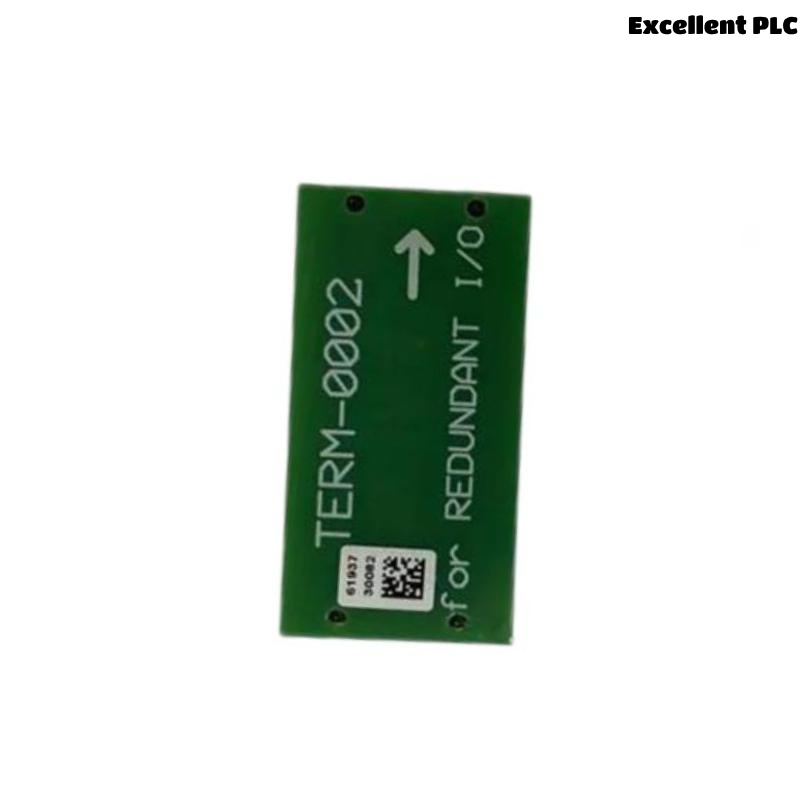

The Honeywell FS-TERM-0002 is a specialized redundant I/O bus terminator designed to ensure signal integrity and reliable communication within Honeywell’s Safety Manager and other industrial control systems. This compact and lightweight device terminates redundant I/O communication buses, minimizing signal reflections and electrical noise that can compromise data transmission accuracy.
With dimensions of 19.7 x 38.1 x 7.8 mm and weighing just 0.0045 kg, the FS-TERM-0002 is engineered for seamless integration into crowded control cabinets and racks without occupying significant space. Its precision design supports high-speed data transmission in safety-critical environments, helping maintain uninterrupted control system operations.
The terminator’s build quality ensures durability and consistent performance under industrial conditions, including temperature fluctuations and electromagnetic interference. It is a key component in maintaining the robustness and reliability of Honeywell’s safety and automation networks.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | FS-TERM-0002 |
| Product Type | Redundant I/O Bus Terminator |
| Dimensions | 19.7 x 38.1 x 7.8 mm |
| Weight | 0.0045 kg |
| Termination Type | Passive bus terminator |
| Connector Type | Designed for Honeywell I/O bus connectors |
| Operating Temperature | –20°C to +70°C |
| Storage Temperature | –40°C to +85°C |
| Voltage Rating | Compatible with Honeywell bus voltage levels |
| Environmental Ratings | Meets industrial standards for EMI and environmental protection |
| Mounting | Plug-in inline installation |
| Compliance | CE, UL, RoHS |
Product Applications
The FS-TERM-0002 bus terminator is used extensively in industrial automation and safety systems where redundant I/O buses are deployed. Key applications include:
-
Safety Instrumented Systems (SIS): Ensures clean bus termination to prevent signal reflection in safety-critical communication networks.
-
Distributed Control Systems (DCS): Maintains data integrity between control modules and I/O devices.
-
Process Automation: Used in chemical, petrochemical, power generation, and manufacturing plants for reliable bus communication.
-
Redundant Control Networks: Applied in systems employing dual bus architectures to guarantee continuous operation during failure conditions.
-
System Maintenance: Facilitates easy replacement and testing of bus termination to diagnose network issues.
-
Panel Wiring: Compact size allows flexible use in dense cabinet layouts without interfering with other components.
Product Advantages
-
Compact and Lightweight: Small size and minimal weight simplify integration into control panels.
-
Ensures Signal Integrity: Reduces signal reflections and electrical noise on redundant I/O buses.
-
High Reliability: Passive device with no active components, minimizing failure points.
-
Wide Operating Temperature Range: Performs reliably from –20°C to +70°C.
-
Plug-and-Play Installation: Easily installed or replaced without special tools.
-
Compatible Design: Tailored for Honeywell Safety Manager and other compatible bus systems.
-
Industrial Grade Construction: Resistant to EMI, vibration, and environmental factors.
-
Cost-Effective Solution: Enhances network reliability without requiring complex hardware.
-
Supports Redundancy: Integral to maintaining uninterrupted data flow in dual bus systems.
-
Certifications: Meets global safety and environmental standards.
Frequently Asked Questions (FAQ)
Q1: What are the dimensions and weight of the FS-TERM-0002?
A1: It measures 19.7 x 38.1 x 7.8 mm and weighs 0.0045 kg.
Q2: What is the primary function of this device?
A2: It serves as a terminator for redundant I/O communication buses to prevent signal reflections.
Q3: Is the terminator compatible with Honeywell control systems?
A3: Yes, it is specifically designed for Honeywell Safety Manager and compatible bus systems.
Q4: What type of installation does the FS-TERM-0002 support?
A4: It supports plug-in inline installation for easy replacement and maintenance.
Q5: Does the device have any active electronic components?
A5: No, it is a passive terminator without active components.
Q6: What is the operating temperature range?
A6: The device operates reliably between –20°C and +70°C.
Q7: How does it improve bus communication?
A7: By terminating the bus, it minimizes signal reflections and electrical noise that can corrupt data.
Q8: What certifications does this product hold?
A8: It is CE, UL, and RoHS certified.
Q9: Can it be used in redundant bus architectures?
A9: Yes, it is designed specifically for redundant I/O bus systems.
Q10: Is it suitable for high EMI industrial environments?
A10: Yes, it is built to withstand electromagnetic interference common in industrial settings.
