Product Overview

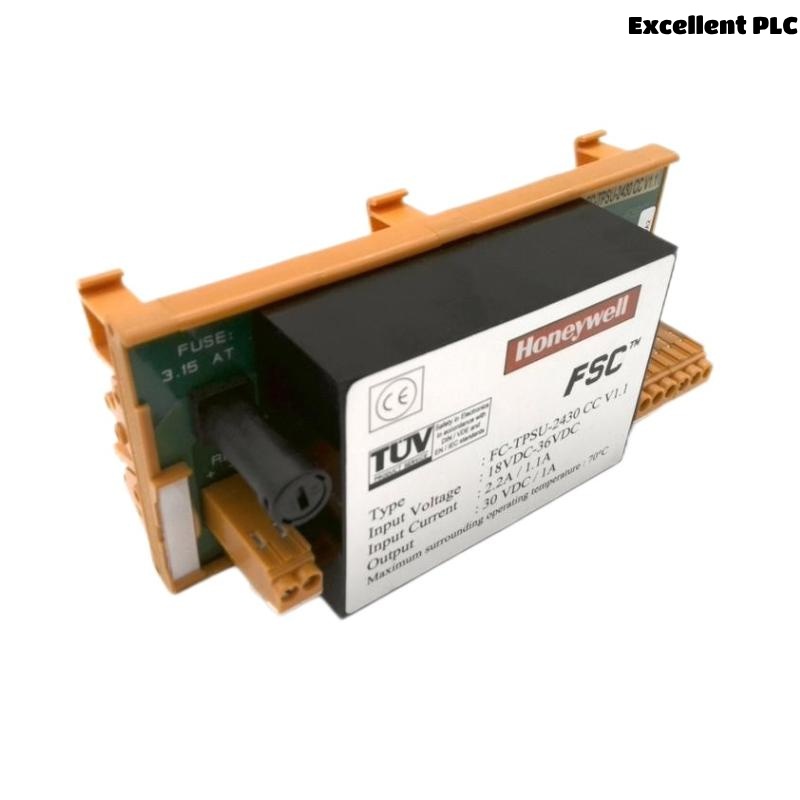

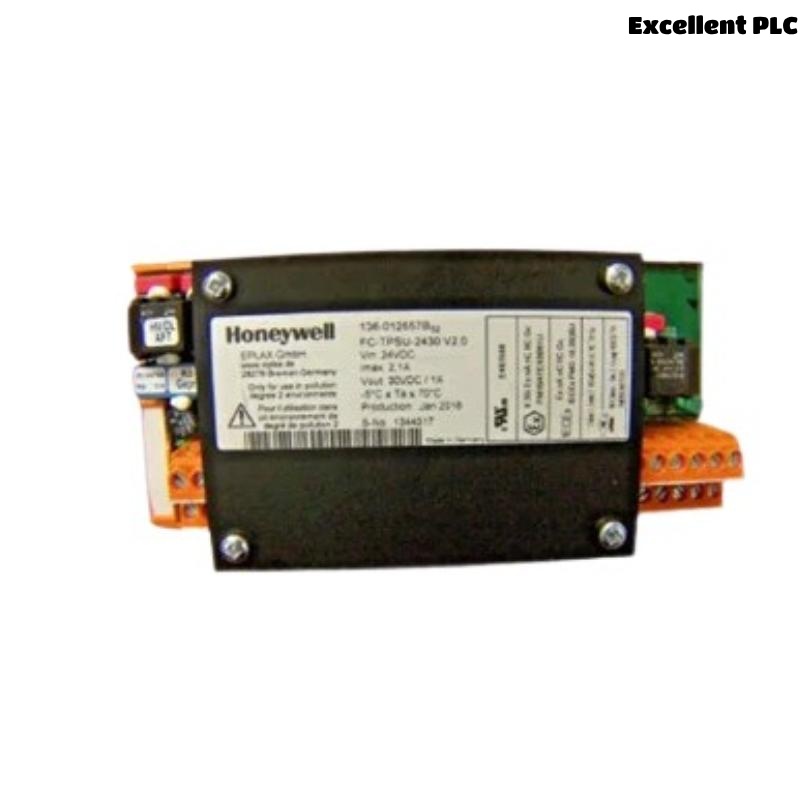

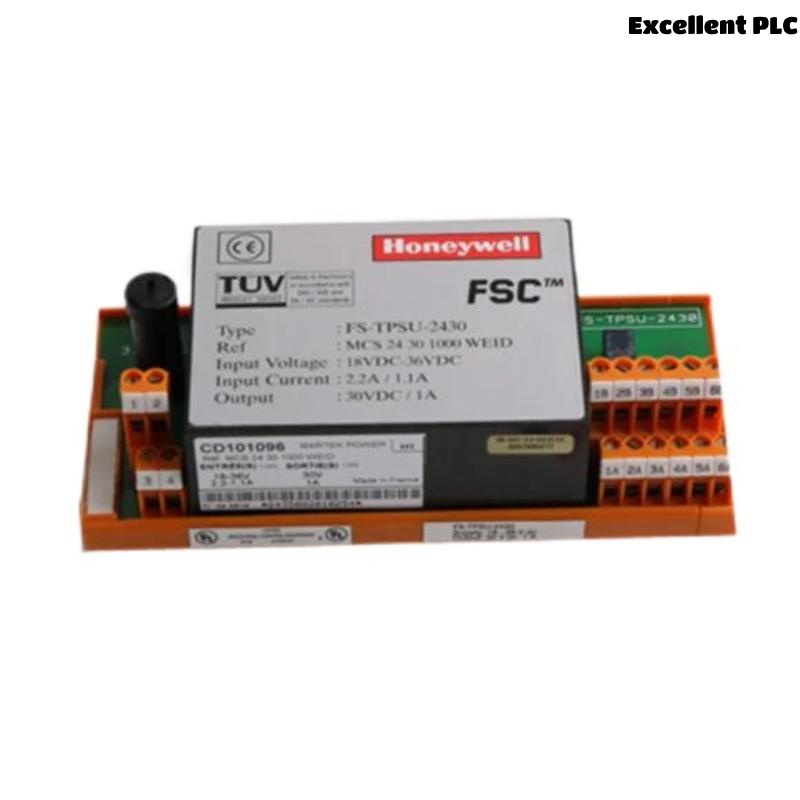

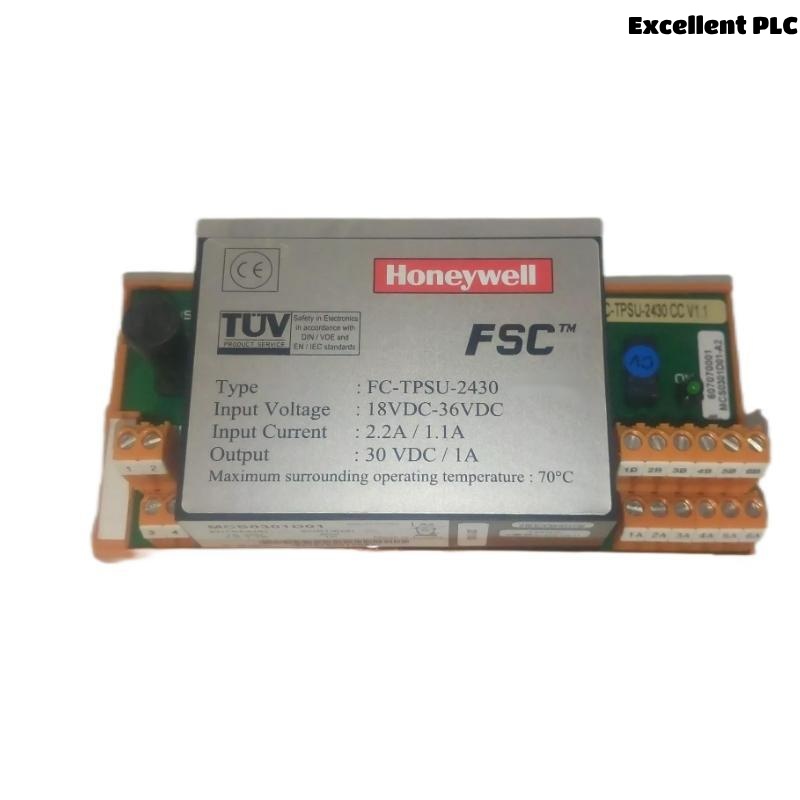

The Honeywell FS-TPSU-2430 is a power/voltage converter designed to ensure stable power supply in safety-critical control systems. This highly efficient module is specifically engineered for Honeywell Safety Manager (SM) and FSC (Fail Safe Controller) systems, providing 24 VDC power derived from 110/230 VAC inputs. It plays an essential role in supplying power to field devices, I/O modules, and control equipment in industrial environments.
With a wide input range and overload protection, the FS-TPSU-2430 is an ideal choice for installations requiring uninterrupted operation under varying power conditions. This power converter module is designed for redundant configurations, ensuring a reliable and fault-tolerant power supply.
Key Features
-
Wide Input Voltage Range: 110–230 VAC, compatible with global power standards
-
24 VDC Output: Provides stable DC voltage for safety systems
-
High Efficiency: Efficient energy conversion to minimize heat generation and power loss
-
Overload and Overvoltage Protection: Safeguards against system failures and damage
-
Compact Design: Space-efficient and easy to integrate into control cabinets
-
DIN Rail Mountable: Standard 35 mm rail installation for convenience and flexibility
-
Fanless Operation: Silent, reliable performance with minimal maintenance
-
Designed for Redundant Systems: Supports dual power configurations for continuous uptime
-
Status Indicators: LEDs for easy power-on and fault detection monitoring
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | FS-TPSU-2430 |
| Product Type | Power/Voltage Converter Module |
| Input Voltage Range | 110–230 VAC |
| Output Voltage | 24 VDC (regulated) |
| Output Current | 2 A (continuous) |
| Output Power | 48 W |
| Efficiency | ≥85% |
| Protection Features | Overload, overvoltage, short-circuit protection |
| Cooling Method | Fanless (convection cooling) |
| Mounting | DIN rail (35 mm, EN 60715 standard) |
| Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 5% to 95% RH, non-condensing |
| Dimensions | 38 × 140 × 211 mm |
| Weight | 0.2 kg |
| Compliance | CE, RoHS, UL, IEC 61010-1, IEC 62368-1 |
Industry Applications
-
Process Automation: Provides power for control panels, I/O modules, and sensors in industrial automation systems
-
Safety Instrumented Systems (SIS): Supplies 24 VDC to safety relays, logic solvers, and shutdown systems
-
Power Generation Facilities: Powers turbine control systems, protection devices, and monitoring units
-
Oil & Gas Refineries: Ensures reliable DC supply to safety systems and emergency shutdown functions
-
Pharmaceutical Manufacturing: Used in validated control systems requiring precise power distribution
-
Chemical and Petrochemical Plants: Supports field devices, alarms, and emergency controls in safety systems
Product Advantages
-
Reliable Power Supply: Delivers a stable 24 VDC output for critical safety and control devices
-
Energy Efficient: High efficiency minimizes power loss and reduces operational costs
-
Fault Protection: Integrated protections safeguard both the module and the system from electrical faults
-
Compact and Space-Saving: Fits easily into control cabinets without taking up excessive space
-
Redundancy-Ready: Designed for use in redundant power configurations, enhancing system reliability
-
Maintenance-Free: Fanless design ensures quiet and low-maintenance operation over the long term
-
Global Compatibility: Supports a wide range of input voltages for diverse international applications
Frequently Asked Questions (FAQ)
-
Q: What input voltage does the FS-TPSU-2430 support?
A: It accepts 110–230 VAC input voltage, making it compatible with global power standards. -
Q: What is the output voltage of the FS-TPSU-2430?
A: The module provides a regulated 24 VDC output for powering safety devices and I/O modules. -
Q: How much power does it supply?
A: It delivers 48 W of power at 2 A of current, suitable for powering control equipment. -
Q: Does it include overload protection?
A: Yes, it features overload, overvoltage, and short-circuit protection for added safety. -
Q: How is the FS-TPSU-2430 mounted?
A: It can be easily mounted on a 35 mm DIN rail, standard for industrial applications. -
Q: Is the unit fanless?
A: Yes, the FS-TPSU-2430 is fanless, relying on convection cooling to maintain optimal temperature. -
Q: Can this power supply be used in a redundant configuration?
A: Yes, it supports redundant power architectures for continuous system uptime. -
Q: What is the operating temperature range of the module?
A: The FS-TPSU-2430 operates in temperatures from -20°C to +60°C (-4°F to +140°F). -
Q: How is the status of the module indicated?
A: The module includes LED indicators that show power status and fault detection. -
Q: What industries use the FS-TPSU-2430?
A: It is used in process automation, oil & gas, power generation, and chemical manufacturing industries.
