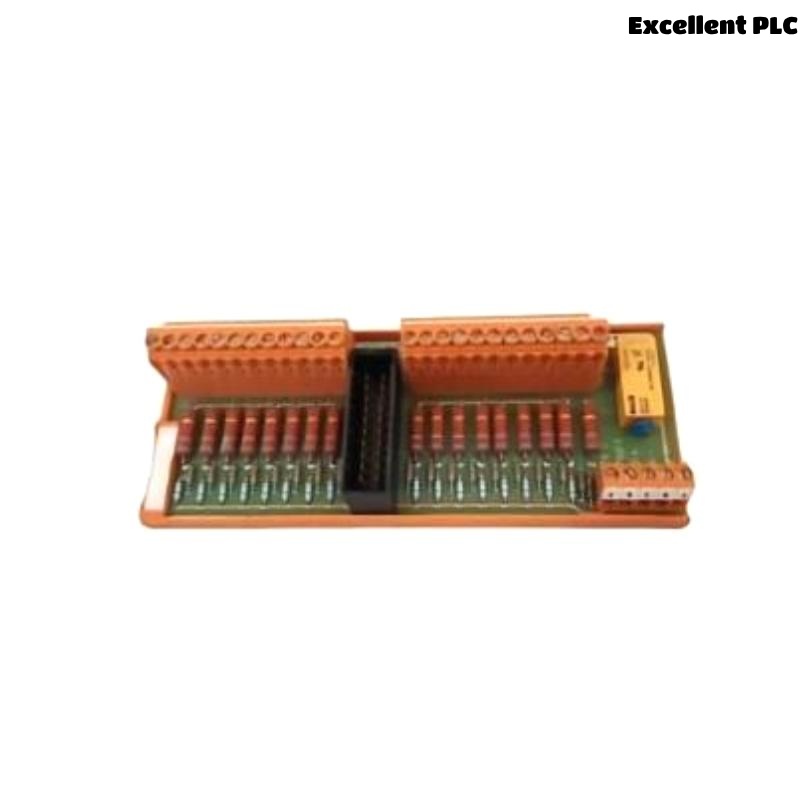

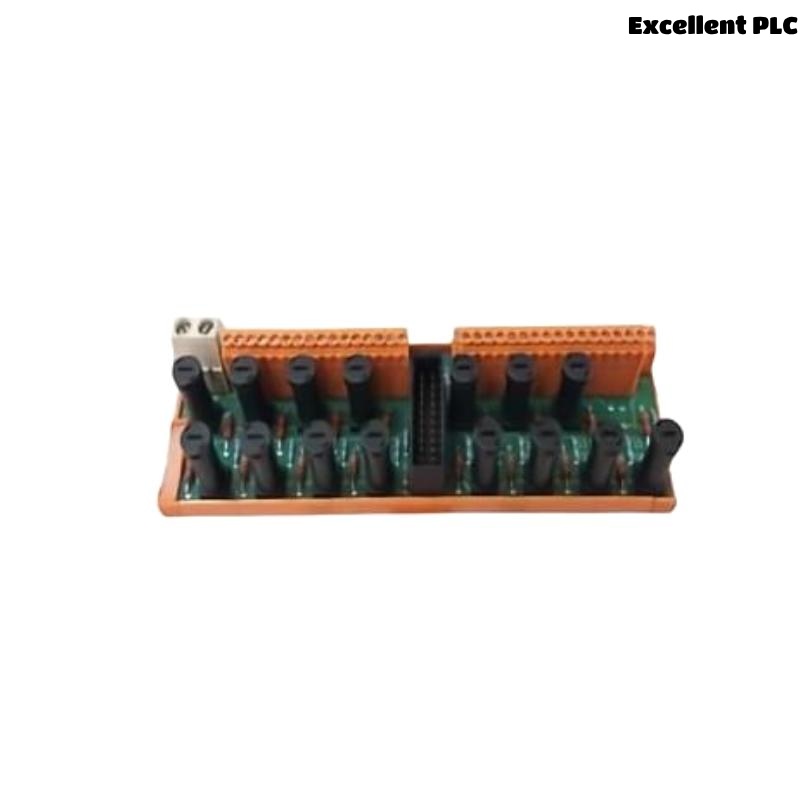

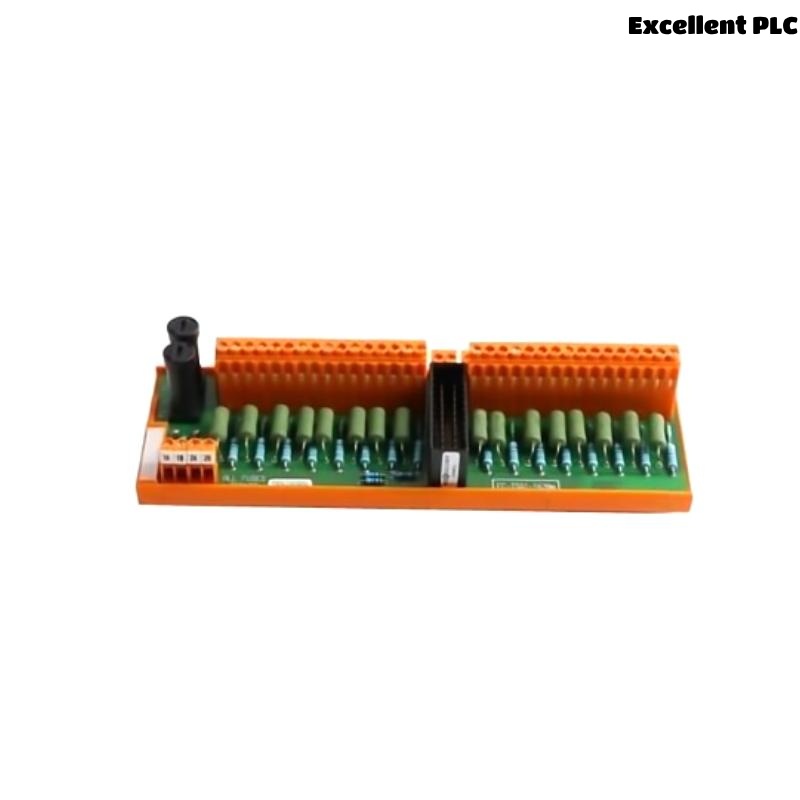

Honeywell FS-TSAI-0410 Safety Analog Input FTA Module

Product Overview

The Honeywell FS-TSAI-0410 is a high-integrity Safety Analog Input Field Terminal Assembly (FTA) module designed for critical safety-related analog signal interfacing. It operates in tandem with Honeywell’s Safety Manager and Safety Instrumented System (SIS) platforms, facilitating secure and isolated analog signal acquisition from field transmitters in SIL-rated applications.

As part of Honeywell’s Functional Safety (FS) product family, this module meets the highest standards of reliability, diagnostics, and fault isolation. It serves as the bridge between process transmitters and the safety logic solvers, ensuring that signal conditioning, channel health, and field wiring integrity are all monitored under demanding operating conditions.

Product Specifications

Applications

The FS-TSAI-0410 module is tailored for mission-critical process industries where analog input data from the field needs to be safely and reliably captured, analyzed, and acted upon. Key application areas include:

• Emergency Shutdown Systems (ESD)

• Fire and Gas Systems (F&G)

• High Integrity Pressure Protection Systems (HIPPS)

• Critical Level and Pressure Monitoring

• Compressor and Turbine Protection Systems

• Overtemperature and Overpressure Trip Systems

• Refining and Petrochemical SIS Loops

• LNG and pipeline instrumentation safety layers

Its compatibility with SIL3 environments makes it ideal for situations where even minimal failure rates are unacceptable and where continuous signal monitoring with real-time diagnostics is required.

Key Advantages

• SIL3 Certified – Ensures maximum safety for analog signal acquisition in hazardous environments.

• High Accuracy and Isolation – Precision analog acquisition with complete isolation for each channel improves signal integrity and system safety.

• Built-in Diagnostics – Real-time line fault detection for open loops, shorts, and sensor failure.

• LED Indicators Per Channel – Simplifies fault identification and troubleshooting in the field.

• Field Friendly Termination – Screw terminal connections make field wiring straightforward and robust.

• Compatible with Safety Manager Systems – Seamless integration into Honeywell’s widely deployed SIS architecture.

• Rugged Construction – Designed to operate in severe industrial environments with extreme temperatures and vibration.

• DIN Rail Mounting – Space-efficient design for control cabinets with ease of installation.

Frequently Asked Questions (FAQ)

1. What signal types are accepted by FS-TSAI-0410?
   The module is designed to accept 4–20 mA analog current signals, commonly used by process transmitters for pressure, flow, level, and temperature sensing.

2. Is this module part of the I/O or field wiring system?
   FS-TSAI-0410 is an FTA (Field Terminal Assembly), which serves as the wiring interface between field devices and the Safety Manager analog input modules.

3. Does the module provide fault diagnostics?
   Yes, it has integrated line fault detection including open circuit, short circuit, and signal over-range alerts per channel.

4. How many channels does the FS-TSAI-0410 support?
   The module supports 4 fully isolated analog input channels, each independently monitored.

5. Is it hot-swappable?
   No, as an FTA module, it is not designed for hot swapping. Any replacements must be done with the loop isolated and system made safe.

6. Does the module supply power to the loop?
   Power for 2-wire loop transmitters is typically supplied via the connected system controller or safety input module, not directly by the FTA.

7. Can the module be used in redundant configurations?
   Yes, FS-TSAI-0410 is designed for use with redundant Honeywell Safety Manager architectures.

8. What certifications does this product carry?
   It is certified for SIL3 applications per IEC 61508 and also complies with CE, ATEX, TUV, and UL safety and quality standards.

9. What type of wiring termination is supported?
   It uses screw-type terminal blocks that support up to 2.5 mm² wiring for robust and reliable field connections.

10. How is system integration achieved?
    The FTA interfaces with Honeywell analog input I/O modules through ribbon cable assemblies, and is fully integrated and managed within the Safety Builder and Control Builder software environments.

Related or Same Series Models

 Popular Models from Honeywell (Same Brand)

Frequently Asked Questions (FAQ)

1. What signal types are accepted by FS-TSAI-0410?
   The module is designed to accept 4–20 mA analog current signals, commonly used by process transmitters for pressure, flow, level, and temperature sensing.

2. Is this module part of the I/O or field wiring system?
   FS-TSAI-0410 is an FTA (Field Terminal Assembly), which serves as the wiring interface between field devices and the Safety Manager analog input modules.

3. Does the module provide fault diagnostics?
   Yes, it has integrated line fault detection including open circuit, short circuit, and signal over-range alerts per channel.

4. How many channels does the FS-TSAI-0410 support?
   The module supports 4 fully isolated analog input channels, each independently monitored.

5. Is it hot-swappable?
   No, as an FTA module, it is not designed for hot swapping. Any replacements must be done with the loop isolated and system made safe.

6. Does the module supply power to the loop?
   Power for 2-wire loop transmitters is typically supplied via the connected system controller or safety input module, not directly by the FTA.

7. Can the module be used in redundant configurations?
   Yes, FS-TSAI-0410 is designed for use with redundant Honeywell Safety Manager architectures.

8. What certifications does this product carry?
   It is certified for SIL3 applications per IEC 61508 and also complies with CE, ATEX, TUV, and UL safety and quality standards.

9. What type of wiring termination is supported?
   It uses screw-type terminal blocks that support up to 2.5 mm² wiring for robust and reliable field connections.

10. How is system integration achieved?
    The FTA interfaces with Honeywell analog input I/O modules through ribbon cable assemblies, and is fully integrated and managed within the Safety Builder and Control Builder software environments.
