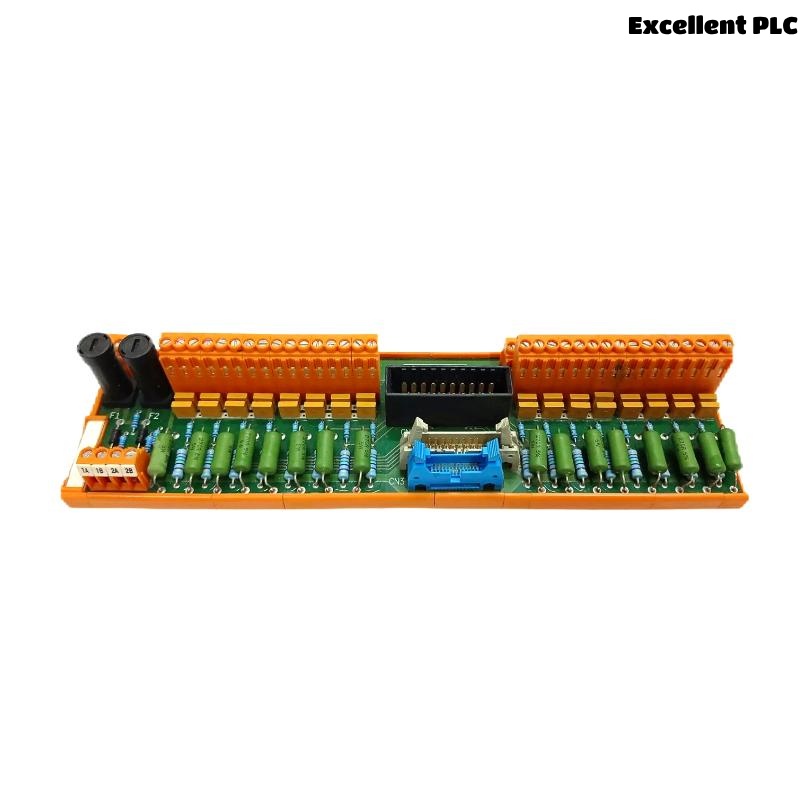

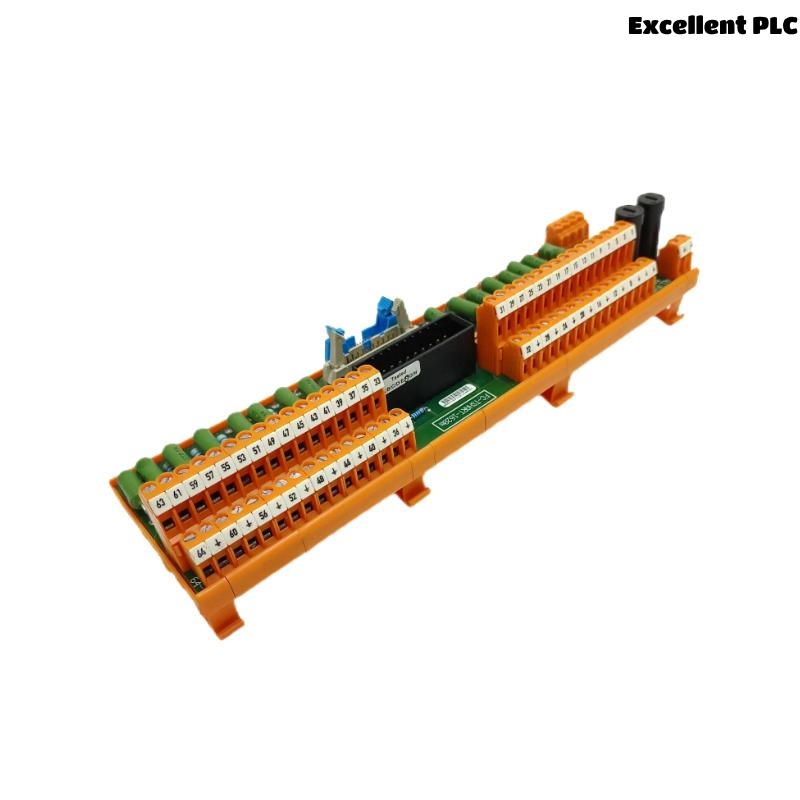

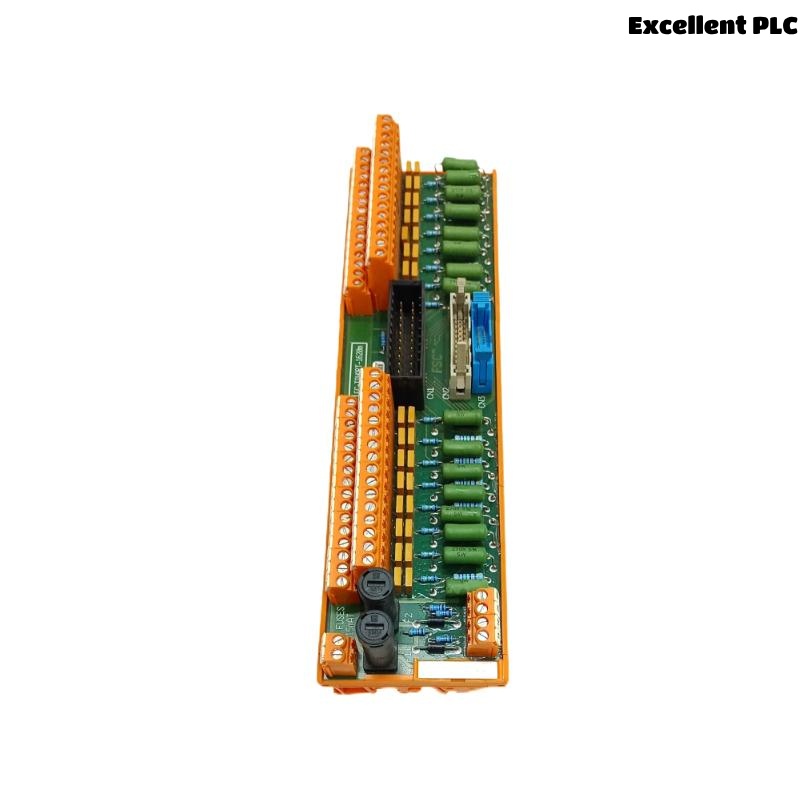

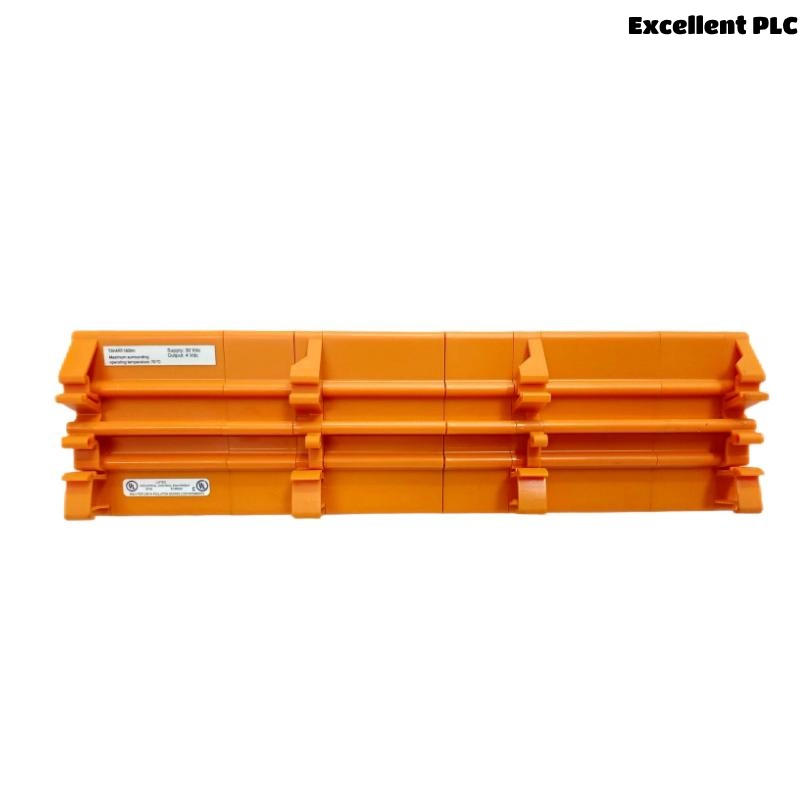

Honeywell FS-TSHART-1620m Analog Input Field Termination Assembly

Product Introduction

The Honeywell FS-TSHART-1620m is an Analog Input Field Termination Assembly (FTA) specifically designed for use with Honeywell’s Safety Manager and Fail Safe Controller (FSC) systems. This module provides the physical interface between field devices and the safety system’s analog input modules. It is a critical component in ensuring accurate and secure analog signal transmission from process instruments such as pressure transmitters, temperature sensors, and flow meters.

The FS-TSHART-1620m supports HART (Highway Addressable Remote Transducer) protocol, allowing for bidirectional digital communication on top of the traditional 4–20 mA analog signal. This capability enhances diagnostics and device configuration directly through the control system or asset management platform.

Its modular and robust design is suitable for industrial environments requiring high system availability, minimal downtime, and reliable analog signal processing. The assembly is mounted in the control panel and includes built-in circuitry for signal conditioning, surge protection, and wiring terminations.


Product Specifications

Parameter Description
Model Number FS-TSHART-1620m
Manufacturer Honeywell
Module Type Analog Input Field Termination Assembly (FTA)
Channels Supported 16 Analog Inputs
Protocol Support 4–20 mA with HART
Compatibility Compatible with Safety Manager / FSC AI HART input modules
Signal Type Analog (Current loop 4–20 mA), HART overlaid
Wiring Connection Screw terminal, labeled and field-device friendly
Built-in Protection Surge protection and reverse polarity protection
Field Power Isolation Yes, with individual channel isolation
System Communication Through backplane or system I/O cable assembly
Operating Voltage 24V DC
Operating Temperature Range -20°C to +60°C
Storage Temperature -40°C to +85°C
Relative Humidity 5%–95% non-condensing
Mounting Type DIN rail mount
Material Industrial-grade thermoplastic housing
Ingress Protection IP20 (panel installation recommended)
Dimensions (W x H x D) 250 × 70 × 60 mm
Weight 0.9 kg

Product Applications

  • Safety Instrumented Systems (SIS): Ideal for gathering analog input data in safety-critical processes.

  • Process Monitoring: Acquires pressure, temperature, level, and flow data from field instruments.

  • Asset Management: HART communication enables remote device diagnostics and calibration.

  • Chemical and Petrochemical Plants: Facilitates reliable and safe analog data collection.

  • Power Generation Facilities: Interfaces with turbine and boiler instrumentation.

  • Oil & Gas Industry: Supports upstream and downstream analog sensing with HART-enabled transmitters.


Product Advantages

  • HART-Enabled: Allows simultaneous analog signal transmission and digital device communication, increasing visibility into field devices.

  • Compact Design: Accommodates 16 channels in a slim form factor, saving valuable panel space.

  • Simplified Wiring: Clearly labeled terminals improve installation efficiency and reduce wiring errors.

  • Field Isolation: Reduces the risk of signal disruption or system damage due to field-side faults.

  • Surge Protection: Protects critical analog inputs from electrical surges and transients.

  • Integrated with Honeywell SIS: Designed to work seamlessly with Safety Manager and FSC systems for high-integrity performance.

  • Robust Build Quality: Built for long-term industrial use under harsh conditions.

  • Maintenance-Friendly: Easy access to terminal points and standardized layout reduces downtime during servicing.


Frequently Asked Questions (FAQ)

  1. What is the function of the FS-TSHART-1620m module?
    It serves as the interface between field analog devices and the safety controller’s analog input cards, providing signal termination, conditioning, and HART communication.

  2. How many channels does this termination assembly support?
    It supports up to 16 analog input channels.

  3. Does it support HART communication?
    Yes, it fully supports HART protocol for field device diagnostics and configuration.

  4. Can this assembly be used with non-HART analog devices?
    Yes, it supports standard 4–20 mA devices with or without HART overlay.

  5. Is this module hot-swappable?
    The FTA itself is not hot-swappable. System power should be managed during installation or replacement.

  6. How is the FTA mounted?
    It is designed for DIN rail mounting inside a control cabinet.

  7. Is it compatible with Safety Manager systems?
    Yes, it is fully compatible with Honeywell Safety Manager and FSC analog input modules.

  8. Does the FS-TSHART-1620m include built-in surge protection?
    Yes, each channel includes protection circuitry to guard against electrical surges.

  9. What are the module dimensions?
    The unit measures 250 × 70 × 60 mm.

  10. What is the operating temperature range for this assembly?
    The assembly operates within -20°C to +60°C and can be stored from -40°C to +85°C.


Related Models (Same Series or Functionality)

Model Number Description
FS-TSHART-1620 Analog Input FTA, standard variant without enhanced features
FS-AI-1101 Analog Input Module for use with FSC systems
FS-TSI-1616m Digital Input FTA with 16 channels
FS-AO-1120 Analog Output Module for FSC systems
FS-TSDO-1620m Digital Output FTA with 16 channels
FS-PSU-0110 Power Supply Unit for Honeywell FSC system

Popular Honeywell Modules (Same Brand)

Model Number Description
CC-PDIL01 Digital Input Module for C300 Process Controllers
CC-PDOB01 Digital Output Module for C300 Controllers
MC-PAIH03 HART Analog Input Module for Experion PKS systems
MC-TAMR03 Temperature Multiplexer Module
TC-PRR021 Redundant Processor Module for TDC 3000
51403425-100 Universal Analog Input Module
