Product Introduction

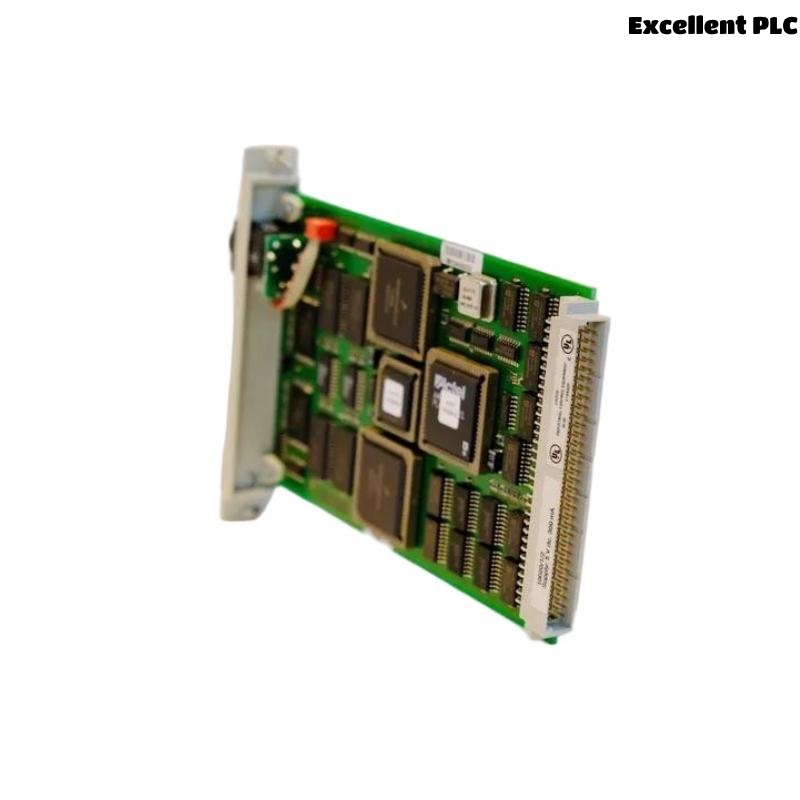

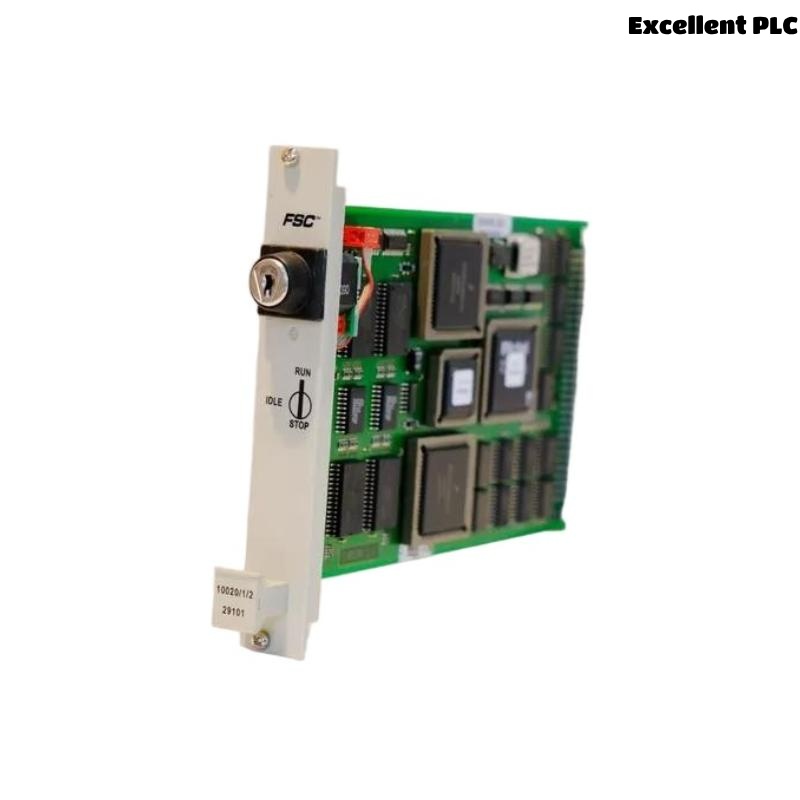

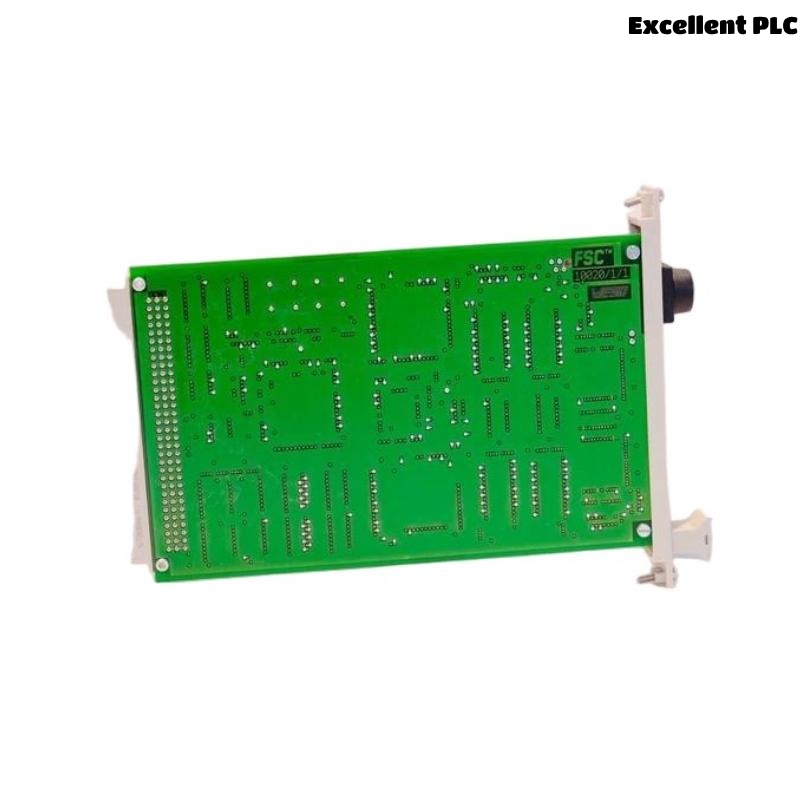

The Honeywell FSC 10020/1/2 is a critical module within the Safety Manager™ (FSC – Fail Safe Controller) series, which is part of Honeywell’s integrated process safety solutions. Designed specifically for use in high-integrity process environments, this module ensures safe, uninterrupted control of safety-critical processes. Whether deployed in refining, petrochemical, or power generation environments, the 10020/1/2 delivers superior fault tolerance and secure operational continuity.
As part of the TÜV-certified Safety Manager family, the FSC 10020/1/2 plays a crucial role in meeting IEC 61508 SIL3 safety standards. It forms a central processing component of the FSC system, offering robust diagnostic capabilities, redundancy, and real-time response under emergency conditions.
Product Features and Advantages
-
High Reliability: Redundant architecture for maximum uptime and safety compliance.
-
SIL3 Certified: Complies with IEC 61508 standards for functional safety.
-
Diagnostic Capabilities: Built-in self-testing, automatic fault detection, and isolation.
-
Modular Design: Easy to integrate with other FSC modules and scalable based on plant size.
-
Deterministic Response: Ensures rapid and predictable system reactions in emergencies.
-
Lifecycle Support: Backed by Honeywell’s global support infrastructure for long-term use.
-
Interoperability: Seamlessly integrates with Experion PKS and other DCS/SCADA systems.
-
Hot Swappable: Modules can be replaced without shutting down the system.
-
Event Logging: Secure event logging helps with root cause analysis and compliance reporting.
Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | FSC 10020/1/2 |
| System | Honeywell Safety Manager (FSC) |
| Function | Logic processing/controller module |
| Safety Certification | SIL3 (IEC 61508) |
| Processor Type | Redundant Safety CPU |
| Communication Interface | RS485, Ethernet, proprietary I/O bus |
| Operating Voltage | 24 VDC nominal |
| Power Consumption | 12 W per module |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% – 95% non-condensing |
| Enclosure Type | Plug-in module for backplane mounting |
| Dimensions | 172 x 102 x 41 mm |
| Weight | 0.5 kg |
| Redundancy Support | Yes (CPU, communication, power) |
| Compatible Systems | FSC racks, Safety Manager, Experion PKS |
| Installation Mounting | Backplane plug-in with locking mechanism |
Applications
The FSC 10020/1/2 module is widely deployed in industries where safety is paramount and fail-safe logic is required:
-
Oil & Gas: Emergency shutdown systems (ESD), fire and gas systems (F&G), and blowout preventer logic.
-
Refineries: Burner management systems (BMS), high-integrity pressure protection systems (HIPPS).
-
Power Generation: Boiler protection and turbine trip systems.
-
Chemical Processing: Toxic gas monitoring, interlock logic for hazardous operations.
-
Water & Wastewater: Critical treatment process logic under safety constraints.
-
Pharmaceutical: Bio-reactor control, hazardous area logic enforcement.
Installation Instructions
-
Power Down the FSC Rack before inserting or replacing the module unless hot-swapping is permitted and supported.
-
Insert the 10020/1/2 Module into the designated slot on the FSC backplane.
-
Secure the Locking Mechanism to ensure physical stability.
-
Connect Communication Cables for redundant Ethernet, RS485, or proprietary bus.
-
Configure the Module via FSC Engineering Tool, uploading the safety logic and validating using Honeywell diagnostic software.
-
Perform System Self-Test to ensure full recognition and functionality.
-
Commissioning: Conduct a full I/O validation and fail-safe test before operational deployment.
10 FAQs (De-AI Style, Realistic Expression)
Q1: What role does the FSC 10020/1/2 module play in a safety system?
A1: It functions as the logic solver, processing safety-critical signals and executing actions such as shutdowns or alarms when unsafe conditions arise.
Q2: Can the module be used in explosive environments?
A2: While the module itself isn’t certified for hazardous zones, it can control intrinsically safe field I/O via isolators and barriers.
Q3: Does it support redundant operation?
A3: Yes, it supports full CPU and communication redundancy, essential for high-availability applications.
Q4: What tools are required for programming the 10020/1/2 module?
A4: Honeywell’s Safety Builder and Safety Manager Configuration Tools are typically used for engineering and diagnostics.
Q5: Is the module compatible with older FSC racks?
A5: Generally, yes. However, firmware compatibility and rack generation should be verified.
Q6: What happens during a CPU failure?
A6: The redundant CPU automatically takes over without interrupting safety logic execution.
Q7: Can I update firmware remotely?
A7: Firmware updates should be done locally under maintenance windows to minimize risk, although remote update options exist in newer systems.
Q8: What certifications does the FSC 10020/1/2 carry?
A8: It is TÜV-certified for SIL3 safety compliance according to IEC 61508.
Q9: How long is the typical lifecycle of this module?
A9: With proper maintenance, the service life typically exceeds 5 years.
Q10: Is logging available for diagnostics?
A10: Yes, the module records detailed diagnostics, fault events, and test logs that are accessible via software tools.
