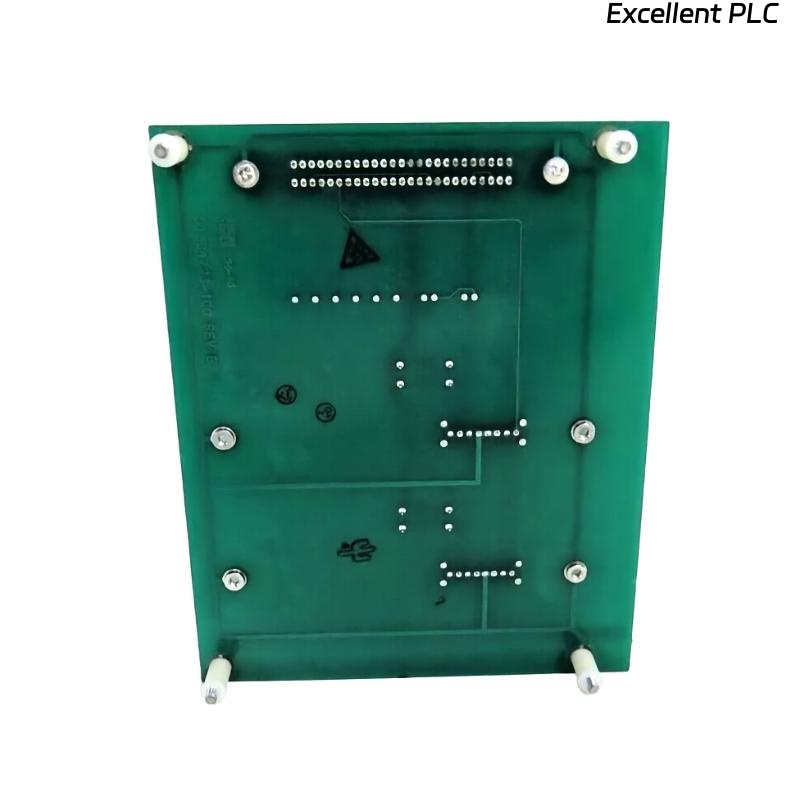

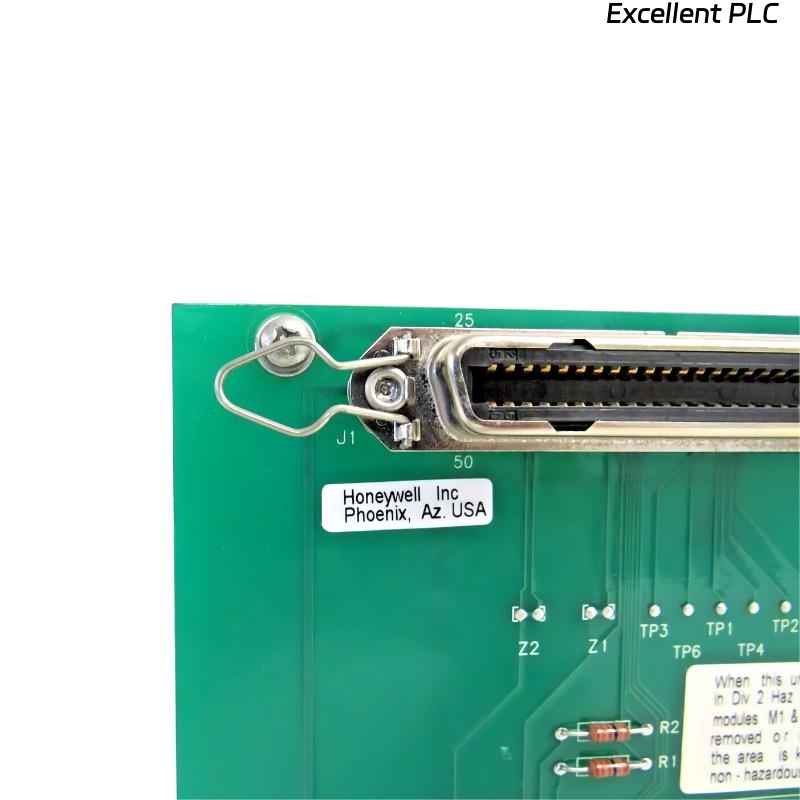

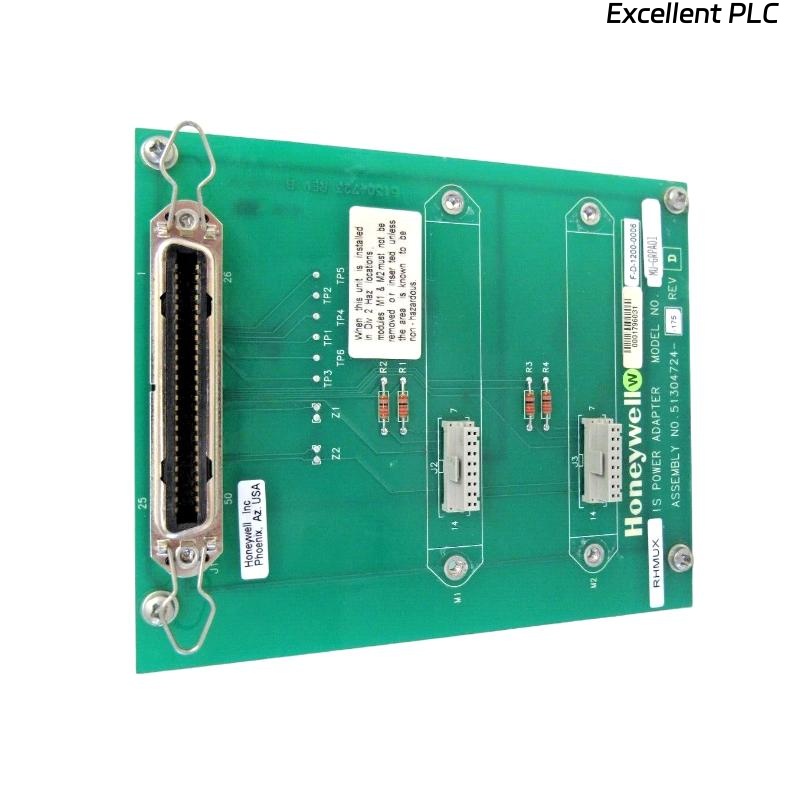

Honeywell MC-GRPA01 51304724-175 RHMUX GI/IS Power Adapter

Product Introduction

The Honeywell MC-GRPA01 51304724-175 RHMUX GI/IS Power Adapter is a specialized industrial power interface module designed to provide reliable and isolated power distribution for Honeywell Experion and TDC3000 control systems. This adapter serves as a critical link between Remote High-speed Multiplexers (RHMUX) and General/Intrinsic Safety (GI/IS) field instruments, ensuring safe and stable power delivery in demanding industrial environments.

Engineered with advanced galvanic isolation and robust internal circuitry, the MC-GRPA01 minimizes noise, eliminates ground loops, and protects downstream equipment from electrical surges or transient voltage spikes. Its compact and durable design makes it ideal for applications in oil & gas, chemical processing, power generation, and other hazardous-area control systems requiring both precision power regulation and intrinsic safety compliance.

---

Technical Specifications

---

Applications

The MC-GRPA01 RHMUX GI/IS Power Adapter is suitable for a wide range of industrial automation and safety applications that require secure and isolated power distribution:

• Distributed Control Systems (DCS): Provides stable power to Honeywell Experion or TDC3000 RHMUX nodes for reliable data acquisition.

• Intrinsic Safety Systems: Safely powers field devices in hazardous areas, ensuring compliance with IS standards.

• Process Automation: Supports chemical, petrochemical, and pharmaceutical processes requiring high signal integrity.

• Oil & Gas Facilities: Delivers robust power for pipeline monitoring and offshore platform control systems.

• Power Generation: Feeds critical sensors and actuators in turbine control and auxiliary systems.

• Water & Wastewater Plants: Maintains reliable operation of monitoring and pump control networks.

---

Advantages

• Robust Isolation: 1500 V galvanic isolation eliminates ground loops and protects sensitive control equipment.

• Compact Design: Space-saving enclosure allows flexible panel or DIN rail installation.

• Enhanced Safety: Intrinsic safety compliance ensures suitability for hazardous locations.

• High Efficiency: Low power consumption and excellent thermal performance reduce operating costs.

• Stable Output: Precision voltage regulation provides consistent power to critical devices.

• Surge Protection: Integrated transient suppression safeguards against voltage spikes and surges.

• Wide Operating Range: Reliable performance in extreme temperatures and high humidity.

• Low Maintenance: Solid-state construction minimizes failure points and extends service life.

---

FAQ

1. What is the input voltage range supported by the MC-GRPA01?
   It accepts 18–30 VDC, with a nominal input of 24 VDC.

2. Does the adapter provide galvanic isolation?
   Yes, it provides 1500 V isolation between input and output circuits.

3. Can it be mounted on a DIN rail?
   Yes, the unit supports both DIN rail and panel mounting.

4. What is the maximum continuous output current?
   The adapter can supply up to 2 A continuous current at 24 VDC.

5. Is it suitable for use in hazardous environments?
   Yes, it meets intrinsic safety requirements for hazardous-area installations.

6. What protection features are included?
   Integrated surge suppression and overvoltage protection are built in.

7. What is the operating temperature range?
   The unit operates reliably from –20 °C to +70 °C.

8. Is external cooling required?
   No, it is convection-cooled and requires no external fans.

9. Can this power adapter be used with non-Honeywell RHMUX modules?
   While designed for Honeywell systems, it can power compatible third-party IS devices if specifications match.

10. What is the typical power consumption?
    Less than 10 W under normal operating conditions.

---
