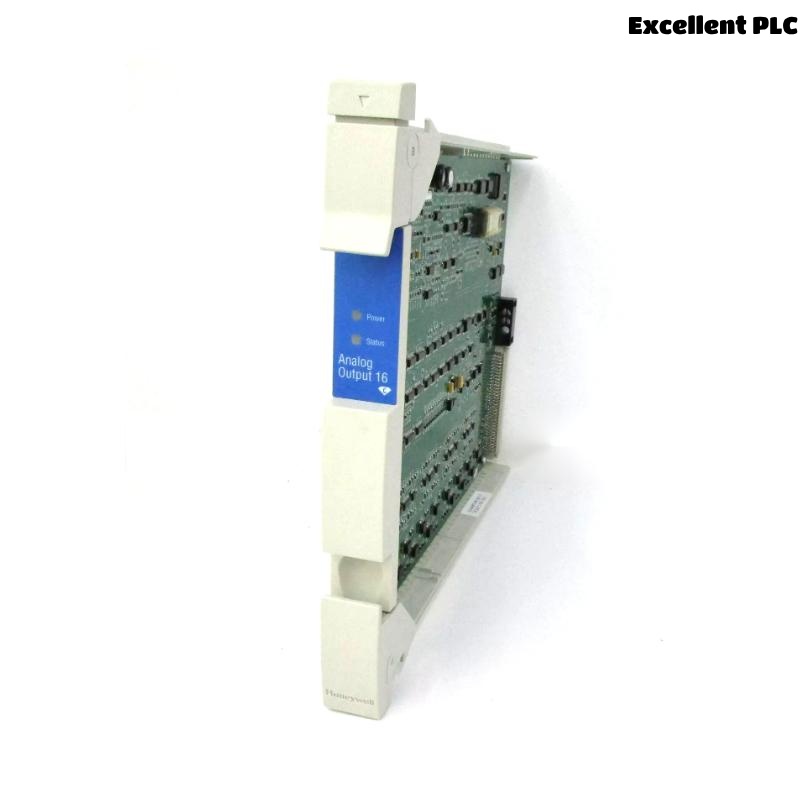

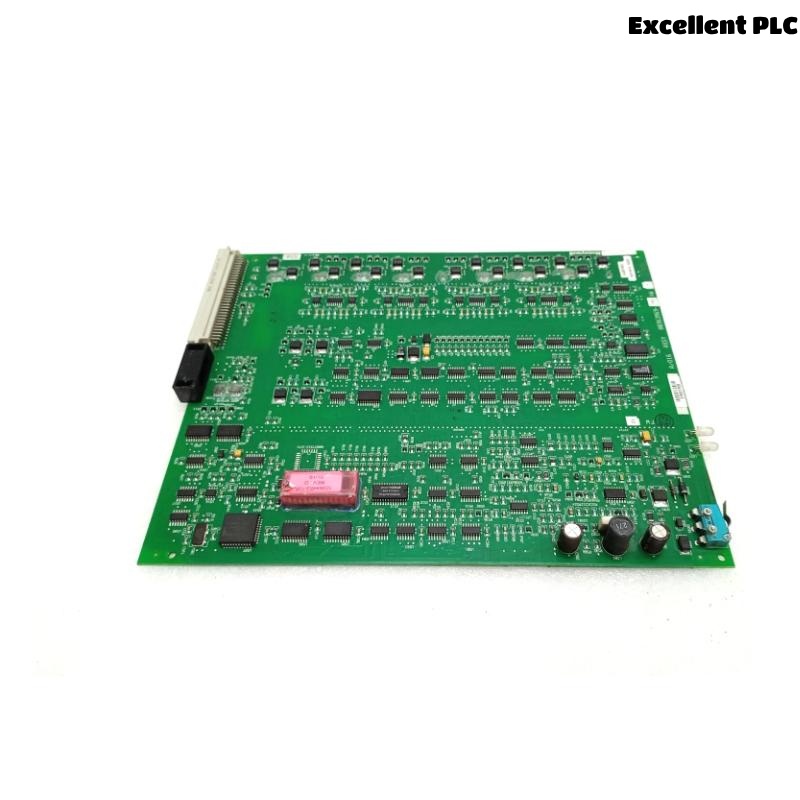

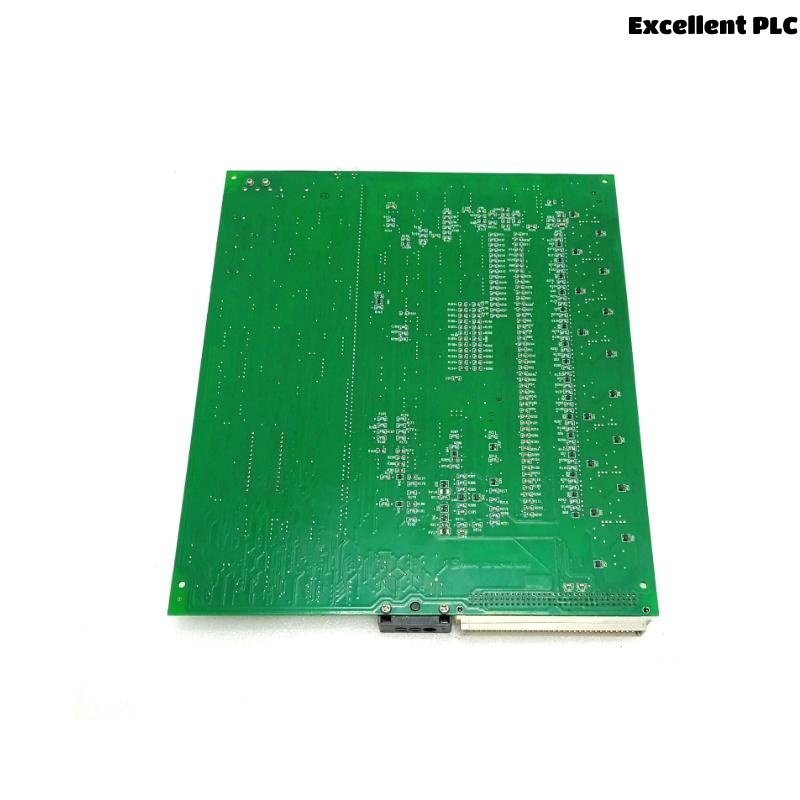

Honeywell MC-PAOY22 80363949-150 Analog Output Module

Product Overview

The Honeywell MC-PAOY22 80363949-150 is a reliable analog output module designed to deliver precise analog signals in industrial process control systems. This module is built to convert digital control signals into accurate analog outputs, enabling seamless control and monitoring of actuators, valves, and other field devices.

Engineered for rugged industrial environments, the MC-PAOY22 offers stable performance with excellent signal integrity. Its compact form factor allows easy integration into Honeywell’s modular control architectures, ensuring efficient use of panel space. With broad compatibility and straightforward installation, it is widely utilized across diverse industries to enhance process automation and control accuracy.

Technical Specifications

Applications

The Honeywell MC-PAOY22 analog output module is employed in various industrial environments to enable accurate control and monitoring of processes. Typical applications include:

• Oil & Gas – Controlling valve positions and actuator movements.

• Chemical & Petrochemical – Precise modulation of reactors, pumps, and flow systems.

• Power Generation – Output signal control for turbine and generator systems.

• Water & Wastewater Treatment – Regulation of pumps and valves in treatment plants.

• Pharmaceutical – Accurate control of manufacturing and batch processing equipment.

• Food & Beverage – Monitoring and controlling processing line actuators.

Key Advantages

• High Precision Output: Offers accurate and stable analog signals essential for process control.

• Compact and Lightweight: Small size (126 × 28 × 130 mm) and light weight (0.21 kg) ease installation and space management.

• Robust Performance: Designed to operate reliably in harsh industrial environments.

• Fast Response Time: Ensures timely control actions with response time of ≤ 50 milliseconds.

• Versatile Output Options: Supports multiple standard analog signal types for broad application compatibility.

• Protective Features: Includes overload, short circuit, and open circuit protection to safeguard equipment.

• Flexible Mounting: Can be mounted on DIN rails or panels according to installation needs.

• Seamless Integration: Fully compatible with Honeywell control systems for efficient process management.

Frequently Asked Questions (FAQ)

1. What analog output signals does the MC-PAOY22 support?
   It supports 4-20 mA, 0-20 mA, and 0-10 V output signals.

2. How many output channels are available on this module?
   The module provides a single output channel.

3. What is the accuracy of the analog output?
   The accuracy is ±0.2% of full scale.

4. What is the response time for output changes?
   The response time is 50 milliseconds or less.

5. Can this module be mounted on a DIN rail?
   Yes, it supports both DIN rail and panel mounting.

6. What are the physical dimensions of the module?
   Dimensions are 126 mm (L) × 28 mm (W) × 130 mm (H).

7. How much does the module weigh?
   It weighs approximately 0.21 kg.

8. What is the operating temperature range?
   The module operates between -20°C and +70°C.

9. Does the module provide protection against electrical faults?
   Yes, it has protection against overload, short circuit, and open circuit conditions.

10. Is the module compatible with Honeywell control systems?
    Yes, it is designed to integrate with Honeywell control architectures.
