Product Introduction

---

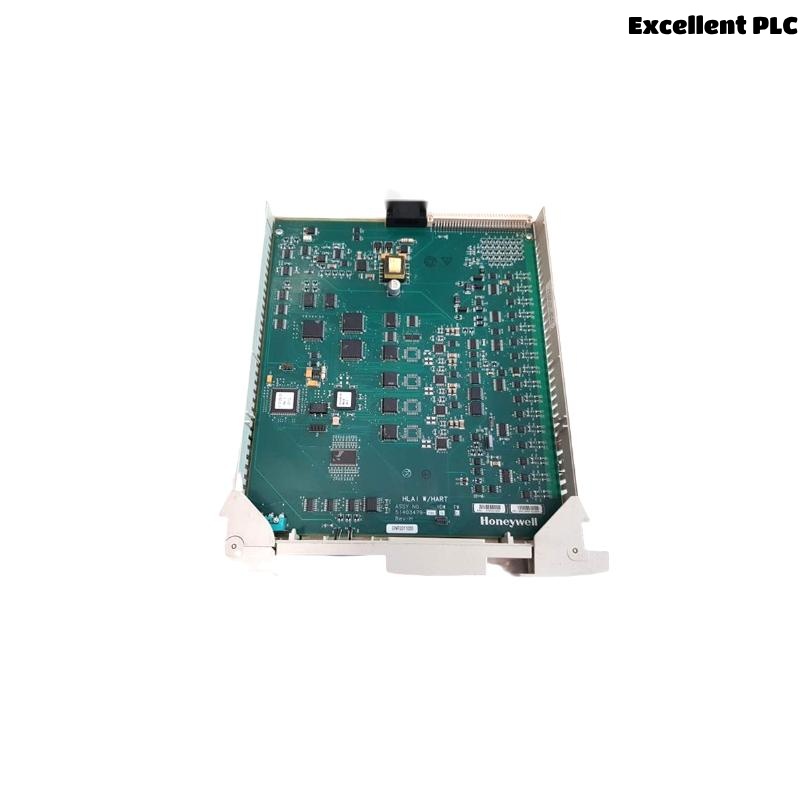

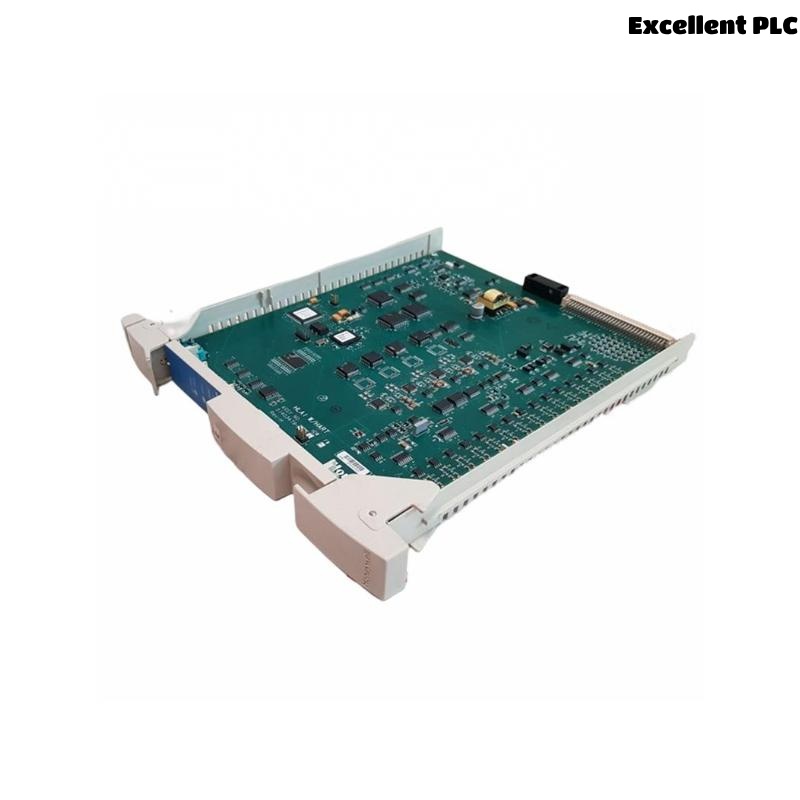

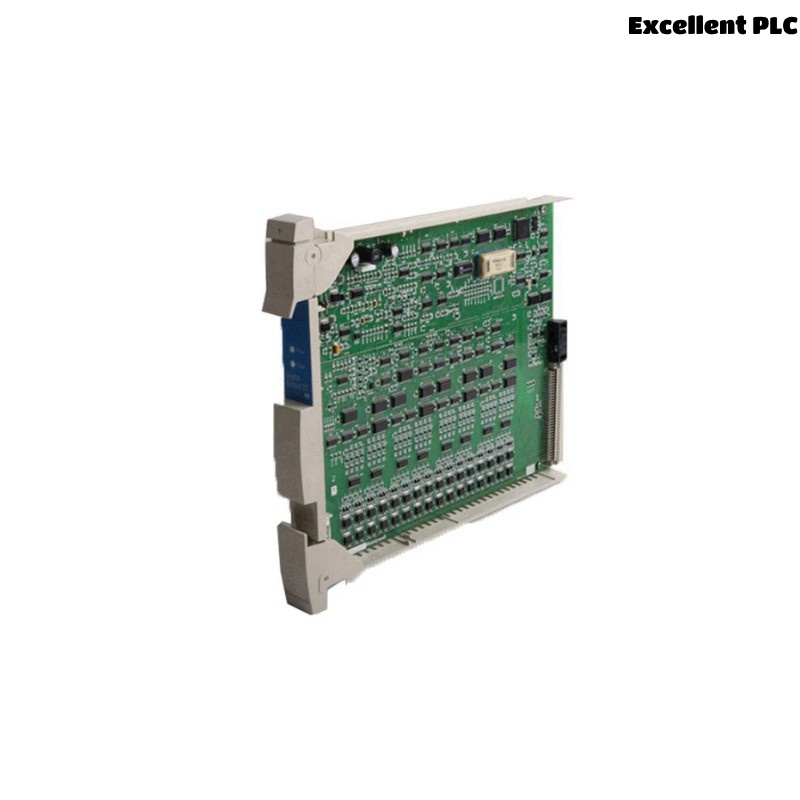

The Honeywell MC-PHAI01 (Part No. 51403479-150) is an advanced High-Level Analog Input Module designed for use in Honeywell’s Experion Process Knowledge System (PKS) and PlantScape systems. It plays a critical role in acquiring accurate analog input signals from field instruments such as transmitters and sensors, converting them into a form suitable for processing and control. With high-density channel support, precision signal conditioning, and robust system integration, the MC-PHAI01 is a fundamental component in safety- and mission-critical process automation environments.

This module ensures consistent and reliable data acquisition, supporting various signal types including 4–20 mA current loops. Its enhanced diagnostic capabilities, hot-swap support, and compatibility with fault-tolerant architectures make it a trusted choice across diverse industries such as oil & gas, chemical processing, power generation, and pharmaceuticals.

---

Technical Specifications

---

---

Product Applications

---

The MC-PHAI01 is utilized across multiple industrial applications, especially where accurate analog input acquisition is mission-critical:

• Oil & Gas: Used for real-time pressure, flow, and level measurement.

• Chemical Processing: Enables tight control of process variables.

• Power Generation: Monitors temperature and pressure in turbines and boilers.

• Pharmaceuticals: Captures data from precise laboratory instruments.

• Water Treatment: Reads flow and chemical dosing sensors.

• Food & Beverage: Supports sanitary signal acquisition in automation.

---

Product Advantages

---

• High Input Density: Supports 16 differential analog input channels in a compact module.

• Robust Signal Integrity: Offers superior channel-to-channel isolation to minimize signal interference.

• Flexible Integration: Easily integrates into Honeywell Experion and other TDC 3000 systems.

• Redundancy Ready: Seamless support for redundant configurations enhances system reliability.

• Hot Swappable: Facilitates module replacement without shutting down the system.

• Diagnostics Support: Advanced module diagnostics reduce downtime and improve maintenance cycles.

• Certified Reliability: Designed to meet rigorous industry safety and compliance standards.

---

Frequently Asked Questions (FAQ)

---

Q1: What type of signals does the MC-PHAI01 accept?
A1: It supports high-level analog signals, primarily 4–20 mA and 0–20 mA.

Q2: Can this module be hot-swapped during system operation?
A2: Yes, it supports hot-swapping without disrupting the system.

Q3: Is MC-PHAI01 compatible with redundant control configurations?
A3: Absolutely. It is designed for seamless integration into redundant architectures.

Q4: What is the module’s resolution for analog inputs?
A4: The MC-PHAI01 has a 16-bit resolution for high-precision readings.

Q5: What industries commonly use this module?
A5: It’s widely used in oil & gas, power generation, chemicals, pharmaceuticals, and water treatment.

Q6: What is the operating temperature range?
A6: It operates reliably between 0°C and +60°C.

Q7: Is the module certified for industrial safety standards?
A7: Yes, it carries certifications such as CE, UL, and CSA, depending on configuration.

Q8: How many channels are supported?
A8: The module supports up to 16 analog input channels.

Q9: How is this module mounted?
A9: It can be DIN rail-mounted or installed within Honeywell system chassis.

Q10: Can this module be used with PlantScape or Experion PKS?
A10: Yes, it is fully compatible with both platforms.

---
