Product Overview

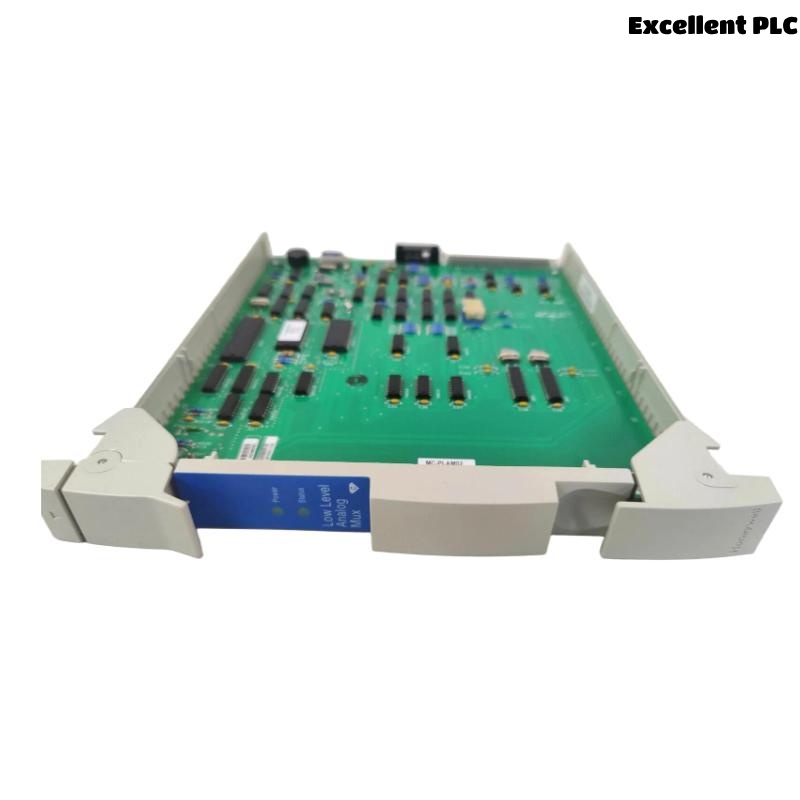

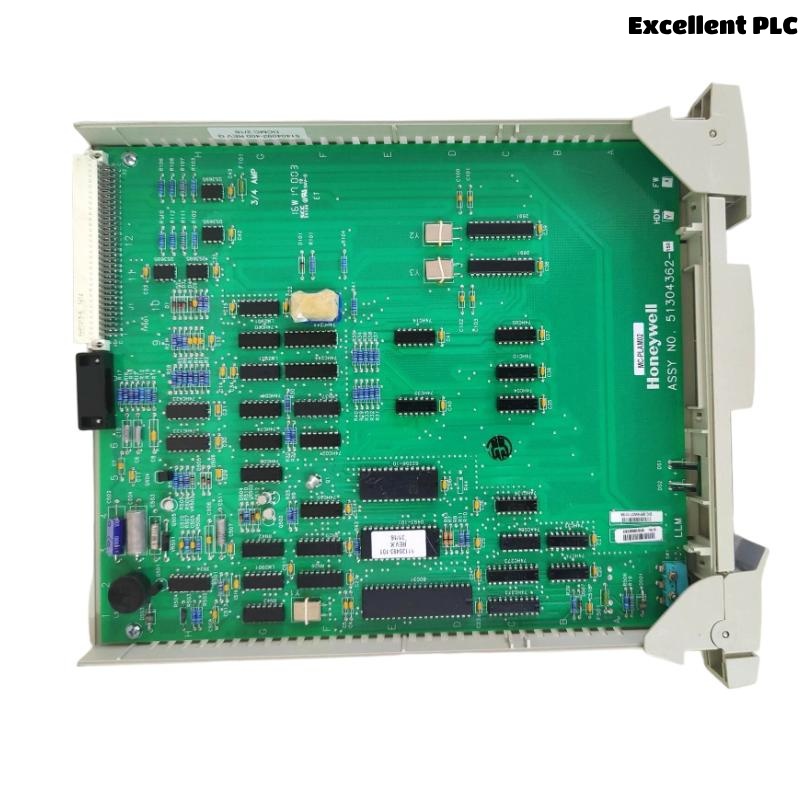

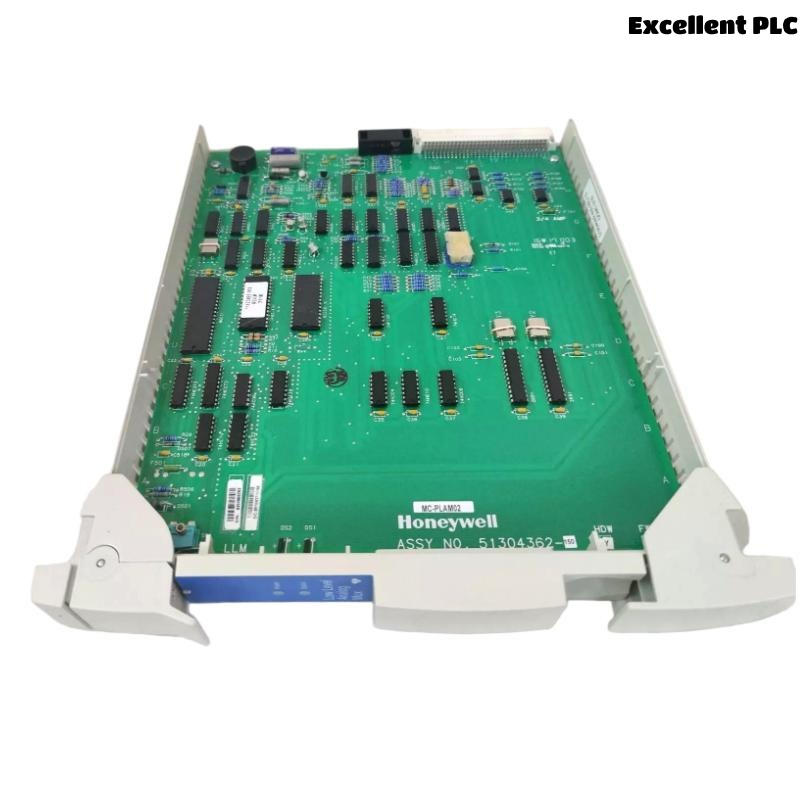

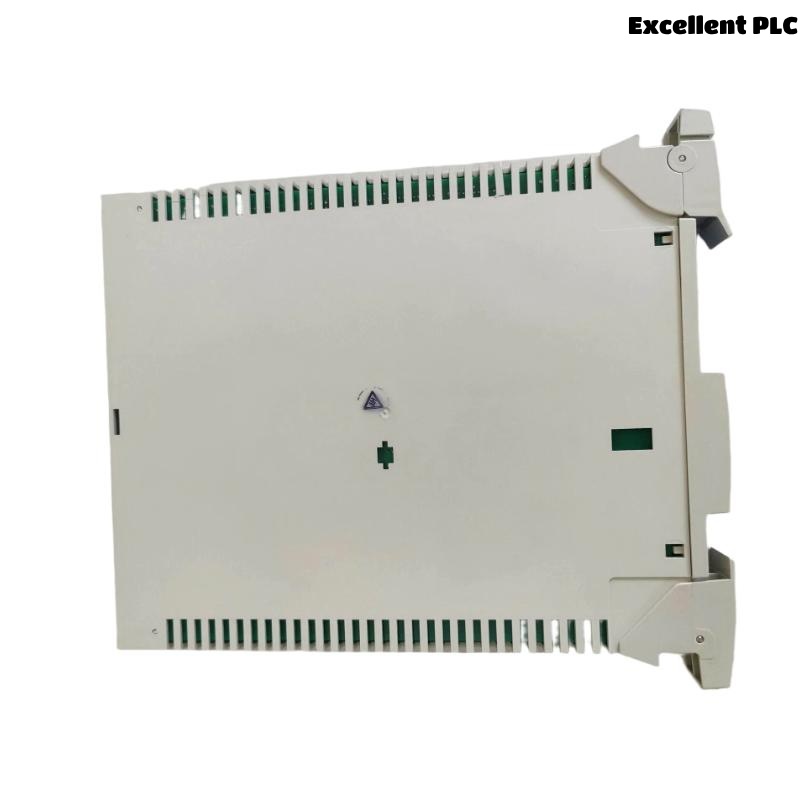

The Honeywell MC-PLAM02 51304362-150 is a low-level analog multiplexer designed for use in industrial applications where precise and reliable analog signal routing is required. This device allows multiple low-level analog signals to be routed to a single measurement or monitoring system, providing a cost-effective and efficient solution for applications such as temperature monitoring, pressure monitoring, and flow measurement.
The MC-PLAM02 offers excellent performance with its 50 x 200 x 150 mm dimensions and a weight of 0.85 kg. It is engineered to deliver superior signal integrity, even in environments with electrical noise or interference. This product is ideal for industries such as oil and gas, power generation, manufacturing, and chemical processing, where multiple sensor inputs need to be processed through a single interface.
With its versatile functionality and high-quality construction, the MC-PLAM02 ensures seamless integration into existing control systems. It helps reduce the complexity of wiring, minimize signal loss, and improve the overall efficiency of data collection in automated systems.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | MC-PLAM02 51304362-150 |
| Dimensions | 50 x 200 x 150 mm |
| Weight | 0.85 kg |
| Signal Type | Low-level analog signal multiplexer |
| Input Channels | 8 channels |
| Output Channels | 1 output channel |
| Signal Range | 0 to 10 VDC |
| Response Time | 2 ms |
| Operating Temperature | -40°C to +85°C |
| Certification | CE, UL, ATEX certified |
| Application | Used for routing low-level analog signals to a single output |
Applications
The Honeywell MC-PLAM02 low-level analog multiplexer is ideal for a variety of industrial applications where analog signals from multiple sources need to be routed to a single system. Some of the key applications include:
-
Process Monitoring: In industries like chemical processing and petrochemical, where multiple sensors are used to monitor conditions such as temperature, pressure, and flow, the MC-PLAM02 allows these signals to be multiplexed efficiently for data analysis.
-
Power Generation: In power plants, where numerous sensors monitor critical components like turbines, generators, and boilers, this multiplexer helps ensure accurate and reliable data collection.
-
Manufacturing: The MC-PLAM02 is ideal for manufacturing environments, where multiple sensors in automated systems must be connected to a central controller for process optimization.
-
Oil and Gas: In oil and gas operations, where sensors are used to monitor a wide range of variables, the MC-PLAM02 simplifies wiring and reduces the potential for signal degradation.
-
HVAC Systems: In HVAC systems, this multiplexer is used to manage inputs from various environmental sensors such as temperature and humidity, improving system control and efficiency.
-
Automated Testing: The MC-PLAM02 is perfect for applications involving automated testing systems in laboratories or production facilities, where multiple test points need to be monitored through a single data acquisition system.
By providing a central point for routing low-level analog signals, the MC-PLAM02 simplifies system architecture and makes it easier to manage large networks of sensors.
Key Advantages
-
Efficient Signal Routing: The MC-PLAM02 allows for multiple low-level analog signals to be multiplexed to a single output, which reduces the complexity of system wiring and makes integration simpler.
-
Compact and Lightweight: The device’s compact size of 50 x 200 x 150 mm and a weight of 0.85 kg makes it easy to install and integrate into existing systems, even in space-constrained environments.
-
High Signal Integrity: Even in environments with electrical noise, the MC-PLAM02 ensures high signal integrity, reducing the risk of signal degradation during transmission.
-
Wide Operating Temperature Range: The device can operate in a wide temperature range from -40°C to +85°C, making it suitable for both indoor and outdoor installations.
-
Fast Response Time: With a response time of just 2 ms, the multiplexer ensures real-time signal routing, making it ideal for fast-moving industrial processes.
-
Versatile Compatibility: It is compatible with a wide range of analog sensors and systems, ensuring seamless integration into existing control and monitoring setups.
-
Cost-Effective: The multiplexer reduces the need for multiple measurement systems by combining several signals into one, which cuts down on equipment and installation costs.
-
Durable and Reliable: Built to withstand the rigors of industrial environments, the MC-PLAM02 is designed for long-term, reliable operation with minimal maintenance.
-
Enhanced Safety: Certified with CE, UL, and ATEX standards, the MC-PLAM02 ensures compliance with industry safety regulations.
-
Simple Integration: Designed for easy installation and integration, this device can be quickly incorporated into new or existing systems without requiring extensive system changes.
Frequently Asked Questions (FAQ)
-
What is the purpose of the Honeywell MC-PLAM02 multiplexer?
The MC-PLAM02 is designed to multiplex low-level analog signals, allowing multiple sensors to share a single output channel for easier monitoring and data collection. -
How many input channels does the MC-PLAM02 support?
The MC-PLAM02 supports up to 8 input channels. -
What is the output configuration of the MC-PLAM02?
The MC-PLAM02 has 1 output channel that multiplexes all 8 input signals. -
What is the response time of the MC-PLAM02?
The MC-PLAM02 has a fast response time of 2 ms, ensuring real-time signal routing. -
What is the signal range for the MC-PLAM02?
The device supports a signal range from 0 to 10 VDC. -
What is the weight of the MC-PLAM02?
The MC-PLAM02 weighs 0.85 kg, making it lightweight and easy to handle. -
What is the temperature range for the MC-PLAM02?
The device can operate in temperatures ranging from -40°C to +85°C, making it suitable for a variety of environments. -
Is the MC-PLAM02 certified for safety?
Yes, the MC-PLAM02 is CE, UL, and ATEX certified, ensuring compliance with international safety standards. -
What industries can use the MC-PLAM02?
The device is ideal for industries such as oil and gas, power generation, manufacturing, and chemical processing. -
Can the MC-PLAM02 be used in hazardous environments?
Yes, the MC-PLAM02 is designed for use in hazardous environments, as it is ATEX certified and meets safety regulations.
Recommended Related or Series Models
| Model | Description |
|---|---|
| MC-PLAM01 51304361-150 | Low-level analog multiplexer with 4 input channels |
| MC-PLAM03 51304363-150 | Low-level analog multiplexer with 16 input channels |
| MC-PLAM04 51304364-150 | High-level analog multiplexer for industrial systems |
| MC-PLAM05 51304365-150 | Analog multiplexer with integrated signal conditioning |
| MC-PLAM06 51304366-150 | Multiplexer for temperature and pressure sensors |
| MC-PLAM07 51304367-150 | Analog signal conditioner and multiplexer with extended range |
