Product Introduction

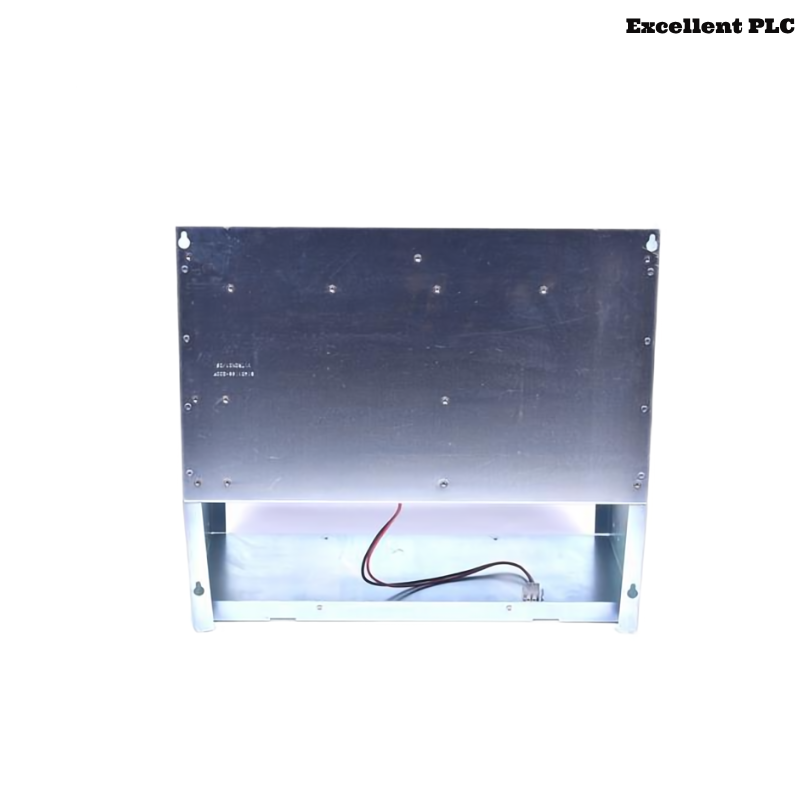

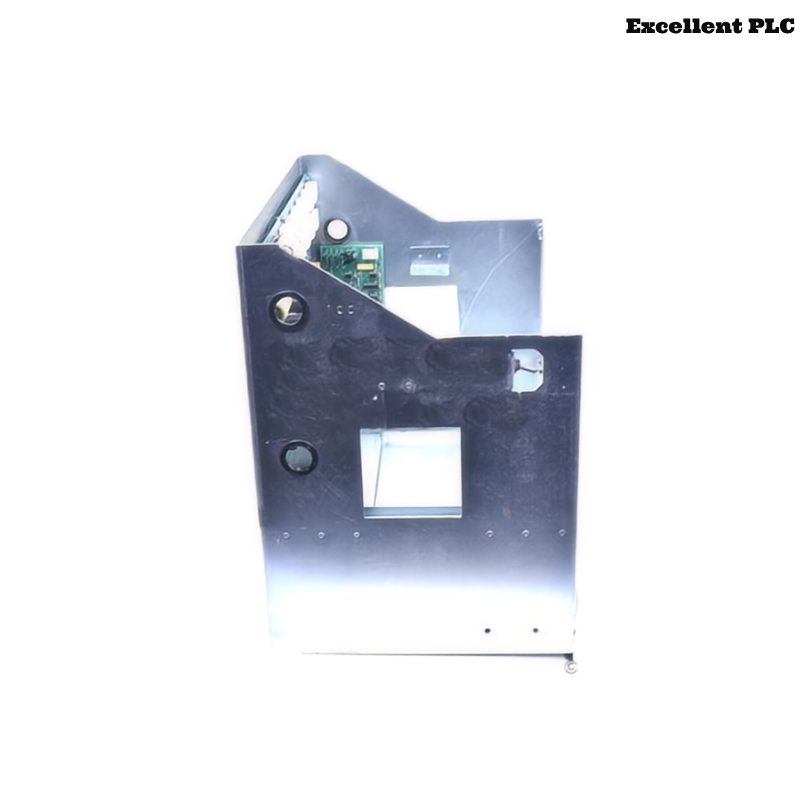

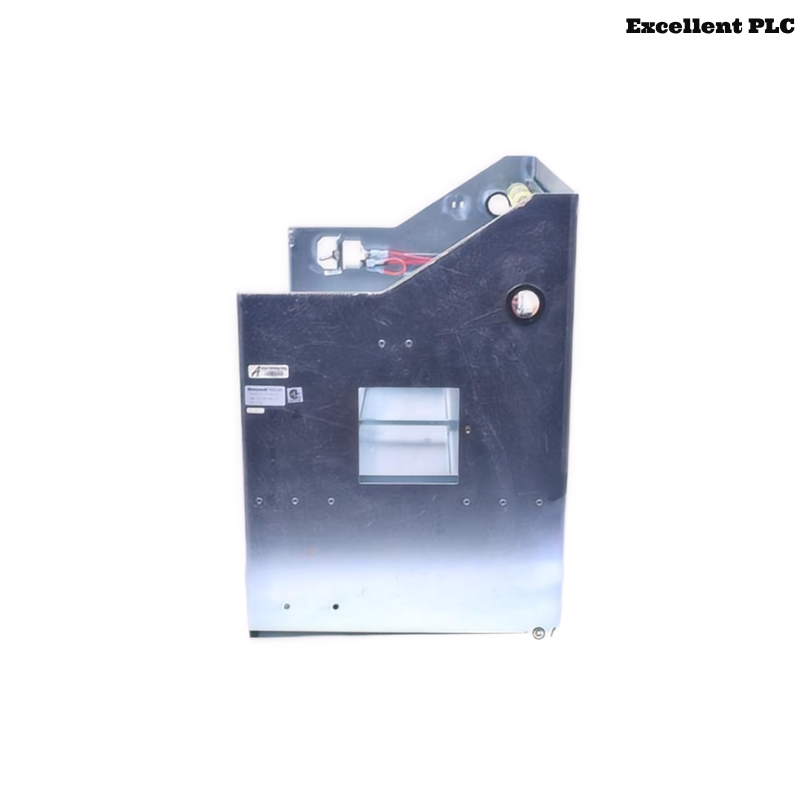

The Honeywell MC-PSRX04 51404170-175 is an industrial-grade power system cage designed for Honeywell’s Experion PKS and related Process Control Systems. It plays a crucial role in housing and organizing redundant power supplies that provide reliable power distribution to critical system components. Built with Honeywell’s trusted engineering quality, the MC-PSRX04 supports up to four power supply modules and ensures operational integrity through modular redundancy and heat-dissipating architecture.
This power cage is typically deployed in mission-critical environments such as oil & gas, chemical plants, power generation, and large-scale manufacturing facilities. With robust construction and seamless integration capabilities, the MC-PSRX04 facilitates high system availability, optimized system uptime, and safe field operation.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | MC-PSRX04 |
| Part Number | 51404170-175 |
| Manufacturer | Honeywell |
| Product Type | Power System Cage for Redundant PSUs |
| Mounting | Rack/DIN rail mountable |
| Slots | Supports up to 4 Power Modules |
| Input Power Type | Accepts redundant power supply units (e.g., MC-PSIM04) |
| Operational Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Humidity Tolerance | 5% to 95% non-condensing |
| Shock Resistance | 30 g, 11 ms half-sine pulse |
| Vibration Tolerance | 0.75 mm, 10-60 Hz |
| Material | Industrial-grade aluminum alloy |
| Compliance | CE, RoHS, UL/cUL Listed |
| Cooling | Passive air-cooled with ventilation |
| Dimensions (W x H x D) | 220 × 124 × 126 mm |
| Weight | 8.62 kg |
Product Applications
The MC-PSRX04 51404170-175 is primarily used in distributed control system (DCS) environments where stable and uninterrupted power delivery is essential. Its applications include:
-
Process Control Systems (DCS) – for continuous and batch process industries.
-
Oil & Gas Automation – offshore platforms, refineries, and gas processing units.
-
Power Generation Facilities – turbine and substation control systems.
-
Chemical Manufacturing – supporting safety instrumented systems and production control.
-
Pharmaceutical Plants – high-integrity production lines and cleanroom environments.
-
Pulp and Paper – paper machine and batch digester power systems.
Product Advantages
-
Modular Design: Supports up to four hot-swappable power supplies for redundancy or load sharing.
-
High Availability: Ensures uninterrupted system operation by facilitating redundant power architecture.
-
Robust Build: Durable aluminum enclosure resists vibration, heat, and electromagnetic interference.
-
Compact Footprint: Efficiently designed for limited cabinet space while allowing easy cable routing.
-
Certified Quality: Compliance with industry safety and performance standards ensures safe installation in industrial environments.
-
Scalable Architecture: Enables future system expansion without the need for cage replacement.
-
Low Maintenance: Passive cooling with minimal wear components reduces operational overhead.
Frequently Asked Questions (FAQ)
-
What is the primary function of the MC-PSRX04 power cage?
It holds and organizes up to four power modules, providing redundant power delivery to Honeywell control systems. -
Can the power modules be hot-swapped during operation?
Yes, the MC-PSRX04 supports hot-swappable installation and removal of compatible power modules. -
Is this cage compatible with older Honeywell systems?
It is mainly designed for the Experion PKS system but may be backward-compatible with other Honeywell process systems if specified. -
What power modules are typically used with this unit?
Common compatible modules include Honeywell MC-PSIM04 and MC-PSIM02 units. -
Does it support both 24V and 48V modules?
It depends on the power module installed, but the cage itself can accommodate both types if the PSU supports them. -
Is external cooling or fan installation required?
No. The MC-PSRX04 is passively cooled and optimized for airflow in industrial enclosures. -
What protection features does the unit offer?
It includes overvoltage and thermal protection through compatible power supplies. -
Can it be mounted on a DIN rail?
Yes, it supports DIN rail mounting in addition to standard rack installation. -
What certifications does the unit have?
It is CE marked, RoHS compliant, and UL/cUL listed for industrial applications. -
Where is this product manufactured?
Honeywell manufactures these units in certified industrial electronics facilities in North America and Europe.
Related Models (Same Series or Compatible)
| Model Number | Description | Compatibility |
|---|---|---|
| MC-PSIM04 | Redundant Power Supply Module | Compatible with MC-PSRX04 |
| MC-PSIM02 | Non-redundant Power Supply Module | Compatible with MC-PSRX04 |
| MC-TAMR03 | Termination Assembly for Redundant Systems | Related to power architecture |
| MC-PDOY22 | Output Module used in Experion PKS | Supported in the same system |
| MC-TDIY22 | Digital Input/Output Module | Works within same rack system |
| MC-TAIH14 | Analog Input Module | Installed in adjacent control systems |
Popular Honeywell Models
| Model Number | Description | Application Area |
|---|---|---|
| CC-TDIL01 | Digital Input Module | DCS and SCADA systems |
| FC-SDO-0824 | Digital Output Module 24V | Safety Instrumented Systems |
| CC-PDOB01 | Digital Output Module | Process control |
| MU-TDID12 | Universal Input Module | Redundant DCS systems |
| CC-TAIX01 | Analog Input Module | Temperature/pressure sensing |
| FC-SDI-1624 | High-density DI Module | Safety-critical environments |
