Product Introduction

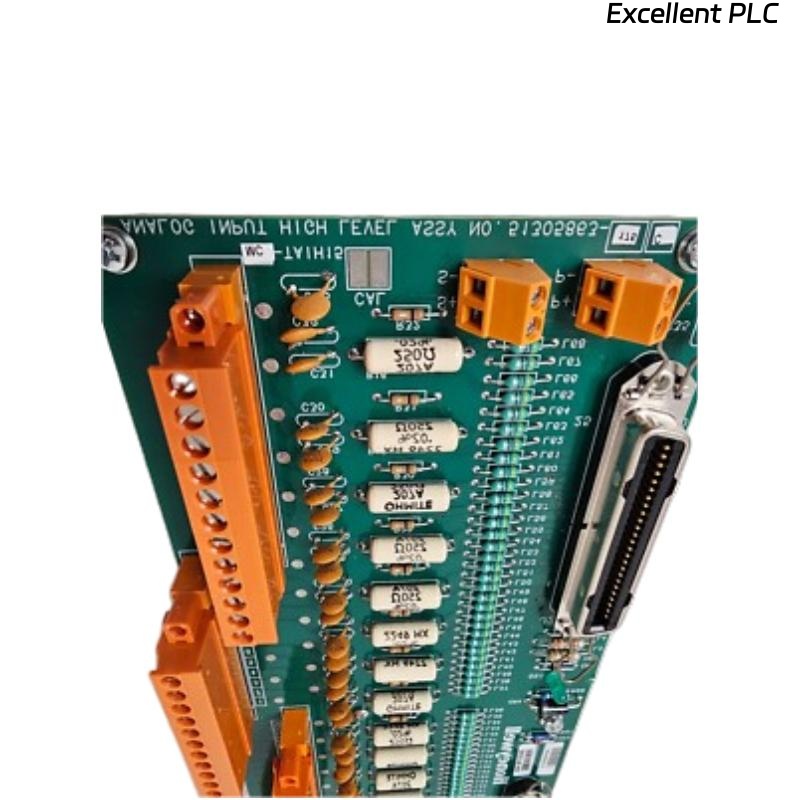

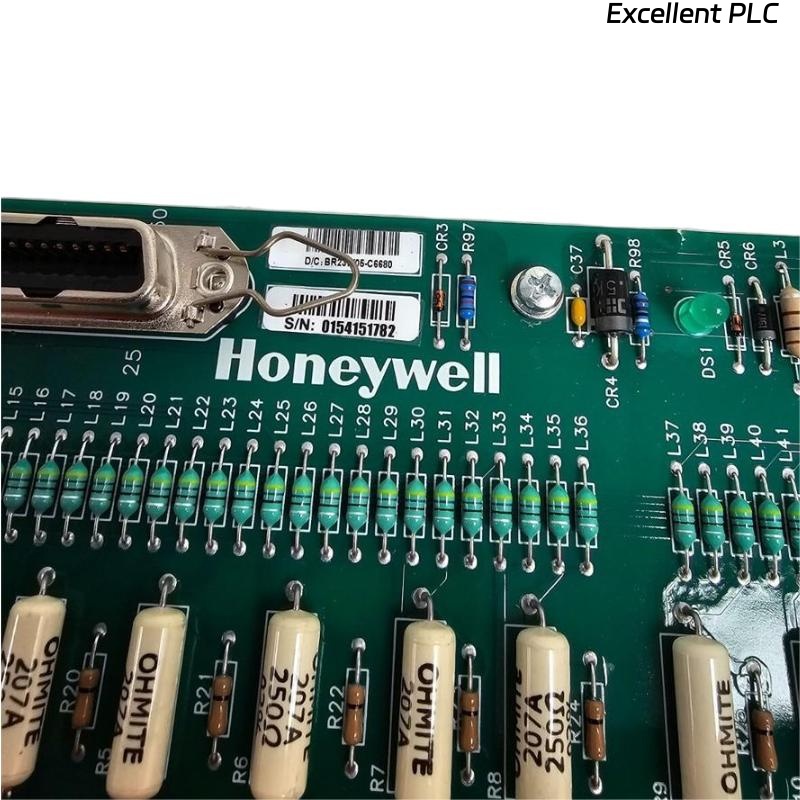

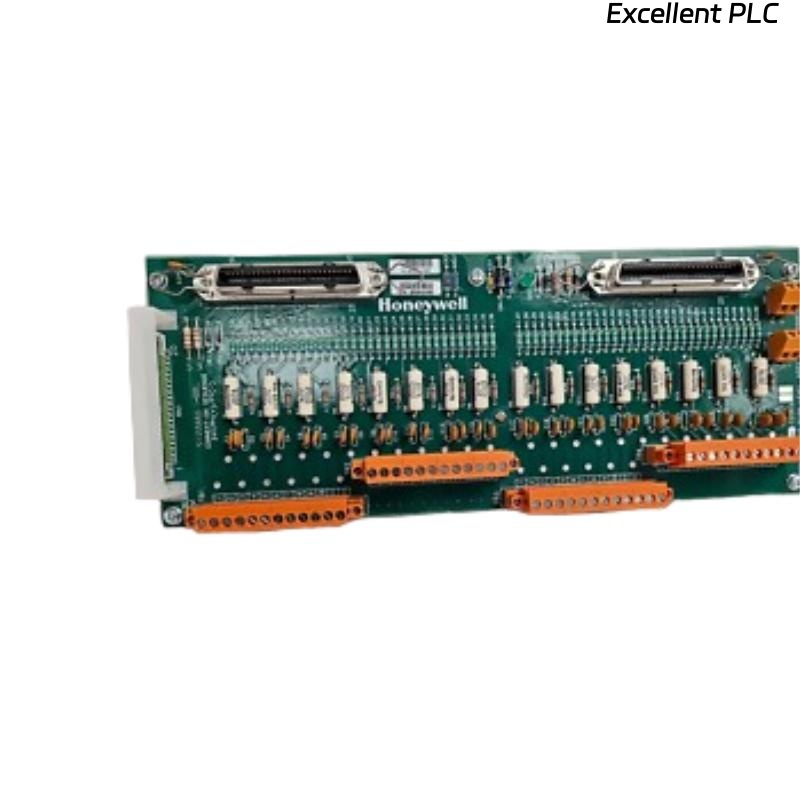

The Honeywell MC-TAIH15 51305863-175 High Level Analog Input Module is an advanced input interface component designed for Honeywell’s control systems. It enables reliable acquisition of analog signals from various field devices, converting them into digital values that can be processed within the Experion or TDC control environment. The module supports multiple input channels, high signal resolution, and robust isolation features, making it an essential element in process automation where accurate monitoring of high-level analog signals is required.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | MC-TAIH15 |
| Part Number | 51305863-175 |
| Module Type | High Level Analog Input |
| Input Signal Type | Voltage/Current (High-Level Analog) |
| Number of Channels | 16 isolated input channels |
| Signal Resolution | 12-bit / 16-bit (depending on configuration) |
| Input Range | Configurable ±10 V, 0–20 mA, 4–20 mA |
| Isolation | Channel-to-bus and channel-to-channel galvanic isolation |
| Power Supply | 24 VDC nominal |
| Response Time | < 100 ms typical |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | -40 °C to 85 °C |
| Humidity | 5% – 95% non-condensing |
| Dimensions | 136 x 60 x 40 mm |
| Weight | 0.12 kg |
Product Applications
-
Power generation and utility control systems
-
Oil and gas production and refining processes
-
Petrochemical and chemical industries
-
Pulp and paper production facilities
-
Pharmaceutical manufacturing environments
-
Water treatment and waste management plants
Product Advantages
-
High Accuracy: Provides precise measurement of analog signals with high resolution.
-
Signal Flexibility: Supports multiple input ranges for both current and voltage.
-
Robust Isolation: Ensures electrical protection between channels and the system backplane.
-
System Compatibility: Fully compatible with Honeywell TDC and Experion systems.
-
Compact Size: Lightweight and space-efficient for dense installation.
-
Reliability: Designed for continuous operation in demanding industrial environments.
FAQ
Q1: What type of input signals does the MC-TAIH15 accept?
A1: It supports both current and voltage analog signals, including ranges such as ±10 V, 0–20 mA, and 4–20 mA.
Q2: How many channels are available on this module?
A2: The MC-TAIH15 offers 16 isolated input channels.
Q3: Does this module provide channel-to-channel isolation?
A3: Yes, each channel is galvanically isolated to reduce interference and enhance reliability.
Q4: What is the resolution of the analog-to-digital conversion?
A4: The module supports resolutions of 12-bit or 16-bit, depending on system configuration.
Q5: What is the typical response time for data acquisition?
A5: The response time is typically less than 100 milliseconds.
Q6: Can this module be configured for different signal ranges?
A6: Yes, the input range can be configured for different voltage or current ranges.
Q7: Is the MC-TAIH15 hot-swappable?
A7: It supports hot-swapping under certain system conditions, but it is recommended to follow Honeywell guidelines for replacement.
Q8: What kind of diagnostic features does the module have?
A8: It includes built-in diagnostics for signal integrity, module status, and error reporting.
Q9: What control systems is the module compatible with?
A9: It is designed for use with Honeywell TDC 3000 and Experion PKS systems.
Q10: How does the module handle signal noise in industrial environments?
A10: It employs isolation and filtering techniques to minimize noise and maintain signal integrity.
