Product Introduction

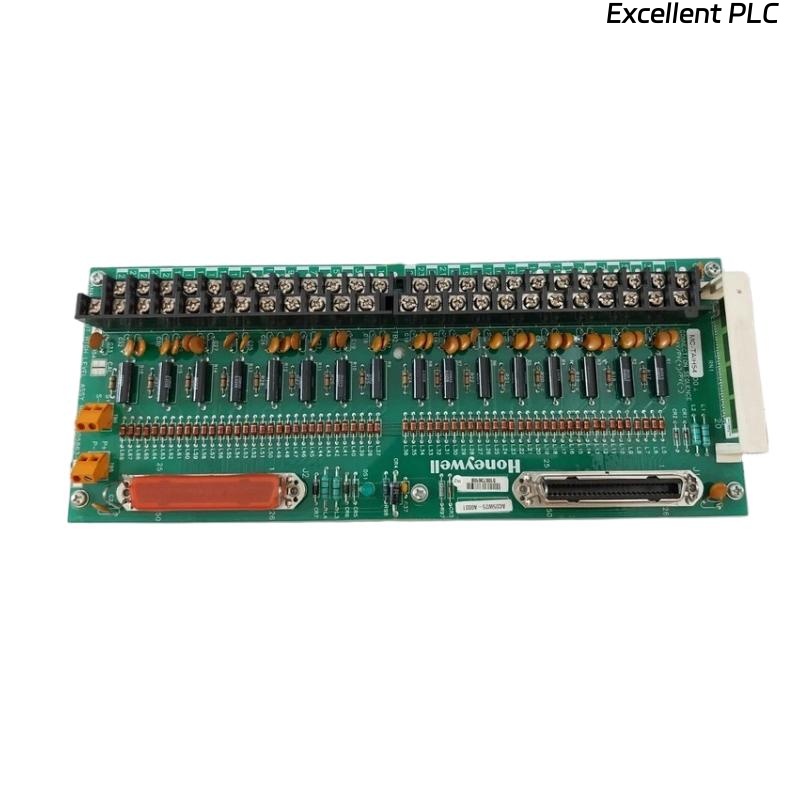

The Honeywell MC-TAIH54 51305863-275 Analog Input High Level 24 Pole module is a reliable and high-performance analog input component designed for industrial automation and process control applications. As part of Honeywell’s TDC2000/TDC3000 and Experion process control systems, this module is responsible for collecting and processing high-level analog signals from multiple field devices. With its 24 input poles, it offers a scalable and flexible solution for monitoring large sets of analog signals, ensuring accurate data acquisition, and providing seamless integration into control architectures.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | MC-TAIH54 51305863-275 |
| Type | Analog Input High Level Module |
| Input Channels | 24 poles |
| Signal Type | High-level analog (voltage/current depending on configuration) |
| Input Resolution | 12-bit to 16-bit depending on system configuration |
| Isolation | Channel-to-channel and channel-to-system isolation |
| Power Supply | Internal system backplane powered |
| Communication | Compatible with Honeywell I/O bus |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5% to 95% non-condensing |
| Dimensions | 330 × 30 × 180 mm |
| Weight | 0.95 kg |
| Mounting | Plug-in module for Honeywell backplane |
Product Applications
-
Oil & Gas – For monitoring analog sensors such as pressure, temperature, and flow transmitters.
-
Power Generation – Collecting turbine performance data and boiler instrumentation signals.
-
Chemical & Petrochemical – Monitoring reaction variables, tank levels, and process safety inputs.
-
Pulp & Paper – Handling high-level analog signals from temperature and flow sensors.
-
Water & Wastewater – Supervising pump stations, treatment processes, and distribution systems.
Product Advantages
-
High Channel Density – 24 input poles allow integration of multiple signals in a single module.
-
Reliable Signal Accuracy – High-resolution input ensures accurate process measurement.
-
System Compatibility – Seamless integration with Honeywell TDC and Experion DCS platforms.
-
Built-in Isolation – Channel-to-channel and channel-to-system isolation enhances safety.
-
Robust Construction – Designed for harsh industrial environments with high reliability.
-
Reduced Maintenance – Plug-in design allows easy replacement and minimal downtime.
FAQ
Q1: What type of analog signals does the MC-TAIH54 support?
A1: It supports high-level analog signals such as 1–5 V, 0–10 V, or 4–20 mA, depending on system configuration.
Q2: How many channels are available on this module?
A2: The MC-TAIH54 provides 24 independent analog input channels.
Q3: Does the module support galvanic isolation between channels?
A3: Yes, it provides channel-to-channel and channel-to-system isolation to prevent interference.
Q4: What resolution does the module use for input conversion?
A4: The module supports resolutions ranging from 12-bit to 16-bit, depending on system configuration.
Q5: Can this module be hot-swapped during operation?
A5: It is designed for easy replacement, but hot-swapping capability depends on the system’s redundancy and configuration.
Q6: How does the module communicate with the system controller?
A6: It communicates via the Honeywell I/O bus through the system backplane.
Q7: What is the recommended operating temperature range?
A7: The module operates reliably between 0 °C and +55 °C.
Q8: How is power supplied to the MC-TAIH54?
A8: It receives power directly from the system backplane, eliminating the need for an external supply.
Q9: Is calibration required after installation?
A9: Factory calibration is applied, but periodic system calibration may be required depending on site standards.
Q10: What happens if one channel fails?
A10: The module is designed with isolation, so a single channel failure does not affect the other input channels.
Related Models
| Model Number | Description |
|---|---|
| MC-TAIH14 | Analog Input High Level, 8 Channels |
| MC-TAIH04 | Analog Input High Level, 16 Channels |
| MC-TAMR04 | Analog Input Multiplexer Module |
| MC-TAOY22 | Analog Output Module, 8 Channels |
| MC-PAIH03 | Isolated Analog Input Module |
| MC-PAIH04 | Advanced Analog Input Module |
