Product Introduction

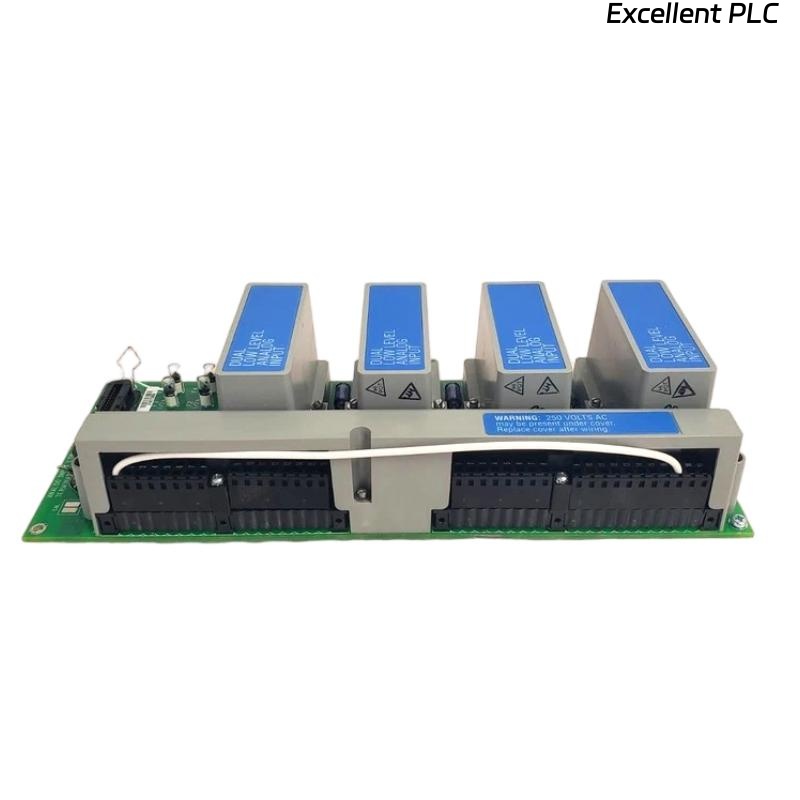

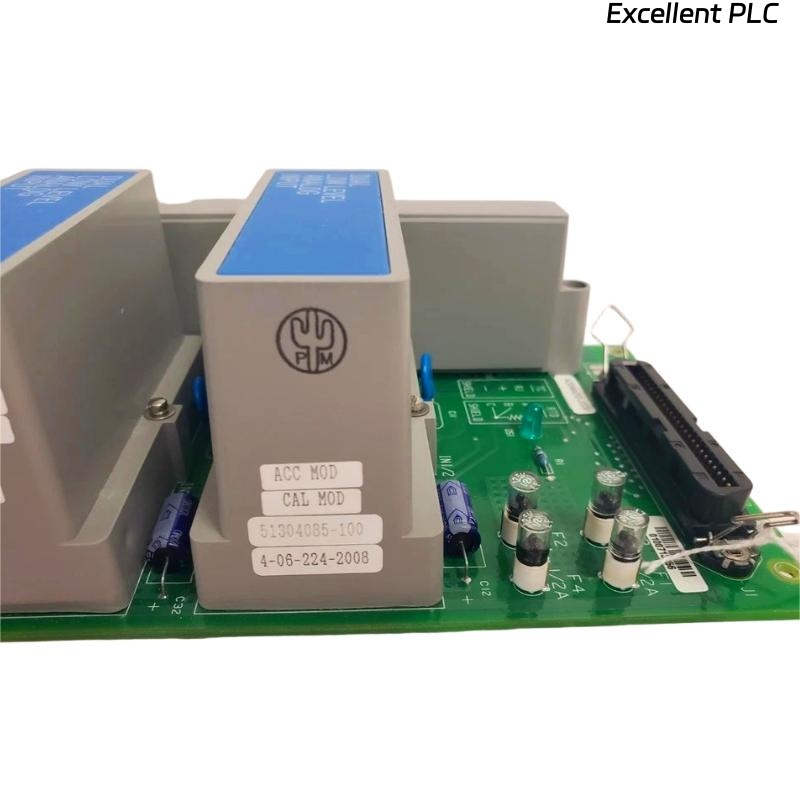

The Honeywell MC-TAIL02 51304437-150 is a Low Level Analog Input Termination module designed for high-precision signal acquisition and reliable interfacing with analog sensors in industrial automation systems. It provides accurate signal conditioning, protection, and routing for low-level analog inputs, ensuring system integrity and optimal performance in process control applications. The module is widely used in distributed control systems (DCS) where precise monitoring of process variables is critical.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | MC-TAIL02 |
| Part Number | 51304437-150 |
| Type | Low Level Analog Input Termination |
| Input Signal Range | 0–20 mA, 4–20 mA, 0–5 V, 0–10 V |
| Isolation | Channel-to-channel and channel-to-ground isolation |
| Accuracy | ±0.1% of full scale |
| Response Time | <1 ms |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Supply Voltage | 24 V DC |
| Mounting | DIN Rail / Panel |
| Dimensions | 100 x 50 x 20 mm |
| Weight | 0.5 kg |
| Material | Industrial-grade plastic and metal |
| Compliance | CE, RoHS |
Product Applications
-
Distributed Control Systems (DCS) for process monitoring
-
Signal acquisition from low-level analog sensors
-
Integration with SCADA systems for industrial automation
-
Oil and gas process measurement and control
-
Power generation monitoring
-
Chemical and pharmaceutical process control
-
Any environment requiring precise, low-noise analog input termination
Product Advantages
-
High Accuracy: Ensures precise analog signal reading with ±0.1% full-scale accuracy.
-
Reliable Isolation: Prevents ground loops and interference between channels.
-
Wide Compatibility: Supports multiple standard input ranges (0–20 mA, 4–20 mA, 0–5 V, 0–10 V).
-
Fast Response: Rapid signal processing for real-time monitoring.
-
Easy Installation: DIN rail and panel mounting options for flexible integration.
-
Robust Build: Industrial-grade materials provide durability in harsh environments.
-
Compliance and Safety: Meets CE and RoHS standards for industrial applications.
FAQ
Q1: What types of analog signals does MC-TAIL02 support?
A1: It supports 0–20 mA, 4–20 mA, 0–5 V, and 0–10 V analog signals.
Q2: Does MC-TAIL02 provide channel-to-channel isolation?
A2: Yes, it provides both channel-to-channel and channel-to-ground isolation.
Q3: What is the maximum response time for signal processing?
A3: The response time is less than 1 millisecond.
Q4: Can MC-TAIL02 operate in extreme temperatures?
A4: Yes, the operating temperature range is -20°C to 70°C.
Q5: What is the power supply requirement?
A5: It operates on a 24 V DC supply.
Q6: Is it compatible with DIN rail mounting?
A6: Yes, it can be mounted on DIN rails or panels.
Q7: How accurate are the input measurements?
A7: The module provides ±0.1% of full-scale accuracy.
Q8: Does it support integration with SCADA or DCS systems?
A8: Yes, it is fully compatible with standard SCADA and DCS systems.
Q9: How does it prevent signal interference?
A9: Through its isolation design and robust analog signal conditioning.
Q10: What compliance certifications does it have?
A10: It meets CE and RoHS compliance standards.
Recommended 6 Same-Series or Related Models
| Model Number | Type | Input Range | Notes |
|---|---|---|---|
| MC-TAIL01 | Low Level Analog Input Termination | 0–20 mA, 4–20 mA | Older series with similar specs |
| MC-TAIL03 | Low Level Analog Input Termination | 0–5 V, 0–10 V | Enhanced isolation channels |
| MC-TAIL04 | High Level Analog Input Termination | 0–20 mA, 0–10 V | Designed for higher voltage levels |
| MC-TAIH01 | High Level Analog Input Module | 4–20 mA | Works with standard Honeywell I/O |
| MC-TAIH02 | High Level Analog Input Module | 0–10 V | Supports multi-channel inputs |
| MC-TAIH04 | Mixed Analog Input Module | 0–20 mA, 0–10 V | Integrated termination & signal conditioning |
