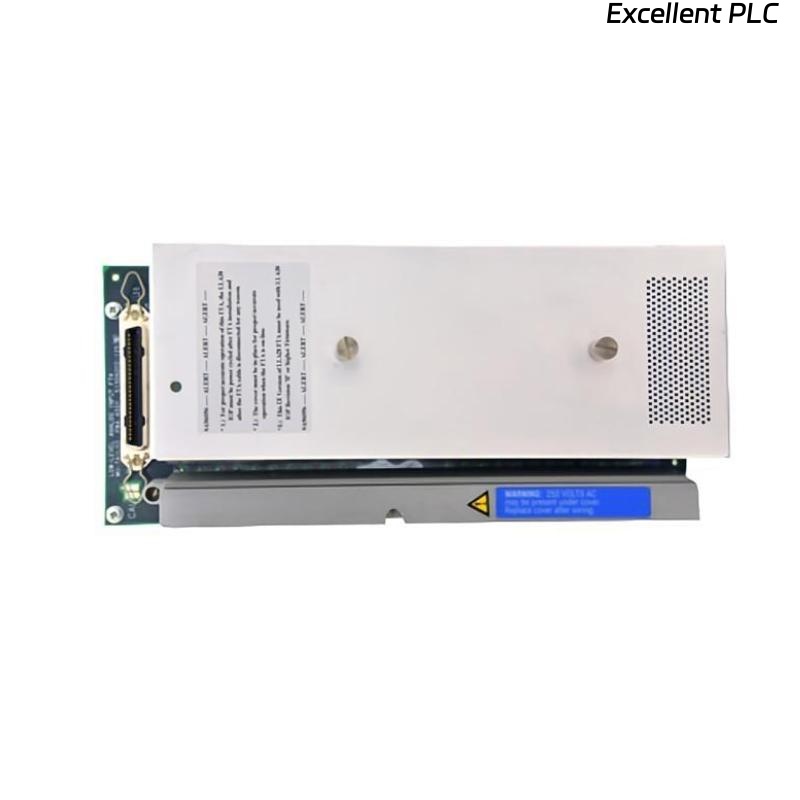

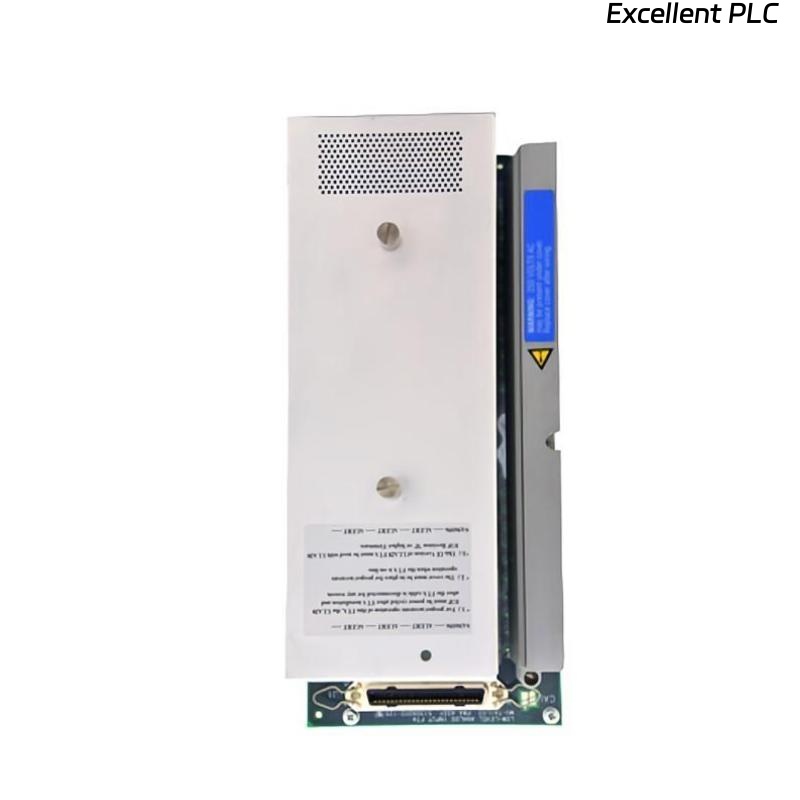

Honeywell MC-TAIL03 51309202-175 Low Level Analog Input Module

Product Introduction

The Honeywell MC-TAIL03 51309202-175 Low Level Analog Input Module is a precision signal-acquisition module developed for use in Honeywell’s Experion PKS, TDC 3000, and other distributed control systems. It serves as the interface between low-voltage analog transducers in the field and the process controller, providing highly accurate measurement and conditioning of small-amplitude signals.

This module is specifically engineered for applications where noise immunity, measurement repeatability, and long-term stability are critical. With its 16-bit resolution, galvanic isolation, and configurable input ranges, the MC-TAIL03 ensures precise data capture across a wide range of industrial processes. Its robust construction and diagnostic intelligence make it ideal for continuous process industries that demand superior performance and uptime.

Technical Specifications

Applications

The MC-TAIL03 51309202-175 module is widely applied in industries where precise measurement of very small analog signals is vital for system reliability and safety. Typical applications include:

• Refining and Petrochemical Processes: Capturing low-level analog signals from temperature, pressure, and flow sensors for critical control loops.

• Power Generation: Monitoring turbine, boiler, and auxiliary equipment signals requiring high-resolution measurement.

• Pharmaceutical Production: Recording sensitive sensor outputs to maintain process purity and batch quality.

• Chemical Manufacturing: Providing stable data acquisition in reaction control and continuous process plants.

• Water and Wastewater Facilities: Handling low-voltage signals from transmitters and analyzers in distributed networks.

• Research and Testing Laboratories: Used in pilot plants and experimental setups requiring accurate low-level analog measurements.

Advantages

• High Precision Measurement: Delivers 16-bit accuracy with exceptional stability for low-voltage signal applications.

• Excellent Noise Rejection: Advanced filtering and high CMRR design ensures clean and consistent signal capture.

• Full Channel Isolation: Each channel is electrically isolated to protect against interference and ground loops.

• Flexible Configuration: Selectable input ranges and independent channel setup enhance application adaptability.

• Self-Diagnostics: Continuous channel monitoring and status reporting improve system maintenance efficiency.

• Reliable System Integration: Seamlessly integrates with Honeywell control racks and controllers for easy installation.

• Rugged Industrial Design: Resistant to shock, vibration, and temperature fluctuations in harsh environments.

• Compact and Modular: Optimized dimensions allow high-density mounting in existing control cabinets.

FAQ

1. What signal types are supported by the MC-TAIL03 51309202-175 module?
   It supports low-level DC voltage inputs ranging from ±10 mV to ±1 V, depending on channel configuration.

2. How many analog input channels are provided on this module?
   There are 16 individually isolated analog input channels per module.

3. Is each input channel electrically isolated?
   Yes, each channel is galvanically isolated to minimize inter-channel interference and noise coupling.

4. What is the analog-to-digital conversion resolution?
   The module uses a 16-bit A/D converter for high measurement resolution.

5. Can the input range be configured independently per channel?
   Yes, every channel can be individually set for different input voltage ranges as required by the process.

6. What communication interface does the MC-TAIL03 use?
   It interfaces with the Honeywell I/O bus through the standard system backplane connector.

7. Does the module support system redundancy?
   Yes, it is designed for use within redundant I/O architectures for high availability systems.

8. What diagnostic functions are built into the module?
   It features continuous self-testing, channel fault detection, and communication error monitoring.

9. How does the MC-TAIL03 maintain signal accuracy in noisy environments?
   The module uses precision filtering circuits and a high CMRR design to suppress electrical noise and EMI.

10. Is this module backward compatible with previous Honeywell control platforms?
    Yes, it can operate within existing Honeywell TDC 3000 and Experion systems without hardware modification.
