Product Introduction

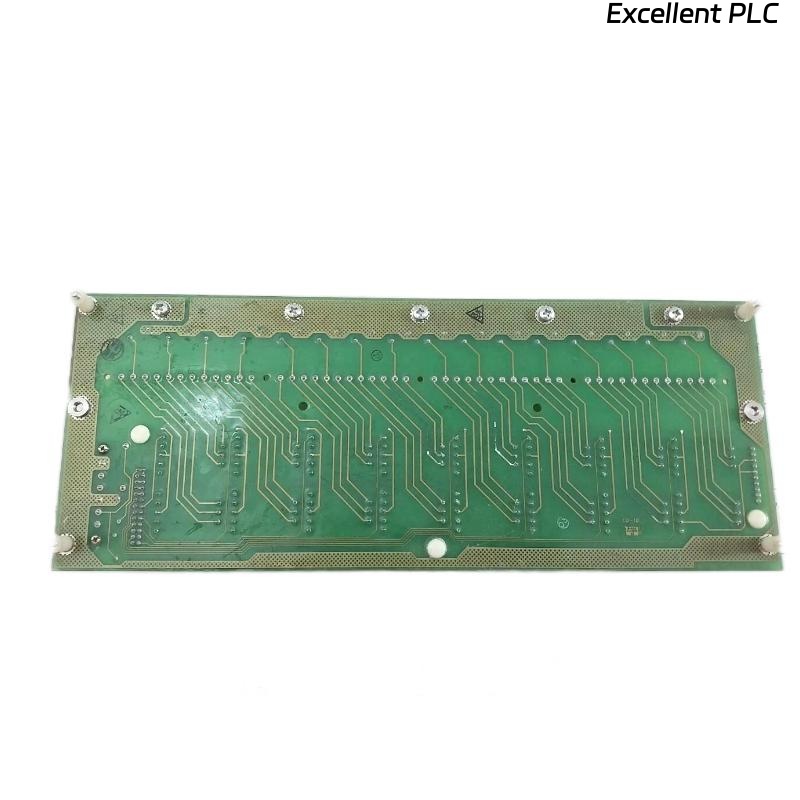

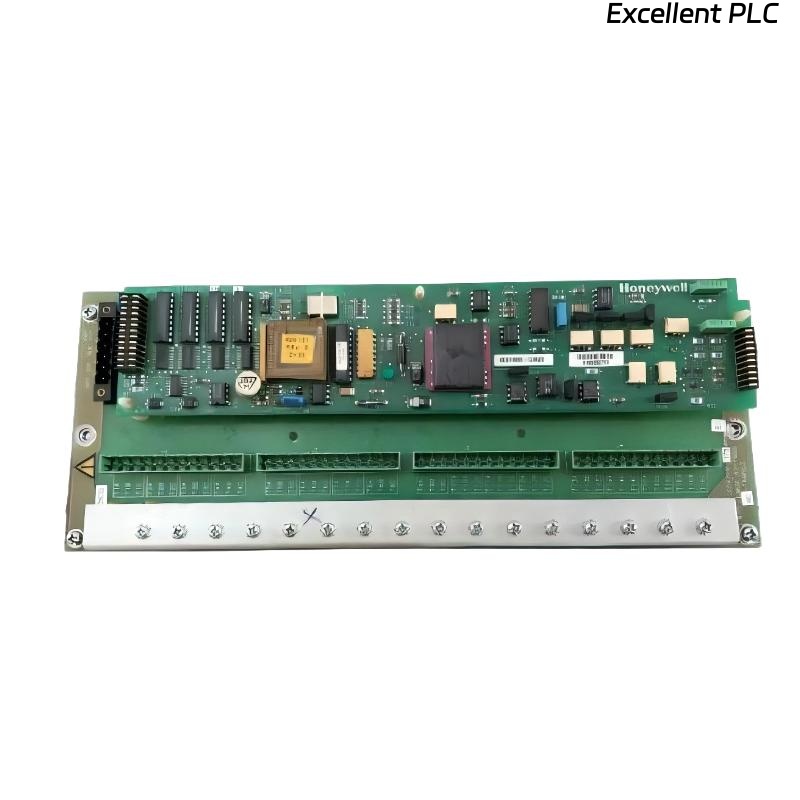

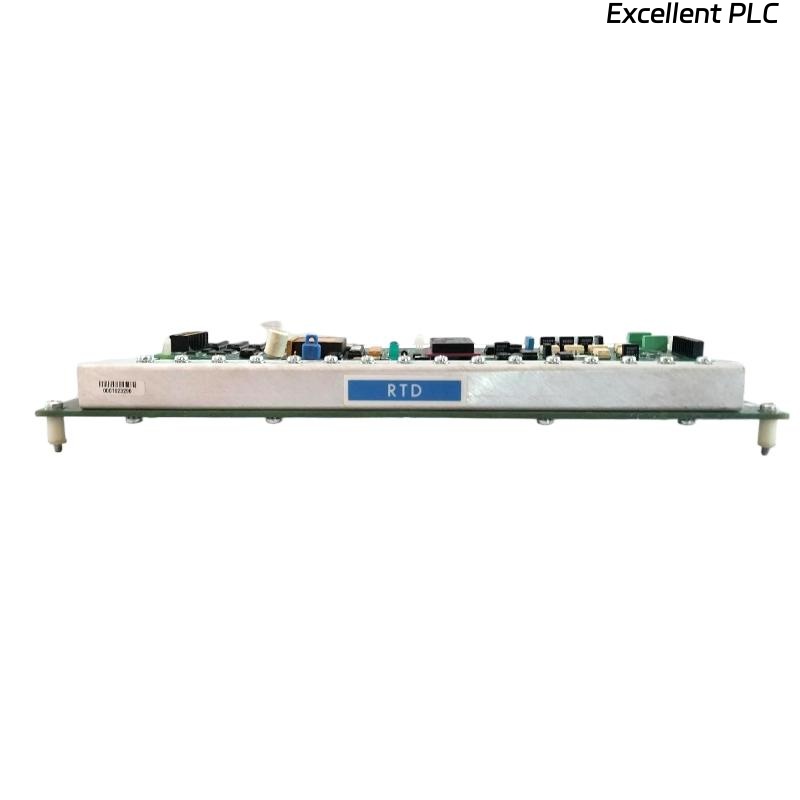

The Honeywell MC-TAMR03 51309218-175 is a Low-Level Analog Input Multiplexer designed to handle multiple RTD (Resistance Temperature Detector) inputs. This Field Termination Assembly (FTA) provides an efficient solution for temperature monitoring and control applications in industrial environments. With the increasing complexity of modern control systems, the MC-TAMR03 serves as a critical component in optimizing signal management, offering flexibility and accuracy in high-precision applications.
The device functions as a multiplexer that enables the aggregation of multiple temperature sensors (RTDs) into a single channel, which can be routed into a control system. This is essential in systems where space is limited or when the number of input channels exceeds the capacity of the system. The Honeywell MC-TAMR03 is particularly suitable for use in automation systems, temperature monitoring, and process control applications.
The FTA design ensures easy integration and wiring into existing systems, reducing installation complexity while maintaining high performance. It is widely used in various industries, including manufacturing, chemical processing, and energy generation, where reliable temperature measurements are crucial for operational efficiency and safety.
Product Parameters
Below is a detailed table outlining the key technical specifications of the Honeywell MC-TAMR03 51309218-175 Low-Level Analog Input Multiplexer RTD FTA:
| Parameter | Specification |
|---|---|
| Model Number | MC-TAMR03 51309218-175 |
| Dimensions | 180 x 130 x 44 mm |
| Weight | 0.6 kg |
| Input Channels | Multiple RTD inputs |
| RTD Type | Compatible with 3-wire RTD |
| Output Type | Analog Output |
| Signal Type | Low-Level Analog |
| Voltage Range | 0 to 10 V |
| Current Consumption | < 100 mA |
| Operating Temperature Range | -40°C to +70°C |
| Mounting Type | Panel Mount |
| Connector Type | Screw Terminal |
| Compliance | CE, UL, CSA |
| Application | Temperature Monitoring, Process Control |
Product Applications
The Honeywell MC-TAMR03 is specifically designed for temperature monitoring and control in industrial and process systems. Below are some of its key applications:
-
Process Control Systems: The device is commonly used in process control systems to monitor temperature from multiple RTDs and convert them to a manageable output, facilitating easier data collection and processing.
-
Temperature Monitoring Systems: It is ideal for applications where multiple temperature sensors need to be integrated into a single input channel, making it a vital component in temperature monitoring systems.
-
Automation Systems: In automated manufacturing or industrial environments, the MC-TAMR03 is used to multiplex RTD signals, helping to streamline sensor integration and improve system efficiency.
-
Energy Generation Systems: In power plants and energy generation systems, it is used to monitor and manage multiple temperature points from boilers, turbines, and heat exchangers.
-
Chemical and Pharmaceutical Industries: The device helps in monitoring and controlling temperatures in reactors and other critical equipment where precise temperature measurements are crucial.
-
Building Automation: In building automation systems, this multiplexer plays a key role in controlling HVAC systems by collecting data from multiple temperature sensors for better energy management.
Product Advantages
-
High Accuracy: The Honeywell MC-TAMR03 is designed to provide high-precision temperature measurements, ensuring that the data collected from RTD sensors is reliable and accurate.
-
Flexible Input Options: This device supports multiple RTD inputs, allowing users to monitor several temperature points with a single unit, optimizing system layout and reducing the need for additional input channels.
-
Low-Level Analog Signal Processing: The device processes low-level analog signals, ensuring that the integrity of the data is maintained throughout the signal transmission process.
-
Easy Integration: With a panel mount design and screw terminal connectors, installation is straightforward, and the device can be easily integrated into existing systems with minimal effort.
-
Wide Operating Temperature Range: The unit operates efficiently in temperatures ranging from -40°C to +70°C, making it suitable for both indoor and harsh outdoor applications.
-
Space Efficiency: The MC-TAMR03 is compact, with a relatively small footprint, allowing it to be installed in environments with limited space, such as control panels or remote monitoring stations.
-
Versatile Application: This multiplexer can be used across a wide range of industries, from energy generation to chemical processing, making it highly adaptable and valuable in diverse environments.
-
Durability and Compliance: The unit complies with CE, UL, and CSA standards, ensuring it meets the highest quality and safety standards for industrial environments.
FAQ
1. What type of sensors is the Honeywell MC-TAMR03 compatible with?
The MC-TAMR03 is designed to work with 3-wire RTD sensors, providing accurate temperature measurements.
2. How many RTD inputs can the MC-TAMR03 handle?
The MC-TAMR03 supports multiple RTD inputs, allowing you to monitor several temperature points through a single device.
3. What is the output type of the MC-TAMR03?
The MC-TAMR03 provides an analog output, which is ideal for processing low-level temperature signals.
4. What is the operating temperature range for this device?
The device operates within a temperature range of -40°C to +70°C, making it suitable for use in various environmental conditions.
5. Can the MC-TAMR03 be used in process control applications?
Yes, the MC-TAMR03 is specifically designed for process control applications, where accurate and reliable temperature monitoring is crucial.
6. How does the MC-TAMR03 handle multiple RTD signals?
The MC-TAMR03 functions as a multiplexer, aggregating multiple RTD inputs into a manageable output signal.
7. Is the MC-TAMR03 suitable for use in industrial environments?
Yes, it is ideal for industrial environments, as it complies with CE, UL, and CSA safety and quality standards.
8. What is the current consumption of the MC-TAMR03?
The device has a current consumption of less than 100 mA, making it energy-efficient and easy to integrate into existing systems.
9. What is the mounting type for the MC-TAMR03?
The MC-TAMR03 is designed for panel mount, allowing for easy installation in control panels or remote monitoring stations.
10. Can the MC-TAMR03 be used in energy generation systems?
Yes, it is well-suited for energy generation systems, where it can be used to monitor and control temperatures in critical equipment such as turbines and heat exchangers.
