Product Introduction

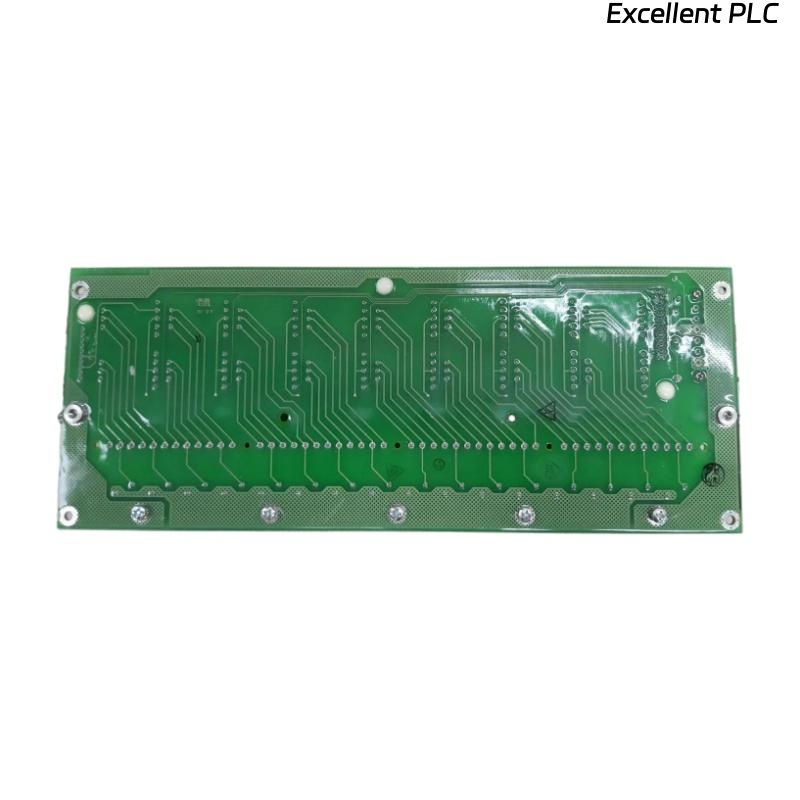

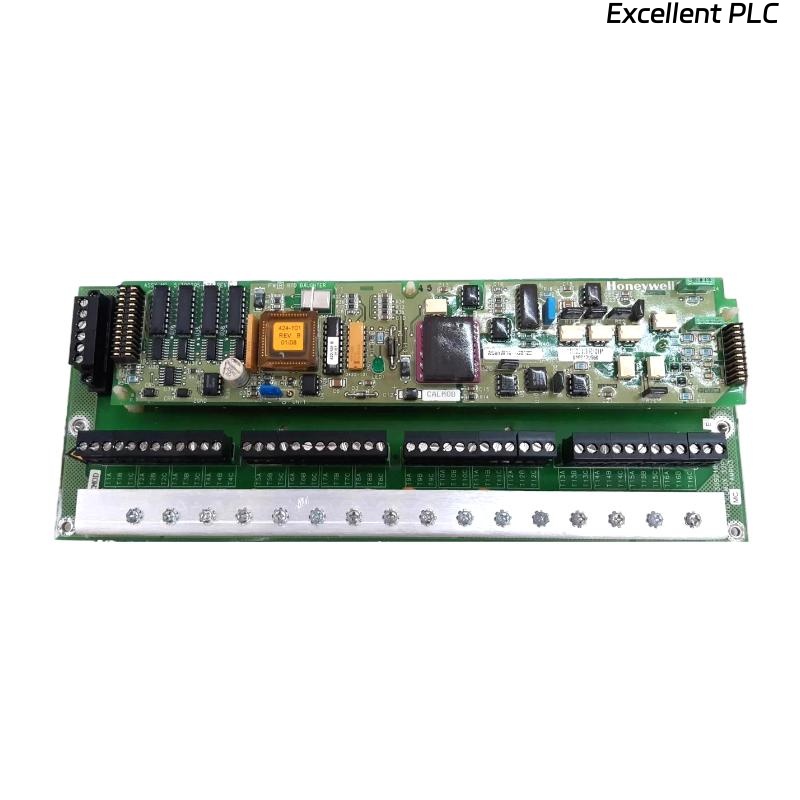

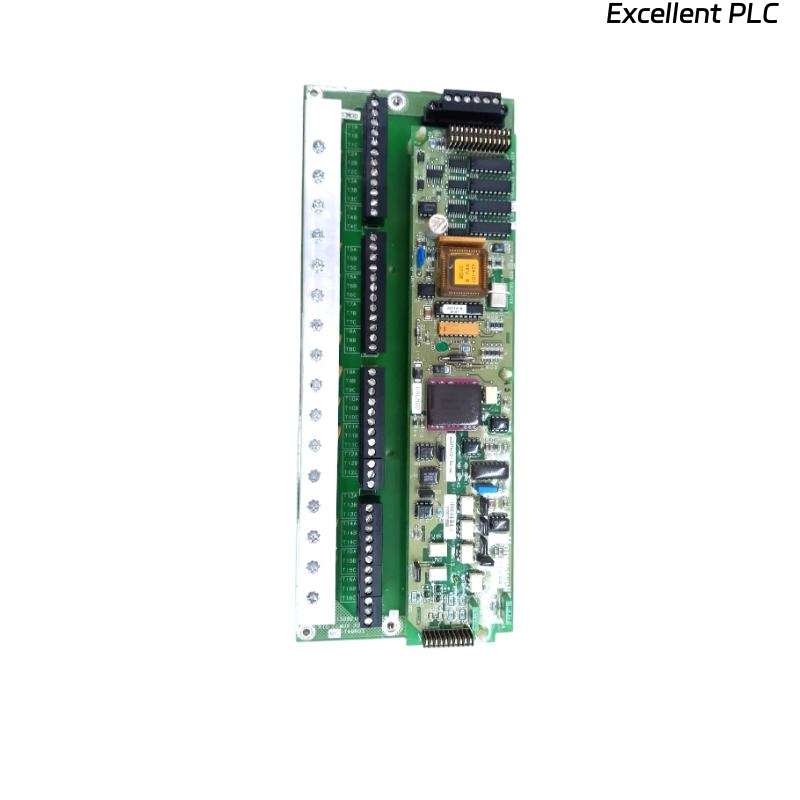

The Honeywell MC-TAMR03 51309217-175 is a high-performance Low-Level Analog Input Multiplexer designed specifically for managing RTD (Resistance Temperature Detector) inputs in process and automation control systems. This Field Termination Assembly (FTA) provides a reliable and flexible solution for aggregating multiple RTD signals and converting them to an accessible output, which is essential for accurate temperature monitoring and control in various industrial applications.
The MC-TAMR03 unit serves as a multiplexer that can handle multiple RTD sensor inputs, enabling users to efficiently route temperature data from several sensors into a control or monitoring system. This is especially useful in systems that require more inputs than the control system’s capacity or in cases where space is limited. The device is widely used in sectors such as industrial automation, temperature monitoring, process control, and manufacturing.
Featuring a compact design, the MC-TAMR03 allows for easy integration into existing systems, making it ideal for use in complex installations where signal aggregation is critical. It delivers high accuracy and operational reliability, ensuring the correct performance of temperature-sensitive processes, machinery, and equipment.
Product Parameters
The following table summarizes the key technical specifications of the Honeywell MC-TAMR03 51309295-175 Low-Level Analog Input Multiplexer RTD FTA:
| Parameter | Specification |
|---|---|
| Model Number | MC-TAMR03 51309217-175 |
| Dimensions | 180 x 130 x 44 mm |
| Weight | 0.6 kg |
| Input Channels | Multiple RTD inputs |
| RTD Type | Compatible with 3-wire RTD |
| Output Type | Analog Output |
| Signal Type | Low-Level Analog |
| Voltage Range | 0 to 10 V |
| Current Consumption | < 100 mA |
| Operating Temperature Range | -40°C to +70°C |
| Mounting Type | Panel Mount |
| Connector Type | Screw Terminal |
| Compliance | CE, UL, CSA |
| Application | Temperature Monitoring, Process Control |
Product Applications
The Honeywell MC-TAMR03 51309217-175 is designed to support a wide range of industrial applications, primarily for temperature monitoring and control in systems with multiple RTD sensors. Below are some of its key applications:
-
Process Control Systems: The device is ideal for use in process control systems where precise temperature data from multiple RTD sensors needs to be monitored and managed. It helps in simplifying the system by allowing multiple temperature points to be connected to a single channel.
-
Automation Systems: It is used in automation systems where temperature data from sensors across an industrial facility is needed for real-time decision-making and control.
-
Temperature Monitoring Systems: The MC-TAMR03 facilitates the collection and aggregation of temperature data, enabling accurate and consistent monitoring of industrial equipment such as motors, boilers, and turbines.
-
Energy Generation Systems: It is commonly used in energy generation systems, particularly in power plants, to monitor the temperature of critical components like turbines, generators, and transformers.
-
Manufacturing: In manufacturing settings, this multiplexer ensures that temperature sensors connected to various production equipment or processes can be efficiently integrated into the central control system for better performance monitoring.
-
Chemical Processing: The MC-TAMR03 is well-suited for chemical processing industries, where accurate temperature control is essential for maintaining the efficiency and safety of operations.
Product Advantages
-
High Accuracy and Precision: The Honeywell MC-TAMR03 ensures high-precision temperature readings from multiple RTD inputs, improving overall system performance and process optimization.
-
Signal Multiplexing: With the ability to multiplex several RTD sensor inputs into a single output channel, the device helps streamline signal management, minimizing the need for additional input channels in control systems.
-
Compact and Efficient Design: The MC-TAMR03 is designed with a compact form factor, making it easy to integrate into control panels or other equipment, even in systems with space limitations.
-
Low-Level Analog Signal Processing: The device processes low-level analog signals, which is ideal for capturing and transmitting temperature data with minimal distortion or signal loss.
-
Flexible Integration: Featuring screw terminal connectors and a panel-mount design, the MC-TAMR03 is straightforward to install and integrate into existing systems.
-
Durability and Environmental Resilience: With a temperature range of -40°C to +70°C, the unit can withstand a variety of industrial environments, including those with extreme temperatures.
-
Wide Compatibility: The MC-TAMR03 is compatible with 3-wire RTD sensors, making it a versatile solution for industries requiring multiple temperature sensors.
-
Compliance with Industry Standards: The device is CE, UL, and CSA certified, ensuring that it meets global safety and quality standards.
FAQ
1. What types of RTD sensors can the MC-TAMR03 handle?
The MC-TAMR03 is compatible with 3-wire RTD sensors, providing reliable and precise temperature readings.
2. How many RTD sensors can the MC-TAMR03 multiplex?
The MC-TAMR03 can handle multiple RTD inputs and multiplex them into a single output, simplifying signal processing and integration.
3. What is the output type of the MC-TAMR03?
The MC-TAMR03 provides an analog output, which is ideal for handling low-level temperature signals.
4. What is the operating temperature range of the MC-TAMR03?
The operating temperature range of the MC-TAMR03 is -40°C to +70°C, allowing it to function in various industrial environments.
5. Can the MC-TAMR03 be used in process control systems?
Yes, the MC-TAMR03 is designed for use in process control systems, where temperature monitoring and management from multiple sensors is essential.
6. Is the MC-TAMR03 suitable for use in energy generation systems?
Yes, it is commonly used in power generation systems, such as power plants, for monitoring the temperature of critical components like turbines and boilers.
7. What type of signal does the MC-TAMR03 process?
The MC-TAMR03 processes low-level analog signals, which are ideal for use in precise temperature measurement applications.
8. What mounting options are available for the MC-TAMR03?
The MC-TAMR03 is designed for panel mounting, making it easy to install in control panels or other industrial setups.
9. Does the MC-TAMR03 meet industry standards?
Yes, the MC-TAMR03 is compliant with CE, UL, and CSA certifications, ensuring it meets global safety and quality standards.
10. What is the power consumption of the MC-TAMR03?
The MC-TAMR03 has a current consumption of less than 100 mA, making it energy-efficient and well-suited for long-term operation in industrial settings.
