Product Introduction

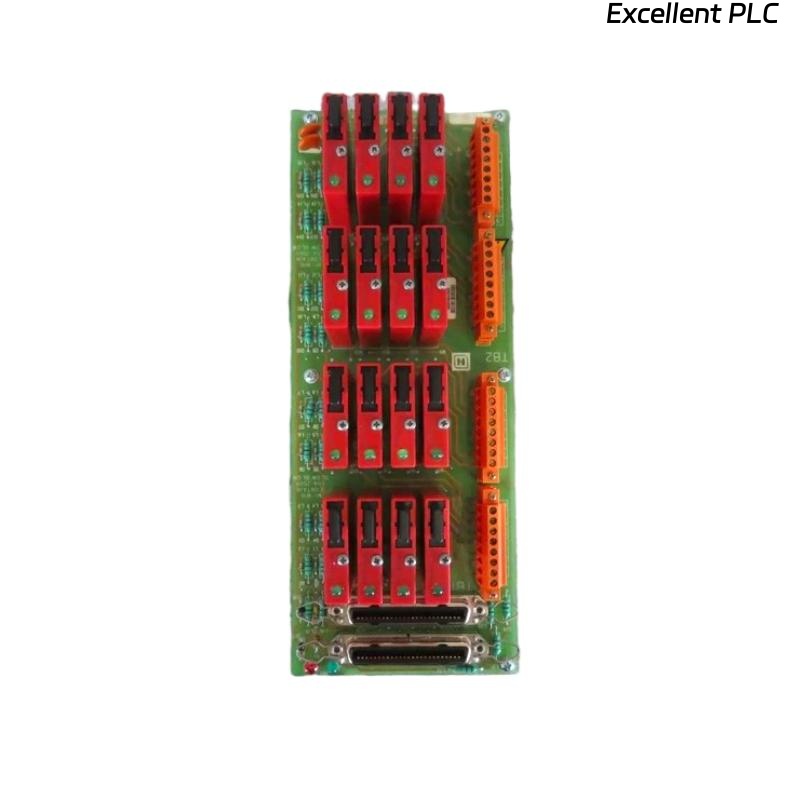

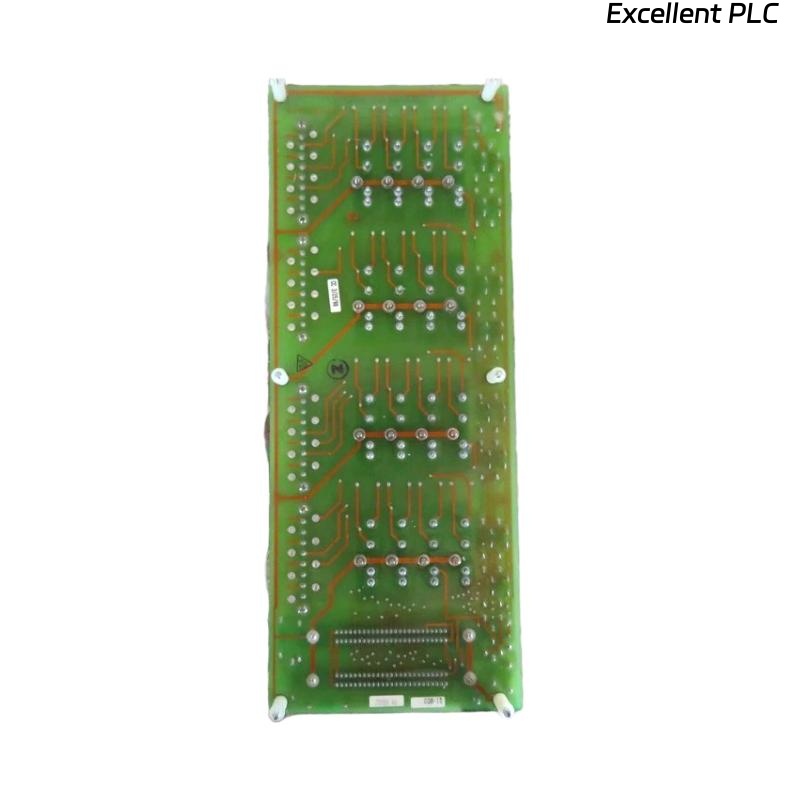

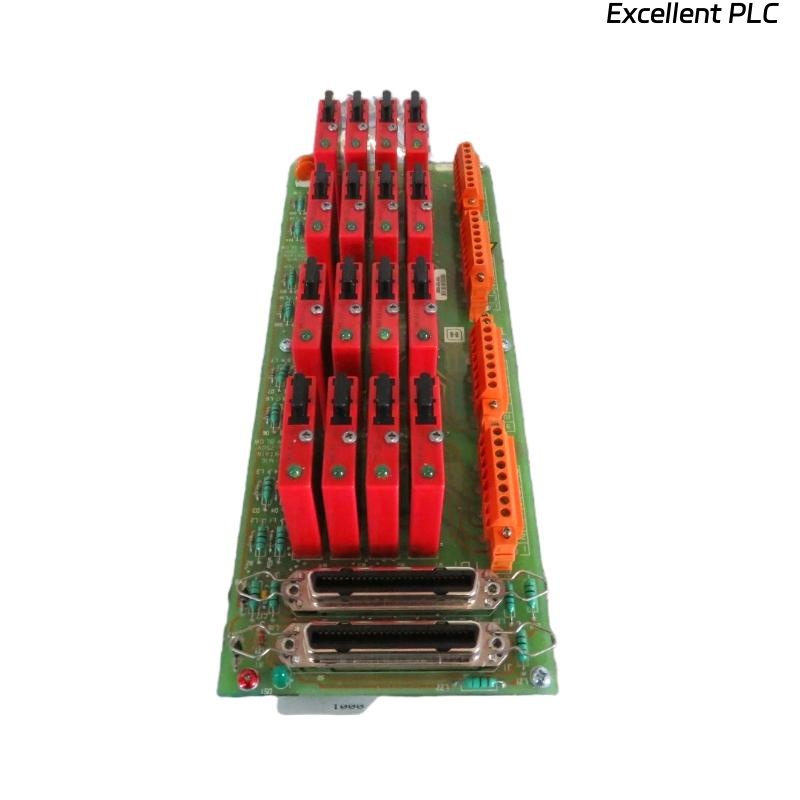

The Honeywell MC-TDOD14 51309153-175 is a digital output module designed for use in Honeywell’s industrial automation and process control systems. This module, part of the FTA (Fault-Tolerant Architecture) series, provides reliable digital signal outputs to control actuators, relays, and other field devices. Its robust design ensures stable operation in critical industrial environments, supporting high-speed and high-accuracy digital output performance.

---

Technical Specifications

---

Applications

• Controlling actuators and solenoids in industrial automation systems.

• Interface with process control systems for digital signal distribution.

• Safety and fault-tolerant systems in critical process industries (e.g., chemical, oil & gas, power plants).

• Integration with Honeywell DCS and FTA networks for reliable distributed control.

• Remote digital control in hazardous or hard-to-access locations.

---

Advantages

• High Reliability: Designed for fault-tolerant systems to maintain operational continuity.

• Scalable: Can be expanded easily to accommodate additional output channels in FTA systems.

• Versatile Output Options: Supports both sourcing and sinking configurations for flexible integration.

• Real-Time Diagnostics: LED indicators provide instant feedback on channel status and faults.

• Compact and Lightweight: Optimized size and weight for easy installation in control cabinets.

• Industrial Grade: Resistant to electrical noise, temperature fluctuations, and humidity.

---

FAQ

Q1: How is the MC-TDOD14 module connected to the FTA bus?
A1: It connects via the standard FTA backplane interface, supporting hot-swappable installation and real-time communication with the controller.

Q2: Can the output channels be configured individually?
A2: Yes, each of the 14 channels can be configured independently for sourcing or sinking operation via the system configuration software.

Q3: What is the maximum current per output channel?
A3: Each channel can handle up to 0.5 A. Exceeding this may trigger protective shutdown.

Q4: Does the module support fault diagnostics?
A4: Yes, the MC-TDOD14 includes LED indicators for channel status, fault detection, and overall module health.

Q5: Can the module operate in extreme temperatures?
A5: It operates reliably between 0°C and 60°C. Extended storage is supported from -40°C to 85°C.

Q6: How does the module ensure signal integrity in noisy environments?
A6: The module features channel-to-channel isolation and robust industrial-grade design to mitigate electrical noise.

Q7: Is the module compatible with other Honeywell FTA modules?
A7: Yes, it is fully compatible with Honeywell FTA modules and controllers within the same system architecture.

Q8: Can the module be mounted on a DIN rail?
A8: Yes, the module supports standard DIN rail mounting as well as panel mounting.

Q9: What safety certifications does the module have?
A9: It is CE, UL, and RoHS certified, meeting international industrial safety standards.

Q10: How many modules can be connected on a single FTA network?
A10: The number of modules depends on the network configuration and controller capacity, typically supporting multiple modules for scalable digital output control.

---
