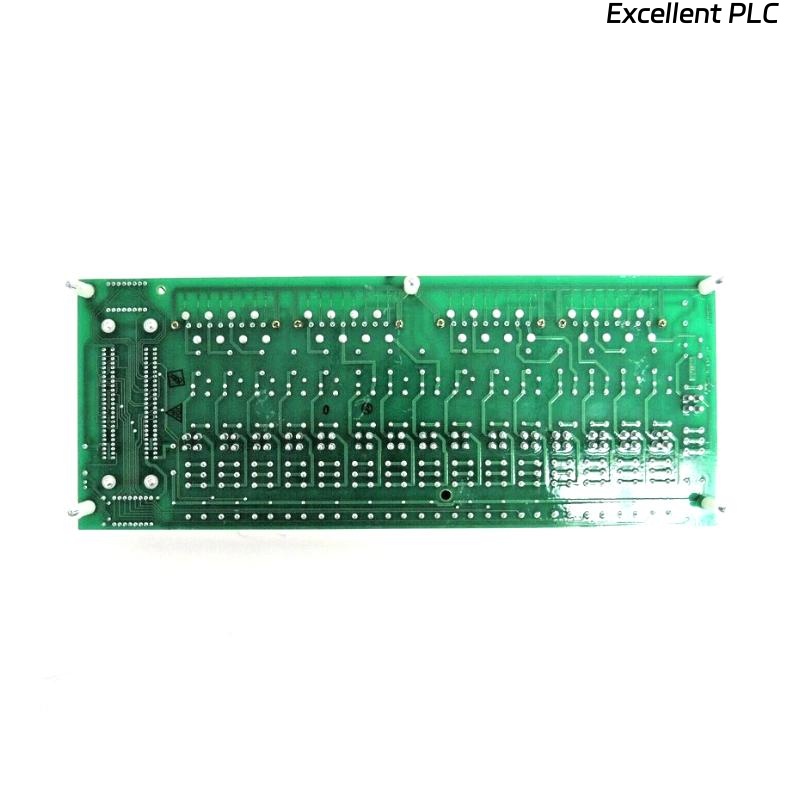

Honeywell MC-TDOR12 51309148-175 16-Channel Digital Relay Output Field Termination Assembly

Company Information
E-mail		[email protected]
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

The Honeywell MC-TDOR12 51309148-175 16-Channel Digital Relay Output Field Termination Assembly (FTA) is a high-performance interface module designed for digital output operations in industrial control systems. It serves as the termination interface between the I/O module and field devices, ensuring reliable communication and control of actuators, solenoids, and other output equipment. This module is part of Honeywell’s TDC3000 and Experion Process Knowledge System (PKS) architecture, offering robust signal integrity and high reliability for continuous process automation.

---

Product Advantages

• High Channel Density – Supports up to 16 relay output channels, allowing compact and efficient field wiring.

• Reliable Isolation – Each channel is electrically isolated, preventing signal interference and ensuring system safety.

• Easy Maintenance – Designed with replaceable relays and clear terminal labeling for quick diagnostics and maintenance.

• System Compatibility – Fully compatible with Honeywell TDC3000 and Experion PKS systems, allowing seamless integration into existing control infrastructures.

• Industrial Durability – Built with high-grade materials to withstand harsh industrial environments, including temperature fluctuations and electrical noise.

• Improved Signal Integrity – Provides stable and accurate digital output signals, minimizing the risk of false switching and communication errors.

---

Technical Specifications

---

Product Applications

• Process plant automation (oil & gas, chemical, power generation)

• Solenoid valve and actuator control

• Alarm signal and interlock output management

• Distributed control I/O expansion

• Industrial relay interface for field devices

• Integration with redundant control architectures

---

Installation and Integration

The MC-TDOR12 FTA is designed for easy installation within Honeywell’s I/O subsystem. It connects directly to the associated digital output module via system cables. Each field termination point is clearly labeled for convenient wiring, ensuring fast commissioning and reduced installation errors. The relays can be tested using diagnostic tools within the control system to verify correct operation before system startup.

---

Q1: What type of relay is used in the MC-TDOR12 module?
A1: The module utilizes high-quality mechanical relays rated for industrial use, typically Form A or Form C contacts, depending on configuration.

Q2: Can the MC-TDOR12 handle both AC and DC loads?
A2: It is primarily designed for DC load operation, but under certain configurations, it can handle low-voltage AC loads as long as they are within relay specifications.

Q3: What isolation level is provided between output channels?
A3: Each channel is galvanically isolated with a dielectric strength of approximately 1500 V RMS to ensure system safety and signal integrity.

Q4: Is this module hot-swappable within the Honeywell control system?
A4: No, the MC-TDOR12 is not hot-swappable. Power should be removed before replacement or maintenance to avoid damage or unintended actuation.

Q5: How does the module indicate output status?
A5: LED indicators on the module display the on/off status of each relay channel, allowing for quick operational verification.

Q6: What is the maximum output current supported per channel?
A6: Each relay channel can handle up to 2 amperes of continuous current, depending on ambient temperature and relay type.

Q7: Can the MC-TDOR12 be used in redundant output configurations?
A7: Yes, it can be integrated into redundant control architectures for increased system reliability and fail-safe operation.

Q8: Does the module require external power supply?
A8: The relay drive power is supplied through the system backplane; however, field power for connected devices must be externally provided.

Q9: How are field devices connected to the module?
A9: Field devices are wired directly to screw terminals on the FTA, ensuring secure and vibration-resistant connections.

Q10: What diagnostic features are supported?
A10: The module supports built-in diagnostic features such as channel health monitoring and relay status feedback through the control system.

---
