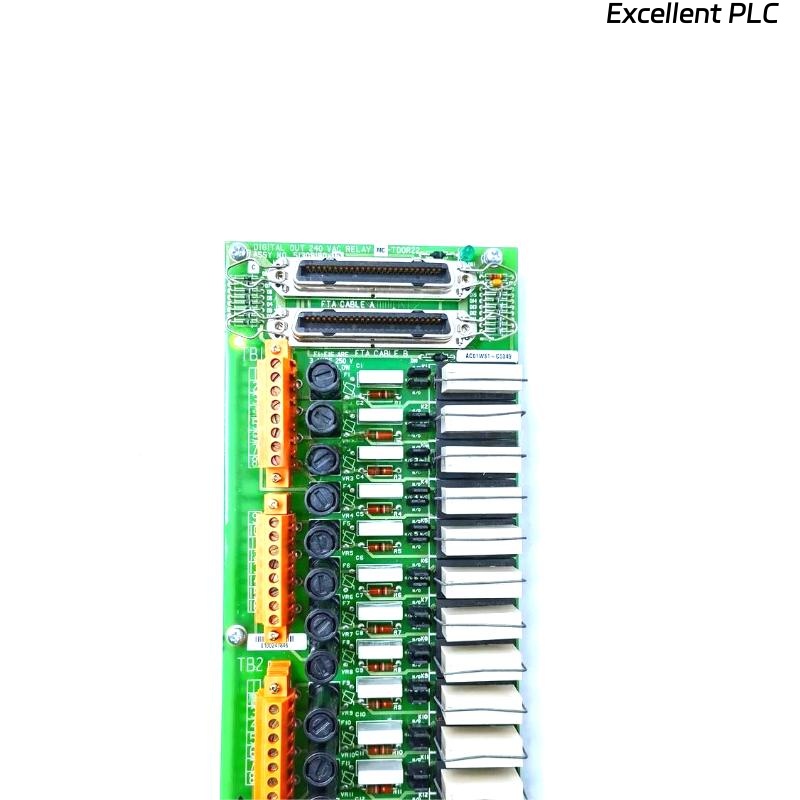

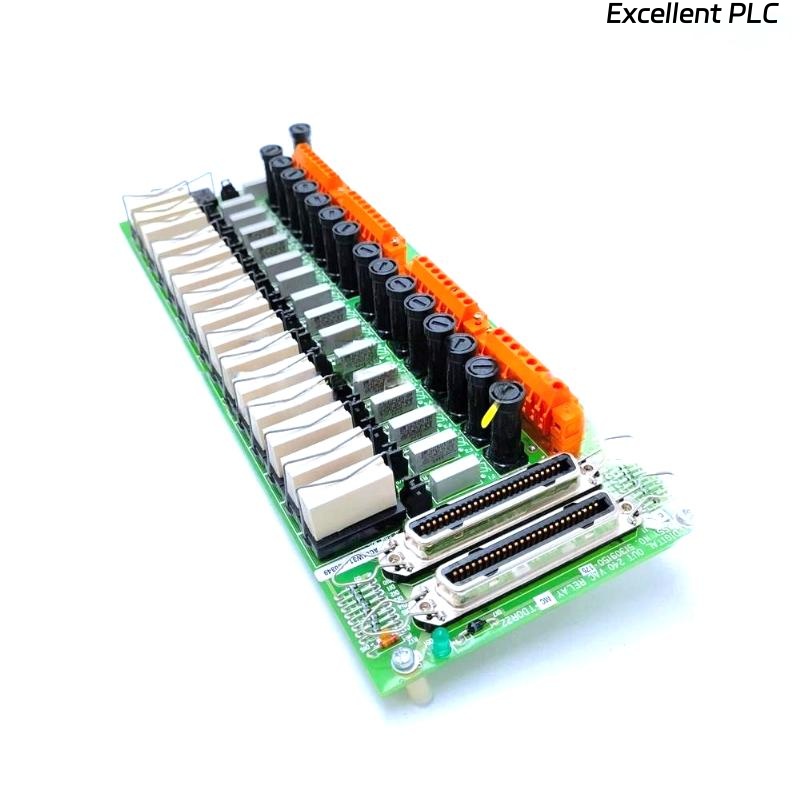

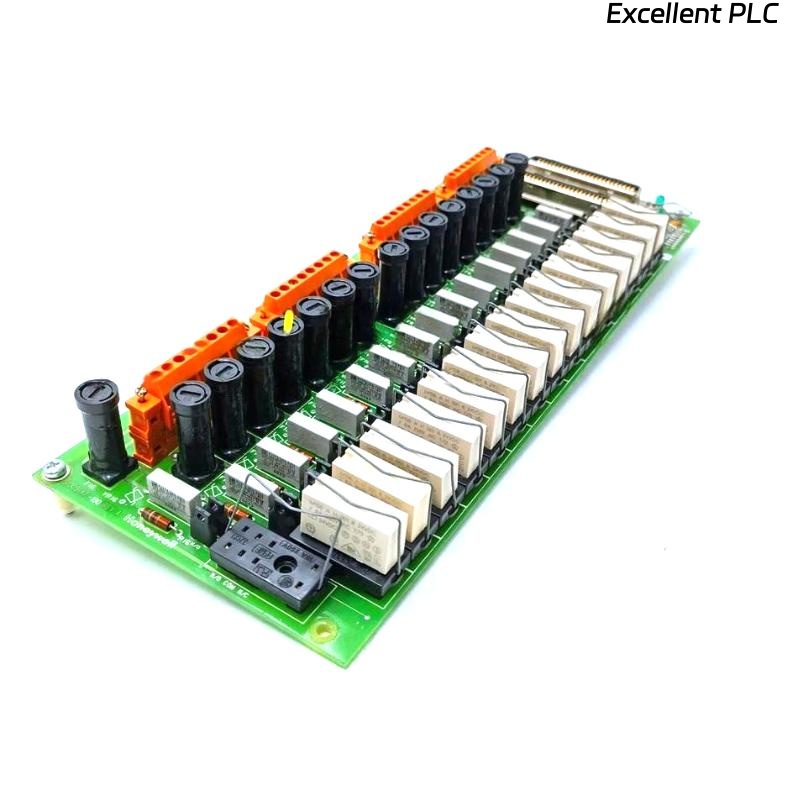

Honeywell MC-TDOR22 51309150-175 Digital Output Relay Module

Product Introduction

The Honeywell MC-TDOR22 51309150-175 Digital Output Relay Module is a robust and high-performance component designed for industrial automation and process control systems. It provides reliable digital output control for field devices through relay contacts, ensuring safe and efficient signal transmission between control processors and external actuators such as valves, solenoids, and alarms.


Product Advantages

  • High Reliability: Designed for continuous industrial operation with minimal maintenance and strong resistance to electrical noise and interference.

  • High Isolation: Each output channel is optically isolated, ensuring safe and stable operation even in harsh process environments.

  • Flexible Configuration: Supports multiple output types and system configurations, adaptable to various control needs.

  • Compatibility: Fully compatible with Honeywell control systems, especially within Experion and TPS architectures.

  • Diagnostic Capability: Provides comprehensive fault detection and status feedback to improve troubleshooting and maintenance efficiency.

  • Compact Design: The module’s compact form factor allows easy installation and replacement in control cabinets.


Technical Specifications

Parameter Description
Manufacturer Honeywell
Model MC-TDOR22 51309150-175
Type Digital Output Relay Module
Number of Channels 16 Relay Outputs
Output Type Relay Contact (Normally Open)
Output Voltage Range 24 VDC to 250 VAC (depending on load)
Output Current Capacity Up to 2 A per channel
Isolation Voltage 1500 V RMS (channel-to-system)
Update Rate < 10 ms
Input Signal Type From controller or processor logic
Operating Temperature 0°C to 60°C
Storage Temperature -40°C to 85°C
Humidity Range 5% to 95% RH non-condensing
Power Consumption 5 W
Mounting Field Termination Assembly (FTA) based
Dimensions 245  × 115  × 25 mm
Weight 0.45 kg
System Compatibility Honeywell Experion PKS / TPS / TDC 3000 systems

Product Applications

  • Distributed Control Systems (DCS) and PLC-based automation architectures

  • Power generation control and monitoring

  • Oil and gas refining systems

  • Chemical and petrochemical process plants

  • Water and wastewater treatment systems

  • Pulp and paper manufacturing control

  • General industrial machinery automation


Installation Instructions

  1. Power Off the System: Before installation, ensure that all power sources to the control cabinet are disconnected.

  2. Mount the Module: Securely install the MC-TDOR22 into the appropriate Field Termination Assembly (FTA) slot.

  3. Connect Wiring: Attach the relay output terminals according to the wiring diagram, ensuring proper polarity and isolation.

  4. Check Communication: Verify that the module is recognized by the system controller or I/O processor.

  5. Test Outputs: Perform functional testing for each channel to ensure correct relay operation.

  6. System Calibration: Re-enable system power and confirm correct operation within the control software environment.


FAQ

Q1: What type of output does the MC-TDOR22 provide?
A1: The module provides relay contact outputs suitable for controlling high-voltage or high-current field devices.

Q2: How many output channels are available on the MC-TDOR22?
A2: The module features 16 individually isolated relay output channels.

Q3: What is the maximum switching voltage the relay can handle?
A3: Each relay channel can handle up to 250 VAC or 30 VDC, depending on the load type.

Q4: Can the MC-TDOR22 be used with both AC and DC loads?
A4: Yes, it supports both AC and DC load switching applications.

Q5: What type of isolation is provided between channels?
A5: Each channel is optically isolated with 1500 V RMS dielectric strength to ensure system safety.

Q6: Is the module hot-swappable in Honeywell systems?
A6: No, it is recommended to power down the system before removing or inserting the module.

Q7: How is fault detection performed on this module?
A7: The module includes self-diagnostic circuitry that reports output status and fault conditions to the system controller.

Q8: Does the module require a dedicated Field Termination Assembly (FTA)?
A8: Yes, it connects to a specific FTA that provides wiring terminals for external devices.

Q9: What communication method does it use within the control system?
A9: The MC-TDOR22 communicates through the I/O bus interface managed by the system’s I/O processor.

Q10: How is output status monitored?
A10: The controller continuously monitors each relay’s output state and reports it through the system configuration interface.


Related or Same-Series Models

Model Description Output Type Channels System Compatibility
MC-TDOR12 51309148-175 Digital Relay Output FTA Relay 16 Experion / TPS
MC-TDOD54 51309153-275 Digital Output FTA Solid-State 32 Experion / TPS
MC-TAMT13 51309213-175 Low-Level Analog Multiplexer Analog 16 Experion / TDC3000
MC-TAMT03 51309223-175 Low-Level Analog Multiplexer Module Analog 8 Experion / TDC3000
MC-TAOX01 51303953-100 Analog Output Terminal Module Analog 8 Experion / TPS
MC-PAOY22 51304453-200 Analog Output Module Analog 16 Experion / TPS

Popular Models from the Same Brand

Model Description Type Channels Voltage Range
MC-TAMR04 51309218-175 Analog Input Multiplexer Analog Input 16 ±10 V
MC-TAMT03 51309223-175 Low-Level Analog Multiplexer Analog 8 ±5 V
MC-TDOD54 51309153-275 Digital Output FTA Digital Output 32 24 VDC
MC-TDOR12 51309148-175 Digital Output Relay FTA Relay 16 24–250 VAC
MC-TAOX01 51303953-100 Analog Output Terminal Analog Output 8 ±10 V
MC-PD1X02 51304754-100 Power Distribution Module Power 24 VDC
MC-TAMR03 51309204-175 Analog Input Module Analog Input 16 ±10 V
MC-TAIH04 51306977-175 Analog Input Module Analog Input 16 ±10 V
