Honeywell MC-TDOR62 51309150-275 PLC Module

Company Information
E-mail		[email protected]
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

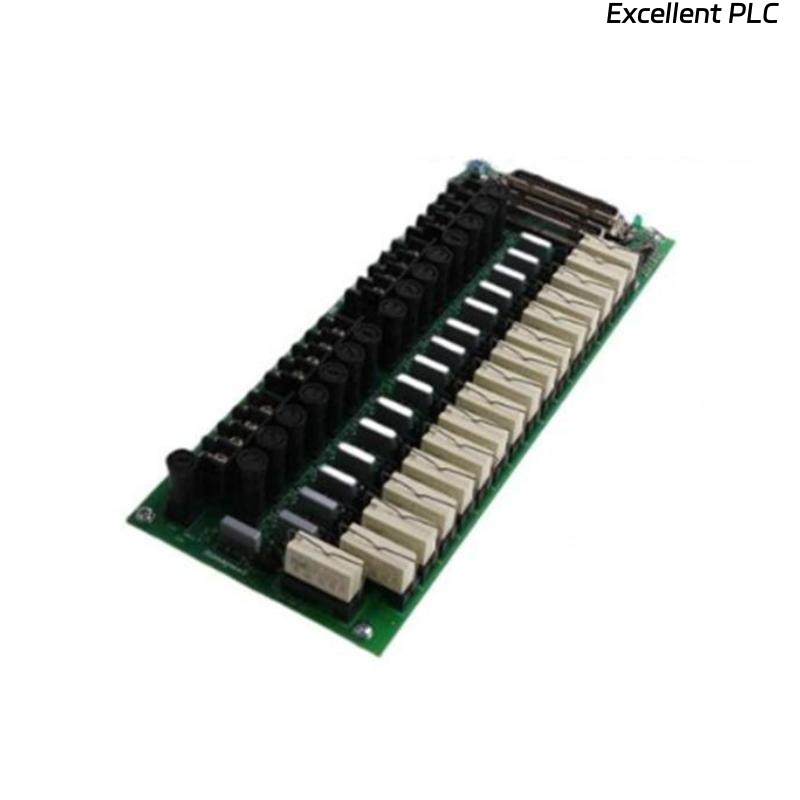

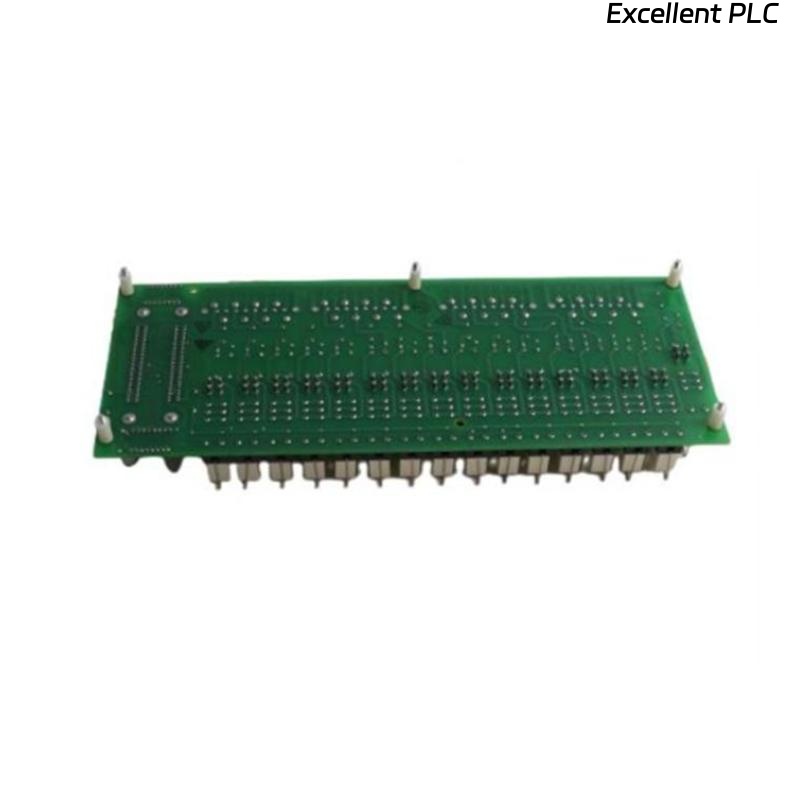

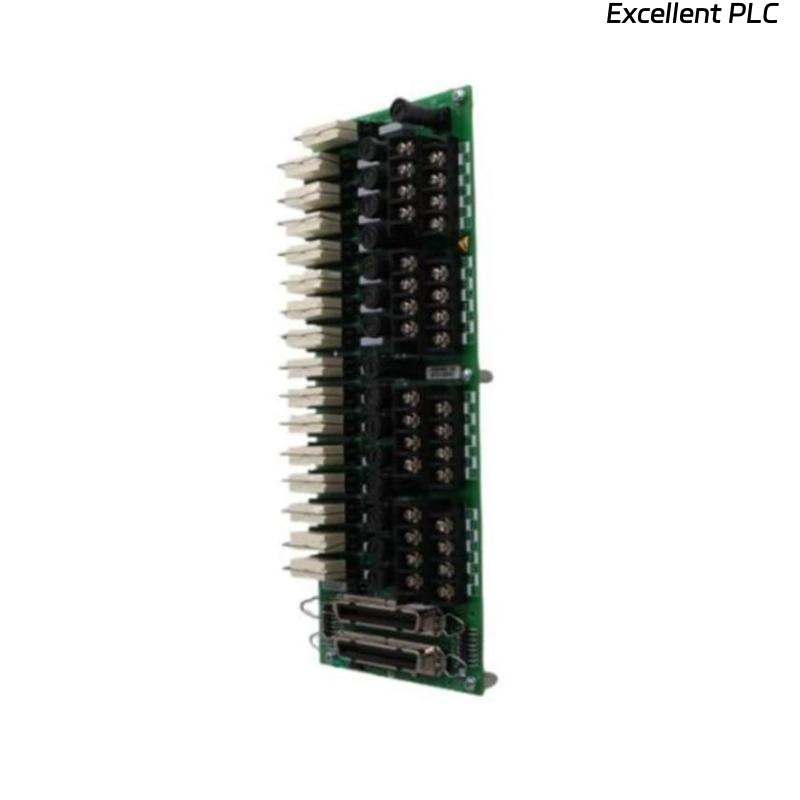

The Honeywell MC-TDOR62 51309150-275 PLC Module is a high-performance digital output relay module designed for use in Honeywell’s TDC3000 and Experion control systems. It provides reliable signal interfacing between the control processor and external field devices, enabling precise command execution for process automation. This module is known for its stable performance, long-term durability, and excellent compatibility within Honeywell’s distributed control architecture.

---

Product Advantages

• High Signal Reliability: Utilizes robust relay output design to ensure stable and accurate digital signal transmission.

• Enhanced Safety: Features optical isolation between field and control circuits to prevent electrical interference or damage.

• Modular Integration: Fully compatible with Honeywell’s control platforms for seamless replacement and expansion.

• Long-Term Stability: Designed with industrial-grade components for extended service life and consistent operation.

• Flexible Application: Supports various digital output configurations suitable for control of solenoids, lamps, relays, and other actuators.

• Simplified Maintenance: Plug-in modular design allows for quick installation and easy field replacement without complex recalibration.

---

Technical Specifications

---

Product Applications

• Power Generation Plants: For switching relays, contactors, and interlock systems.

• Oil & Gas Industry: Managing on/off commands for pumps, valves, and compressors.

• Chemical & Petrochemical Plants: Used in distributed control systems for process sequencing.

• Manufacturing Automation: Controls output devices like signal lamps, motors, and actuators.

• Water and Wastewater Treatment: For remote control of valves, pumps, and indicator systems.

• HVAC and Building Automation: Handles field relay control for air handling and energy management.

---

Installation Instructions

1. Preparation: Ensure system power is off before module installation.

2. Mounting: Secure the module on the designated DIN rail or panel slot.

3. Connection: Connect the module to the appropriate FTA using Honeywell-recommended cables.

4. Power Supply Check: Verify the input voltage and ground connections.

5. System Configuration: Configure the module parameters within the DCS or PLC environment.

6. Testing: After installation, perform a channel-wise output test to confirm operational readiness.

7. Maintenance: Regularly inspect terminal connections and check for signs of relay wear or output degradation.

---

FAQ

Q1: What type of isolation does the MC-TDOR62 provide between field and control circuits?
A1: The module provides optical isolation rated at 1500 V RMS to prevent interference and ensure safe operation.

Q2: Can the MC-TDOR62 be used with both AC and DC loads?
A2: Yes, it supports DC loads up to 30 V and AC loads up to 125 V within specified current limits.

Q3: What is the typical output switching time of the relays?
A3: The relay response time is typically less than 10 ms, suitable for standard process control applications.

Q4: Is this module hot-swappable within the system?
A4: No, it is recommended to power down the system before removal or insertion to avoid damage.

Q5: How is channel fault detection handled on the MC-TDOR62?
A5: The system controller monitors relay feedback and triggers diagnostic alerts in case of open or short circuits.

Q6: What is the recommended FTA for the MC-TDOR62 module?
A6: It is commonly paired with Honeywell’s 16-channel relay FTA units such as MC-TDOR12 or MC-TDOR22.

Q7: Can the MC-TDOR62 output channels be configured individually?
A7: Yes, each output channel can be independently configured through the control system’s software environment.

Q8: What protection features are included in the module?
A8: It includes internal surge suppression, reverse polarity protection, and relay contact protection circuits.

Q9: How should grounding be handled for optimal performance?
A9: The module should be properly grounded to the control panel ground bus to minimize noise and interference.

Q10: Does the module support redundant operation configurations?
A10: Yes, it can be integrated into redundant control architectures for high-availability applications.

---
