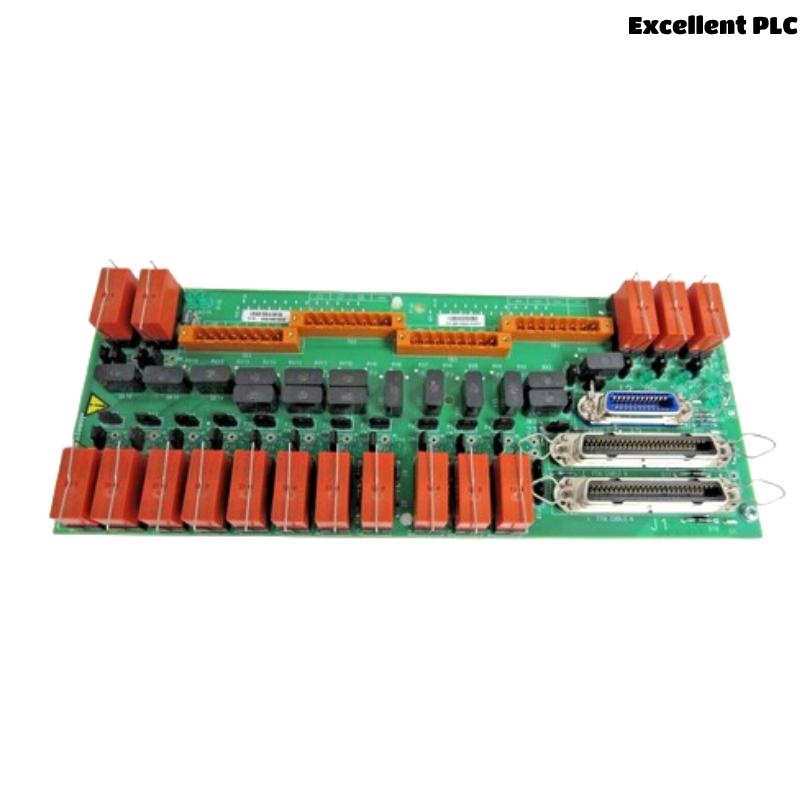

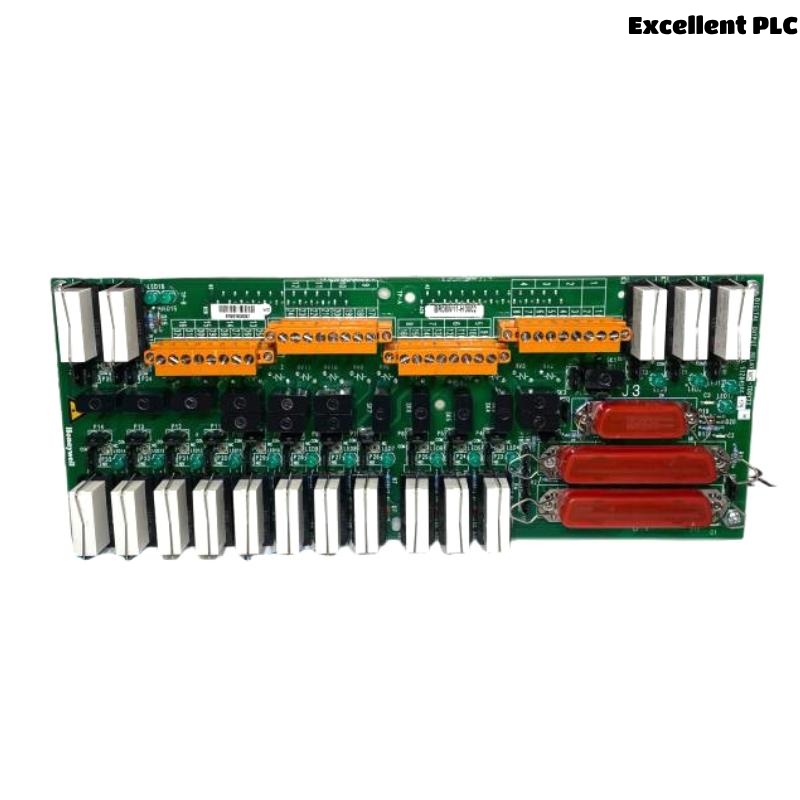

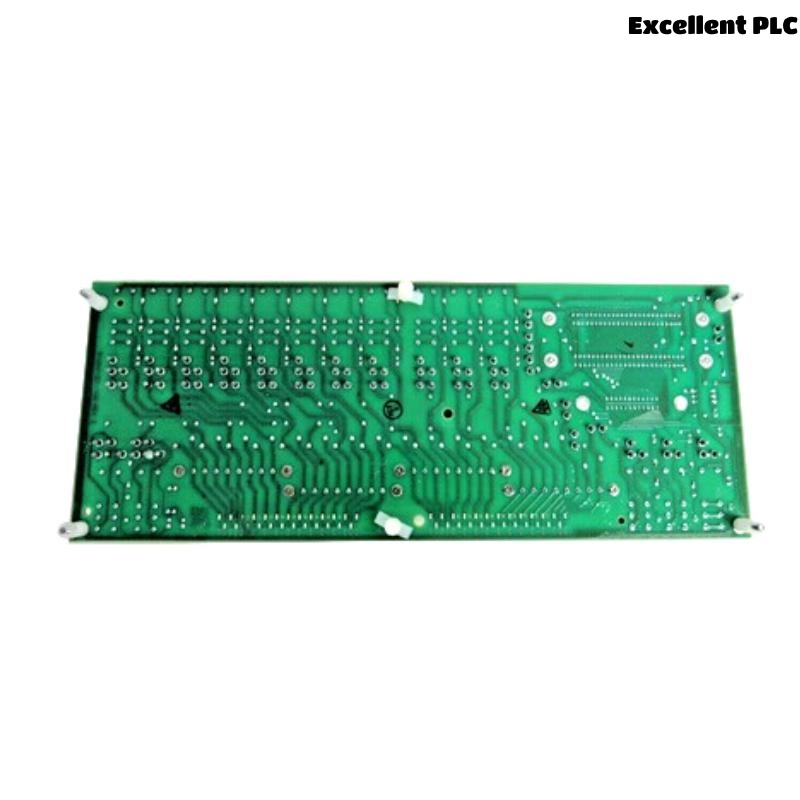

Honeywell MC-TDOY23 51204166-175 Digital Output Relay

Company Information
E-mail		[email protected]
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

The Honeywell MC-TDOY23 51204166-175 Digital Output Relay is an essential component in modern industrial control systems, offering reliable digital signal switching for a wide variety of applications. This relay is designed to act as a link between low-voltage control systems (like PLCs or microcontrollers) and higher power electrical circuits. It allows for the control of electrical equipment such as motors, lights, valves, and other devices by receiving digital signals and then switching the appropriate outputs.

The MC-TDOY23 model is highly reliable and engineered to provide exceptional performance in demanding industrial environments. It boasts fast switching times, high durability, and flexible mounting options, making it ideal for use in automation and control systems in industries ranging from manufacturing to building automation.

---

Technical Specifications

---

Applications

The Honeywell MC-TDOY23 51204166-175 Digital Output Relay is an extremely versatile and reliable solution for industrial control applications. Its wide range of features makes it suitable for various applications, such as:

• Industrial Automation: Perfect for controlling machinery, switches, and motors in automated systems.

• Building Automation: Used for controlling lighting systems, HVAC (heating, ventilation, and air conditioning), and security systems in buildings.

• Control Panels: Commonly found in electrical control panels, providing the switching functions necessary for effective system operation.

• Process Control: Used in process control systems to manage high-power circuits via low-power digital control signals.

• Energy Management: Ideal for managing energy consumption and switching energy-consuming devices like pumps, compressors, and other equipment.

• Remote Control Systems: Suitable for applications where signals need to be relayed over distances to control remote systems or equipment.

---

Advantages

The Honeywell MC-TDOY23 51204166-175 Digital Output Relay provides numerous benefits that make it a reliable choice for industrial automation:

• Fast Switching Time: With a switching time of less than 10 ms, this relay ensures fast response times and seamless integration into time-sensitive processes.

• High Durability: Designed for a mechanical life of 10 million cycles and an electrical life of 100,000 cycles, it ensures a long operational lifespan.

• Wide Voltage Compatibility: The relay supports multiple voltage options (24V DC, 48V DC, 110V AC, 220V AC), making it adaptable to a wide range of industrial applications.

• Compact and Robust Design: With its small footprint and high durability, it is well-suited for harsh environments where space is limited.

• Energy-Efficient: The relay efficiently switches high-power circuits with low-power digital signals, offering significant energy savings.

• Reliable and Stable Operation: The relay’s robust design ensures reliable performance, even in demanding conditions.

• Versatile Mounting Options: The relay can be easily mounted on a DIN rail or directly on a panel, providing flexibility in installation.

• International Certifications: The MC-TDOY23 relay is CE, UL, and RoHS certified, ensuring that it meets global safety and environmental standards.

• Easy Integration: It works well with a wide range of PLCs and control systems, making it simple to integrate into existing setups.

• Cost-Effective: Offering high performance at an affordable price, the MC-TDOY23 provides value for money for both large-scale and small-scale operations.

---

Frequently Asked Questions (FAQs)

1. What is the Honeywell MC-TDOY23 51204166-175 used for?
It is a digital output relay used to control electrical systems via digital signals, acting as an interface between a PLC or control system and high-power circuits.

2. What types of contacts does this relay use?
The MC-TDOY23 features SPDT (Single Pole Double Throw) contacts, ensuring reliable and versatile switching.

3. What is the maximum voltage this relay can handle?
The relay can handle up to 250V AC and 30V DC, making it suitable for a wide range of applications.

4. How fast does the relay switch?
It has a switching time of less than 10 ms, making it highly responsive and ideal for time-sensitive applications.

5. Can this relay be used in both AC and DC circuits?
Yes, it supports both AC (110V AC and 220V AC) and DC (24V DC and 48V DC) circuits, offering great flexibility.

6. What is the mechanical lifespan of this relay?
The mechanical life is rated at 10 million cycles, ensuring long-term reliability.

7. What is the electrical life of the MC-TDOY23 relay?
The electrical life is rated at 100,000 cycles.

8. How is the MC-TDOY23 mounted?
It can be mounted on a DIN rail or directly onto a panel, providing installation flexibility.

9. Is this relay suitable for remote control applications?
Yes, it is commonly used in remote control systems where signals need to be transmitted over long distances to control various systems.

10. What certifications does the MC-TDOY23 relay have?
The relay is certified with CE, UL, and RoHS, ensuring compliance with international standards for safety and environmental performance.

---
