Product Introduction

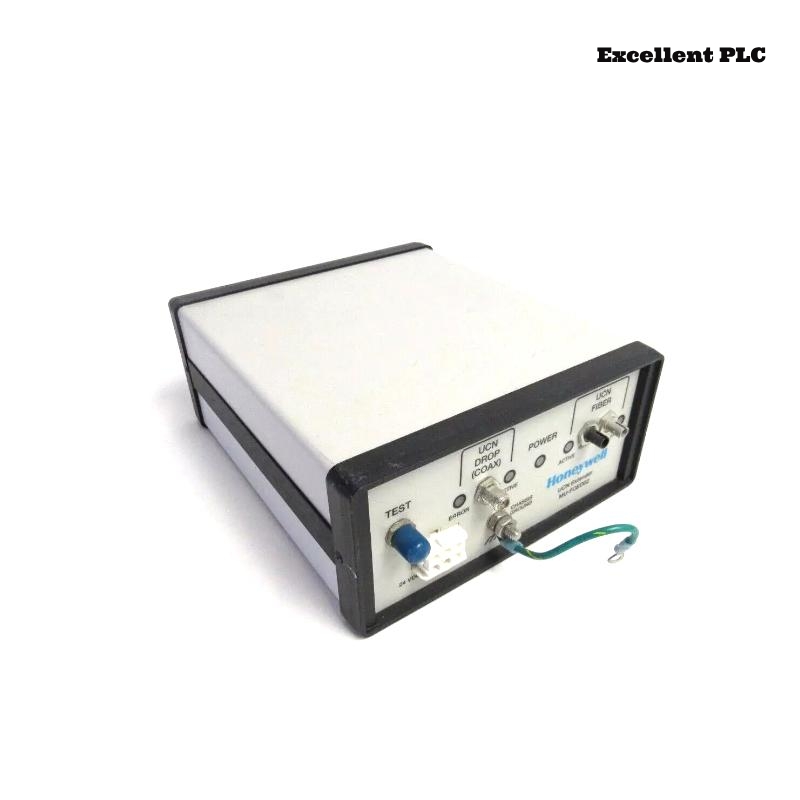

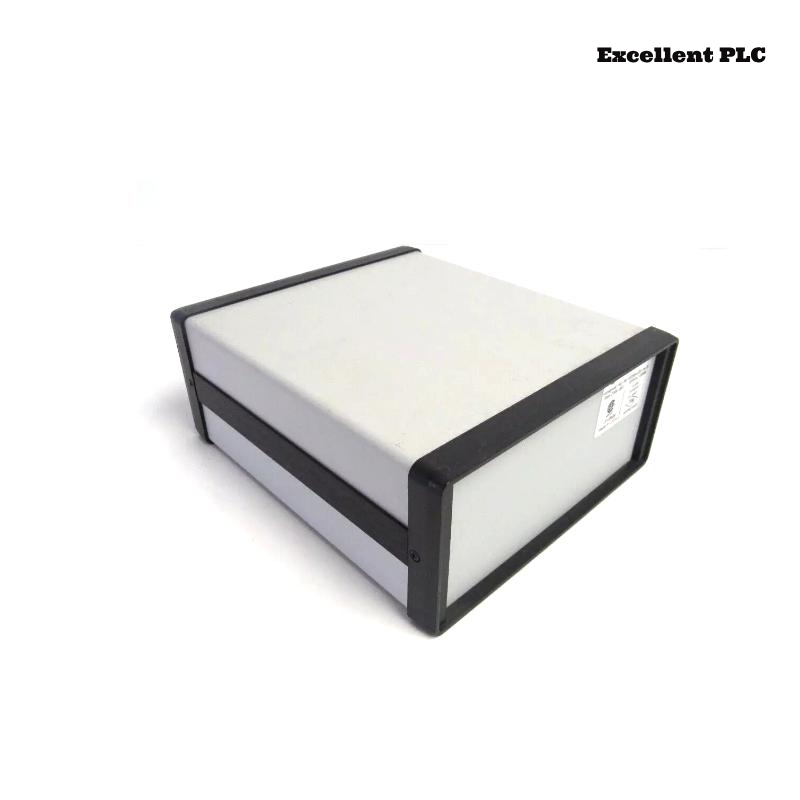

The Honeywell MU-FOED02 51197564-200 is a Universal Control Network (UCN) Fiber Optic Extender designed to enhance industrial control systems by facilitating long-distance, high-speed data transmission with minimal signal degradation. This module is particularly beneficial in environments where traditional copper cabling falls short due to distance limitations or susceptibility to electromagnetic interference. By leveraging fiber optic technology, the MU-FOED02 ensures reliable and efficient communication across extensive industrial networks.
Specifications
The technical specifications of the Honeywell MU-FOED02 51197564-200 are as follows:
| Specification | Details |
|---|---|
| Operating Range | Up to 200 meters |
| Fiber Type | Single-mode |
| Data Rate | 10 Mbps |
| Operating Temperature | -40°C to +70°C |
| Enclosure Type | IP67 rated |
| Power Supply | 24 VDC |
| Connector Type | M12 |
| Dimensions | 250 x 100 x 80 mm |
| Weight | 6.8 kg |
Applications
The MU-FOED02 is ideally suited for various industrial automation applications, including:
-
Manufacturing Plants: Facilitates seamless communication between production line controllers and monitoring systems, ensuring synchronized operations.
-
Oil Refineries: Enables reliable data transmission across extensive refinery complexes, enhancing process control and safety monitoring.
-
Power Generation Facilities: Supports the integration of control systems over large distances within power plants, improving operational efficiency.
-
Remote Monitoring Stations: Allows for the extension of control networks to remote locations, ensuring continuous monitoring and control of distant equipment.
Advantages
Key advantages of the Honeywell MU-FOED02 include:
-
Extended Communication Range: Capable of transmitting control signals over distances up to 200 meters, surpassing the limitations of traditional copper cabling.
-
High Data Integrity: Utilizes fiber optic technology to minimize signal degradation and electromagnetic interference, ensuring accurate data transmission.
-
Robust Construction: The IP67-rated enclosure provides protection against dust and water ingress, making it suitable for harsh industrial environments.
-
Wide Operating Temperature Range: Designed to function effectively in temperatures ranging from -40°C to +70°C, accommodating extreme environmental conditions.
-
Energy Efficient: Operates on a 24 VDC power supply with low power consumption, reducing operational costs.
Frequently Asked Questions (FAQs)
-
What is the primary function of the Honeywell MU-FOED02 51197564-200?
The MU-FOED02 serves as a fiber optic extender for Honeywell’s Universal Control Network (UCN), enabling long-distance data transmission between control systems and field devices.
-
What type of fiber optic cable is compatible with this extender?
The device is compatible with single-mode fiber optic cables, which are suitable for long-distance communication applications.
-
Can the MU-FOED02 be used in outdoor environments?
Yes, its IP67-rated enclosure ensures protection against dust and water, making it suitable for outdoor installations.
-
What is the maximum data transmission rate supported by this extender?
The MU-FOED02 supports data transmission rates up to 10 Mbps, facilitating efficient communication in industrial networks.
-
Is the extender compatible with other communication protocols?
While primarily designed for UCN, it supports various protocols such as Modbus, CANopen, and DeviceNet, enhancing its versatility in different industrial setups.
-
What are the power requirements for the MU-FOED02?
The device operates on a 24 VDC power supply with a current consumption of approximately 200 mA.
-
How does the MU-FOED02 handle electromagnetic interference (EMI)?
By utilizing fiber optic communication, the extender is inherently resistant to EMI, ensuring reliable data transmission in environments with high electrical noise.
-
What is the operating temperature range of the device?
The MU-FOED02 is designed to operate within a temperature range of -40°C to +70°C, accommodating various industrial environmental conditions.
-
Are there any specific installation considerations for the MU-FOED02?
Proper installation involves ensuring secure connections using M12 connectors and adhering to recommended bending radii for fiber optic cables to maintain signal integrity.
-
How does the MU-FOED02 improve system reliability compared to traditional copper-based extenders?
-
Unlike copper cables, fiber optic technology provides immunity to electromagnetic interference (EMI), radio frequency interference (RFI), and ground loops, ensuring stable data transmission even in electrically noisy environments such as power plants and manufacturing facilities.
-
