Product Introduction

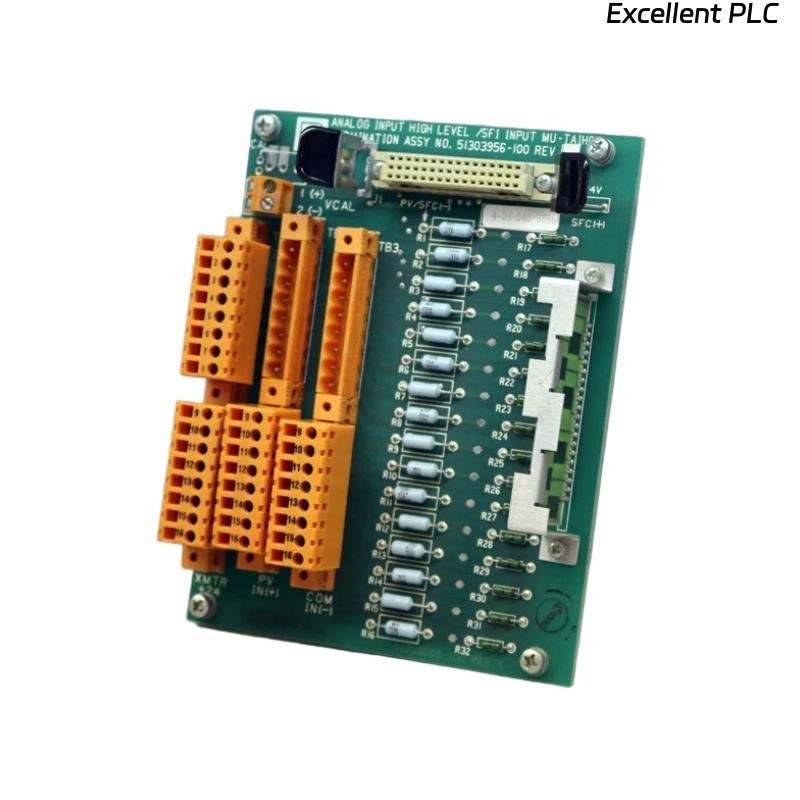

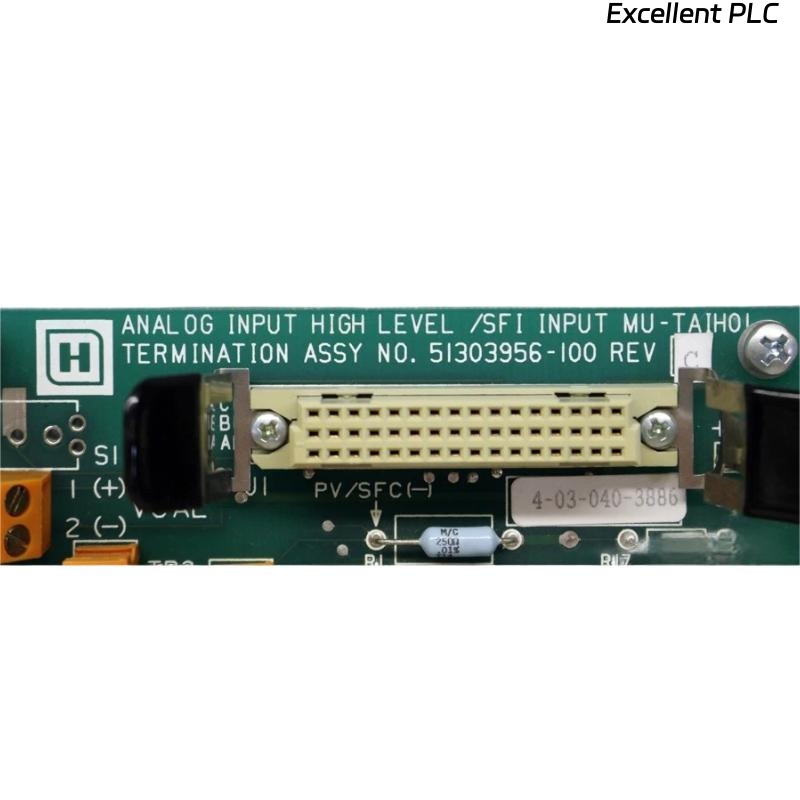

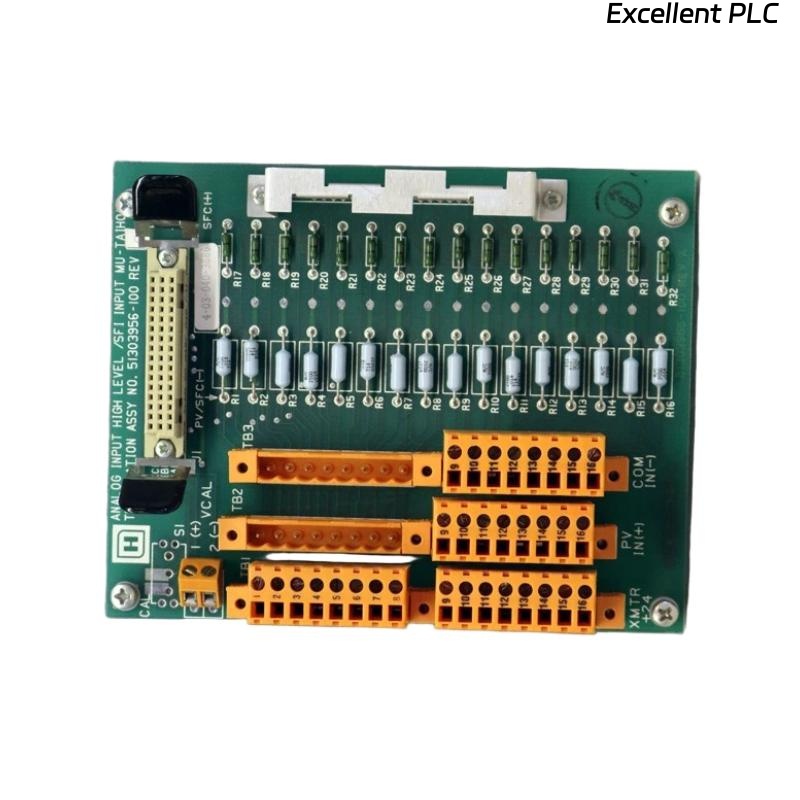

The Honeywell MU-TAIHO1 51303956-100 Analog Input High Level SFI Termination Module is designed as a high-level analog input interface module for Honeywell process control systems. It is part of the termination assemblies that connect field signals with system input modules, providing reliable signal conditioning, termination, and channel isolation.
This module ensures stable signal transmission for high-level analog signals, reduces noise and interference, and supports robust performance in critical industrial applications where accurate process measurements are essential.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | MU-TAIHO1 51303956-100 |
| Function | Analog Input High-Level SFI Termination Module |
| Input Type | High-Level Analog Signal Termination |
| Compatibility | Honeywell TDC2000/TDC3000 and Experion systems |
| Operating Voltage | 24 VDC (typical system supplied) |
| Input Isolation | Channel-to-channel and channel-to-ground isolation |
| Operating Temperature Range | 0°C to 55°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions | 260 × 120 × 45 mm |
| Weight | 0.65 kg |
Product Applications
-
Power plants for analog signal collection and monitoring.
-
Oil and gas refineries for accurate instrumentation data acquisition.
-
Chemical plants for high-precision analog input processing.
-
Pulp and paper industries requiring stable signal interfacing.
-
Steel and mining facilities for continuous process monitoring.
-
Pharmaceutical and food industries where strict process control is required.
Product Advantages
-
High Reliability – Provides stable analog input termination for critical process control.
-
Noise Reduction – Ensures clean signal conditioning, minimizing interference.
-
System Compatibility – Designed for Honeywell TDC and Experion series, ensuring seamless integration.
-
Isolation Features – Protects against signal cross-talk and ground loop interference.
-
Compact Design – Lightweight and easy to mount in termination assemblies.
-
Low Maintenance – Built with robust Honeywell design standards, reducing system downtime.
FAQ
Q1: What is the primary function of the MU-TAIHO1 module?
A1: It terminates and conditions high-level analog input signals for Honeywell control systems.
Q2: Can this module support both single-ended and differential analog inputs?
A2: It is optimized for high-level analog signal termination and supports system-defined configurations.
Q3: Does the MU-TAIHO1 provide electrical isolation between channels?
A3: Yes, it includes isolation to minimize interference and prevent ground loop issues.
Q4: What type of field devices can be connected to this module?
A4: It supports transmitters and sensors that output high-level analog signals.
Q5: How is this module powered?
A5: It operates on system-supplied 24 VDC power.
Q6: Is this module hot-swappable within the Honeywell DCS system?
A6: Typically, termination modules are designed for easy replacement, but hot-swapping should follow Honeywell system guidelines.
Q7: How does the module handle signal noise?
A7: It uses internal filtering and isolation to minimize noise and signal distortion.
Q8: Is this module limited to Honeywell DCS systems?
A8: Yes, it is specifically designed for Honeywell platforms such as TDC2000, TDC3000, and Experion.
Q9: Does the MU-TAIHO1 require calibration?
A9: It does not typically require field calibration, as it serves as a termination module with defined characteristics.
Q10: What is the failure response mode of this module?
A10: In the event of failure, the system will flag a diagnostic alarm, and the affected input channel will be isolated.
