Product Introduction

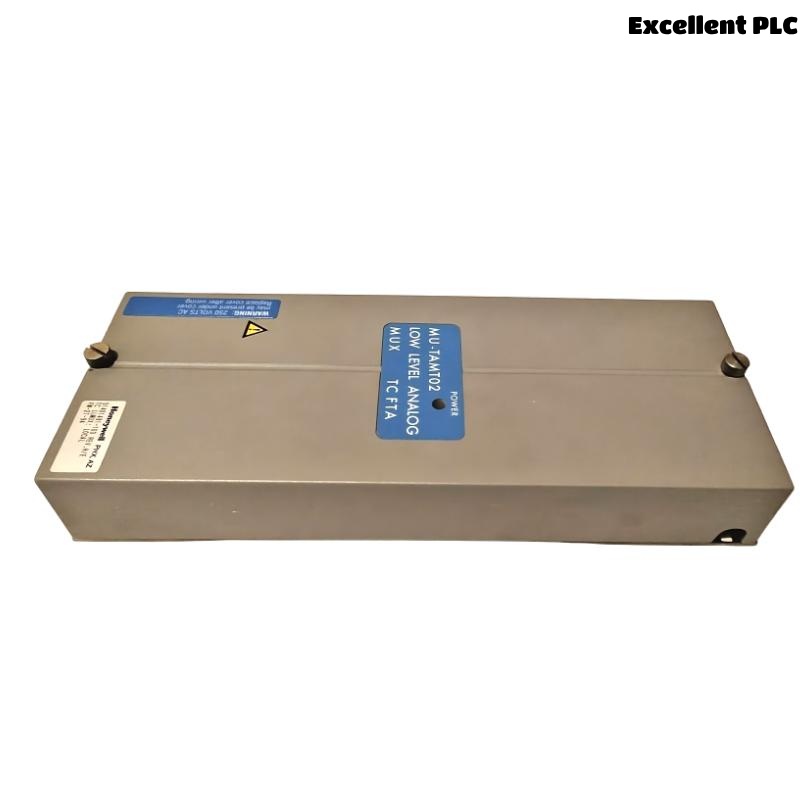

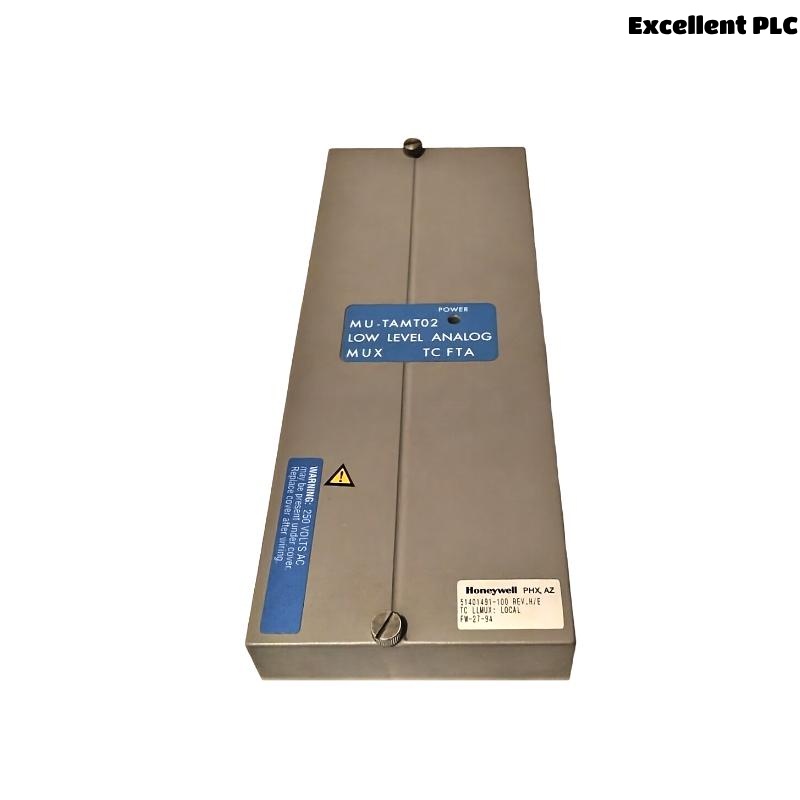

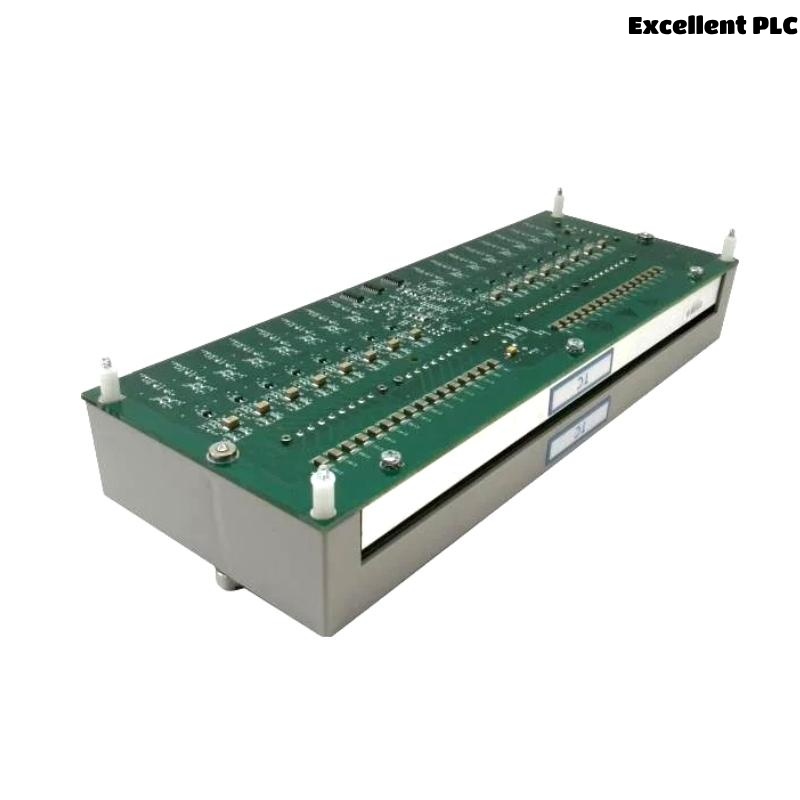

The Honeywell MU-TAMT02 51401491-100 Low-Level Analog Input Multiplexer is an essential component in industrial automation and control systems. This multiplexer is designed to enable the simultaneous processing of multiple low-level analog signals, enhancing the capacity and efficiency of data acquisition systems. The MU-TAMT02 allows for the selection and transmission of analog inputs to a controller or measurement system, optimizing the performance of data acquisition units and making it suitable for applications that require handling of multiple analog signals in a single channel.
Built to meet the rigorous demands of industrial environments, the MU-TAMT02 is designed with reliability, durability, and precision in mind. It ensures accurate measurement of signals, providing high-quality data for monitoring, control, and optimization processes. Its versatility makes it an ideal solution for process automation, environmental monitoring, and other applications where low-level analog signals are frequently measured.
This device is particularly useful in environments where the need to measure and manage various signals from sensors or other measurement instruments is prevalent. With advanced features such as signal multiplexing, it reduces the need for multiple input channels, simplifying system design, and minimizing the overall equipment footprint.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | MU-TAMT02 51401491-100 |
| Type | Low-Level Analog Input Multiplexer |
| Input Channels | Up to 8 analog input channels |
| Input Signal Range | 0 to 10V DC |
| Signal Resolution | 12-bit |
| Input Impedance | 100 MΩ |
| Operating Voltage | 24V DC ±10% |
| Power Consumption | 100 mA at 24V DC |
| Temperature Range | -20°C to +60°C |
| Weight | 1.15 kg |
| Dimensions (L x W x H) | 307.3 x 120.7 mm |
| Mounting Type | DIN Rail or Panel Mount |
| Operating Environment | Industrial automation, process control, measurement systems |
| Compliance | CE, UL, RoHS, and other international safety standards |
Applications
The Honeywell MU-TAMT02 51401491-100 Low-Level Analog Input Multiplexer is used in various industrial and process automation applications. Its ability to handle multiple analog signals makes it versatile and effective in a variety of control systems. Some of the key applications include:
-
Industrial Automation Systems: Widely used in automation systems where it is essential to multiplex multiple analog signals into a single input for further processing by controllers or measurement systems.
-
Process Control: Used in process control systems to monitor multiple sensor outputs (such as pressure, flow, temperature, or level) from different parts of a facility, enabling centralized monitoring and control.
-
Environmental Monitoring: Essential in environmental systems where it is necessary to measure multiple parameters like temperature, humidity, and air quality across various locations.
-
Measurement Systems: Employed in systems that require accurate reading of low-level signals from a variety of sensors, enabling optimized measurement and analysis.
-
Energy Management Systems: Useful in energy monitoring applications to read and process signals from various energy meters and sensors to optimize energy usage.
-
Laboratories & Research: Often used in laboratory environments for research purposes where multiple low-level signals need to be simultaneously monitored.
Advantages
-
High Signal Integrity: The MU-TAMT02 ensures accurate and high-quality signal transmission with low noise and minimal interference, crucial for applications that depend on precise data.
-
Multiple Input Channels: It allows the multiplexing of up to 8 analog signals, which reduces the complexity of system design by consolidating input channels into one.
-
Cost Efficiency: By reducing the need for multiple analog input channels, it helps in lowering the cost of equipment and maintenance while still achieving the required data acquisition capabilities.
-
Ease of Integration: The multiplexer is compatible with various Honeywell controllers and measurement systems, making it easy to integrate into existing industrial automation setups.
-
Compact Design: With its small form factor, the MU-TAMT02 can be easily installed in tight spaces within control panels or automation systems.
-
Energy-Efficient: Consumes only 100 mA at 24V DC, making it an energy-efficient choice for long-term operation.
-
Reliable Performance: Built to last, with high durability and resistance to environmental stressors like temperature fluctuations and humidity.
-
Wide Temperature Range: Capable of operating in a broad temperature range (-20°C to +60°C), ensuring its usability in diverse industrial environments.
-
DIN Rail or Panel Mount: Flexible installation options that allow it to fit into a wide range of system configurations.
-
Compliance with Industry Standards: The MU-TAMT02 is CE, UL, and RoHS certified, meeting the highest global standards for safety and environmental compliance.
Frequently Asked Questions (FAQs)
1. What is the function of the Honeywell MU-TAMT02 51401491-100 Low-Level Analog Input Multiplexer?
It allows the multiplexing of up to 8 analog input signals, simplifying the process of acquiring multiple low-level signals from sensors into a single input for controllers or measurement systems.
2. What is the voltage range for input signals?
The input signal range is 0 to 10V DC, suitable for most low-level analog sensors used in industrial applications.
3. What is the resolution of the analog input?
The MU-TAMT02 offers a 12-bit resolution for analog input signals, ensuring high accuracy in signal processing.
4. How many channels can the multiplexer handle?
It can handle up to 8 analog input channels, which can be multiplexed into a single output.
5. What is the power consumption of the unit?
The power consumption is 100 mA at 24V DC, which is relatively low and energy-efficient.
6. Can the multiplexer be used in harsh environments?
Yes, the MU-TAMT02 is designed to operate in environments with temperatures ranging from -20°C to +60°C, making it suitable for most industrial conditions.
7. What is the weight of the MU-TAMT02?
The weight of the device is 1.15 kg, which is light enough for easy installation.
8. How is the MU-TAMT02 mounted?
It can be mounted on a DIN rail or directly onto a panel, providing flexible installation options.
9. Is the MU-TAMT02 compliant with international standards?
Yes, it is CE, UL, and RoHS certified, ensuring that it meets global safety and environmental standards.
10. What are some of the typical applications for the MU-TAMT02?
It is typically used in industrial automation, process control, environmental monitoring, measurement systems, and energy management systems.
Related Models from the Same Series
| Model Number | Description | Input Channels | Signal Range | Weight |
|---|---|---|---|---|
| MU-TAMT03 51401491-101 | Low-Level Analog Input Multiplexer (3 channels) | 3 channels | 0 to 10V DC | 250g |
| MU-TAMT04 51401491-102 | Low-Level Analog Input Multiplexer (4 channels) | 4 channels | 0 to 10V DC | 270g |
| MU-TAMT05 51401491-103 | Low-Level Analog Input Multiplexer (5 channels) | 5 channels | 0 to 10V DC | 290g |
| MU-TAMT06 51401491-104 | Low-Level Analog Input Multiplexer (6 channels) | 6 channels | 0 to 10V DC | 320g |
| MU-TAMT07 51401491-105 | Low-Level Analog Input Multiplexer (7 channels) | 7 channels | 0 to 10V DC | 330g |
| MU-TAMT08 51401491-106 | Low-Level Analog Input Multiplexer (8 channels) | 8 channels | 0 to 10V DC | 350g |
