Product Description

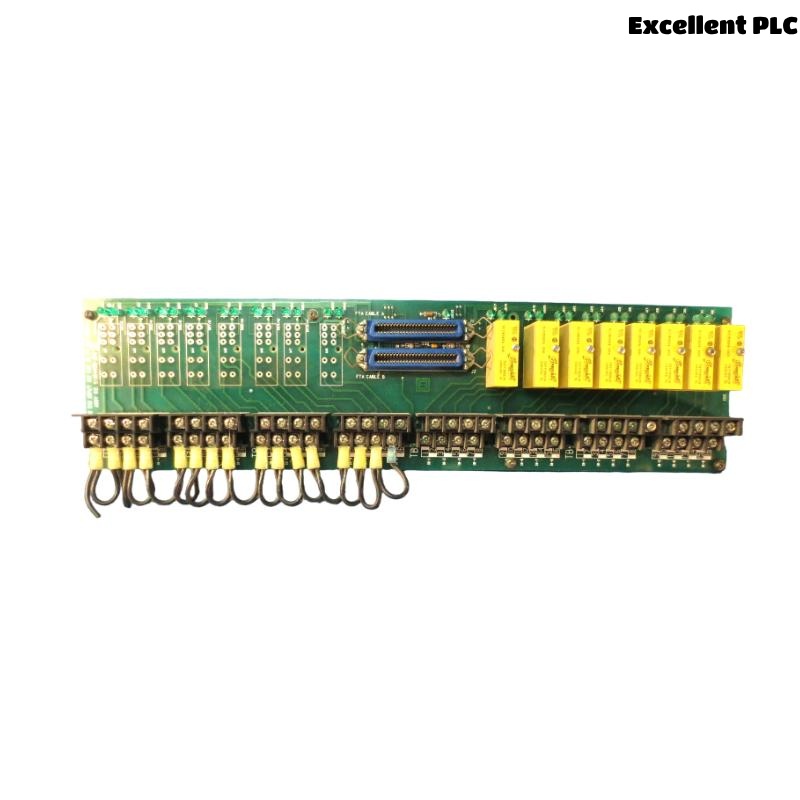

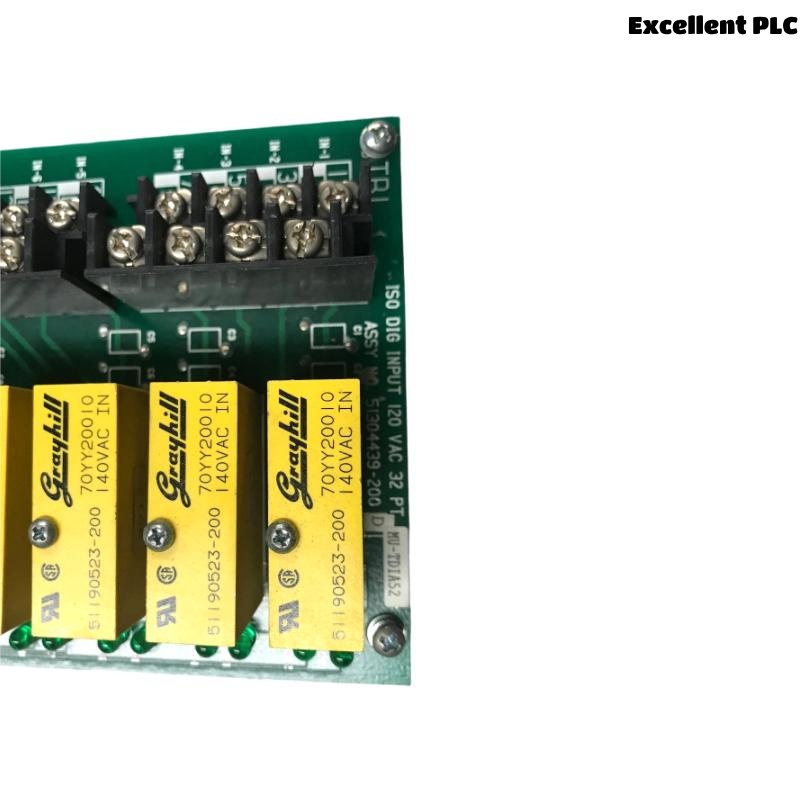

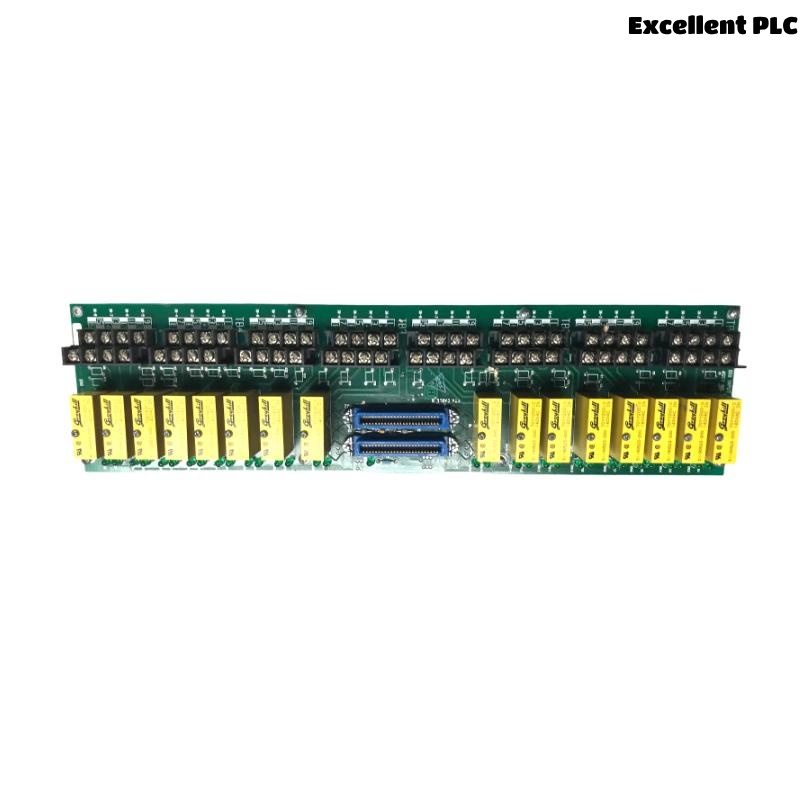

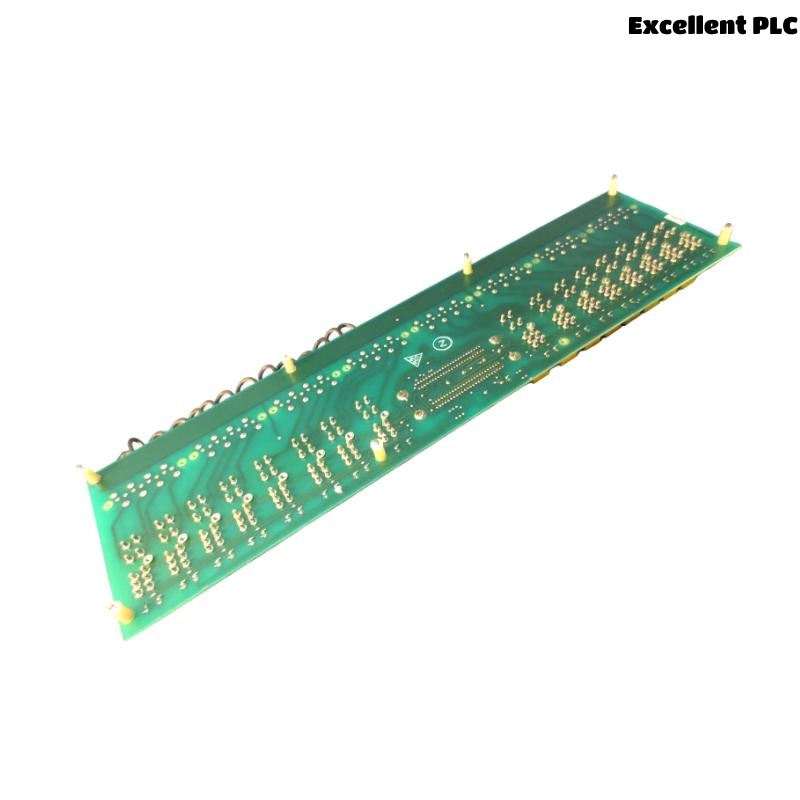

The Honeywell MU-TDIA52 51304439-200 is a 32-channel Digital Input Field Termination Assembly (FTA) used in the Honeywell TPS (TotalPlant Solution) system. It is designed to work with digital input processors such as MU-PDIX02 and is suitable for 240 Vac input signals. It supports isolation, conditioning, and surge protection for input signals in industrial control environments.
Product Features
-
Supports 32 digital input channels
-
Compatible with 240 Vac nominal input
-
Optical isolation for high signal integrity
-
Works with Honeywell TPS systems (PM/APM/HPM)
-
Supports field signal protection and conditioning
-
Plug-in isolators for easy maintenance and high availability
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | MU-TDIA52 |
| Part Number | 51304439-200 |
| Input Channels | 32 |
| Input Voltage Range | 180–264 Vac |
| Input Type | Optical Isolated Digital Inputs |
| Galvanic Isolation | 1500 Vac RMS or ±1500 Vdc |
| Pick-up Voltage (ON) | 180 Vac minimum |
| Drop-out Voltage (OFF) | 50 Vac maximum |
| Delay Time (Max) | 25 ms |
| Frequency Range | 47–63 Hz |
| Surge Protection | ANSI/IEEE C37.90.1-1978 compliant |
| Dimensions | 462.3 × 102.7 × 21.3 mm |
| Weight | 0.55 kg |
Applications
-
Distributed control systems (DCS)
-
Power generation monitoring
-
Refinery and petrochemical automation
-
Industrial automation systems requiring high-voltage digital inputs
Advantages
-
High-density digital input solution (32 channels)
-
Optical isolation enhances signal integrity and safety
-
Supports harsh industrial environments
-
Easy integration with Honeywell TPS controllers
-
Redundancy options enhance system availability
-
Compliance with industrial surge and safety standards
Frequently Asked Questions (FAQ)
Q1: What is the main function of the MU-TDIA52?
A1: It acts as a field termination assembly for 240 Vac digital input signals, providing isolation and protection for Honeywell digital input processors.
Q2: How many input channels does the MU-TDIA52 support?
A2: It supports 32 digital input channels.
Q3: What voltage range is supported by MU-TDIA52?
A3: It accepts input voltages ranging from 180 Vac to 264 Vac.
Q4: Is the MU-TDIA52 compatible with Honeywell HPM and APM?
A4: Yes, it is compatible with PM, APM, and HPM controllers in the TPS system.
Q5: What kind of isolation does MU-TDIA52 offer?
A5: It provides 1500 Vac RMS or ±1500 Vdc galvanic isolation.
Q6: What is the maximum signal delay for digital inputs?
A6: The maximum delay is 25 milliseconds.
Q7: Can the MU-TDIA52 be used in redundant configurations?
A7: Yes, it supports redundancy when paired with the appropriate Honeywell digital input processors.
Q8: What surge standard does it comply with?
A8: It complies with ANSI/IEEE C37.90.1-1978 for surge protection.
Q9: What environments is the MU-TDIA52 suitable for?
A9: It is designed for industrial environments including process plants and utilities.
Q10: What type of signal conditioning is included?
A10: It includes filtering, optical isolation, and surge suppression.
Related or Similar Models
| Model Number | Description | Channels | Input Voltage | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| MU-TDIA12 | Digital Input FTA, 120 Vac | 32 | 90–132 Vac | 462.3 × 102.7 × 21.3 | 0.55 kg |
| MU-TDIA22 | Digital Input FTA, 125 Vdc | 32 | 105–145 Vdc | 462.3 × 102.7 × 21.3 | 0.55 kg |
| MU-TDID12 | Digital Input FTA, 24 Vdc | 32 | 20–30 Vdc | 462.3 × 102.7 × 21.3 | 0.55 kg |
| MU-TDID52 | Digital Input FTA, 24 Vdc, Conformal Coated | 32 | 20–30 Vdc | 462.3 × 102.7 × 21.3 | 0.55 kg |
| MU-TDIA62 | Digital Input FTA, 240 Vac, Coated | 32 | 180–264 Vac | 462.3 × 102.7 × 21.3 | 0.55 kg |
| MU-PDIX02 | Digital Input Processor | – | – | 180 × 115 × 25 | 0.40 kg |
