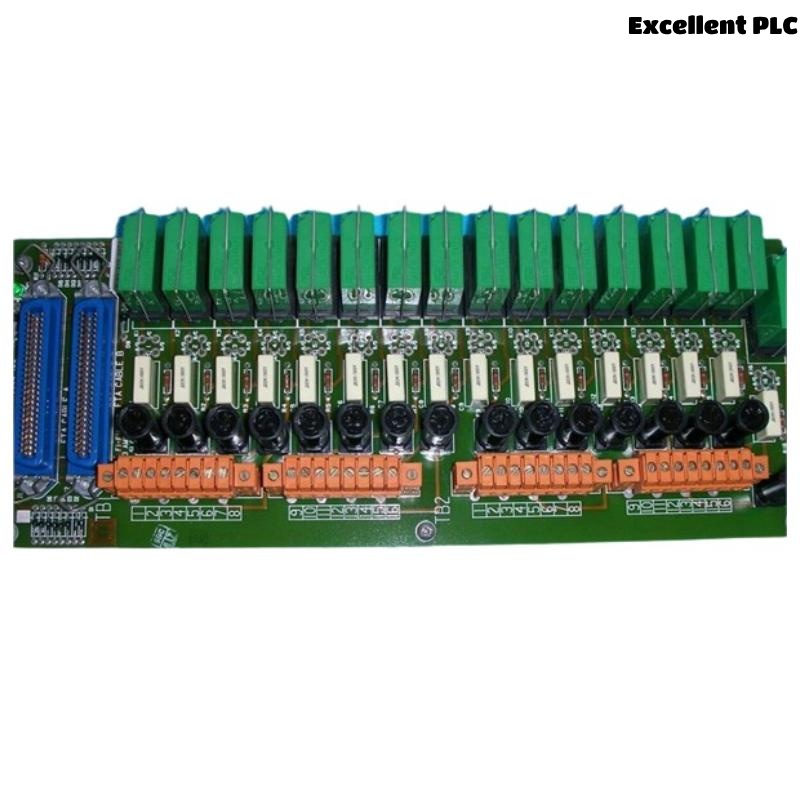

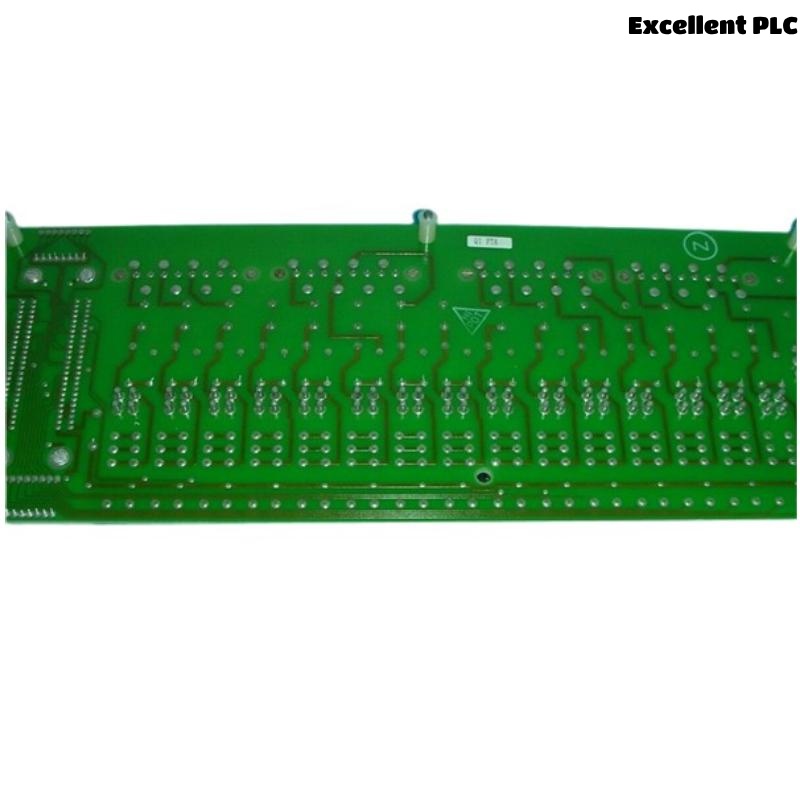

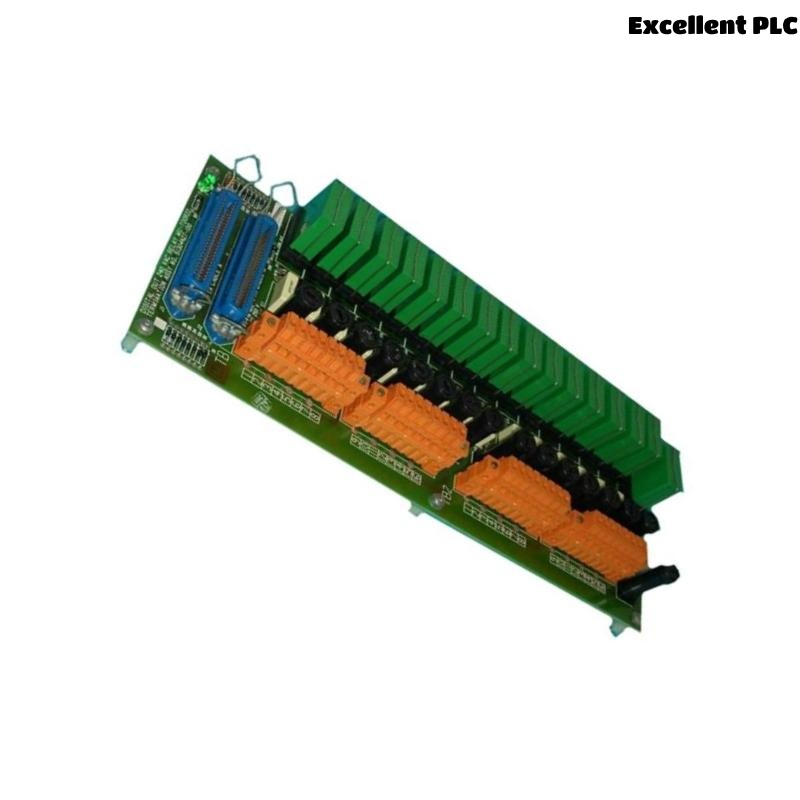

Honeywell MU-TDOR22 51304427-100 Digital Relay Output Field Termination Assembly

Product Overview

The Honeywell MU-TDOR22 51304427-100 Digital Relay Output Field Termination Assembly is designed to provide efficient and reliable termination of digital relay outputs in industrial automation and control systems. It offers secure wiring connections, signal integrity, and ease of installation, making it an essential component for managing relay outputs in various industrial applications.

Engineered for durability, this assembly ensures long-term operational reliability in demanding environments, facilitating organized wiring, simplified maintenance, and enhanced system performance.

Key Features

• Provides termination for 22 digital relay outputs

• High-quality mechanical relays ensure dependable switching

• Compact, rugged design suited for industrial environments

• Clear labeling for easy wiring and maintenance

• Compatible with Honeywell and other industrial control systems

• Simplifies field wiring and reduces installation errors

• Designed to meet industry safety and performance standards

Technical Specifications

Industry Applications

• Process Automation: Termination for process control relay outputs

• Manufacturing: Control interface for machinery and equipment

• Oil & Gas: Relay output management in safety and control systems

• Power Generation: Vibration and machinery control relay termination

• Water Treatment: Relay output for valves and pumps control

• Building Automation: Relay outputs for HVAC and security systems

Product Advantages

• Organized termination for 22 relay outputs ensures efficient wiring

• Reliable mechanical relays for consistent switching performance

• Compact form factor suitable for control panels with space constraints

• Facilitates easier installation and maintenance through clear labeling

• Durable construction designed for industrial environments

• Compatible with various Honeywell control systems and others

• Supports safe and effective relay output management

Frequently Asked Questions (FAQ)

1. How many relay outputs does the MU-TDOR22 assembly support?
   It supports termination for 22 digital relay outputs.

2. What type of relays are included?
   Mechanical relays for dependable switching.

3. What voltage ratings are supported?
   Typically 24 V DC or 120/240 V AC; confirm per system specifications.

4. What is the operating temperature range?
   From -20°C to +70°C (-4°F to +158°F).

5. How is the assembly mounted?
   Panel mount or DIN rail mounting options are available.

6. What ingress protection rating does it have?
   Usually IP20, depending on installation conditions.

7. Is it compatible with Honeywell controllers?
   Yes, designed for Honeywell and compatible industrial control systems.

8. Does it simplify field wiring?
   Yes, clear labeling and organized wiring points make installation easier.

9. Can it be used in safety-critical systems?
   It supports relay outputs for safety systems; compliance should be verified.

10. What are the physical dimensions and weight?
    Approximately 280 mm × 120 mm × 50 mm, weighing about 2.0 kg.
