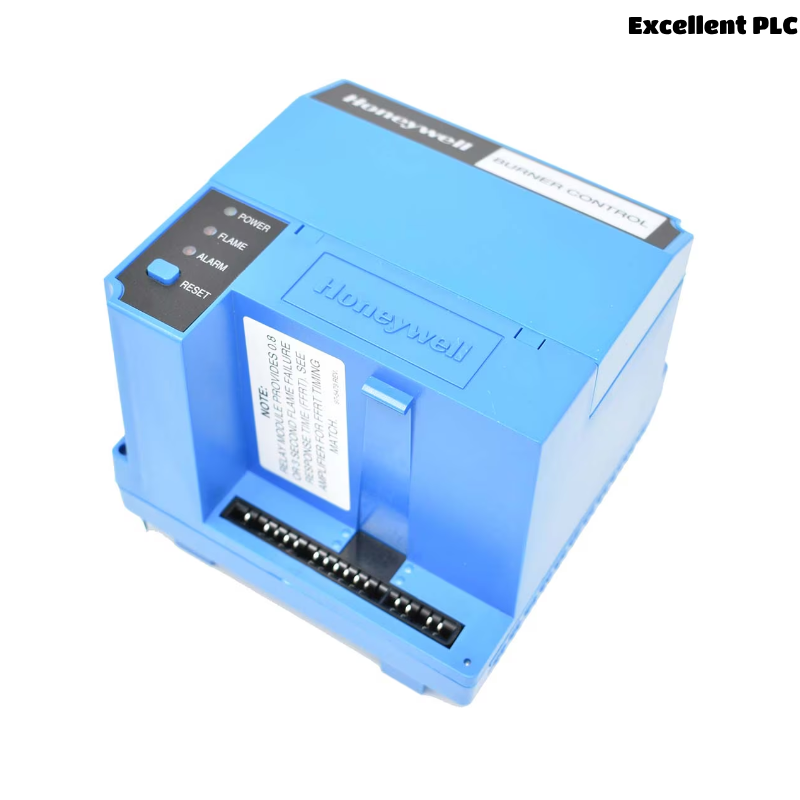

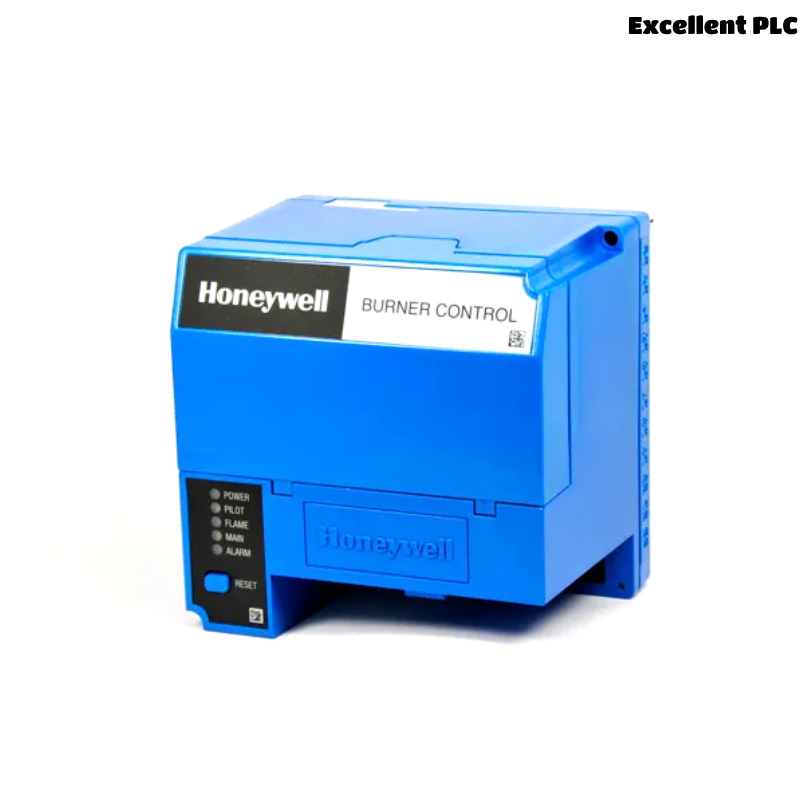

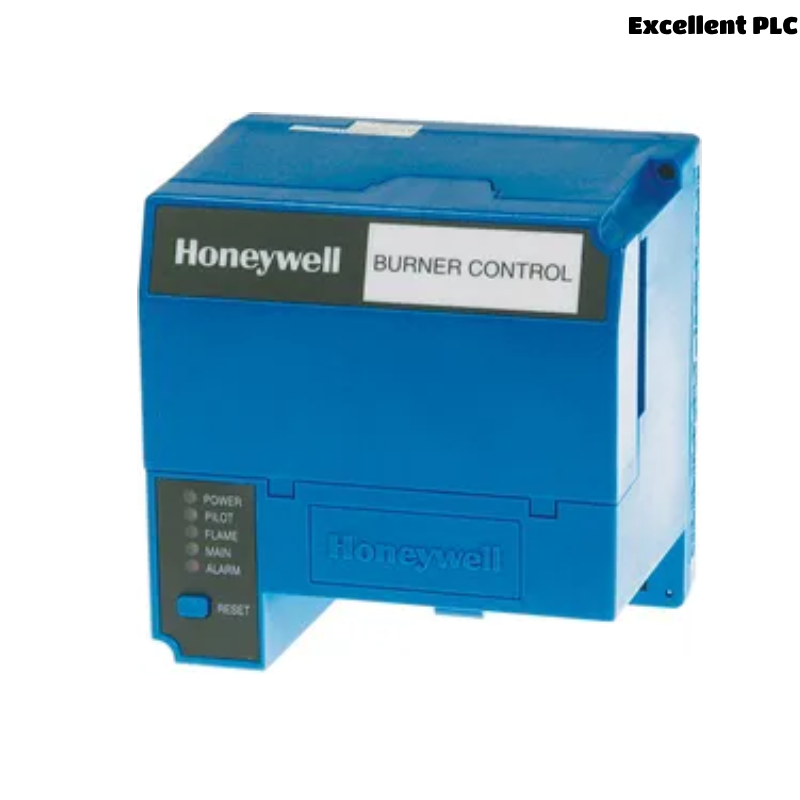

Honeywell RM7824A1006 Burner control

Company Information
E-mail		[email protected]
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

---

The Honeywell RM7824A1006 is an advanced microprocessor-based relay designed specifically for supervising and controlling gas-fired or oil-fired burner systems. As part of Honeywell’s renowned 7800 Series, it delivers high reliability, flexible programming, and robust diagnostics capabilities. Its intelligent design supports critical burner safety functions, ensuring smooth, efficient, and safe operation of industrial and commercial heating equipment.

---

Technical Specifications

---

---

Product Applications

---

The RM7824A1006 is widely used in commercial and industrial burner management systems, including large hot water boilers, process heaters, and industrial furnaces. It is ideal for installations requiring continuous flame supervision and quick lockout response. Facilities in sectors such as manufacturing, food processing, chemical production, and institutional heating rely on this module to maintain operational safety and efficiency.

---

Product Advantages

---

• Enhanced Safety: Rapid safety shutdown within seconds when flame failure is detected.

• Reliable Diagnostics: Built-in LEDs and optional display modules simplify troubleshooting and reduce downtime.

• Flexible Compatibility: Easily integrates with multiple flame amplifier types and detectors.

• Compact Design: Space-saving panel-mounted structure makes installation straightforward.

• Microprocessor-Based Control: Ensures precise operation and repeatable performance.

• Proven Durability: Engineered to operate under demanding industrial conditions with a broad ambient temperature range.

---

FAQs

---

Q1: What type of systems is RM7824A1006 typically installed in?
A1: It is mainly installed in industrial burners, commercial heating boilers, and furnaces that require continuous flame monitoring.

Q2: What makes this model different from earlier flame safeguard controls?
A2: It uses a modern microprocessor platform, offers advanced diagnostics, and supports modular upgrades.

Q3: Can it work with different flame detection technologies?
A3: Yes, it can be paired with UV, rectification, or infrared flame sensors using compatible Honeywell flame amplifiers.

Q4: How quickly does it shut down if a fault is detected?
A4: The safety shutdown occurs in 4 seconds or less, ensuring quick response to flame loss.

Q5: What is the typical service life of the RM7824A1006?
A5: While actual life depends on use, many units function reliably for over a 5 years normal operating conditions.

Q6: Is there a built-in alarm function?
A6: Yes, it features alarm indicators to quickly alert operators to system faults or lockouts.

Q7: Does it require regular maintenance?
A7: Minimal routine checks are recommended; mostly, visual inspection and cleaning of connected flame sensors.

Q8: What voltages can it operate on?
A8: It is designed to operate on 120 Vac at 50/60 Hz.

Q9: Is installation complicated?
A9: Not usually. It is designed for panel mounting and modular connection with other Honeywell components.

Q10: Can it be used outdoors?
A10: It must be installed in a protective enclosure; direct outdoor exposure is not recommended.

---
