Product Overview

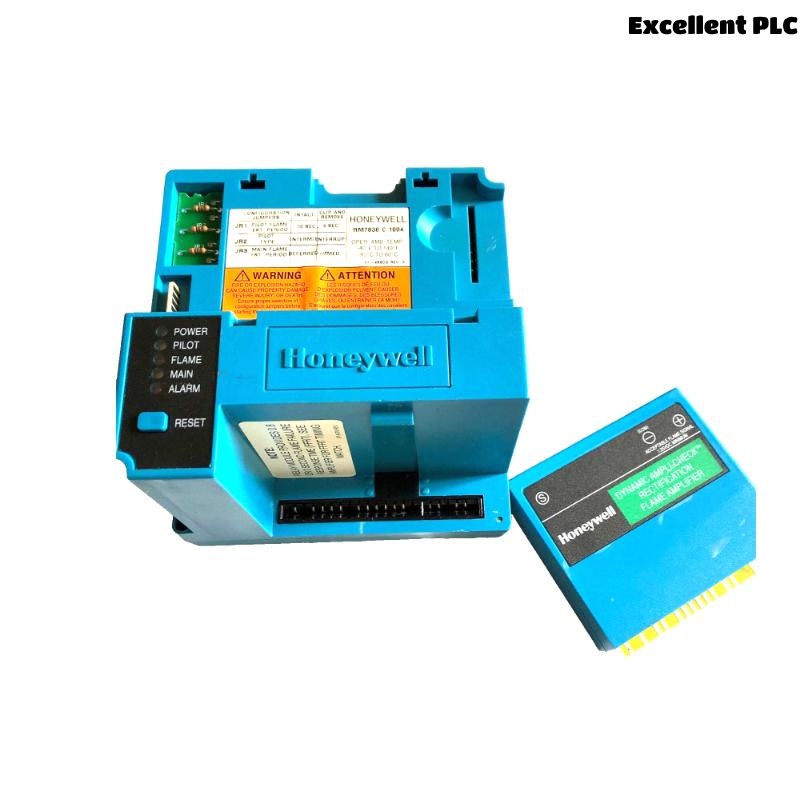

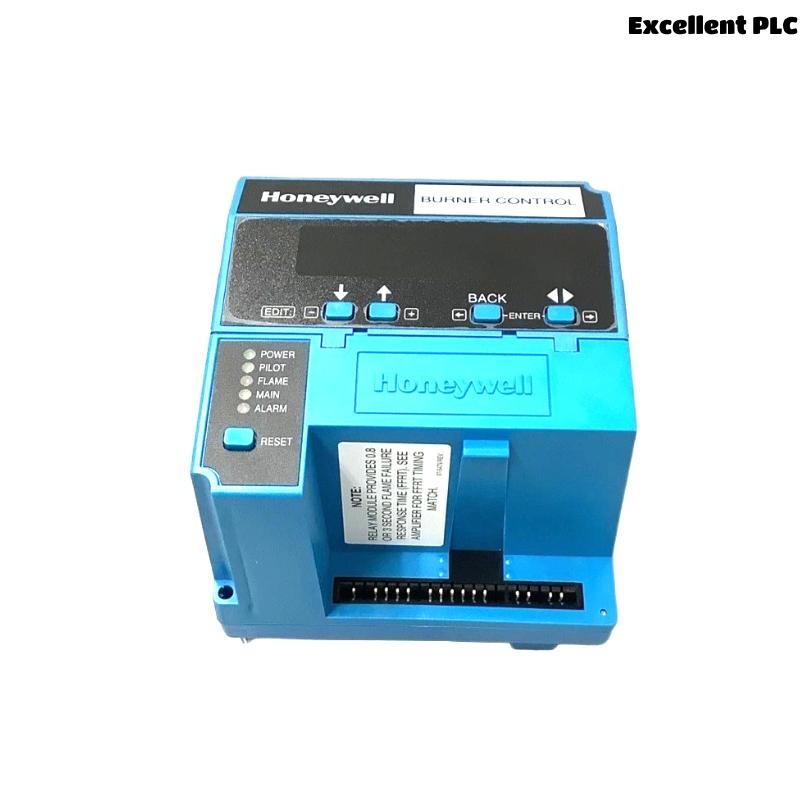

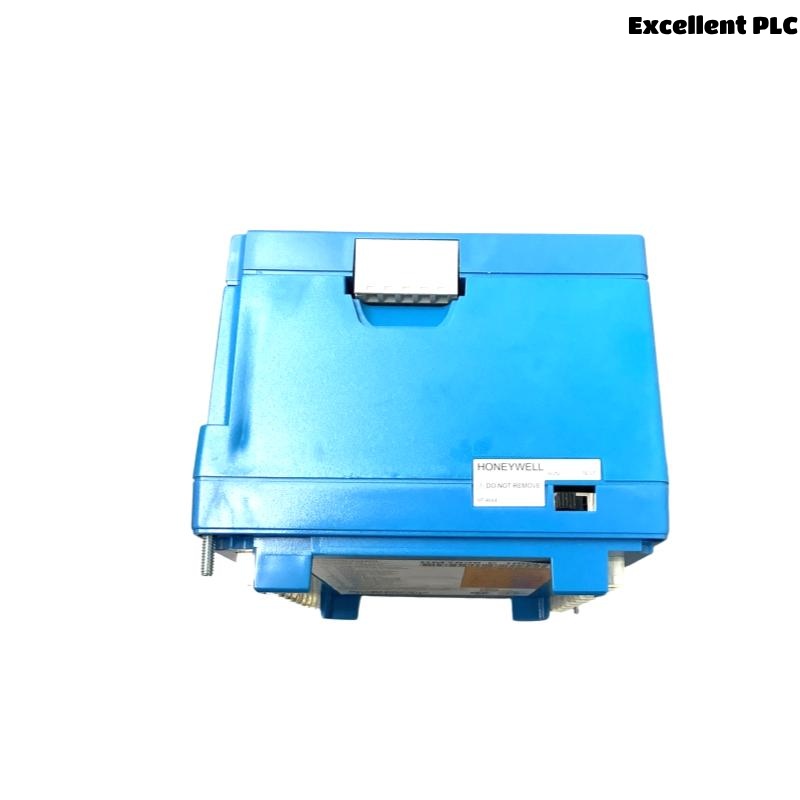

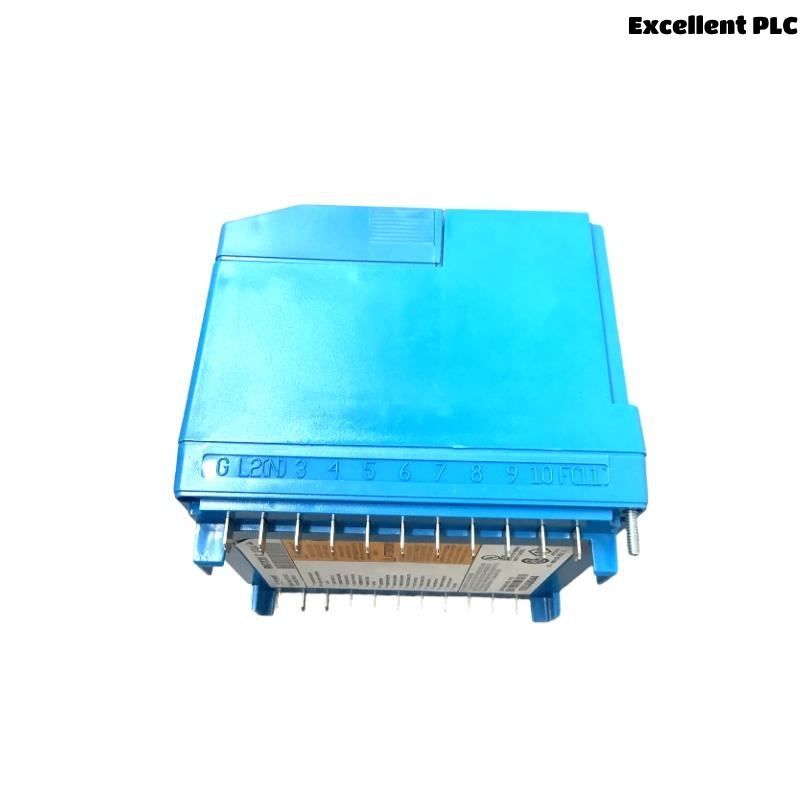

The Honeywell RM7838C1004 is a microprocessor-based, integrated burner control for industrial, semi-automatic gas, oil, coal, or combination-fuel single-burner applications. It provides reliable safety interlocks, flame supervision, purge management, and system diagnostics. This model is SIL3 capable and supports communication via Modbus.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | RM7838C1004 |
| Power Supply | 120 Vac (+10/-15%), 50/60 Hz |
| Power Consumption | Max 10 W |
| Operating Temperature | -40°C to +60°C |
| Storage Temperature | -40°C to +66°C |
| Humidity | Up to 85% RH non-condensing |
| Vibration | 0.5G |
| Flame Failure Response Time | 0.8 or 3.0 seconds (depends on amplifier) |
| Dimensions | 127 × 127 × 133 mm |
| Weight | 0.7 kg |
| Max Connected Load | 2000 VA |
| Mounting | Panel, wall, or burner via Q7800A/Q7800B |
| Compliance | UL, CSA, FM, SIL3 capable |
| Communication Options | Modbus, Data ControlBus |
| Display | Optional Keyboard Display Module (KDM) |
Applications
-
Industrial furnaces and boilers
-
Process heating systems
-
Semi-automatic single-burner installations
-
Gas, oil, coal, and combination fuel systems
Advantages
-
SIL3 capable for enhanced safety
-
Built-in diagnostics and fault history
-
Supports programmable postpurge and valve proving
-
Compact and easy to mount
-
Compatible with a wide range of flame detectors
-
Flexible communication and remote monitoring options
-
Long service life with robust microprocessor control
FAQ
Q1: What is the power supply requirement?
A1: It operates on 120 Vac (+10/-15%) at 50 or 60 Hz.
Q2: What is the response time for flame failure?
A2: 0.8 or 3.0 seconds, depending on the selected amplifier.
Q3: Can the RM7838C1004 be used in outdoor environments?
A3: Yes, within the specified temperature range and with proper enclosure.
Q4: Does it support valve proving?
A4: Yes, it supports a valve proving system when configured.
Q5: What communication protocols are available?
A5: Modbus and Data ControlBus options are available.
Q6: Is it compatible with different types of flame detectors?
A6: Yes, it supports rectification, ultraviolet, and infrared flame detectors.
Q7: Does it store fault history?
A7: Yes, it retains the six most recent fault events in non-volatile memory.
Q8: Is a display included?
A8: The KDM (Keyboard Display Module) is optional.
Q9: Can the system be remotely reset?
A9: Yes, with the optional remote reset module.
Q10: Is the RM7838C1004 certified for safety?
A10: Yes, it is UL, CSA, FM approved and SIL3 capable.
