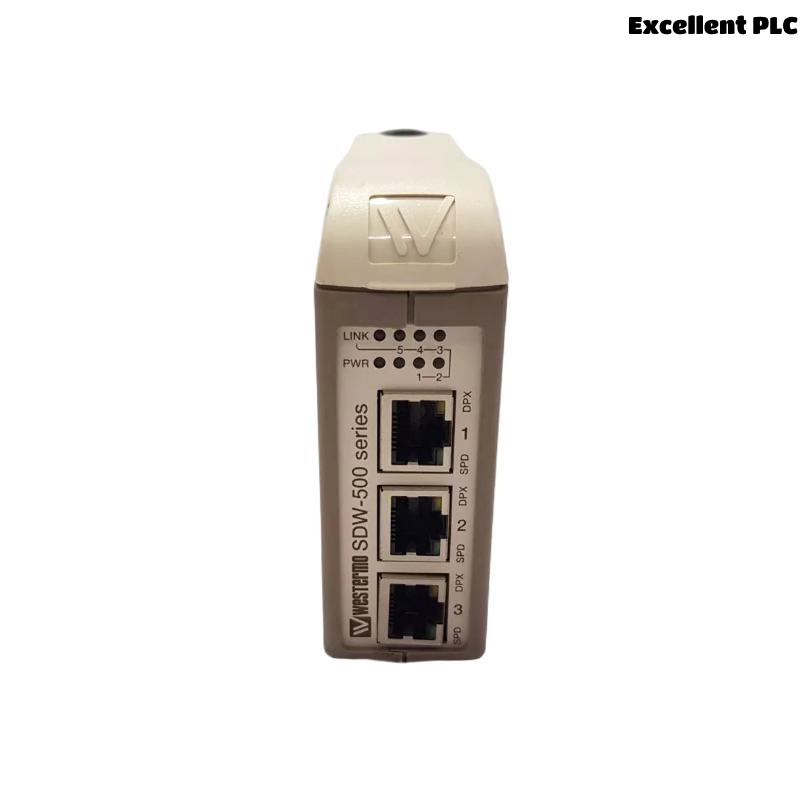

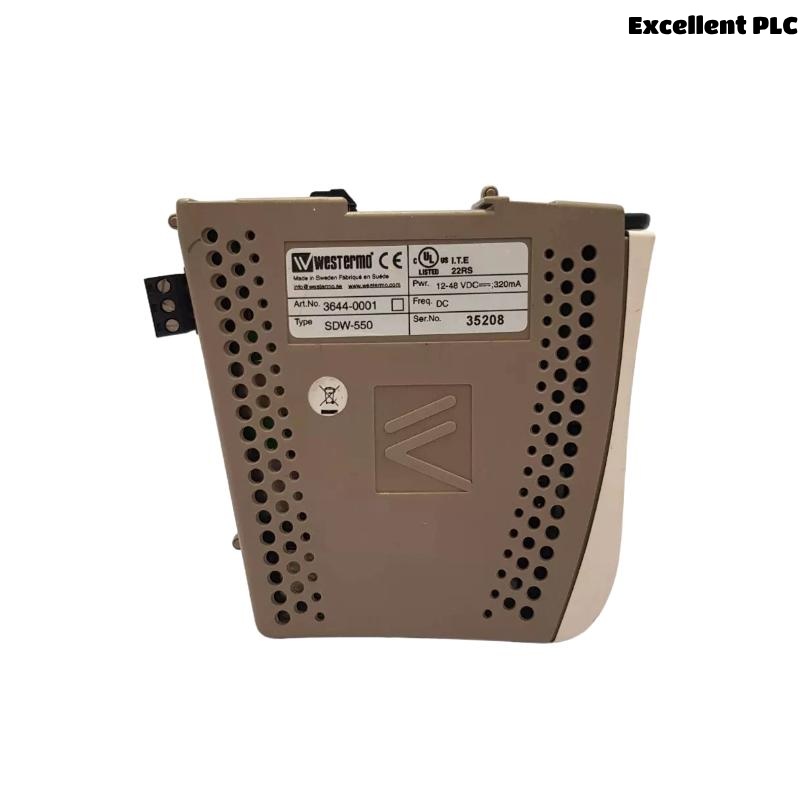

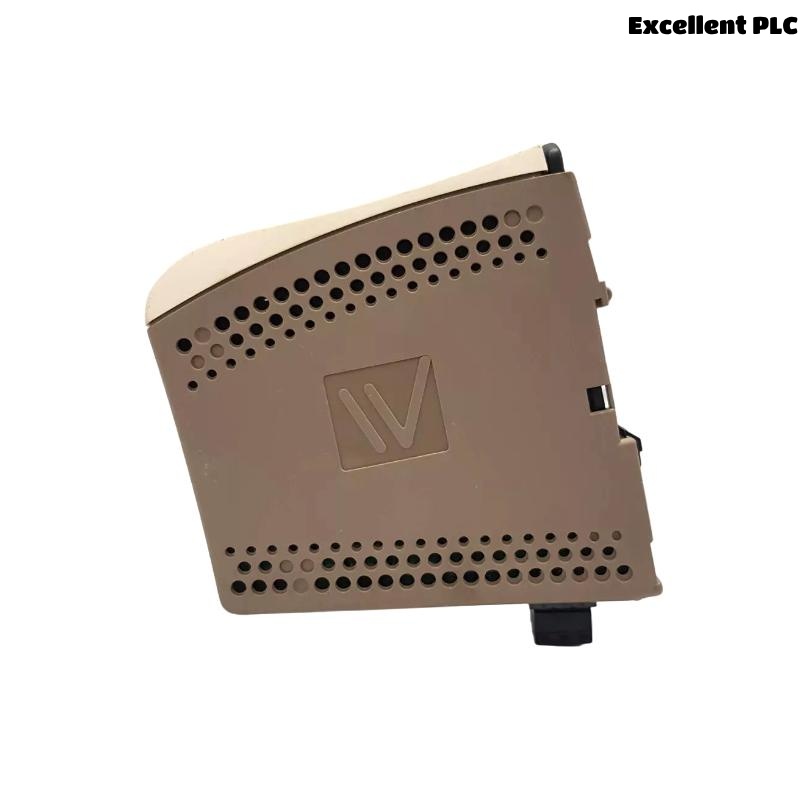

Honeywell SDW-550EC Ethernet Switch

Product Introduction

The Honeywell SDW-550EC Ethernet Switch is a high-performance, industrial-grade networking device designed to deliver reliable, secure, and fast Ethernet connectivity in demanding process automation environments. Specifically engineered for Honeywell control systems and industrial networks, this managed switch provides seamless data communication between controllers, operator workstations, I/O modules, and other networked devices.

With its rugged design, the SDW-550EC ensures consistent performance in harsh industrial conditions, including high electromagnetic interference (EMI), temperature fluctuations, and vibration. Supporting advanced network protocols, redundancy mechanisms, and high data throughput, this Ethernet switch is optimized for mission-critical applications where uptime and network reliability are essential.

Product Specifications

Product Applications

The Honeywell SDW-550EC Ethernet Switch is used in a variety of industrial automation and control applications, including:

• Process Automation Networks: Connects controllers, HMIs, and I/O devices in distributed control systems.

• Industrial Ethernet Backbones: Serves as a core network component for high-reliability communication.

• Factory and Plant Networks: Provides stable networking for PLCs, sensors, and actuators in manufacturing plants.

• Power Generation Systems: Used in power plant control and monitoring systems for high-availability networking.

• Oil, Gas, and Petrochemical Plants: Offers EMI-resistant networking in hazardous and high-noise environments.

• Redundant Network Architectures: Supports ring and mesh configurations for fault-tolerant network topologies.

Product Advantages

• Industrial-Grade Reliability: Designed for harsh environments with wide temperature tolerance and EMI protection.

• Managed Switch Capabilities: Provides network diagnostics, redundancy, and advanced configuration for critical networks.

• High Data Integrity: Ensures stable communication with low latency and high throughput for automation devices.

• Seamless Integration: Fully compatible with Honeywell DCS and SCADA systems, as well as standard Ethernet devices.

• Compact and Rugged Design: Space-saving enclosure with durable construction for industrial panel installations.

• Redundancy Support: STP/RSTP ensures network resilience, minimizing downtime during failures.

FAQ

1. How many Ethernet ports does the SDW-550EC provide?
   It provides 5 fast Ethernet ports operating at 10/100 Mbps.

2. Does the SDW-550EC support network redundancy protocols?
   Yes, it supports STP and RSTP for creating fault-tolerant network architectures.

3. What is the operating voltage range of the switch?
   It operates on 24 VDC nominal, with an acceptable range between 18–30 VDC.

4. Is the switch designed for harsh industrial environments?
   Yes, it features an industrial-grade metal enclosure, EMI protection, and –40°C to +70°C temperature tolerance.

5. What type of mounting options are available?
   The SDW-550EC supports both DIN-rail and panel mounting configurations.

6. Does the switch provide surge and ESD protection?
   Yes, all ports are equipped with integrated surge and electrostatic discharge protection.

7. Is the SDW-550EC compatible with standard Ethernet devices?
   Yes, it complies with IEEE 802.3 standards and works with standard industrial and IT networking equipment.

8. What is the typical power consumption of the switch?
   The switch consumes less than 10 W under normal operating conditions.

9. Can the SDW-550EC be used in redundant ring topologies?
   Yes, it supports STP/RSTP, which allows for redundant ring and mesh network configurations.

10. Does the switch meet industrial compliance standards?
    Yes, it meets UL, CE, FCC, RoHS, and IEC 61850 standards for industrial communication devices.
